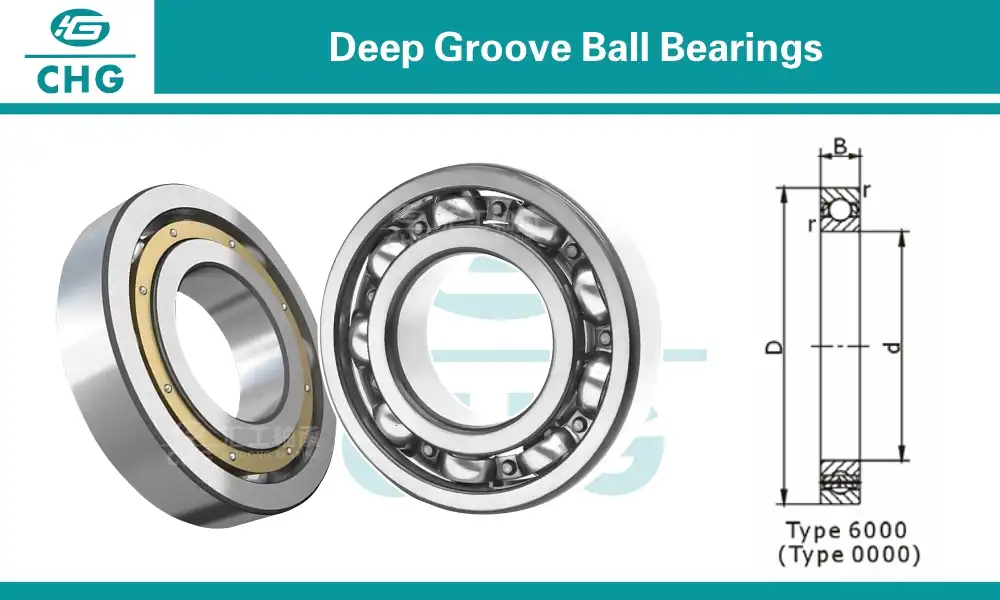

Deep Groove Ball Bearing

1. Sizes: Inner Diameter: 150-1400mm Outer Diameter: 190-1700mm Weight: 1.15-615kg
2. Feature:Deep groove ball bearings are commonly used in a number of applications as their simple structures and convenient using. They mainly carry radial loads, but also can carry combined loads as same as angular contact ball bearings when the radial clearance increases. They may carry pure axial loads when the speed is high and thrust ball bearings are not suitable. Comparing with other bearings, deep groove ball bearings have lower friction coefficient and higher limiting speed, but can not carry heavy loads.
3. Cage:Deep groove ball bearings commonly adopt ribbon steel pressed cages, and metal machined solid cages are often for large-size deep groove ball bearings.
4. Application:Deep groove ball bearings are widely used in automotives, tractors, machine tools, generators, water-pumps,agriculture machinery, textile machinery,etc.
5. Material: GCr15/GCr15SiMn/G20Cr2Ni4A
Send Inquiry Download

Deep Groove Ball Bearing: The Ultimate Guide

Welcome to our comprehensive guide on Deep Groove Ball Bearing! Regardless of whether you are the company boss, technical engineer, production manager, or Purchasing Manager, it is essential to have an understanding of the functions, benefits, and specifications of these essential components when it comes to enhancing and maintaining your equipment.

What is a Deep Groove Ball Bearing?

A rolling-element bearing with a deep groove that can handle both radial and axial loads is called a Deep Groove Ball Bearing. It has a set of balls that reduce friction between the inner and outer rings, both of which have deep, continuous grooves. This design makes it ideal for a variety of industrial applications because it rotates smoothly and effectively.

Key Features：

  • Radial and Axial Load Capability: Handles both types of loads effectively.
  • High Speed Performance: Designed for smooth and high-speed operation.
  • Versatility: Suitable for various environments and applications.

CHG Bearing: Your Trusted Deep Groove Ball Bearing Supplier

We are proud to be a leading supplier and manufacturer of this products at CHG Bearing. We are the ideal partner for all of your bearing requirements due to our commitment to quality and extensive industry experience.

Why Choose CHG Bearing?

  • Customization and Solutions: We offer tailored solutions to meet the specific needs of different working conditions.
  • Industry Experience: With over 30 years of expertise, we have collaborated with numerous large companies.
  • Innovative Technology: Our company holds more than 50 invention patents and is certified by ISO9001, ISO14001, and other industry standards.

Feel free to contact us at sale@chg-bearing.com for more information or to discuss your requirements.

Technical Specifications

Specification Details
Type Deep Groove Ball Bearing
Load Capacity High radial and axial load
Speed High-speed performance
Material High-quality steel or ceramic
Temperature Range Wide operating temperature range
Certification ISO9001, ISO14001

Deep Groove Ball Bearings and Their Benefits

Key Benefits:

  • High Precision and Reliability: Ensures consistent performance and reduces equipment failure.
  • Long Life Span: Designed to withstand harsh conditions and offer prolonged service.
  • Low Maintenance: Requires minimal upkeep, reducing downtime and costs.

Applications

The products are versatile and used across various industries, including:

  • Metallurgical Equipment: For rotating equipment like blast furnaces and rolling mills.
  • Mining Machinery: In jaw crushers, impact crushers, and vibrating screens.
  • General Industrial Equipment: In motors, pumps, and other machinery.

Installation Guide

Proper installation of the product ensure optimal performance. Follow these steps:

  1. Preparation: Clean the bearing and housing.
  2. Alignment: Ensure proper alignment between the bearing and shaft.
  3. Lubrication: Apply appropriate lubricant as specified.
  4. Assembly: Carefully assemble the bearing into the housing.
  5. Inspection: Check for proper fit and function.

Maintenance and Care

To maximize the lifespan of your Ball Bearing, adhere to the following maintenance tips:

  • Regular Inspections: Check for signs of wear or damage.
  • Lubrication: Ensure bearings are adequately lubricated.
  • Cleaning: Keep bearings and surrounding areas clean to prevent contamination.

FAQ

Q1: What are the common signs of a failing Deep Groove Ball Bearing? A1: Symptoms include unusual noise, vibration, or overheating. Regular inspections can help identify issues early.

Q2: How often should I lubricate my bearings? A2: The lubrication frequency depends on the operating conditions. Generally, check and replenish lubrication regularly.

Q3: Can the products be used in high-temperature environments? A3: Yes, but ensure you select bearings specifically designed for high-temperature applications.

Customer Reviews

Here’s what some of our customers have to say about our products:

  • John D., Production Manager: “CHG Bearings have been a game-changer for our production line. Their reliability and performance are top-notch.”
  • Lisa W., Technical Engineer: “The customization options and quick delivery from CHG have made our project development much smoother.”

Contact Us

Ready to enhance your equipment with high-quality Deep Groove Ball Bearing? Contact us today to discuss your needs or request a quote.We look forward to assisting you with all your bearing needs!

Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
150 190 20 1.1 49.1 58.5 61830 1000830 1.15 156.6 183.5 1 3000 3600
210 28 2 85 90.5 61930M 1000930H 2.59 159 201 2 2800 3400
225 24 1.1 91.9 98.5 16030 7000130 3.62 156.5 218.5 1 2600 3000
225 35 2.1 132 125 6030 130 4.24 161 214 2 2600 3000
270 45 3 203 199 6230 230 10 163 257 2.5 1900 2500
320 65 4 288 295 6330 330 22.7 166 304 3 1800 2300
160 200 20 1.1 48.5 61 61832 1000832 1.23 166.5 193.5 1 2800 3400
220 28 2 87 96 61932M 1000932H 2.71 169 211 2 2600 3200
240 25 1.5 99 108 16032 7000132 4.2 168 232 1.5 2400 3000
240 38 2.1 145 138 6032 132 5.15 171 229 2 2400 3000
290 48 3 215 218 6232M 232H 14.5 173 277 2.5 1900 2400
340 68 4 313 340 6332 332 29 176 324 3 1800 2200
170 215 22 1.1 61.5 78 61834 1000834 1.9 176.5 208.5 1 2600 3200
230 28 2 88.8 100 61934 1000934 2.85 179 221 2 2400 3000
260 28 1.5 118 130 16034 7000134 5.71 178 252 1.5 2200 2800
260 42 2.1 170 170 6034 134 6.89 181 249 2 2200 2800
310 52 4 245 260 6234 234 15.8 186 294 3 1900 2400
360 72 4 335 378 6334 334 36.6 286 344 3 1700 2000
180 225 22 1.1 62.3 78.5 61836 1000836 1.72 186.5 218.5 1 2400 3000
250 33 2 119 133 61936M 1000936H 4.16 189 241 2 2200 2800
260 34 2 140 147 61936X3 736 6.1       2100 2700
280 31 2 145 157 16036 7000136 7.5 189 271 2 2000 2600
280 46 2.1 188 198 6036 136 8.88 191 269 2 2000 2600
320 52 4 262 285 6236 236 15.9 196 304 3 1800 2200
380 75 4 355 405 6336 336 43.1 196 364 2 1600 2000



Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
190 240 24 1.5 75.1 93.5 61838M 1000838H 2.53 198 232 1.5 2200 2800
260 33 2 117 133 61938M 1000938H 5.18 199 251 2 2200 2800
290 31 2 149 168 16038 7000138 7.78 199 281 2 2000 2600
290 46 2.1 188 201 6038 138K1 9.39 201 279 2 2000 2600
340 55 4 285 322 6238 238 22.3 206 324 3 1700 2000
400 78 5 355 415 6338 338 49.7 210 380 4 1600 1900
200 250 24 1.5 74 98 61840M 1000840H 2.67 208 242 1.5 2200 2800
280 38 2.1 149 168 61940M 1000940H 7.28 211 269 2 2000 2600
310 34 2 167 191 16040 7000140 10 209 301 2 1900 2400
310 51 2.1 207 226 6040 140 12 211 299 2 1900 2400
360 58 4 288 332 6240 240 26.7 216 344 3 1700 2000
420 80 5 380 445 6340 340 55.3 220 400 4 1500 1800
220 270 24 1.5 76.5 97.8 61844M 1000844H 2.9 228 262 1.5 1900 2400
300 38 2.1 152 178 61944 1000944 7.88 231 289 2 1900 2400
340 37 2.1 180 217 16044 7000144 13.1 231 329 2 1800 2200
340 56 3 252 268 6044 144 18.6 233 327 2.5 1800 2200
400 65 4 355 365 6244 244 37.4 236 384 3 1500 1800
460 88 5 410 520 6344 344 73.9 240 440 4 1300 1600
240 300 28 2 83.5 108 61848 1000848 4.48 249 291 2 1800 2200
320 38 2.1 154 190 61948M 1000948H 8.49 251 309 2 1800 2200
360 37 2.1 196 243 16048 7000148 13.9 251 349 2 1700 2000
360 56 3 270 292 6048 148 19.9 253 347 2.5 1700 2000
440 72 4 358 467 6248 248 50.5 256 424 3 1300 1600
500 95 5 470 625 6348 348 94.4 260 480 4 1100 1400



Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
260 320 28 2 101 148 61852M 1000852H 4.84 269 311 2 1700 2000
360 46 2.1 210 268 61952M 1000952H 14 271 349 2 1600 1900
400 44 3 237 310 16052 7000152 21.1 273 387 2.5 1500 1800
400 65 4 291 375 6052M 152H 29.4 276 384 3 1500 1800
480 80 5 400 540 6252 252 67 280 460 4 1100 1400
540 102 6 505 710 6352 352 118 284 516 5 1000 1300
280 350 33 2 133 191 61856 1000856 7.2 289 341 2 1600 1900
380 46 2.1 209 272 61956M 1000956H 15.1 291 369 2 1500 1800
420 44 3 243 330 16056 7000156 22.7 293 407 2.5 1400 1700
420 65 4 300 410 6056 156 31.2 296 404 3 1400 1700
500 80 5 400 550 6256 256 70.4 300 480 4 1100 1400
580 108 6 570 840 6356 356 144 304 556 5 950 1200
300 360 25 2 105 166 60860X1 760 5.05       1500 1800
380 38 2.1 166 233 61860 1000860 10.3 311 369 2 1400 1700
420 56 3 269 370 61960M 1000960H 23.9 313 407 2.5 1300 1600
460 50 4 285 405 16060 7000160 31.5 316 447 3 1200 1500
460 74 4 355 500 6060 160 44.2 316 447 3 1200 1500
540 85 5 465 670 6260 260 87.8 320 520 4 1000 1300
620 109 7.5 593 886 6360 320 169 332 588 6 800 1000
320 400 38 2.1 168 244 61864 1000864 10.8 331 389 2 1300 1600
440 56 3 275 392 61964 1000964 25.3 333 427 2.5 1200 1500
480 50 4 293 430 16064 7000164 33.2 336 464 3 1100 1400
480 74 4 390 570 6064 164 46.5 336 464 3 1100 1400
580 92 5 530 805 6264 264 111 340 560 4 950 1200



Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
340 420 38 2.1 175 265 61868 1000868 11.5 351 409 2 1200 1500
460 56 3 292 418 61968 1000968 26.6 353 447 2.5 1100 1400
520 57 4 345 520 16068 7000168 45 356 507 3 1000 1300
520 82 5 440 660 6068 168 62.3 360 500 4 1000 1300
620 92 6 530 820 6268 268 129 364 596 5 900 1100
360 440 38 2.1 192 290 61872 1000872 11.8 371 429 2 1100 1400
480 56 3 280 425 61972 1000972 27.9 373 467 2.5 1100 1400
540 57 4 351 550 16072 7000172 49 376 527 3 1000 1300
540 82 5 460 720 6072 172 65.3 380 520 4 1000 1300
550 85 5 460 720 61072X3 872 72.6 380 530 4 1000 1300
650 95 6 555 905 6272 272 145 384 626 4 750 950
380 480 46 2.1 238 375 61876 1000876 19.5 391 469 2 1000 1300
520 44 3 256 390 16976 7000976 30.5       1000 1300
520 65 4 325 510 61976 1000976 40 396 504 3 1000 1300
560 57 4 377 620 16076 7000176 51       950 1200
560 82 5 455 725 6076 176 68 404 656 5 950 1200
400 500 46 2.1 241 390 61880 1000880 20.5 411 489 2 1000 1300
540 65 4 335 540 61980 1000980 42 416 524 3 950 1200
600 90 5 510 825 6080 180 88.4 420 580 4 900 1100
420 520 46 2.1 245 410 61884 1000884 21.4 431 509 2 950 1200
560 65 4 340 570 61984 1000984 43.6 436 544 3 900 1100
620 90 5 530 895 6084 184 92.2 440 600 4 900 1100
440 540 46 2.1 249 425 61888 1000888 22.3 451 529 2 900 1100
600 74 4 395 680 61988F3 1000988 60.2 456 584 3 900 1100
650 94 6 550 965 6088 188 106 460 630 4 850 1000



Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
460 580 56 3 310 550 61892 1000892 34.3 473 567 2.5 900 1100
620 74 4 405 720 61992 1000992 62.6 476 604 3 850 1000
680 100 6 605 1080 6092 192 123 480 660 4 800 950
480 600 56 3 315 575 61896 1000896 35.4 493 587 2.5 850 1000
650 78 5 450 815 61996 1000996 73.5 500 630 4 800 950
700 100 6 605 1090 6096 196 127 500 680 4 750 900
500 620 56 3 320 600 618/500 10008/500 37.2 513 607 2.5 800 950
670 78 5 460 865 619/500 10009/500 82 520 650 4 750 900
720 100 6 630 1170 60/500 1/500 131 524 696 5 750 900
530 650 56 3 325 625 618/530 10008/530 39.8 543 637 2.5 750 900
710 82 5 455 870 619/530 10009/530 89.8 550 690 4 750 900
780 112 6 680 1300 60/530 1/530 184 554 756 5 700 850
560 680 56 3 330 650 618/560 10008/560 41.5 573 667 2.5 700 850
750 85 5 525 1040 619/560 10009/560 105 580 730 4 670 800
600 730 60 3 355 735 618/600 10008/600 50.9 613 717 2.5 670 800
800 90 5 550 1160 619/600 10009/600 120 620 780 4 630 750
870 118 6 790 1640 60/600 1/600 236 624 846 5 600 700
630 780 69 4 420 890 618/630 10008/630 71.3 646 767 3 630 750
850 100 6 625 1350 619/630 10009/630 163 654 826 5 600 700
920 128 7.5 750 1620 60/630N1 1/630K 285 662 888 6 560 670
670 820 69 4 435 965 618/670 10008/670 75.4 686 807 3 560 670
900 103 6 675 1460 619/670 10009/670 181 694 876 5 530 630
980 136 7.5 765 1730 60/670 1/670 351 702 948 6 500 600
710 870 74 4 480 1100 618/710 10008/710 92.6 726 854 3 530 630
950 106 6 715 1640 619/710 10009/710 220 734 926 5 500 600
1030 140 7.5 1020 2310 60/710 1/710 386 742 998 6 480 560
Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
D D B rmin Cr Cor damin Damax ramax Grease Oil
750 920 78 5 525 1260 618/750 10008/750 110 770 900 4 500 600
1000 112 6 785 1840 619/750 10009/750 245 774 976 5 480 560
1090 150 7.5 995 2360 60/750 1/750 485 782 1058 6 450 530
800 980 82 5 530 1310 618/800 10008/800 132 820 960 4 450 530
1060 115 6 825 2050 619/800 10009/800 275 824 1036 5 430 500
850 1150 110 10 1270 3860 618/850X3 3707/850 140 904 1096 10 430 500
900 1090 85 5 618 1532 618/900 10008/900 160 920 1070 4 380 450
1000 1220 100 6 637 1250 618/1000 10008/1000 245 1024 1196 5 340 400
1060 1280 100 6 728 1500 618/1060 10008/1060 260 1084 1256 5 300 360
1120 1360 106 6 765 1960 618/1120 10008/1120 315 1144 1336 5 - -
1140 1380 106 6 858 2390 618/1140 10008/1140 324       - -
1180 1420 106 6 792 2210 618/1180 10008/1180 342 1204 1396 5 260 320
1250 1500 112 3 927 2670 618/1250 10008/1250 178 1274 1476 5
1320 1600 122 6 956 2350 618/1320 10008/1320 500 1344 1576 5 190 240
1400 1700 132 7.5 1120 2750 618/1400 10008/1400 615 1432 1688 6 190 240
Online Message
Learn about our latest products and discounts through SMS or email
