Cylindrical Roller Bearing Inch Series

1. Features: The single-row cylindrical roller bearing is one separable type bearing.
Generally, a single-row cylindrical roller ring consists of four major components as follows:
inner ring, outer ring, rollers, and cage.
2. Series Type: NU, NJ, N, NF series cylindrical roller bearing.
3. Advantages:The single-row cylindrical roller bearing is one separable type bearing. Generally, a single-row cylindrical roller ring consists of four major components as follows: inner ring, outer ring, rollers, and cage. The rollers are typically guided by two ribs of bearing ring .
This kind of bearing is easy to assemble,disassemble and applicable for high-speed rotation cases. So, compared with a normal radial ball bearing with same size, the cylindrical roller bearing is more suitable to the condition which require to bear higher radial load and higher impact resistance.
Normally,it is not used to bear an axial load. It is required the angle between the axes of its inner and outer rings is slight, generally less than 4'. Profiling of the rollers and the raceway generatrix can reduce the inclination requirement somewhat.

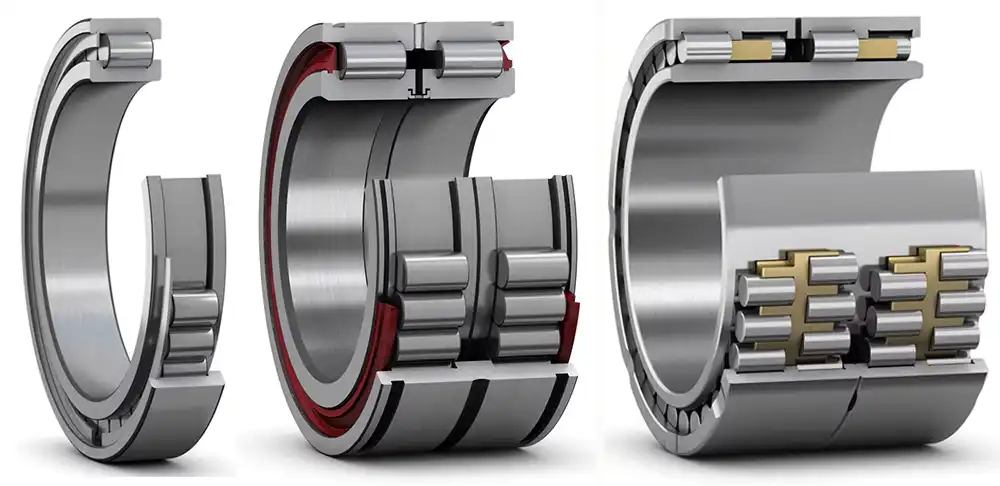

We manufacture single row cylindrical roller bearings are available in several designs. The main difference is the configuration of the flanges. The most popular designs are N design bearing,NU design bearing ,NJ design bearing,NUP design bearing.
4. Size range: Inter diameter:120-1320mm
5. Material: GCr15/GCr15SiMn/G20Cr2Ni4A
Send Inquiry Download

The Cylindrical Roller Bearing Inch Series is a type of bearing designed for high-load applications where space is limited. These bearings are characterized by their cylindrical rollers, which offer a higher radial load capacity compared to other types of bearings. Unlike ball bearings, which use balls to reduce friction, cylindrical roller bearings have rollers that make contact with the raceways, providing greater load support and stability.

Why Choose CHG Bearing for Your Cylindrical Roller Bearing Inch Series Needs?

At CHG Bearing, we pride ourselves on being a leading manufacturer and supplier of the Cylindrical Roller Bearing Inch Series. Here’s why you should consider us for your bearing needs:

  1. Customization and Solutions: We offer tailored solutions to meet the unique demands of different working conditions. Whether you need specific dimensions, materials, or lubrication methods, our team can customize bearings to suit your requirements.

  2. Experience and Expertise: With over 30 years in the industry, we have extensive experience working with large companies across various sectors. Our expertise ensures that we provide reliable and high-quality bearings.

  3. Innovative Technology: We hold more than 50 invention patents and adhere to international standards, having passed ISO9001 quality management and ISO14001 environmental management system certifications.

For more information or to request a quote, please contact us at sale@chg-bearing.com.

Technical Specifications

Specification Details
Type Cylindrical Roller Bearing Inch Series
Dimensions Available in various inch sizes
Material High-quality steel or custom materials
Load Capacity High radial load capacity
Operating Temperature Suitable for high and low temperatures
Lubrication Customizable lubrication methods
Certifications ISO9001, ISO14001

Cylindrical Roller Bearing Inch Series and Its Benefits

The product is known for its several key benefits:

  • High Load Capacity: Designed to handle large radial loads, these bearings are ideal for heavy-duty applications.
  • Enhanced Stability: The cylindrical rollers provide greater contact area, resulting in improved load distribution and stability.
  • Durability: Built to withstand harsh environments, these bearings offer long-term reliability and reduced maintenance needs.
  • Customization: Ability to tailor bearings to specific needs, ensuring optimal performance in diverse conditions.

Applications

Cylindrical Roller Bearing Inch Series are used extensively in various industries, including:

  • Metallurgical Industry: Supports large rotating equipment such as blast furnaces and rolling mills.
  • Mining Machinery: Ideal for crushers, screens, and feeders due to their load-bearing capacity.
  • General Machinery: Used in industrial equipment and production machinery for reliable operation.

Installation Guide

  1. Preparation: Ensure the shaft and housing are clean and free from debris.
  2. Alignment: Properly align the bearing to avoid misalignment, which can lead to premature wear.
  3. Pressing: Use a suitable press tool to install the bearing onto the shaft and into the housing.
  4. Lubrication: Apply the recommended lubricant to the bearing to ensure smooth operation.
  5. Inspection: Check for proper fit and rotation before putting the equipment into service.

Maintenance and Care

To ensure the longevity and performance of your Cylindrical Roller Bearings:

  • Regular Inspections: Check for signs of wear, such as noise or vibration.
  • Proper Lubrication: Maintain adequate lubrication to prevent friction and wear.
  • Clean Environment: Keep the bearing area clean to avoid contamination.
  • Timely Replacement: Replace bearings when signs of excessive wear are detected to prevent equipment damage.

FAQ

Q: What is the advantage of cylindrical roller bearings over ball bearings?
A: Cylindrical roller bearings have a higher load capacity and can support heavier radial loads compared to ball bearings, making them suitable for more demanding applications.

Q: Can cylindrical roller bearings be customized?
A: Yes, at CHG Bearing, we offer customization options to meet specific needs, including size, material, and lubrication methods.

Q: How often should I replace cylindrical roller bearings?
A: The replacement frequency depends on the operating conditions and maintenance practices. Regular inspections can help determine the optimal replacement time.

Customer Reviews

“CHG Bearing’s Cylindrical Roller Bearings have significantly improved the performance of our production equipment. Their custom solutions and quick delivery have been invaluable to our operations.” – James P., Purchasing Manager

“The high quality and durability of these bearings have exceeded our expectations. CHG Bearing’s customer service and technical support are top-notch.” – Maria L., Technical Engineer

Contact Us

For more details or to discuss your specific requirements, please reach out to us:

Explore the precision and reliability of the Cylindrical Roller Bearing Inch Series with CHG Bearing. Your equipment deserves the best – let us help you achieve optimal performance.
