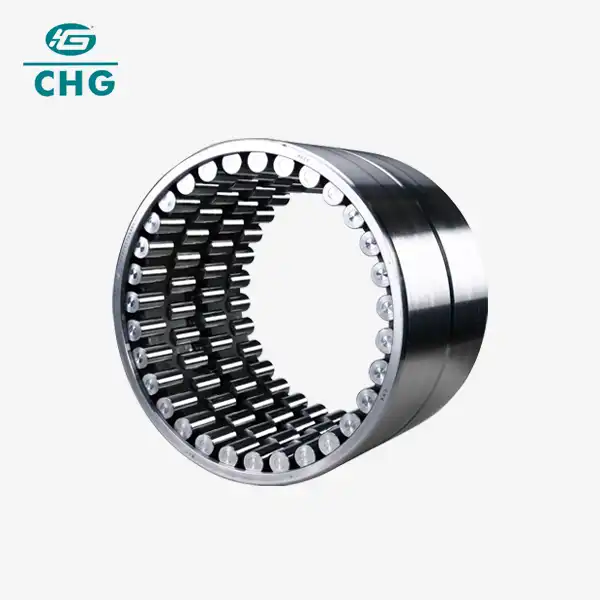

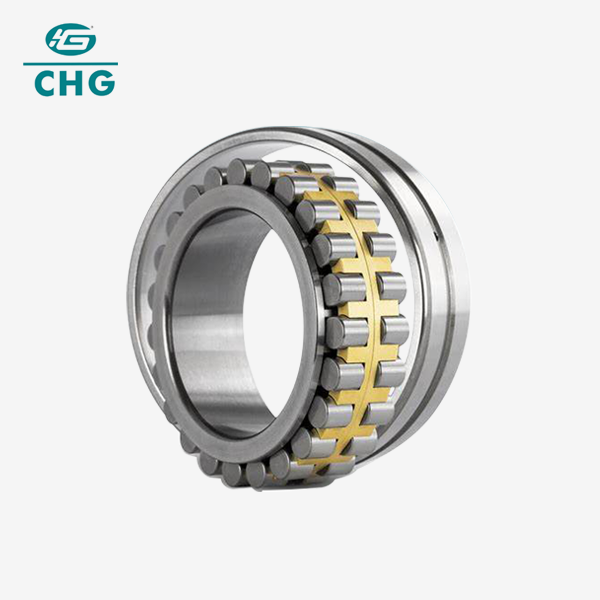

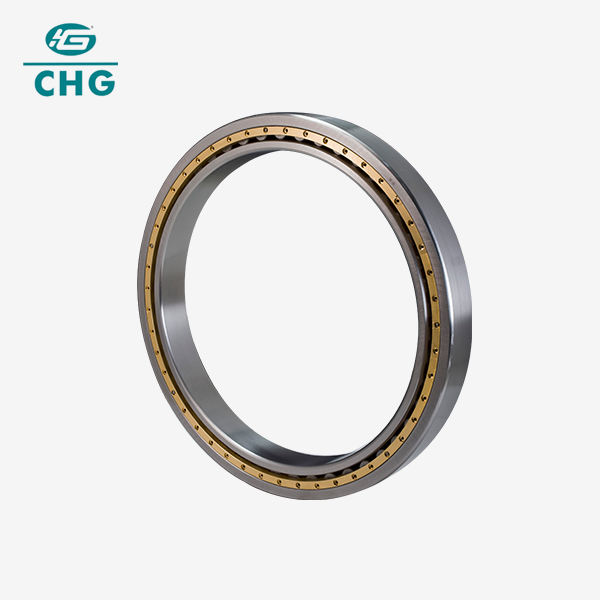

Cylindrical Roller Bearings
Generally, a single-row cylindrical roller ring consists of four major components as follows:
inner ring, outer ring, rollers, and cage.
2. Series Type: NU, NJ, N, NF series cylindrical roller bearing.
3. Advantages:The single-row cylindrical roller bearing is one separable type bearing. Generally, a single-row cylindrical roller ring consists of four major components as follows: inner ring, outer ring, rollers, and cage. The rollers are typically guided by two ribs of bearing ring .
This kind of bearing is easy to assemble,disassemble and applicable for high-speed rotation cases. So, compared with a normal radial ball bearing with same size, the cylindrical roller bearing is more suitable to the condition which require to bear higher radial load and higher impact resistance.
Normally,it is not used to bear an axial load. It is required the angle between the axes of its inner and outer rings is slight, generally less than 4'. Profiling of the rollers and the raceway generatrix can reduce the inclination requirement somewhat.
We manufacture single row cylindrical roller bearings are available in several designs. The main difference is the configuration of the flanges. The most popular designs are N design bearing,NU design bearing ,NJ design bearing,NUP design bearing.
4. Size range: Inter diameter:120-1320mm
5. Material: GCr15/GCr15SiMn/G20Cr2Ni4A
Cylindrical Roller Bearings are essential components in many industrial applications, particularly in the metallurgical and mining industries. These bearings are designed to support heavy radial loads and operate efficiently in high-speed environments. With their cylindrical-shaped rollers, they provide a greater contact area between the rolling elements and the raceway, ensuring smooth operation and enhanced load-carrying capacity. The products are widely used in large rotating equipment such as blast furnaces, rolling mills, jaw crushers, and vibrating screens, where reliability and performance are critical.

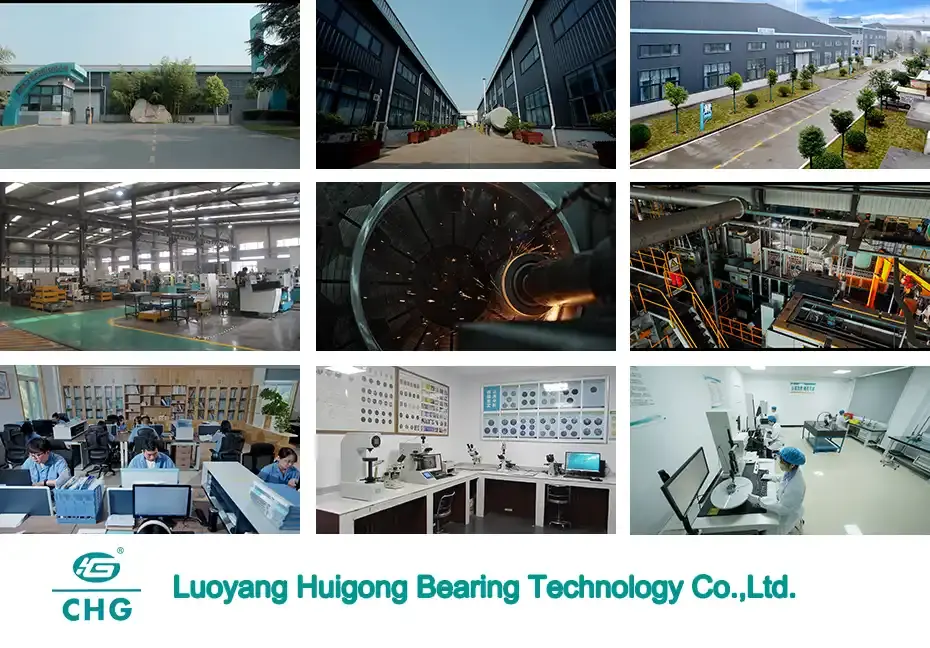

CHG Bearing: Your Trusted Cylindrical Roller Bearings Manufacturer
At CHG Bearing, we value being a main producer and provider of the product. With north of 30 years of industry experience, we have secured ourselves as a dependable accomplice to many huge organizations in the metallurgical and mining areas. Our obligation to quality and advancement is reflected in our more than 50 creation licenses and confirmations, including ISO9001 for quality administration and ISO14001 for natural administration.
Why Choose CHG Bearing?
-

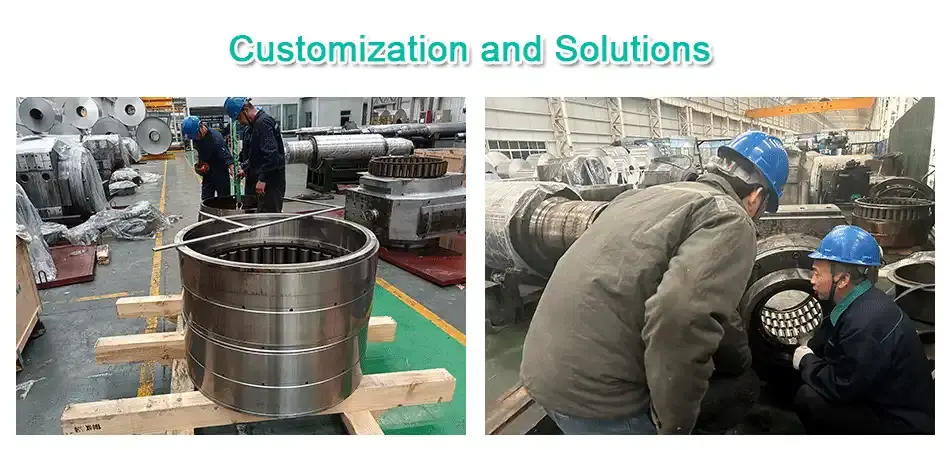

Customization and Solutions: We offer tailored bearing solutions to meet the specific needs of your equipment and working conditions. Whether you require unique sizes, materials, or lubrication methods, CHG Bearing can deliver.
-
Industry Experience: With three decades of experience, we have the expertise to provide high-precision bearings that ensure the stable operation of your equipment.
-
Certifications and Patents: Our company holds over 50 invention patents and is certified by ISO9001 and ISO14001, ensuring you receive top-quality products.
Technical Specifications
| Specification | Details |
|---|---|
| Bearing Type | Cylindrical Roller Bearings |
| Outer Diameter | 50mm - 500mm |
| Inner Diameter | 25mm - 300mm |
| Load Capacity | Up to 1000 kN |
| Material | High-quality steel, customizable options |
| Lubrication | Grease or oil, depending on application |
| Operating Temperature | -30°C to +200°C |
| Certification | ISO9001, ISO14001 |
Benefits of Cylindrical Roller Bearings
Cylindrical Roller Bearings offer various benefits that settle on them a favored decision for modern applications:
- High Load Capacity: These bearings are designed to handle heavy radial loads, making them ideal for use in large rotating machinery.
- Enhanced Durability: Constructed with high-quality materials, they offer long life and excellent wear resistance, even in harsh conditions.
- Versatility: Available in various sizes and configurations, they can be customized to fit different equipment requirements.
- Smooth Operation: The design ensures minimal friction and smooth operation, reducing energy consumption and wear on the machinery.
Applications of Cylindrical Roller Bearings
The products are widely used in industries that demand robust and reliable performance, such as:
- Metallurgical Industry: In equipment like blast furnaces and rolling mills.
- Mining Machinery: Used in jaw crushers, impact crushers, vibrating screens, and feeders.
- Heavy-Duty Manufacturing: Essential in machinery where high precision and load capacity are critical.
Installation Guide
Legitimate establishment is significant to guarantee the ideal presentation and life span of the products. Follow these means:
- Preparation: Clean the bearing housing and shaft thoroughly to remove any debris or contaminants.
- Alignment: Ensure that the bearing is correctly aligned with the shaft. Misalignment can cause premature wear.
- Press Fit: Use a press or mallet to fit the bearing onto the shaft. Avoid excessive force to prevent damage.
- Lubrication: Apply the appropriate lubricant (grease or oil) to the bearing before operation.
- Testing: After installation, run the equipment at low speed to check for any unusual noise or vibration.
Maintenance and Care
Regular maintenance of the product is essential for extending their lifespan and ensuring continuous operation:
- Routine Inspection: Regularly check for signs of wear, misalignment, or lubrication issues.
- Lubrication: Reapply lubricant at recommended intervals to prevent friction and wear.
- Replacement: Replace bearings that show significant wear or damage to prevent equipment failure.
FAQ
Q1: How do I choose the right Cylindrical Roller Bearing for my equipment?
Choosing the right bearing depends on factors such as load capacity, operating speed, and environmental conditions. CHG Bearing offers expert consultation to help you select the best option for your specific needs.
Q2: What are the benefits of customized bearings?
Customized bearings are tailored to meet the unique requirements of your equipment, ensuring optimal performance and longevity.
Q3: How can I ensure the longevity of my bearings?
Regular maintenance, proper lubrication, and correct installation are key to maximizing the lifespan of your bearings.
Customer Reviews
"Our experience with CHG Bearing has been outstanding. Their the product have proven to be reliable and durable in our heavy-duty machinery. The customization options allowed us to get exactly what we needed." - John D., Technical Engineer
"CHG Bearing's quick response and fast delivery have been crucial in keeping our production on track. The quality of their bearings is top-notch." - Michael S., Production Manager
Contact Us
For more information or to request a quote, please contact us at sale@chg-bearing.com. We look forward to providing you with high-quality Cylindrical Roller Bearings and exceptional service.
