Four Row Cylindrical Roller Bearing

1. Size range:
Internal diameter:90-1400mm
2. Type: FC series cylindrical roller bearing
FCD series cylindrical roller bearing
FCDP series cylindrical roller bearing
3. Application:
Four row cylindrical roller bearings are especially applied to rolling mills required high speed and precision, for example, wire mills, bar and shape mills, cold or hot sheet mills and cogging mills.
4. Material： GCr15/GCr15SiMn/G20Cr2Ni4A
5. Cage：Brass solid cages or pin-type cages are mainly used in four row cylindrical roller bearings.
6. Feature:
Four row cylindrical roller bearings are the one of the main bearings for rolling mills. They are compact structures and high stiffness, and can carry high radial loads but not axial load. Because of inner rings with no rids, inner and outer ring subassembly ( with full set of rollers and cage) can be mounted respectively. Cleaning inspecting and dismounting are very convenient.

Send Inquiry CATALOGUE DOWNLOAD

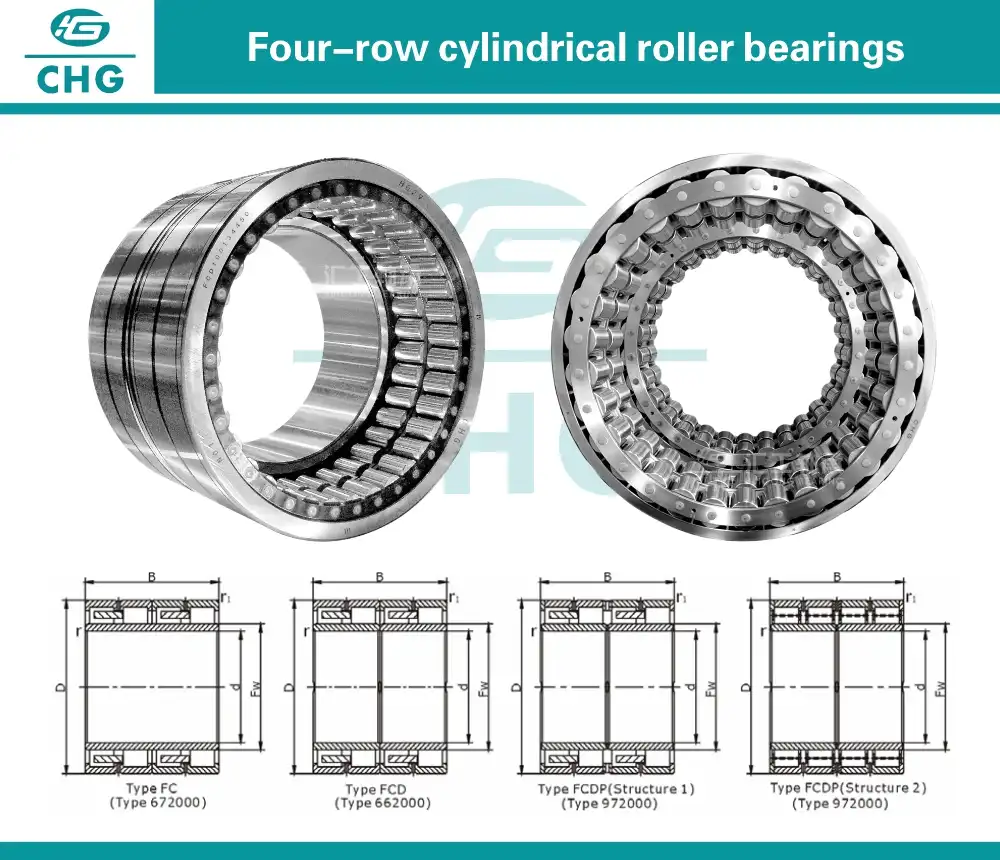

What is a Four Row Cylindrical Roller Bearing?

A Four Row Cylindrical Roller Bearing is a highly durable and efficient bearing solution designed to handle heavy loads, particularly in demanding industrial environments. Unlike other bearings, its four-row configuration offers increased radial load capacity while maintaining high rotational accuracy.

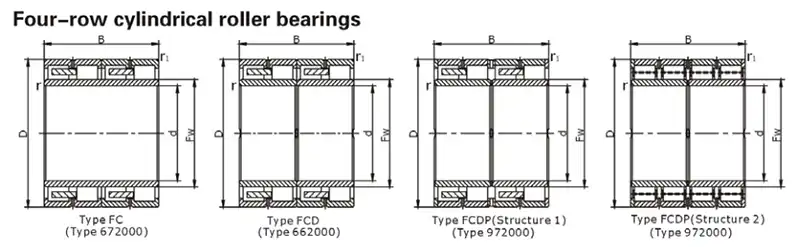

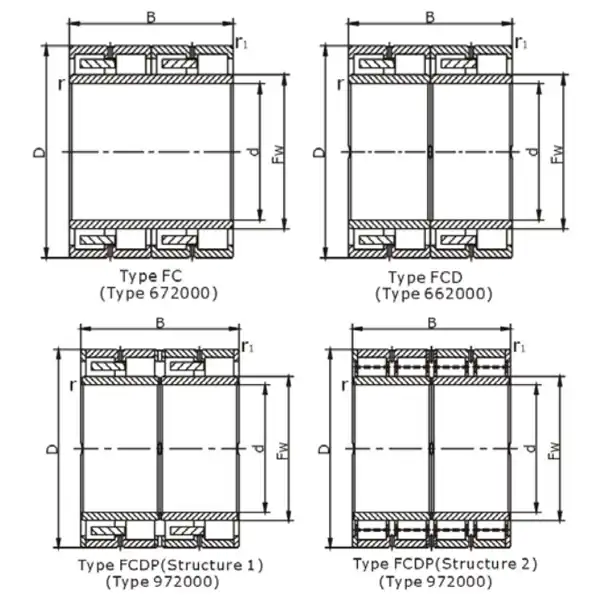

Type designation	Structure
FC	Four-row cylindrical roller bearing (one inner ring)
FCD	Four-row cylindrical roller bearing with double inner rings
FCDP	Four-row cylindrical roller bearing with loose ribbed outer ring and double inner rings

product-1-1

Why Choose CHG Bearing for Your Four Row Cylindrical Roller Bearing Needs?

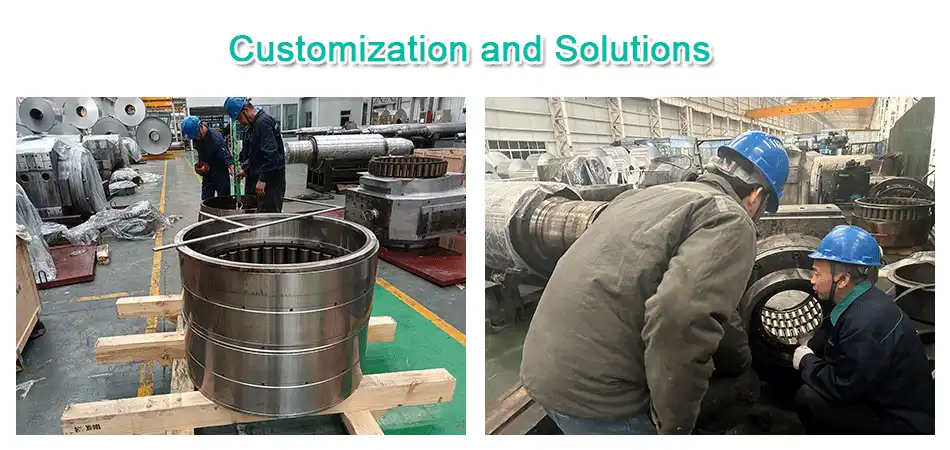

Customization and Solutions for Diverse Working Conditions

At CHG Bearing, we understand that each piece of equipment has unique requirements. That's why we offer customized the product tailored to your specific working conditions. Whether it's adjustments in size, structure, material, or lubrication, our expert team is ready to provide the solutions that best fit your operational needs.

product-1-1

30 Years of Industry Experience

With over three decades of experience, CHG Bearing has become a trusted name in the bearing industry. Our extensive knowledge allows us to deliver high-performance bearings that meet the rigorous demands of industries like metallurgy and mining. We’ve successfully partnered with numerous large companies, providing them with bearings that ensure their equipment operates smoothly and efficiently.

Innovation and Certification

Our commitment to innovation is evident in our portfolio of more than 50 invention patents. CHG Bearing is also ISO9001 certified, ensuring that our products meet the highest standards of quality management. Additionally, we’ve earned the ISO14001 environmental management system certification, reflecting our dedication to sustainable and responsible manufacturing practices.

product-1-1

For any inquiries or to discuss your bearing needs, please reach out to us at sale@chg-bearing.com.

Technical Specifications

Below are the technical specifications for the products:

Feature	Specification
Bore Diameter	90mm – 1400mm
Outer Diameter	140mm – 1900mm
Width	70mm – 1360mm
Load Capacity	High radial load capacity
Temperature Range	-40°C to 150°C
Material	GCr15/GCr15SiMn/G20Cr2Ni4A/Customized materials
Lubrication	Oil/grease lubrication
Certification	ISO9001, ISO14001, GJB9001C-2017
Customization Available	Yes

Four Row Cylindrical Roller Bearing Benefits

Choosing a Four Row Cylindrical Roller Bearing from CHG Bearing offers several key advantages:

High Precision and Rigidity: Essential for maintaining the stability and operational accuracy of your equipment.
Durability: Designed to withstand harsh conditions, including high temperatures and heavy loads, ensuring a long service life.
Cost-Effectiveness: A balance of performance, durability, and price, offering the best value for your investment.

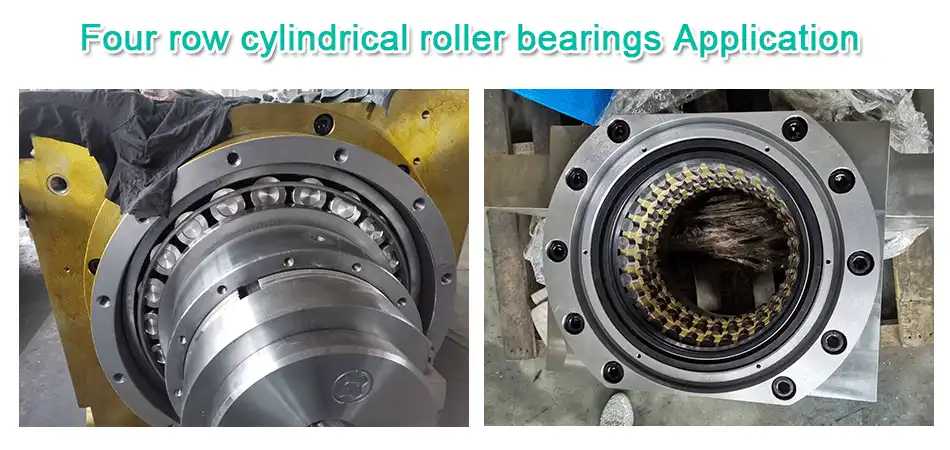

Applications

Four row cylindrical roller bearings are especially applied to rolling mills required high speed and precision, for example, wire mills, bar and shape mills, cold or hot sheet mills and cogging mills.

product-1-1

Metallurgical Industry: Used in rolling mills, blast furnaces, and steelmaking machinery.
Mining Industry: Found in crushers, vibrating screens, and feeders where they endure large impacts.
Machine Manufacturing: Essential components in the production of heavy machinery.

Installation Guide

Proper installation is critical for the optimal performance of your product. Follow these steps to ensure correct installation:

Clean the Bearing and Housing: Remove any debris or contamination from the bearing and the housing.
Lubricate: Apply a thin layer of appropriate lubricant to the bearing and the housing.
Press Fit the Bearing: Carefully press the bearing into the housing, ensuring it’s aligned correctly.
Secure the Bearing: Tighten any retaining screws or bolts, ensuring the bearing is securely fixed.

Maintenance and Care

Regular maintenance of your product will prolong its life and ensure your equipment continues to operate smoothly:

Routine Inspections: Check for signs of wear, corrosion, or damage.
Lubrication: Regularly reapply lubricant to reduce friction and wear.
Temperature Monitoring: Keep an eye on operating temperatures to avoid overheating.
Replace as Needed: If the bearing shows significant wear or damage, replace it promptly to avoid equipment failure.

product-1-1

FAQ

Q: What is the typical lifespan of a Four Row Cylindrical Roller Bearing?
A: The lifespan depends on operating conditions, but with proper maintenance, our bearings can last several years.

Q: Can CHG Bearing provide custom solutions for specific applications?
A: Yes, we offer customized bearings tailored to your specific needs, including size, material, and lubrication.

Q: How quickly can I expect delivery after placing an order?
A: We strive to offer fast and reliable delivery. Specific lead times depend on your order details and location.

product-1-1

Customer Reviews

“The product from CHG Bearing has been a game-changer for our rolling mills. They are incredibly durable and have significantly reduced our downtime.”
— John D., Production Manager

“We’ve been sourcing our bearings from CHG Bearing for over five years. Their products are top-notch, and their customer service is excellent.”
— Sarah T., Purchasing Manager

For more information about our Four Row Cylindrical Roller Bearings or to request a quote, please contact us:

Email: sale@chg-bearing.com
Website: www.chg-bearing.com

product-800-247

Boundary dimensions						Basic load ratings		Designations		Installation dimersion					Mass
Boundary dimensions						Basic load ratings		Designations		Installation dimersion					Mass
mm						kN				mm
d	D	B	Fw	rmin	r1min	Cr	Cor	Current	Original	damin	Damin	Damax	ramax	rbmax	kg
90	140	70	105	1.5	1.1	222	454	FC182870	672718	98	126	132	1	1	4.4
	140	74	105	1.5	1.1	222	454	FC182874	-	98	126	132	1	1	4.5
100	140	70	111	1.5	1.1	194	416	FC202870	672820	108	129	135	1	1	3.5
	140	90	111	1.5	1.1	290	616	FC202890	-	108	129	135	1	1	4.3
	140	104	111	1.5	1.1	335	730	FC2028104	672720	108	129	135	1	1	5.1
	145	70	113	1.5	1.1	219	457	FC202970	672720K	108	133	137	1	1	4.1
	150	106	113	1.5	1.1	347	736	FC2030106	-						6.8
110	150	80	122	1.5	1.1	241	602	FC223080	-						4.4
	170	90	127	2	2	358	754	FC223490	-	121	155	159	2	2	7.9
	170	120	127	2	2	605	1060	FC2234120	672722	121	155	159	2	2	10.6
	210	170	136.5	2	2	923	1610	FC2242170	-						27.3
120	180	92	137	2	2	375	820	FC243692	-	128	165	169	2	1	8.7
	180	105	136	2	2	459	894	FC2436105	672724	128	165	169	2	1	9.8
	180	120	136	2	2	477	1061	FC2436120	-	128	165	169	2	1	11.2
130	200	104	149	2	2	478	1006	FC2640104	-	141	183	189	2	2	12.5
	200	125	149	2	2	738	1220	FC2640125	672726	141	183	189	2	2	15
140	210	100	158	2	2	503	1096	FC2842100	-	151	192	199	1.5	1.5	12.8
	210	106	158	2	2	503	1096	FC2842106	-	151	192	199	1.5	1.5	13.6
	210	125	158	2	2	718	1365	FC2842125	672728	151	192	199	1.5	1.5	15.8
	210	155	158	2	2	756	1774	FC2842155	-	151	192	199	1.5	1.5	19.6
145	210	155	166	2	2	720	1560	FC2942155	-	154	196	201	1	1	20
	225	156	169	2	2	815	1660	FC2945156	672729	156	205	214	2	2	24.4
150	225	120	169	2	2	788	1586	FC3045120	-	161	207	216	1.5	1.5	17.5
	225	150	169	2	2	865	1770	FC3045150	-	161	207	216	1.5	1.5	21
	230	156	174	2	2	840	1760	FC3046156	672730	161	210	219	2	2	24.6
160	230	130	180	2	2	781	1384	FC3246130	-	171	214	219	1.5	1.5	22.7
	230	168	179	3	2	818	2218	FC3246168	-	171	214	219	2	2	24.2
	240	124	183	2.1	2.1	690	1543	FC3248124	672732K	172	219	228	2	2	20.6
	240	168	183	2.1	2.1	947	2310	FC3248168	672732	172	219	228	2	2	28
	260	168	183	2.5	2.1	953	2326	FC3252168	-						38.2
170	230	130	188.5	2	2	680	1720	FC3446130	-	181	215	219	2	2	16.3
	230	152	186	2	2	765	1790	FC3446152	-	181	215	219	2	2	17.4
	230	180	186	2	2	707	2041	FC3446180	-	181	215	219	2	2	22.7
	240	130	190	2	2	830	1830	FC3448130	-	181	222	229	2	2	19
	250	170	192	2.1	2.1	1000	2400	FC3450170	672734H	182	232	238	2	2	29.9
	260	120	195	2.1	2.1	863	1730	FC3452120	672734Y	182	237	248	2	2	24.2
	260	150	195	2.1	2.1	860	1948	FC3452150	-	182	237	248	2	2	30.2
	260	170	196	2.1	2.1	1080	2460	FC3452170	-	182	237	248	2	2	34.9
	260	225	196	2.1	2.1	1270	3350	FC3452225	-	182	237	248	2	2	43.5
180	250	120	200	2.1	2.1	609	1583	FC3650120	-	191	234	239	2	2	19
	250	156	200	2	2	710	1527	FC3650156	672836	191	234	239	2	2	24.7
	260	120	202	2.5	2.1	693	860	FC3652120	-	192	242	248	2	2	20.2
180	260	124	202	2.1	2.1	718	1668	FC3652124	672736K	192	242	248	2	2	22.6
	260	154	202	2.5	2.1	983	2200	FC3652154	-	192	242	248	2	2	28.2
	260	160	202	2.1	2.1	893	2206	FC3652160	-	192	242	248	2	2	29.2
	260	168	202	2.1	2.1	1060	2440	FC3652168	672736	192	242	248	2	2	30.7
	260	180	202	2.1	2.1	1150	2560	FC3652180	-	192	242	248	2	2	32.9
	280	180	207	2.1	2.1	1220	2580	FC3656180	-						43.4
190	260	168	212	2.1	2.1	1020	2600	FC3852168	-	202	244	248	2	2	27.9
	265	124	213	2.1	2.1	816	1926	FC3853124	672838K						22.1
	270	124	212	2.1	2.1	816	1925	FC3854124	-	201	252	259	2	2	24.2
	270	168	212	2.1	2.1	1062	2798	FC3854168	672738K	201	252	259	2	2	32
	270	200	212	2.1	2.1	1359	3350	FC3854200	672738	201	252	259	2	2	38.2
	280	200	214	2.1	2.1	1540	3350	FC3856200	-						41.5
200	270	120	222	2.1	2.1	615	1626	FC4054120	-	212	254	258	2	2	20.8
	270	170	222	2.1	2.1	985	2670	FC4054170	-	212	254	258	2	2	29.5
	280	170	222	2.1	2.1	1130	2730	FC4056170	-	212	262	268	2	2	33
	280	200	222	2.1	2.1	1360	3460	FC4056200	-	211	262	269	2	2	39.9
200	290	130	226	2.5	2.1	840	1975	FC4058130	-	212	268	278	2	2	29.9
	290	192	226	2.1	2.1	1386	3250	FC4058192	672740	212	268	278	2	2	44.9
210	290	192	236	2.1	2.1	1300	3400	FC4258192	-	223	274	277	2	2	40.6
	300	170	234	2.1	2.1	1031	2814	FC4260170	-	223	278	287	2	2	41.4
	300	210	234	2.1	2.1	1300	3040	FC4260210	672742	223	278	287	2	2	50.3
220	300	192	242	2.1	2.1	1085	3310	FC4460192	-						41.5
	310	157	246	2.1	2.1	1132	2627	FC4462157	-	233	286	298	2	2	39.7
	310	190	246	2.1	2.1	1283	3503	FC4462190	-	233	286	298	2	2	47.2
	310	192	246	2.1	2.1	1250	3070	FC4462192	672744	233	286	298	2	2	48.6
	320	210	248	2.1	2.1	1321	3534	FC4464210	-	233	296	307	2	2	59.8
	340	192	246	2.5	2.1	1599	3444	FC4468192	-						65.6
230	330	170	260	2.1	2.1	1142	2974	FC4666170	-	243	306	317	2	2	50.2
	330	206	260	2.1	2.1	1470	3760	FC4666206	672746	243	306	317	2	2	60.8
	365	250	266	3	3	2400	4900	FC4673250	-	244	334	351	2.5	2.5	100
240	330	220	264	2.1	2.1	1373	3789	FC4866220	672748	253	308	317	2	2	58.4
	340	192	268	2.1	2.1	1219	3161	FC4868192	-	254	318	326	2.5	2.5	58
	360	220	272	2.1	2.1	1600	4065	FC4872220	-	254	330	346	2.5	2.5	83
250	340	170	274	3	3	1141	3281	FC5068170	-						47.9
	350	220	278	3	3	1350	3804	FC5070220	672750	264	326	336	2.5	2.5	70.2
	360	160	282	3	3	1077	2781	FC5072160	-						57
	360	220	282	3	3	1486	4210	FC5072220	-						78.5
260	360	192	287	3	3	1274	3468	FC5272192	-	273	335	347	2	2	62.3
	360	200	288	3	3	1483	4217	FC5272200	-	273	335	347	2	2	64.9
	360	204	287	2.1	2.1	1620	3990	FC5272204	-	273	335	347	2	2	63.5
	370	200	292	3	3	1407	4057	FC5274200	-	274	342	356	2.5	2.5	74.2
	370	220	292	3	3	1964	4650	FC5274220	672752	274	342	356	2.5	2.5	77.3
	380	220	292	3	3	1516	4353	FC5276220	-	274	354	366	2.5	2.5	91.2
	380	280	295	3	3	2250	5680	FC5276280	-	274	354	366	2.5	2.5	110
	400	200	296	4	4	1795	4051	FC5280200	-	274	370	391	2.5	2.5	95.6
	400	290	296	4	4	2710	7100	FC5280290	-	274	370	391	2.5	2.5	135
270	380	230	298	3	3	1725	4598	FC5476230	672754	283	354	367	2	2	85.3
	400	220	305	3	3	1833	4570	FC5480220	-						100
280	375	200	307	3	3	1480	4311	FC5675200	672956	293	356	367	2	2	65.1
	380	220	312	3	3	1360	3960	FCD5676220	-						68.5
	380	290	308	3	3	1888	5835	FC5676290	-						100
	390	220	312	3	3	1600	4730	FC5678220	672756Q	294	362	376	2.5	2.5	86.2
	390	240	312	3	3	1763	5235	FC5678240	-	294	362	376	2.5	2.5	93.4
	390	275	308	3	3	2250	6500	FCD5678275	-	293	363	377	2	2	105.1
	400	285	316	3	3	3200	7500	FCD5680285	-						121
	410	300	313	4	4	3590	7650	FCD5682300	-	294	378	396	2.5	2.5	132
	420	280	318	4	4	2430	6350	FCD5684280	-						143.4
	420	300	319	4	4	3540	7500	FCD5684300	-						151
290	410	240	320	4	4	2070	5670	FC5882240	672758	304	380	396	3	3	105
300	420	218	332	4	4	2060	5695	FC6084218	-	314	390	406	2.5	2.5	97
	420	240	332	4	4	2225	5750	FCD6084240	-	314	392	406	3	3	107
	420	300	332	3	3	2305	6565	FCD6084300	-	314	392	406	2.5	2.5	134.7
320	440	240	351	3	3	2120	6101	FC6488240	-	335	411	425	2.5	2.5	113.9
	440	300	352	3	3	2530	7660	FCD6488300	-	335	409	425	2.5	2.5	142.3
	450	240	355	4	4	2145	5860	FCD6490240	-	335	419	435	2.5	2.5	125.3
	460	240	355	4	4	2980	7340	FCD6492240	-	335	428	445	2.5	2.5	140
	460	280	357	3	3	2450	6534	FC6492280	-	335	428	445	2.5	2.5	159
	460	300	360	4	4	3640	9700	FCD6492300	-	335	428	445	2.5	2.5	166.5
	460	340	360	3	3	2895	8105	FCD6492340	-	335	428	445	2.5	2.5	193.1
	480	290	364	4	4	3580	7400	FCDP6496290	-	346	462	466	3	3	200
	480	350	364	4	4	3790	10500	FCDP6496350	-	346	462	466	3	3	227
330	460	340	365	4	4	3760	8265	FCD6692340	-	344	428	446	2	2	175
340	450	250	368	3	3	2299	6312	FC6890250	-	354	424	436	2	2	111.2
	450	250	368	3	3	2045	6134	FCD6890250	-	354	424	436	2	2	112.6
	460	260	370	4	4	2132	5977	FC6892260	-						128.2
	480	350	378	4	4	3790	10500	FCD6896350	-	355	446	465	2.5	2.5	207
	500	370	385	4	4	5350	12000	FCDP68100370	-						263
	560	380	396	40	4	6930	13100	FCDP68112380	-						352
350	500	380	389	5	5	4290	11700	FCD70100380	672770	363	464	487	2	2	242
	500	410	388	4	4	5950	13950	FCD70100410	-	363	464	487	2	2	287
	520	300	401	5	5	3860	9000	FCD70104300	-						220
360	500	250	394	3	3	2940	6740	FCD72100250	-						143
	510	370	399	4	4	4010	10700	FCD72102370	-	377	470	493	3	3	273
370	520	380	409	4	4	4900	10750	FCD74104380	672974	389	481	500	3	3	263
	520	380	409	4	4	4160	12312	FCDP74104380	-	389	481	500	3	3	261
	520	400	409	4	4	4140	11200	FCD74104400	-	389	481	500	3	3	267
	540	400	415	4	4	3970	11240	FCD74108400	672774	387	499	523	3	3	322.4
380	520	280	426	4	4	2910	7360	FCD76104280	-						186
	540	260	428	4	4	3480	8820	FCDP76108260	-						205
	540	300	421	4	4	5120	11220	FCDP76108300	-						222
	540	380	422	4	4	3766	10930	FCD76108380	-	397	502	523	3	3	290.9
	540	400	422	4	4	4800	12000	FCD76108400	672776	397	502	523	3	3	305
	540	400	422	4	4	5140	14000	FCDP76108400	-	397	502	523	3	3	305
	560	300	424	4	4	5050	9850	FCDP76112300	-						261
	560	325	428	4	4	5330	10810	FCDP76112325	-						265
390	540	320	431	10×20°	2	4750	12200	FCDP78108320	-						230
460	650	355	509.5	5	5	6400	14900	FCDP92130355
	650	424	510	12×20°	3	7000	18300	FCDP92130424	-						450
	650	470	509	5	5	7900	22400	FCDP92130470	-	484	609	626	4	4	510
	680	400	518	6	6	8250	17620	FCDP92136400	-						642
480	620	420	514	6	6	6540	21000	FCDP96124420	-						332
	650	450	525	6	6	7420	21200	FCDP96130450	-	500	610	630	4	4	440
	680	420	528	5	5	7500	19300	FCDP96136420	-						515
	680	500	532	5	5	7323	24000	FCDP96136500	-	500	632	660	4	4	605
500	650	260	542	6	6	4100	10400	FCDP100136260	-						225
	670	450	540	5	5	5343	17490	FCDP100134450	6728/500Y	520	629	650	4	4	460
	680	405	550	6	6	5495	16570	FCD100136405	-	520	634	660	4	4	453
	680	450	550	5	5	7420	22000	FCDP100136450	-	520	634	660	4	4	500
	710	480	558	5	5	7920	21600	FCD100142480	-						610
	720	400	558	6	3	7120	17600	FCD100144400	-						530
	720	530	568	6	6	9720	19890	FCD100144530	-						755
510	680	500	560	7.5×20°	5	8070	26000	FCDP102136500	-						522
	730	520	569	6	6	8560	22000	FCD102146520	-						750
	760	550	570	16×20°	3	10800	26500	FCDP102152550	-						950
520	670	450	560	6	6	7420	24000	FCDP104134450	-						402
530	760	520	587	6	6	10530	28500	FCDP106152520	-						775
	780	500	591	6	6	8410	20400	FCD106156500	-						805
	780	570	595	6	6	11520	32500	FCDP106156570	-	555	719	755	5	5	960
550	740	510	600	6	6	7769	27000	FCDP110148510	-						615
	800	520	612	6	6	10530	26500	FCDP110160520	-						895
	800	560	610	6	6	10890	28000	FC110160560	-						930
560	820	600	625	6	6	14400	34800	FCDP112164600	-	577	757	803	4	4	1085
	820	630	625	6	6	15600	33900	FCDP112164630	-	577	757	803	4	4	1160
570	750	530	622	5	5	6745	25200	FCD114150530	6727/570						662.5
	815	594	628	6	6	13400	33550	FCDP114163594	-	595	757	790	4	4	1003
	820	450	654	6	6	11000	30000	FCDP120164450	-						721
	820	575	660	6	6	11700	35100	FCDP120164575	-						939
600	870	540	672	22×20°	4	11800	31500	FCDP120174540	-						1100
	870	640	682	6	6	13600	41700	FCDP120174640	-						1370
610	820	430	665	19×20°	3	8400	23600	FCDP122164430	-						650
630	900	670	698	6	6	15900	41400	FCDP126180670	-						1430
650	900	650	704	7.5	7.5	15480	41500	FCDP130180650	-						1260
	920	670	723	7.5	7.5	15480	46500	FCDP130184670	-	680	856	890	6	6	1450
660	820	440	702	7.5	4	6730	22800	FCD132164440	-						530
	880	450	727	6	6	5546	23600	FCD132176450	-						785
670	950	700	750	7.5	7.5	16400	50300	FCDP134190700	-						1630
680	940	600	743	4	4	16900	53400	FCDP136188600	-						1380
	980	640	760	20×20°	4	13230	41800	FCDP136196640	-						1590
690	980	715	767.5	7.5	7.5	17820	51300	FCDP138196715	-	720	911.5	950	4	4	1780
	980	750	766	7.5	7.5	17000	53000	FCDP138196750	-	720	910	954	6	6	1880
700	930	620	763	18×20°	7.5	11600	40850	FCDP140186620	-						1180
	980	700	774	6	6	17800	48200	FCDP140196700	-	726	914	954	5	5	1720
710	1000	715	787.5	7.5	7.5	15400	53200	FCDP142200715	-						1860
720	980	700	772	7.5	7.5	14540	51300	FCDP144196700	-						1545
730	940	500	780	3	3	10150	42500	FCDP146188500	-						1000
	960	620	790	7.5	7.5	11800	48750	FCDP146192620	-						1220
	1030	750	809	7.5	7.5	16000	55500	FCDP146206750	-						2040
750	1000	500	816	6	6	9460	32000	FCD150200500	-						1150
	1000	670	813	7.5	7.5	13500	47500	FCDP150200670	-						1480
760	1080	790	846	7.5	7.5	18690	62430	FCDP152216790	-	787	1005	1053	5	5	2445
780	1070	780	853	7.5	7.5	17200	57900	FCDP156214780	-						2300
800	1080	700	878	7.5	7.5	15200	55500	FCDP160216700	-	827	1010	1050	5	5	1950
	1150	850	905	7.5	7.5	21000	76600	FCDP160230850	-						3150
820	1130	800	903	7.5	7.5	18600	64600	FCDP164226800	-						2540
850	1150	840	928	7.5	7.5	19600	72009	FCDP170230840	-	875	1088	1130	5	5	2570
	1180	850	940	7.5	7.5	20100	72700	FCDP170236850	-	881	1104	1149	6	6	2850
	1220	900	940	5	5	23000	84000	FCDP170244900	-						3720
900	1220	840	989	7.5	7.5	20300	76000	FCDP180244840	-	931	1145	1190	5	5	3060
	1280	930	1000	7.5	7.5	25300	88350	FCDP180256930	-						4080
950	1300	850	1044	5	5	22168	81318	FCDP190260850	6727/950Y	980	1210	1270	5	5	3505
950	1360	975	1075	26×20°	7.5	26200	90000	FCDP190272975	-						4900
	1360	1000	1075	22×20°	7.5	29200	99000	FCDP1902721000	-						5020
980	1310	880	1061.7	20×20°	7.5	22000	82000	FCDP196262880	-						3310
1000	1360	800	1101	23×20°	7.5	22000	80000	FCDP200272800	-						3560
1040	1440	1000	1133	27×20°	7.5	34200	51300	FCDP2082881000	-						5100
1200	1590	1050	1305	30×20°	6	37620	120600	FCDP2403181050	-						5970
1300	1655	880	1391	7.5	7.5	33660	109800	FCDP260331880	-						4800
1350	1765	1360	1457	42×20°	7.5	36180	109800	FCDP2703531360	-						9100
1400	1780	1200	1493	40×20°	9.5	47070	146700	FCDP2803561200	-						7400
	1900	1360	1521	40×20°	12	55440	164700	FCDP2803801360	-						11300
