Internal Gear Slewing Bearing

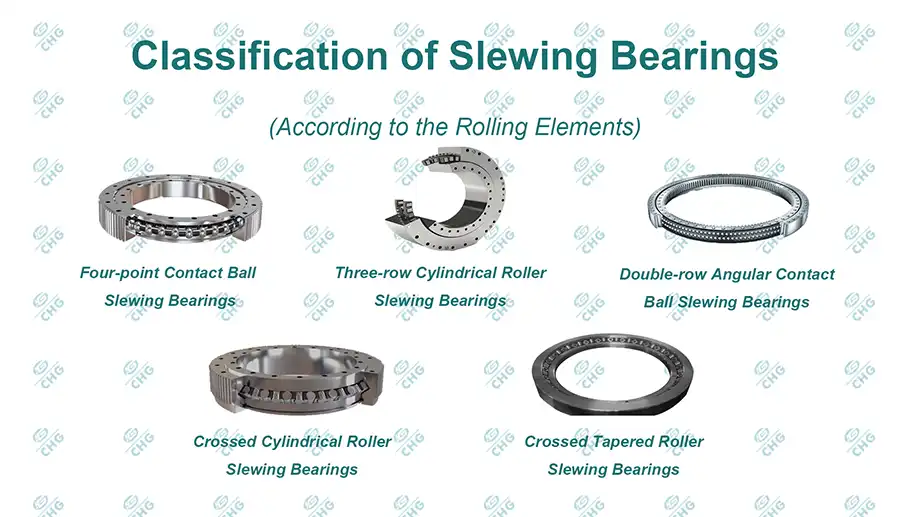

There are various structures of slewing ring bearings, such as four point contact ball slewing bearing, double row angular contact ball slewing bearings, crossed cylindrical roller slewing bearings, crossed tapered roller bearings and three row cylindrical roller slewing bearings, with gears or no gears.
Four point contact ball slewing bearings possess high static loading capacity; crossed cylindrical roller slewing bearings can carry high dynamic loads; crossed tapered roller slewing bearings have high stiffness and rotation accuracy by preloading.
Slewing ring bearings are widely used in cranes, excavation machines, construction machinery, port cargo handling machinery, large turnplates of high precision radars and missile launchers, etc.

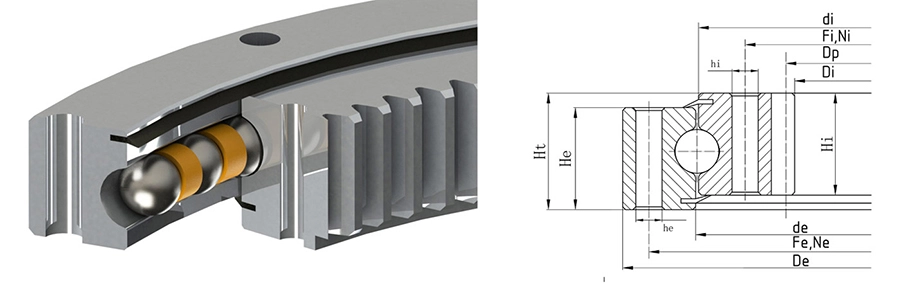

What is an Internal Gear Slewing Bearing?
An Internal Gear Slewing Bearing is a crucial component in various machinery, providing smooth rotation and supporting high loads. Unlike traditional bearings, it has an integrated gear system within the bearing itself, which enhances their functionality in rotational applications. These bearings are designed to manage axial, radial, and tilting loads while enabling precise rotation, making them ideal for equipment requiring stable and reliable movement.
Why Choose CHG Bearing?
CHG Bearing stands out as a leading manufacturer and supplier of internal gear slewing bearing. Here’s why you should consider partnering with us:
- Customization and Solutions: We offer tailored solutions for diverse working conditions, ensuring optimal performance for your specific needs.
- Experience: With 30 years in the industry, we have collaborated with numerous large-scale companies, delivering reliable products and services.
- Innovation: Our company holds over 50 invention patents and is certified with ISO9001 quality management and ISO14001 environmental management systems, reflecting our commitment to quality and sustainability.
Technical Specifications
| Specification | Details |
|---|---|
| Inner Diameter | Varies based on custom requirements |
| Outer Diameter | Varies based on custom requirements |
| Thickness | Varies based on custom requirements |
| Gear Type | Internal Gear |
| Load Capacity | High Load Capacity |
| Material | Alloy Steel, Stainless Steel, etc. |
| Temperature Range | -20°C to 80°C |
| Precision | High Precision Available |
| Certifications | ISO9001, ISO14001 |
Benefits of Internal Gear Slewing Bearings
- Enhanced Load Capacity: Capable of handling heavy loads and high stresses from various directions.
- Smooth Rotation: Ensures stable and smooth rotational movement, reducing friction and wear.
- Space Efficiency: Compact design allows for efficient use of space in machinery.
- Durability: Built to last with high resistance to wear, corrosion, and extreme temperatures.
- Versatility: Suitable for a wide range of applications, from construction machinery to medical equipment.
Applications
- Construction Machinery: Excavators, loaders, bulldozers, road rollers, and graders.
- Lifting Machinery: Tower cranes, gantry cranes, and truck cranes.
- Wind Power Generation: Wind turbines for stable rotation and energy collection.
- Oil Drilling: Drilling rigs for stable and reliable performance.
- Military Equipment: Tanks and armored vehicles for enhanced mobility.
- Port Terminals: Loading and unloading equipment such as gantry cranes and cranes.
- Agricultural Machinery: Harvesters and tractors for improved efficiency.
- Medical Equipment: MRI machines for precise rotational movement.
- Amusement Facilities: Carousels and Ferris wheels for a smooth play experience.
- Aerospace: Satellites and rockets for stable operation.
- Other Fields: Material processing machinery and automated production lines.
Installation Guide
- Preparation: Ensure all components and tools are ready. Check the bearing specifications and compatibility.
- Positioning: Align the slewing bearing with the mounting surface. Use proper fixtures to hold it in place.
- Securing: Fasten the bearing using bolts or screws as specified in the installation manual. Ensure they are tightened to the recommended torque.
- Lubrication: Apply appropriate lubricant to the gear teeth and bearing surfaces according to manufacturer guidelines.
- Testing: Rotate the bearing manually to ensure smooth operation before powering up the machinery.
Maintenance and Care

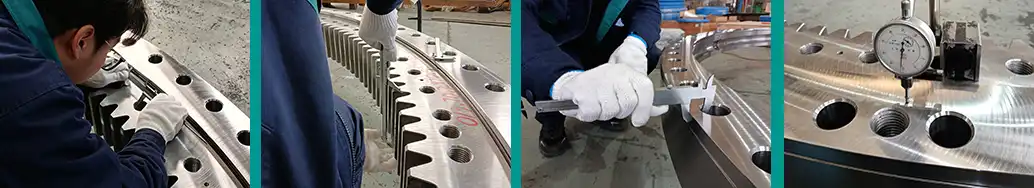

- Regular Inspection: Check for signs of wear, damage, or misalignment. Inspect gear teeth and lubrication levels.
- Lubrication: Reapply lubricant periodically based on usage and environmental conditions.
- Cleaning: Keep the bearing and surrounding area clean to prevent contamination.
- Tightening: Ensure mounting bolts and fasteners are properly tightened.
- Replacement: Replace any worn or damaged components promptly to avoid further issues.
FAQ
Q1: What is the difference between internal and external gear slewing bearings?
A1: It has the gear inside the bearing, while external gear bearings have the gear on the outer circumference. Internal gear bearings are often used for compact applications.
Q2: How do I choose the right size of internal gear slewing bearing?
A2: Consider the load capacity, diameter, and thickness required for your application. Consult with our experts for customized solutions.
Q3: What maintenance is required for internal gear slewing bearing?
A3: Regular inspections, lubrication, and cleaning are essential for maintaining optimal performance and longevity.
Q4: Can it be used in extreme temperatures?
A4: Yes, they are designed to withstand a wide range of temperatures, but always refer to the specific product's temperature range.
Q5: How long do them typically last?
A5: Lifespan depends on usage, load, and maintenance. Proper care can significantly extend their service life.
Customer Reviews
John D.: "The slewing bearings from CHG Bearing have proven to be reliable and durable in our construction equipment. Highly recommended!"
Emily R.: "Excellent service and product quality. The customization options were perfect for our unique requirements."
Mark L.: "CHG Bearing's slewing bearings have significantly improved the performance of our wind turbines. Great value for the investment."
Contact Us
For more information or to request a quote, please contact us at:
Email: sale@chg-bearing.com
Thank you for considering CHG Bearing for your internal gear slewing bearing needs. We look forward to serving you!
