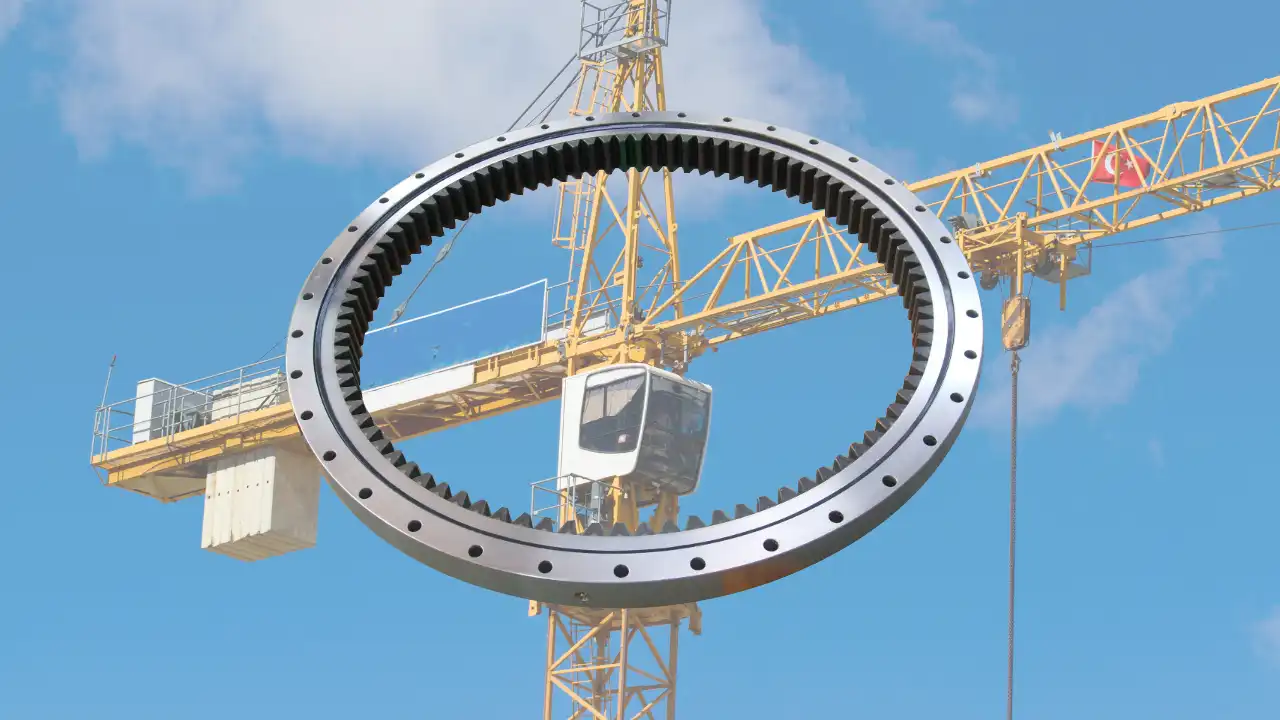

Tower Crane Slewing Bearing

Slewing bearings are large size bearings which can carry higher axial, radial loads and overturning moments at the same time. Slewing bearings generally have mounting holes, internal or external gears, lubricant holes and sealing equipment.

There are various structures of slewing ring bearings, such as four point contact ball slewing bearing, double row angular contact ball slewing bearings, crossed cylindrical roller slewing bearings, crossed tapered roller bearings and three row cylindrical roller slewing bearings, with gears or no gears.

Four point contact ball slewing bearings possess high static loading capacity; crossed cylindrical roller slewing bearings can carry high dynamic loads; crossed tapered roller slewing bearings have high stiffness and rotation accuracy by preloading.

Slewing ring bearings are widely used in cranes, excavation machines, construction machinery, port cargo handling machinery, large turnplates of high precision radars and missile launchers, etc.

Send Inquiry Download

Tower Crane Slewing Bearing: Essential Component for Lifting Machinery

A Tower Crane Slewing Bearing is a critical component in tower cranes, enabling them to rotate smoothly and efficiently. This bearing supports the crane's rotating mechanism, which is crucial for precise and stable operation. By facilitating rotation, the slewing bearing helps the crane lift and move heavy loads with accuracy and ease. It's designed to handle high loads, withstand harsh conditions, and ensure the crane's performance is reliable and consistent.

CHG Bearing: Your Expert in Tower Crane Slewing Bearings

At CHG Bearing, we are proud to be a leading manufacturer and supplier of the product. With over 30 years of experience in the industry, we have established ourselves as a trusted partner for many large companies across various sectors. Our commitment to excellence is reflected in our extensive range of products and services:

Customization and Solutions: We offer tailored solutions for different working conditions, ensuring that our Tower Crane Slewing Bearings meet your specific requirements.

Industry Experience: Our three decades of industry experience enable us to provide top-quality products and expert advice.

Innovation and Certification: With over 50 invention patents and certifications including ISO9001 and ISO14001, we ensure our products meet the highest standards of quality and environmental management.

Technical Specifications

Specification	Details
Inner Diameter	200-4500mm
Outer Diameter	300-5000mm
Width	30-660mm
Material	50Mn/42CrMo/S48C/42CrMo4/16Mn
Gear Options	External Gear,Internal gear,Non geared
Application	Cranes, Excavators, Tower cranes
Certification	ISO9001, ISO14001

Benefits of Tower Crane Slewing Bearings

Enhanced Stability: Provides smooth and stable rotation for precise load handling.

High Load Capacity: Capable of supporting substantial loads, ensuring safe and efficient operation.

Durability: Designed to withstand harsh environmental conditions and heavy usage.

Improved Efficiency: Facilitates faster and more accurate movements, boosting overall crane performance.

Applications

Tower Crane Slewing Bearings are essential in various applications, including:

Construction Sites: For lifting and positioning heavy materials and equipment.

Industrial Facilities: In operations requiring precise load handling and rotation.

Port Terminals: For gantry cranes and other equipment that require efficient rotation.

Installation Guide

Preparation: Ensure that the mounting surfaces are clean and free of debris.

Alignment: Properly align the bearing with the mounting surfaces to avoid uneven wear.

Fastening: Secure the bearing using appropriate bolts and ensure they are tightened to the specified torque.

Inspection: Conduct a thorough inspection to ensure everything is correctly installed and functioning.

Maintenance and Care

Regular Inspections: Check for signs of wear and tear or damage.

Lubrication: Apply lubricant as recommended by the manufacturer to ensure smooth operation.

Cleaning: Keep the bearing and surrounding area clean to prevent debris buildup.

Timely Repairs: Address any issues promptly to prevent further damage and ensure longevity.

FAQ

Q: How long does our product typically last?
A: The lifespan of a Tower Crane Slewing Bearing depends on usage, maintenance, and operating conditions. Regular maintenance can extend its life significantly.

Q: Can our products be customized?
A: Yes, we offer customization to meet specific operational requirements and conditions.

Q: What is the best way to maintain the product?
A: Regular inspections, proper lubrication, and keeping the bearing clean are key to maintaining its performance.

Q: How can I order the product from CHG Bearing?
A: Contact us at sale@chg-bearing.com for orders and inquiries.

Customer Reviews

John D., Construction Manager: "CHG Bearing’s products have greatly improved the efficiency of our operations. Highly reliable and durable!"

Emily R., Equipment Supplier: "Excellent quality and service. The customization options were exactly what we needed for our project."

Contact Us

For more information about Tower Crane Slewing Bearings or to request a quote, please contact us at:

Email: sale@chg-bearing.com

At CHG Bearing, we are committed to providing high-quality products and exceptional service. We look forward to helping you with your needs!

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					weight (kg)
Bearing Model	Dmm	dmm	Hmm	D1mm	D2mm	n	mm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	weight (kg)
010.20.200	280	120	60	248	152	12	16	M14	28	2	201	199	50	10	20
010.20.224	304	144	60	272	176	12	16	M14	28	2	225	223	50	10	22
010.20.250	330	170	60	298	202	18	16	M14	28	2	251	249	50	10	25
010.20.280	360	200	60	328	232	18	16	M14	28	2	281	279	50	10	28
010.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	44
010.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	49
010.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	56
010.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	62
010.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	85
01025.500	1602	398	80	566	434	20	18	M16	32	4	501	499	70	10	85
010.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	95
010.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	95
010.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	110
010.25.630	I732	528	80	696	564	24	18	M16	32	4	631	629	70	10	110
010.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	120
010.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	120
010.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	220
010.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	220
010.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	240
010.30.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	240
010.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	270
010.30.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	270
010.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	300
010.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	300
010.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	420
010.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1251	1248	100	10	420
010.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	480
010.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1401	1398	100	10	480
011.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	550
010.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1601	1598	100	10	550
010.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	610
010.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1801	1798	100	10	610
010.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	1100
010.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2001	1998	132	12	1100
010.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	1250
010.40.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2241	2238	132	12	1250
010.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	1400
010.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2501	2498	132	12	1400
010.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	1600
010.40.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	1600
010.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	2800
010.50.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	2800
010.75.3550	3776	3322	174	3686	3014	56	45	M42	84	8	3552	3547	162	12	3500
010.50.3550	3776	3322	174	3686	3014	56	45	M42	84	10	3552	3548	162	12	3500
010.75.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3997	162	12	4200
010.50.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3998	162	12	4200
010.75.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4497	162	12	5100
010.50.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4498	162	12	5100
