How Do You Select the Right Radial Thrust Ball Bearing for an Application?

Selecting the appropriate radial thrust ball bearing is crucial for ensuring optimal performance and longevity in mechanical applications. This comprehensive guide explores the key factors to consider when choosing these essential components, from load requirements to operating conditions. Understanding the selection process is vital as these bearings play a critical role in supporting both radial and axial loads while maintaining rotational precision in various industrial applications.

What factors determine the load capacity of Radial Thrust Ball Bearings?



Static and Dynamic Load Ratings

The selection of radial thrust ball bearings begins with a thorough understanding of load capacities. These bearings are designed to handle both radial and axial loads simultaneously, making them versatile components in various applications. The static load rating represents the maximum load that can be applied to a stationary bearing without causing permanent deformation, while the dynamic load rating indicates the load at which the bearing will achieve a rated life of one million revolutions. When selecting a radial thrust ball bearing, engineers must calculate both the equivalent static and dynamic loads based on the application's specific requirements, including safety factors for unexpected load variations.

Speed and Temperature Considerations

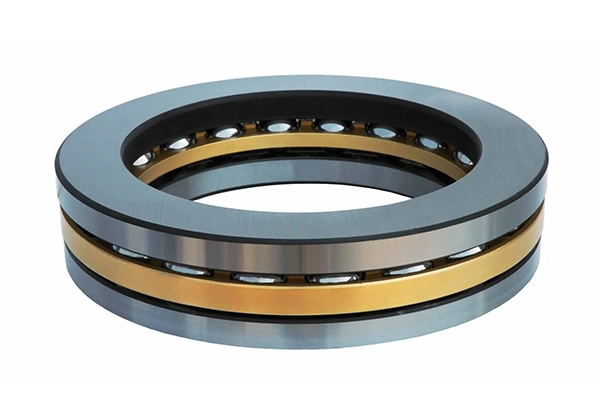

Operating speed and temperature significantly impact the performance and lifespan of radial thrust ball bearings. Higher speeds generate more heat through friction, potentially affecting the bearing's lubricant properties and internal clearances. Temperature limits must be carefully evaluated as they influence the bearing material's properties and the lubricant's effectiveness. Modern Double-Direction Angular Contact thrust ball bearings often incorporate advanced materials and surface treatments to withstand higher temperatures and speeds while maintaining their load-carrying capabilities. Engineers must consider the relationship between speed, temperature, and load capacity when selecting bearings for specific applications.



Environmental Conditions Impact

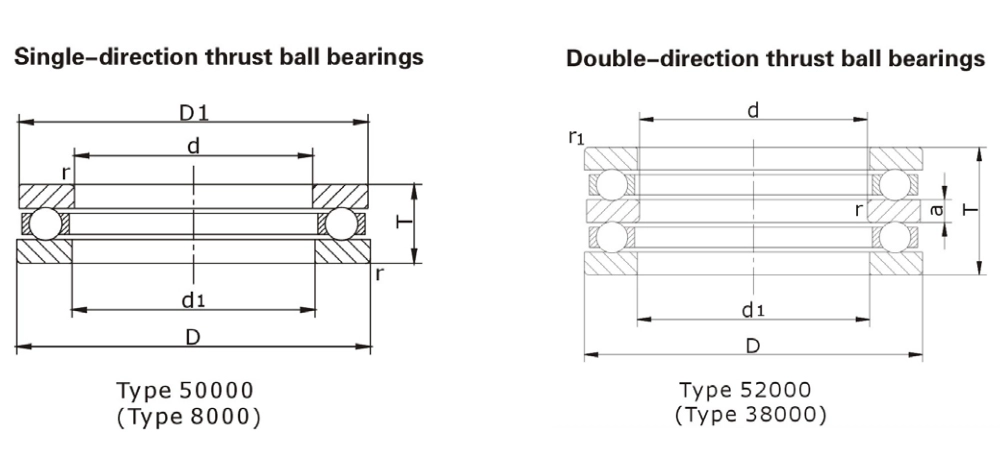

The operating environment plays a crucial role in determining the appropriate single thrust ball bearing specifications. Factors such as dust, moisture, chemicals, and vibration can significantly affect bearing performance and longevity. Selection criteria must include considerations for sealing arrangements, material compatibility, and surface treatments that protect against environmental challenges. Advanced radial thrust ball bearings may feature specialized seals and coating technologies designed to withstand harsh environments while maintaining their load-carrying capabilities and operational efficiency.

How do you calculate the service life of Radial Thrust Ball Bearings?



Life Prediction Models

Service life calculation for radial thrust ball bearings involves sophisticated mathematical models that consider multiple factors. The basic rating life (L10) represents the number of revolutions that 90% of a group of identical bearings will complete before showing signs of fatigue. Modern life prediction models incorporate additional factors such as lubrication conditions, contamination levels, and operating temperatures. Engineers must utilize these models to accurately predict bearing life expectancy and establish appropriate maintenance intervals. The calculation process requires detailed analysis of load distributions, speed variations, and environmental factors affecting the bearing's performance.



Maintenance Requirements Analysis

Understanding maintenance requirements is essential for optimizing radial thrust ball bearing service life. Regular monitoring of bearing condition, including vibration analysis, temperature measurements, and lubricant quality checks, helps prevent premature failure. Maintenance schedules should be based on calculated service life predictions and adjusted according to actual operating conditions. Proper installation procedures, alignment checks, and lubrication management are critical factors in achieving the predicted service life of radial thrust ball bearings.



Performance Monitoring Methods

Implementing effective performance monitoring methods ensures optimal radial thrust ball bearing operation throughout its service life. Modern monitoring techniques include continuous vibration analysis, temperature tracking, and acoustic emission monitoring. These methods help detect potential issues before they lead to bearing failure, allowing for timely intervention and maintenance. Regular performance monitoring data collection and analysis enable engineers to refine life prediction models and improve future bearing selections based on actual operating experience.

What role does lubrication play in Radial Thrust Ball Bearing selection?



Lubricant Type Selection

Choosing the right lubricant is crucial for radial thrust ball bearing performance and longevity. Different applications require specific lubricant properties, including viscosity, temperature stability, and additive packages. Oil lubrication offers advantages in high-speed applications where heat dissipation is critical, while grease lubrication provides simplified maintenance in standard applications. The selection process must consider operating conditions, speed factors, and environmental requirements to ensure optimal bearing performance through proper lubrication.



Lubrication Systems Design

The design of lubrication systems significantly impacts radial thrust ball bearing performance. Proper lubrication delivery methods, including oil circulation systems, oil-air systems, or grease distribution systems, must be carefully planned. Considerations include lubricant flow rates, filtration requirements, and relubrication intervals. Advanced lubrication systems may incorporate monitoring capabilities to ensure consistent lubricant supply and quality, maximizing bearing service life and reliability.



Maintenance Protocols Implementation

Establishing effective lubrication maintenance protocols is essential for radial thrust ball bearing reliability. Regular lubricant analysis, relubrication schedules, and contamination control measures must be implemented. Proper handling procedures during installation and maintenance prevent contamination and ensure correct lubricant application. Training maintenance personnel in proper lubrication practices and monitoring techniques helps maintain optimal bearing performance throughout its service life.



Conclusion

Selecting the right radial thrust ball bearing requires careful consideration of multiple factors, including load capacity, service life requirements, and lubrication needs. Success depends on thorough analysis of operating conditions, accurate calculations, and proper maintenance practices. This comprehensive approach ensures optimal bearing performance and reliability in various industrial applications, leading to improved equipment efficiency and reduced maintenance costs.

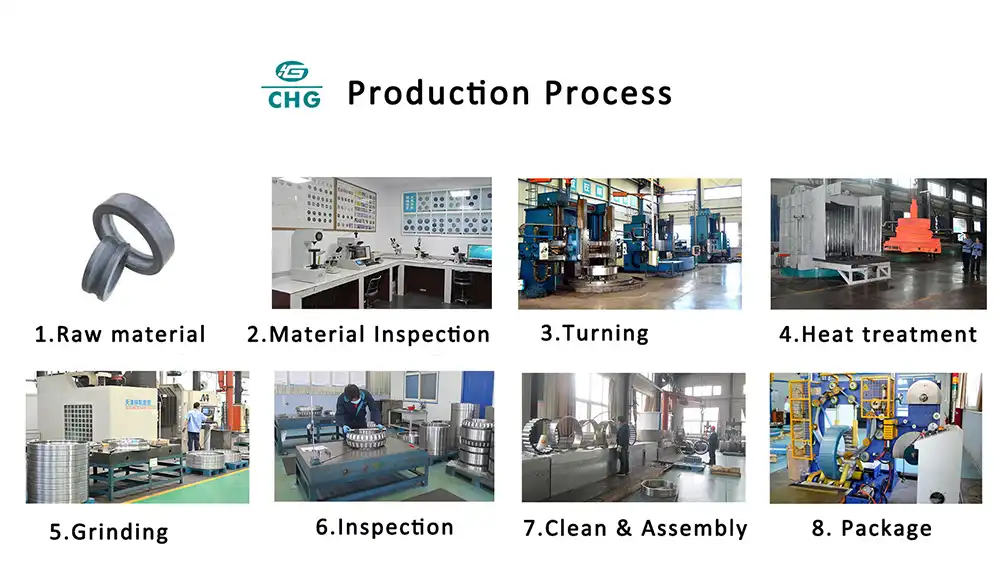

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
