In What Kinds of Applications Are Thrust Ball Bearings Commonly Used?
Thrust ball bearings are essential components in modern machinery, designed specifically to handle axial loads in mechanical systems. These specialized bearings consist of ball elements arranged between two rings or washers, enabling smooth rotation while supporting forces parallel to the shaft axis. Their unique design makes them indispensable in various industrial and consumer applications where axial loads need to be efficiently managed while maintaining precise positioning and reducing friction.
How do thrust ball bearings differ from other types of bearings?
Thrust ball bearings possess distinct characteristics that set them apart from other bearing types, making them uniquely suited for specific applications. Unlike radial bearings that primarily handle forces perpendicular to the shaft, thrust ball bearings are engineered to manage axial loads – forces acting parallel to the shaft axis. This fundamental difference lies in their construction, featuring flat races rather than curved ones, and balls arranged in a single plane between two washers or races.
The design incorporates several key elements that contribute to their effectiveness. The bearing races are typically flat and perpendicular to the shaft axis, allowing for optimal distribution of axial loads across the ball elements. This configuration enables them to handle significant thrust loads while maintaining relatively low friction coefficients. Unlike roller thrust bearings, which offer higher load capacity but typically operate at lower speeds, thrust ball bearings can accommodate higher rotational speeds while providing excellent precision and smooth operation.

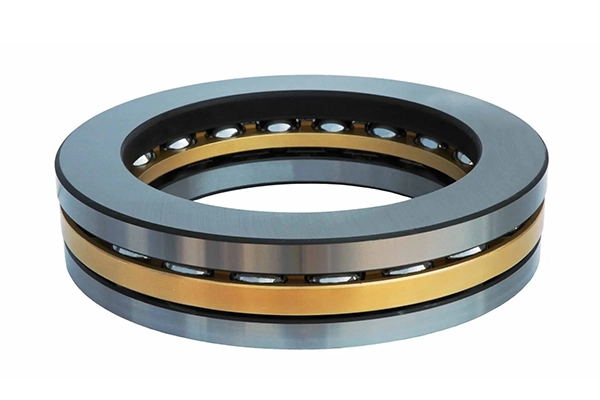

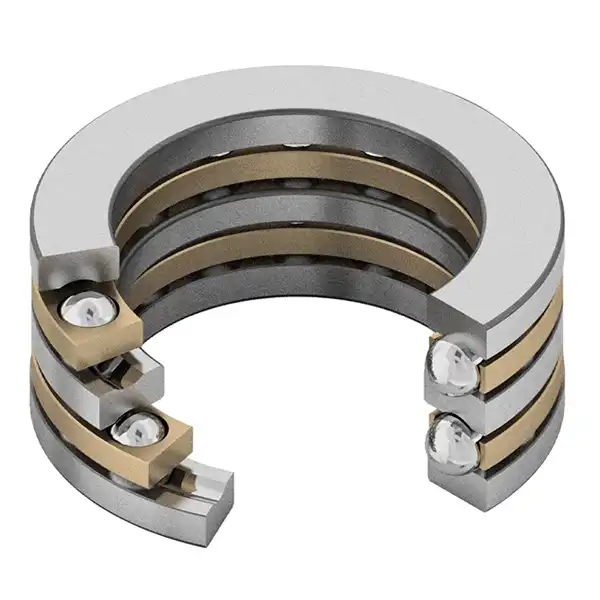

Another distinguishing feature is their ability to handle unidirectional or bidirectional thrust loads, depending on their specific design. Single-direction thrust ball bearings are optimized for loads in one axial direction, while double-direction variants can handle forces from both directions. This versatility makes them suitable for various applications where load directions may vary or reverse.
The precision engineering of thrust ball bearings also includes considerations for lubrication and heat dissipation. Their design typically incorporates features that facilitate proper lubricant distribution and retention, essential for maintaining optimal performance and extending service life. Additionally, their construction often allows for better heat management compared to other bearing types, making them suitable for applications where temperature control is crucial.
What are the maintenance requirements for thrust ball bearings in heavy machinery?
Maintaining thrust ball bearings in heavy machinery requires a comprehensive approach to ensure optimal performance and longevity. The maintenance regime encompasses several critical aspects, including regular inspection, proper lubrication, alignment monitoring, and preventive maintenance scheduling.
Lubrication management is perhaps the most crucial aspect of thrust ball bearing maintenance. The correct type and amount of lubricant must be used to prevent premature wear and ensure smooth operation. In heavy machinery applications, the lubricant must possess appropriate viscosity characteristics to maintain an adequate film thickness under operating conditions. Regular oil analysis should be conducted to monitor contamination levels and lubricant degradation, allowing for timely replacement or filtration as needed.
Alignment monitoring is another critical maintenance requirement. Even slight misalignment can lead to uneven load distribution and accelerated wear. Regular checks using precision measurement tools help ensure proper alignment is maintained. This includes monitoring both shaft alignment and bearing housing alignment, as deviations in either can impact bearing performance and longevity.
Temperature monitoring plays a vital role in maintenance programs. Abnormal temperature increases often indicate potential problems such as inadequate lubrication, excessive loading, or misalignment. Modern maintenance programs frequently employ continuous temperature monitoring systems with automated alerts to detect potential issues before they lead to failure.
Contamination control is essential for protecting thrust ball bearings in heavy machinery. This includes maintaining clean lubricant supplies, using appropriate sealing systems, and regular inspection of seals and housings for signs of wear or damage. In particularly demanding environments, scheduled cleaning and relubrication intervals may need to be shortened to maintain optimal performance.
Vibration analysis has become an increasingly important tool in bearing maintenance. Regular vibration monitoring can detect early signs of wear, damage, or misalignment, allowing for preventive maintenance before catastrophic failure occurs. Modern vibration analysis equipment can identify specific types of bearing problems based on characteristic frequency patterns.
What factors should be considered when selecting thrust ball bearings for specific applications?
Selecting the appropriate thrust ball bearing for a specific application requires careful consideration of multiple factors to ensure optimal performance and reliability. This decision-making process involves analyzing operating conditions, load characteristics, speed requirements, and environmental factors.
Load capacity analysis is fundamental to the selection process. This includes evaluating both static and dynamic load ratings. The static load rating becomes particularly important in applications where the bearing experiences heavy loads while stationary or rotating at very low speeds. Dynamic load ratings must be considered in relation to the desired service life and operating conditions. Engineers must also account for any shock loads or irregular loading patterns that might occur during operation.
Operating speed is another crucial factor in thrust ball bearing selection. These bearings have speed limitations based on their size, design, and lubrication requirements. The speed factor (ndm value) must be calculated and compared with the manufacturer's recommendations. Higher speeds generally require more sophisticated lubrication systems and may necessitate special cage designs or materials.
Environmental conditions significantly influence bearing selection. Temperature extremes, exposure to moisture or corrosive substances, and contamination levels must all be considered. These factors affect the choice of materials, sealing solutions, and lubrication methods. In some cases, special materials or surface treatments may be required to ensure adequate bearing life under challenging conditions.
Space constraints and mounting arrangements must also be evaluated. The available space often dictates the maximum bearing size that can be used, which in turn affects load capacity and service life calculations. Mounting arrangements influence the ease of installation and maintenance access, as well as the overall system rigidity and alignment stability.
The required precision level is another important consideration. Different applications demand different levels of running accuracy and axial play. High-precision applications may require specially selected bearings with tighter tolerances, while less critical applications might tolerate standard precision grades.

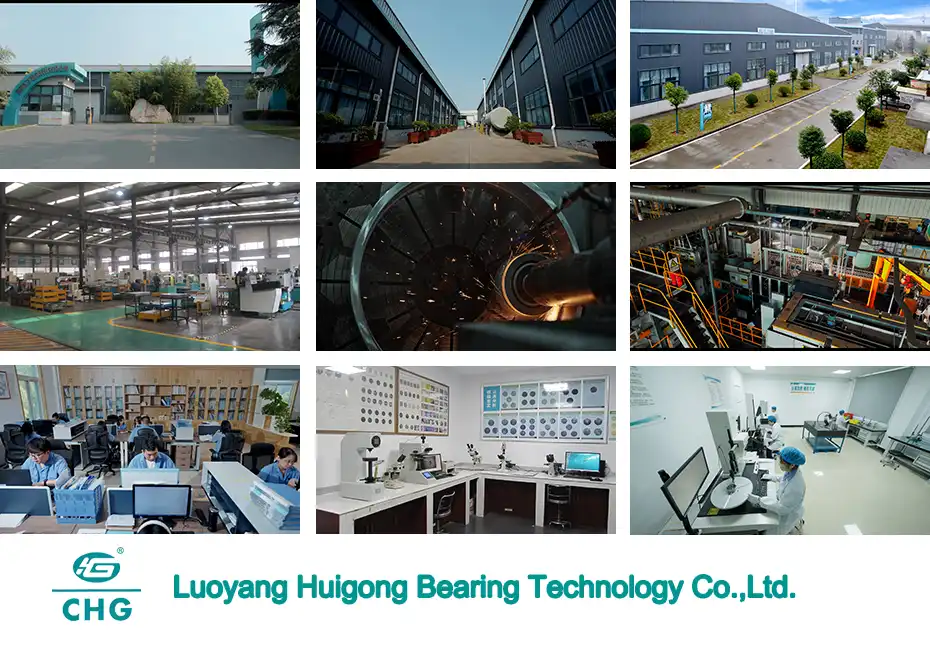

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
