What are the Applications of Double Row Cylindrical Roller Bearings?

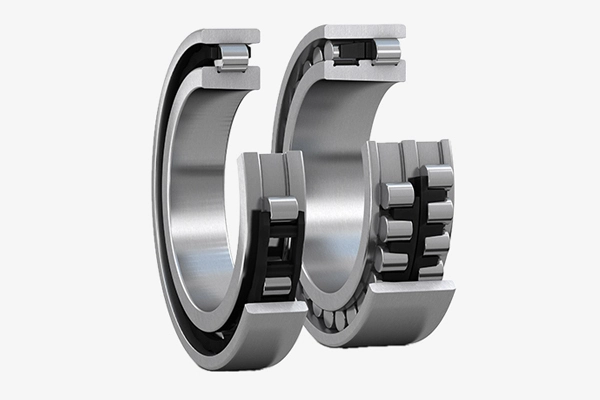

Double row cylindrical roller bearings represent a specialized category of rolling element bearings designed to handle significant radial loads while maintaining high precision and durability. These bearings feature two rows of cylindrical rollers arranged parallel to each other within an inner and outer ring structure. Their unique configuration allows them to excel in applications demanding superior load capacity, rigidity, and operational stability even under challenging conditions. As industrial machinery continues to advance toward higher speeds and heavier loads, double row cylindrical roller bearings have become indispensable components across numerous sectors.
What Makes Double Row Cylindrical Roller Bearings Ideal for Heavy Industrial Applications?
Superior Load Capacity Characteristics
Double row cylindrical roller bearings offer exceptional radial load capacity that significantly outperforms single-row alternatives. This enhanced capacity stems from the bearing's dual-row configuration, which effectively distributes loads across twice the number of rolling elements. Each cylindrical roller makes line contact with the raceways rather than point contact, substantially increasing the load-bearing surface area. In practical applications, a properly sized double row cylindrical roller bearing can support radial loads up to 70-80% higher than comparably sized single-row bearings while maintaining similar dimensions. This makes them particularly valuable in heavy industrial environments where space constraints exist alongside demanding load requirements. When examining specific applications like steel rolling mills, these bearings routinely handle radial loads exceeding 500kN while maintaining precise positioning of heavy rollers essential for product quality.
Enhanced Operational Stability Under Variable Conditions
Double row cylindrical roller bearings demonstrate remarkable operational stability even when subjected to variable working conditions. Their dual-row design creates a wider effective loading zone that resists misalignment tendencies common in heavy machinery. This characteristic proves invaluable in applications experiencing sudden load fluctuations or vibration, where maintaining precise positioning directly impacts both product quality and equipment longevity. The geometric arrangement of these bearings allows them to accommodate moderate shaft deflection without significant performance degradation. Furthermore, double row cylindrical roller bearings typically feature optimized internal clearance specifications that account for thermal expansion during operation, preserving functionality across wider temperature ranges than simpler bearing designs.
Cost-Effectiveness in High-Demand Industrial Environments
While double row cylindrical roller bearings typically command a higher initial investment than simpler bearing configurations, their total lifecycle cost analysis reveals significant economic advantages. The extended service intervals achieved through superior load distribution and reduced contact stresses translate directly to decreased maintenance requirements and associated labor costs. In continuous operation environments such as paper mills or mining equipment, replacing two single-row bearings with one double row cylindrical roller bearing can reduce installation complexity and maintenance frequency. The precise manufacturing tolerances maintained in quality double row cylindrical roller bearings contribute to improved energy efficiency by minimizing friction losses. When properly maintained with appropriate lubrication regimes, premium double row cylindrical roller bearings consistently demonstrate extended service life exceeding 40,000 operating hours in moderate-duty applications.
How Do Double Row Cylindrical Roller Bearings Perform in High-Speed Machinery?
Precision Balance and Reduced Vibration Properties
Double row cylindrical roller bearings excel in high-speed applications due to their inherent design characteristics that promote balanced operation and minimal vibration. The symmetrical arrangement of the two roller rows creates a naturally balanced bearing assembly that minimizes the development of harmful resonant frequencies during high-speed rotation. The cylindrical roller profile itself contributes significantly to vibration control, as the line contact between rollers and raceways distributes forces evenly and reduces the impact of minor surface imperfections. Advanced double row cylindrical roller bearings often incorporate specially designed cages that maintain precise roller positioning and prevent skewing tendencies that could otherwise introduce vibration at elevated speeds. The reduction in operational vibration directly translates to decreased noise levels, enhanced precision in machine output, and extended service life for both the bearings and the equipment they support.
Thermal Management Capabilities in Continuous Operation
The thermal behavior of double row cylindrical roller bearings represents a crucial performance aspect in high-speed applications. These bearings demonstrate superior heat dissipation capabilities compared to many alternative designs, largely due to their optimized internal geometry that promotes effective lubricant circulation. The dual-row configuration provides additional surface area for heat transfer, while the line contact between cylindrical rollers and raceways generates less frictional heat than point-contact bearing types under equivalent loads. The cage design in modern double row cylindrical roller bearings further contributes to thermal management by ensuring uniform lubricant distribution throughout the bearing assembly, preventing localized overheating that could otherwise lead to premature failure.
Lubrication Requirements for Optimal Performance
Effective lubrication represents a critical factor in maximizing the performance and longevity of double row cylindrical roller bearings in high-speed applications. These bearings benefit from carefully formulated lubricants that balance viscosity characteristics with thermal stability to form and maintain an adequate elastohydrodynamic film between rolling elements and raceways. Modern high-speed applications typically employ either circulating oil systems or specialized grease formulations depending on the specific operating parameters and maintenance capabilities. Oil lubrication offers superior cooling properties and contaminant removal, making it preferable for the most demanding high-speed applications where double row cylindrical roller bearings operate near their speed limitations. The relubrication intervals for greased double row cylindrical roller bearings in high-speed applications typically range from 500-2000 operating hours depending on environmental conditions, speed factors, and temperature considerations.
What Factors Should Be Considered When Selecting Double Row Cylindrical Roller Bearings?
Critical Dimensional and Tolerance Specifications
Selecting appropriate double row cylindrical roller bearings requires careful consideration of dimensional and tolerance specifications. Bearing bore diameter, outside diameter, and width represent the fundamental dimensional parameters that must align with the equipment design constraints. Double row cylindrical roller bearings are typically available in P0 (normal), P6 (high), and P5 (precision) tolerance classes, with each successive grade offering tighter dimensional control at correspondingly higher cost. Internal clearance represents another critical specification, with options typically including CN (normal), C3 (greater than normal), and C4 (greater than C3) to accommodate different thermal expansion scenarios. Cage design options—typically brass machined, polyamide molded, or steel pressed—influence performance characteristics including maximum speed, noise levels, and lubricant flow patterns.
Environmental Compatibility Assessment
Environmental conditions significantly impact double row cylindrical roller bearing performance and longevity. Temperature extremes represent a primary consideration, with standard bearings typically designed for operation between -20°C and +120°C. Applications outside this range require specialized materials. Contamination exposure presents another critical environmental factor, as particulate ingress can dramatically accelerate wear mechanisms in double row cylindrical roller bearings. Applications in dusty or abrasive environments may require sealed or shielded bearing variants. Moisture and corrosive media exposure necessitates consideration of special surface treatments or stainless steel components in extreme cases. Vibration and shock loading characteristics of the application environment must be evaluated against the bearing's design parameters, as excessive shock can cause brinelling damage to raceways despite the bearing's substantial radial capacity.
Integration with Surrounding Machine Elements
The successful implementation of double row cylindrical roller bearings requires thoughtful integration with surrounding machine elements. Shaft and housing design represents a fundamental consideration, with appropriate dimensional tolerances, surface finishes, and material properties required to establish proper fits. Interference fits typically applied to inner rings and clearance fits for outer rings must be carefully calculated based on operating conditions. Lubrication system integration presents another critical interface, with oil supply pathways, drainage provisions, and sealing solutions needing careful coordination with bearing placement. Mounting and dismounting provisions significantly impact maintenance practicality, with adequate access for tooling and extraction mechanisms needed to prevent damage during service operations. The thermal expansion characteristics of all components in the bearing assembly must be harmonized to prevent unintended loading changes during thermal transitions.
Conclusion
Double row cylindrical roller bearings represent an essential component across diverse industrial applications requiring superior load capacity, operational stability, and precision performance. Their unique design delivers exceptional radial load handling while providing enhanced vibration resistance and thermal management capabilities crucial for high-speed operation. When properly selected with consideration for dimensional specifications, environmental conditions, and integration requirements, these bearings offer outstanding reliability and cost-effectiveness in demanding industrial environments.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
References
1. Harris, T.A. & Kotzalas, M.N. (2023). Rolling Bearing Analysis: Advanced Concepts of Bearing Technology. CRC Press, Boca Raton.
2. Eschmann, P., Hasbargen, L., & Weigand, K. (2021). Ball and Roller Bearings: Theory, Design and Application. John Wiley & Sons, Chichester.
3. SKF Group. (2024). SKF Rolling Bearings Catalogue. SKF Group, Gothenburg.
4. Hamrock, B.J., Schmid, S.R., & Jacobson, B.O. (2022). Fundamentals of Machine Elements. CRC Press, Boca Raton.
5. Harnoy, A. (2023). Bearing Design in Machinery: Engineering Tribology and Lubrication. Marcel Dekker, New York.
6. Timken Company. (2024). Cylindrical Roller Bearing Catalog. Timken Company, Canton.
