What are the Applications of Inch Series Four Row Tapered Roller Bearings?

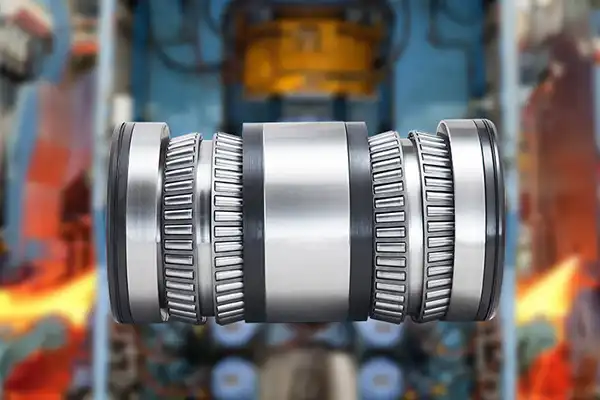

Inch Series Four Row Tapered Roller Bearings are specialized rolling element bearings designed to handle exceptionally heavy loads from multiple directions simultaneously. These precision-engineered components feature four rows of tapered rollers arranged to distribute loads efficiently across a larger contact area. The inch measurement system designation makes them common in industries where imperial measurement standards prevail. These bearings are vital in many industrial applications where reliability under extreme conditions is essential, enabling them to handle combined loads while maintaining precise shaft alignment even in challenging environments.



















What Industries Rely Most Heavily on Inch Series Four Row Tapered Roller Bearings?



Mining and Mineral Processing Equipment Applications

Inch series four row tapered roller bearings play a critical role in mining operations, where equipment must function reliably in harsh environments. These bearings are installed in continuous miners, longwall shearers, crushers, and screening equipment where they face abrasive particles, moisture, and shock loading. The four-row design provides exceptional stability and load distribution, allowing mining equipment to withstand tremendous radial and axial forces. When properly sealed and lubricated, these bearings can significantly extend equipment operational life despite constant exposure to contamination. Mining companies value these bearings for maintaining precise alignment in applications where misalignment could lead to catastrophic equipment failure. Their robust construction makes them ideal for stop-start operations common in mining, where equipment faces sudden loading and unloading cycles.





















Steel and Metal Rolling Mill Applications

The steel industry represents one of the most demanding applications for inch series four row tapered roller bearings, particularly in rolling mill operations. These specialized bearings support work rolls and backup rolls in both hot and cold rolling processes, withstanding enormous compressive forces and thermal variations during metal forming. Rolling mills utilize these bearings because their four-row configuration provides the necessary stiffness and load-carrying capacity to maintain precise roll positioning. This precision directly impacts the dimensional consistency of finished steel products. The tapered design accommodates combined radial and thrust loads encountered during rolling operations. These bearings are often customized with special heat treatments, materials, and sealing arrangements to withstand elevated temperatures and cooling water in rolling mill environments. Their ability to handle misalignment while maintaining roll stability makes them indispensable in modern steel production facilities.



Heavy Construction Equipment Applications

Construction equipment manufacturers rely extensively on inch series four row tapered roller bearings for components subjected to extreme and variable loading conditions. Excavators, bulldozers, loaders, and cranes incorporate these bearings in swing mechanisms, track rollers, and drive systems where they must withstand heavy loads and shock impacts. The four-row configuration provides exceptional stability for equipment operating on uneven terrain, while the tapered roller design accommodates thrust loading during directional changes and lifting operations. Construction equipment often operates in environments where contamination presents significant challenges to bearing longevity. The dimensional standards used in these bearings align with many North American and international manufacturers' specifications, simplifying integration into existing designs. They are valued for their field-proven reliability, as equipment downtime directly impacts project timelines and profitability. Their ability to handle misalignment caused by frame flexure makes them ideal for large earth-moving equipment.













How Do Inch Series Four Row Tapered Roller Bearings Enhance Performance in Heavy Machinery?



Load Capacity and Distribution Advantages

Inch series four row tapered roller bearings are engineered to handle extreme loads that would overwhelm conventional bearing designs. The four-row configuration multiplies the contact area between rolling elements and raceways, distributing forces and reducing stress concentrations. This allows machinery to operate at higher capacities without sacrificing bearing life. The tapered roller geometry creates line contact rather than point contact, increasing load-carrying capacity by up to 30% compared to similarly sized spherical roller bearings. These bearings can handle combined radial and axial loads simultaneously, eliminating the need for separate thrust bearings in many applications. Their precise internal geometry can be optimized for specific load ratios, making them adaptable to various machinery requirements. The ability to handle momentary overloads without permanent deformation makes them valuable in equipment subjected to unpredictable loading conditions.



Durability and Lifespan in Extreme Operating Conditions

Inch series four row tapered roller bearings offer exceptional performance in environments that would quickly degrade other bearing types. Manufactured from specially formulated bearing steels with precise heat treatment, they achieve optimal surface hardness and core toughness. The four-row design provides redundancy that extends operational life even if individual rolling elements experience wear. In contamination-prone applications, these bearings can be equipped with advanced sealing systems and specialized lubrication to extend service intervals. They're designed with internal clearance tolerances that accommodate thermal expansion, allowing reliable function across wide temperature ranges. Robust cage designs ensure proper roller spacing even under severe vibration and shock loading. Their durability translates to reduced maintenance costs and minimized downtime, making them preferred for critical machinery. Their dimensional stability, even after thousands of operational hours, helps maintain precise alignment in equipment where positioning accuracy impacts product quality.



Precision and Reduced Maintenance Requirements

Inch series four row tapered roller bearings contribute to equipment precision by maintaining exact positioning under variable loading. The tapered design automatically compensates for axial forces that would cause shaft displacement, ensuring rotational components remain perfectly aligned. This precision is valuable in applications where dimensional accuracy directly impacts product quality. The four-row configuration provides exceptional stiffness and resistance to deflection, minimizing vibration even at high speeds. Modern designs incorporate advanced materials and manufacturing techniques that reduce friction and heat generation, allowing extended maintenance intervals. Many feature optimized internal geometries that enhance lubricant distribution, ensuring all critical surfaces receive adequate protection during prolonged operation. These bearings often incorporate condition monitoring features that allow predictive maintenance approaches rather than fixed-interval replacements. The precision manufacturing tolerances ensure consistent performance across multiple installations, simplifying inventory management and replacement procedures.



What Factors Should Be Considered When Selecting Inch Series Four Row Tapered Roller Bearings?



Load Requirements and Rating Calculations

Proper selection begins with comprehensive analysis of load conditions. Engineers must consider the magnitude, direction, duration, and variability of loads throughout the equipment's duty cycle. Calculation of appropriate load ratings involves formulas that account for radial and axial force components, potential misalignment, and momentary overloads. Industry standards provide guidelines for determining dynamic and static load ratings, but experienced engineers often supplement these with application-specific factors. Selection must account for the ratio between radial and axial loads, as this influences the optimal contact angle of the tapered rollers. These bearings are available in various configurations with different included angles to address specific load ratio requirements. The expected operational life impacts bearing selection, as applications requiring exceptional longevity may need bearings with higher load ratings. Acceleration and deceleration cycles must be factored in, as inertial forces can temporarily exceed normal operating loads. For equipment subject to vibration or shock loading, additional safety factors should be applied. Consulting with manufacturers during selection provides valuable insights into real-world performance expectations.



Operating Environment Considerations

The operating environment dramatically influences design requirements and expected service life. Temperature extremes affect lubricant performance, material properties, and internal clearances. Specialized heat-stabilized materials may be required for applications exceeding 150°C. In contamination-prone environments, enhanced sealing arrangements become critical to bearing longevity. Multiple-lip seals, labyrinth designs, or positive pressure systems may be necessary to exclude particulate matter. The presence of moisture or corrosive chemicals necessitates specialized materials, coatings, or surface treatments. Bearings for outdoor use or marine environments often incorporate additional corrosion protection. For applications involving electrical currents, insulated bearing designs may be necessary to prevent current-induced damage. Ambient vibration levels can affect cage design and internal clearance specifications. Even atmospheric factors like humidity and altitude can influence lubricant selection and relubrication intervals, particularly in applications where bearings operate near temperature limits.



Maintenance and Installation Best Practices

Even the most precisely engineered bearings will fail prematurely without proper installation and maintenance. Installation procedures must include precise measurement and control of bearing clearances, particularly where thermal expansion will alter these during operation. Specialized mounting tools are necessary to ensure installation forces are properly distributed. Alignment during installation is critical, as misalignment exceeding the bearing's design tolerance will dramatically reduce operational life. Laser alignment tools have become standard practice for critical installations. The lubrication regimen represents one of the most significant factors affecting bearing longevity. Selection of appropriate lubricant type, viscosity, additives, and application methods must be tailored to specific operating conditions. Many high-performance applications implement automated lubrication systems to ensure consistent lubricant delivery. Monitoring protocols should be established to detect early signs of bearing deterioration, including vibration analysis, temperature monitoring, and lubricant sampling. Proper handling and storage of replacement bearings is essential, as even microscopic damage to rolling surfaces can propagate rapidly under load. Training maintenance personnel in bearing-specific best practices ensures these components receive appropriate care throughout their operational life.



Conclusion



Inch series four row tapered roller bearings are indispensable components in heavy industrial applications where reliability under extreme conditions is paramount. They excel in mining, steel production, and construction equipment due to their exceptional load capacity, durability in harsh environments, and precision maintenance of alignment. When selecting these specialized bearings, engineers must carefully evaluate load requirements, operating conditions, and maintenance practices to ensure optimal performance and longevity. With proper selection and care, these bearings significantly enhance equipment reliability and productivity across numerous industrial sectors.
