What is the Load Capacity of Cylindrical Roller Thrust Bearings?

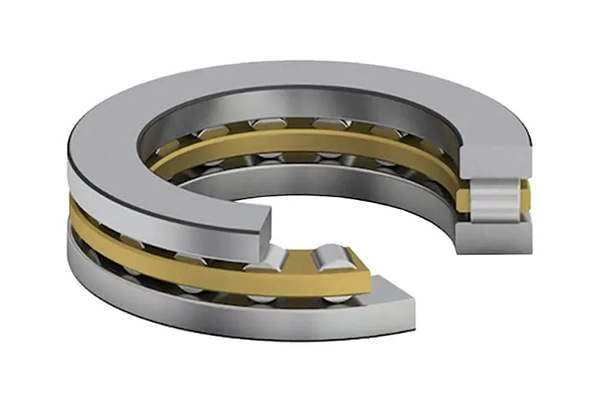

Cylindrical Roller Thrust Bearings are specialized mechanical components designed to handle substantial axial loads in rotating machinery. These bearings play a crucial role in various industrial applications, particularly where high thrust loads need to be supported while maintaining rotational movement. Understanding their load capacity is essential for engineers and technicians to ensure proper bearing selection and optimal performance in different applications.
How do operating conditions affect the load capacity of Cylindrical Roller Thrust Bearings?
Impact of Speed and Temperature
The load-carrying capacity of Cylindrical Roller Thrust Bearings is significantly influenced by operating speed and temperature conditions. When these bearings operate at higher speeds, the formation of an oil film between the rolling elements and raceways becomes critical. Under optimal conditions, Cylindrical Roller Thrust Bearings can maintain their rated load capacity at speeds up to 2000 rpm. However, as speeds increase beyond this point, the load capacity may need to be adjusted downward to account for the increased heat generation and potential oil film breakdown. Temperature also plays a vital role, as excessive heat can affect the viscosity of the lubricant and the bearing material properties. For optimal performance, these bearings typically operate best within a temperature range of -20°C to +120°C, though special designs and materials can extend this range.
Influence of Lubrication Methods
The choice and implementation of lubrication methods directly impact the load capacity of Cylindrical Roller Thrust Bearings. Proper lubrication is essential for maintaining the rated load capacity and ensuring long bearing life. Oil bath lubrication, commonly used in heavy industrial applications, can support load capacities up to 20% higher than grease lubrication due to better heat dissipation and more effective film formation. The viscosity of the lubricant must be carefully selected based on the operating speed and load conditions. For bearings operating under heavy loads, specialized high-pressure additives in the lubricant can help maintain the oil film and protect against wear, thereby preserving the bearing's full load capacity.
Environmental Considerations
Environmental factors significantly affect the load-carrying capabilities of Cylindrical Roller Thrust Bearings. In dusty or contaminated environments, the load capacity may need to be reduced by up to 30% to account for potential wear and damage. Humidity and moisture exposure can also impact performance, particularly if water contamination occurs in the lubricant. In marine or corrosive environments, special attention must be paid to sealing arrangements and material selection to maintain the bearing's load capacity. Regular monitoring of environmental conditions and appropriate maintenance schedules help ensure that the bearing can consistently handle its designed loads.
What factors determine the maximum load capacity of Cylindrical Roller Thrust Bearings?
Design and Geometry
The design and geometry of Cylindrical Roller Thrust Bearings are fundamental determinants of their maximum load capacity. The length-to-diameter ratio of the rollers, typically ranging from 1:1 to 1.5:1, affects the load distribution and overall capacity. Larger diameter rollers generally provide higher load capacity but may require more space and operate at lower speeds. The cage design also plays a crucial role, as it must maintain proper roller spacing while withstanding the forces generated under heavy loads. Modern Cylindrical Roller Thrust Bearings often incorporate optimized roller profiles and raceway geometries to enhance load distribution and increase capacity by up to 15% compared to traditional designs.
Material Properties
The materials used in Cylindrical Roller Thrust Bearings significantly influence their maximum load capacity. High-grade bearing steels, such as AISI 52100, offer excellent hardness and wear resistance, supporting load capacities up to 3000 kN in larger sizes. Advanced surface treatments and coatings can further enhance load-carrying capability. For instance, case-hardened steels can provide improved surface hardness while maintaining core toughness, allowing for higher dynamic load ratings. Ceramic materials, though less common, can offer advantages in specific applications where higher speeds or better corrosion resistance is required, though they typically have lower maximum load capacities than steel bearings.
Manufacturing Precision
Manufacturing precision directly affects the load capacity of Cylindrical Roller Thrust Bearings. Tight tolerances in roller dimensions and raceway geometry ensure optimal load distribution and maximum capacity. Surface finish quality, typically specified at Ra 0.2 μm or better for rolling surfaces, is crucial for maintaining the oil film and achieving rated load capacity. Advanced manufacturing techniques, such as precision grinding and honing, can improve load capacity by up to 10% compared to standard production methods. Quality control measures, including dimensional inspection and surface roughness testing, are essential for maintaining consistent load-carrying capabilities across production batches.
How can maintenance practices optimize the load capacity of Cylindrical Roller Thrust Bearings?
Monitoring and Inspection Protocols
Regular monitoring and inspection are essential for maintaining the optimal load capacity of Cylindrical Roller Thrust Bearings. Implementing vibration analysis programs can detect early signs of wear or damage that might reduce load capacity. Temperature monitoring, particularly in high-load applications, helps ensure operation within design limits. Regular inspection of lubricant condition, including particle counting and chemical analysis, can identify potential issues before they affect load capacity. Advanced condition monitoring techniques, such as acoustic emission analysis, can provide early warning of developing problems that might compromise the bearing's ability to handle its designed loads.
Proper Installation Techniques
The installation process significantly impacts the performance and load capacity of Cylindrical Roller Thrust Bearings. Proper alignment during installation is crucial, as misalignment can reduce load capacity by up to 40% and lead to premature failure. The use of appropriate mounting tools and techniques, including thermal mounting methods when necessary, ensures that the bearing can achieve its full load-carrying potential. Careful attention to shaft and housing fits, typically specified with tolerances of IT6 or better, is essential for maintaining proper internal clearance and load distribution. Professional installation training and detailed procedures help maintain consistent performance across installations.
Maintenance Scheduling and Procedures
Effective maintenance scheduling and procedures are vital for preserving the load capacity of Cylindrical Roller Thrust Bearings throughout their service life. Regular relubrication intervals, typically every 500-1000 operating hours depending on conditions, help maintain proper lubrication film thickness and load-carrying capability. Periodic inspection of seals and mounting arrangements ensures protection against contamination that could reduce load capacity. Implementing predictive maintenance techniques, such as oil analysis and thermography, can help optimize maintenance intervals while maintaining full load-carrying capability. Detailed maintenance records and trend analysis support better decision-making for bearing replacement and system optimization.
Conclusion
Understanding the load capacity of Cylindrical Roller Thrust Bearings is crucial for their successful application in industrial machinery. These bearings demonstrate remarkable versatility in handling heavy axial loads while maintaining efficiency and reliability. Their performance is influenced by multiple factors, including operating conditions, design specifications, and maintenance practices, making proper selection and care essential for optimal results.
