What Makes a Tapered Roller Thrust Bearing Superior?

When purchasing managers and tapered roller thrust experts in heavy industry look for reliable bearings that can handle high loads, tapered roller thrust bearings are always the best option. The special form of these bearings' angled rollers makes them better at distributing axial loads than other types. The curved design makes it possible to carry very heavy loads while keeping accuracy even in tough working conditions. Unlike regular ball bearings or cylindrical designs, these bearings are great for tasks that need to be positioned in a single direction and handle high thrust loads. This makes them essential in mining, metalworking, and large-scale manufacturing.

Understanding Tapered Roller Thrust Bearings: Design and Function

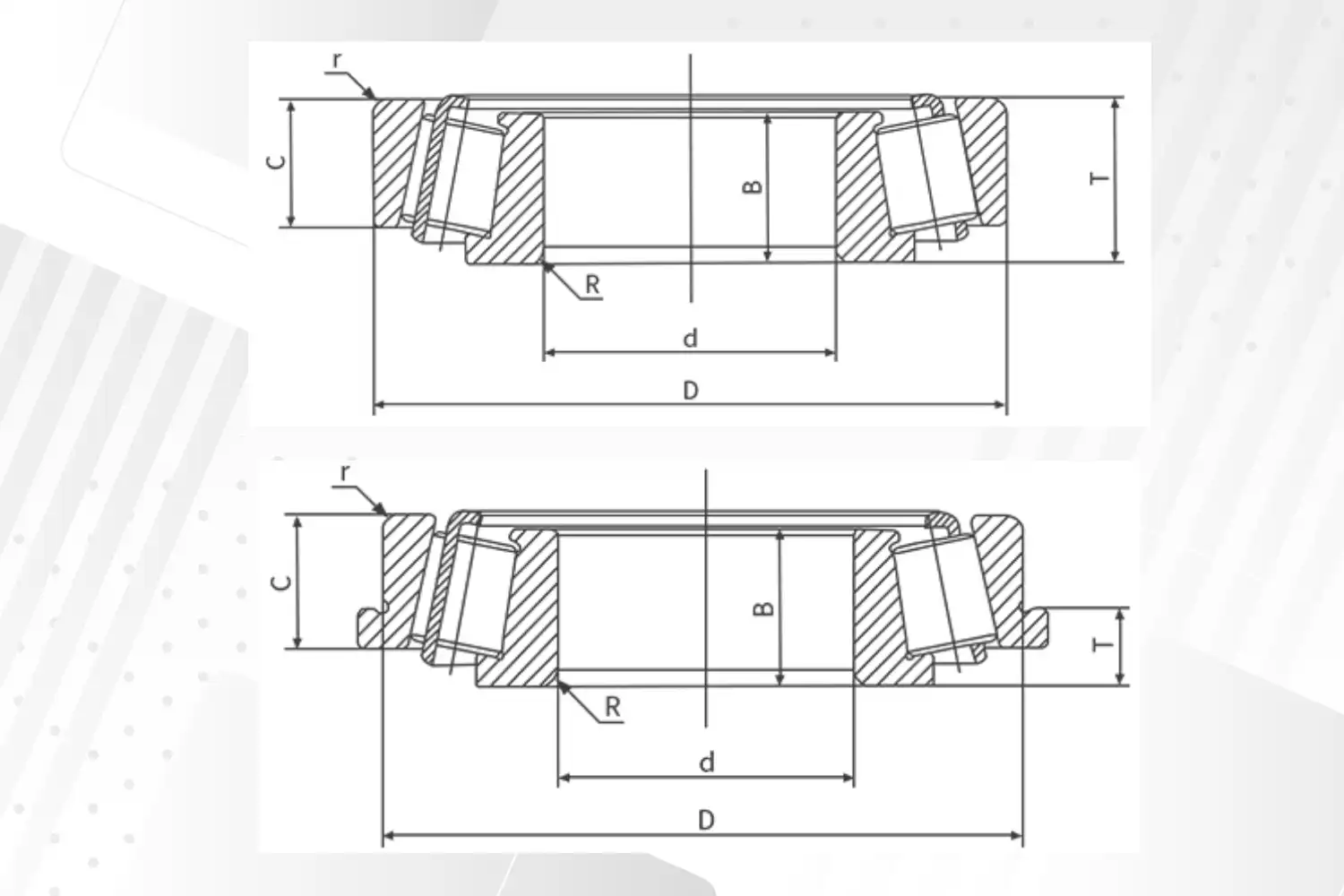

Fundamental Architecture and Roller Configuration

Tapered roller thrust bearings are different from other types of bearings because of their complicated design. The core structure has tapered rollers that are placed at specific angles inside conical raceways. This makes the best contact shape for spreading the load. This curved setup makes sure that forces are spread out evenly across the roller surfaces, stopping stress buildups that could cause the machine to break too soon.There are three main parts that make up a bearing assembly: the shaft washer, the housing washer, and the roller assembly with cage. Each tapered roller stays in exact contact with both raceways at the same time. This makes a system that can handle large axial forces while limiting axial movement in one direction. Because of this one-of-a-kind feature, these bearings are very useful as axial locating elements in heavy machinery.

Material Composition and Manufacturing Excellence

Superior tapered roller thrust bearings are made from high-grade steel alloys. The choice of material has a direct effect on how long the bearings last and how well they fight wear. Specialised heat treatments are used on premium bearing steels to get them to the right amount of hardness while keeping their shape in harsh conditions. Because of these changes to the metal, bearings can work in harsh environments like steel factories, rolling mills, and heavy building equipment. Depending on the needs of the application, the cage building can use solid designs made of steel or brass. For high-load situations, steel cages are stronger, while brass cages are better at keeping lubrication and reducing friction in moderate-load situations. Because this material is flexible, engineers can choose bearings that work best for their unique needs.

Load Distribution Mechanics

The tapered geometry creates a contact angle that optimizes load distribution across the roller length. Unlike cylindrical roller thrust bearings, this design minimizes relative slippage between components while reducing limiting speeds. The result is enhanced operational efficiency with reduced heat generation and extended service life under continuous heavy-load conditions.

Performance Advantages of Tapered Roller Thrust Bearings

Superior Load Capacity and Operational Efficiency

These bearings demonstrate exceptional performance characteristics that distinguish them from alternative designs. The primary advantage lies in their ability to handle significantly higher axial loads compared to ball thrust bearings or needle roller alternatives. Testing data consistently shows load capacities exceeding those of comparable cylindrical designs by 15-25%, depending on specific dimensional parameters.

Here are the core performance benefits that make these bearings superior:

• Enhanced Load Distribution: The tapered contact geometry spreads forces across a larger surface area, reducing contact stress and extending operational life in demanding applications
• Reduced Operational Noise: The precise roller-to-raceway contact minimizes vibration and acoustic emissions, contributing to quieter machinery operation in manufacturing environments
• Improved Efficiency: Lower friction coefficients result in reduced power consumption and heat generation, particularly beneficial in continuous-duty applications
• Extended Service Intervals: Superior load handling capabilities translate to longer periods between maintenance cycles, reducing downtime costs

These performance advantages directly address the critical concerns of procurement teams seeking reliable components for heavy-duty applications. The combination of enhanced load capacity and operational efficiency creates measurable value through reduced maintenance costs and improved equipment reliability.

Maintenance Optimization and Total Cost of Ownership

Strategic maintenance approaches can significantly extend bearing life and optimize operational costs. Proper lubrication management remains critical, with high-quality bearing greases providing optimal protection under extreme load conditions. Regular monitoring of operating temperatures and vibration levels enables predictive maintenance scheduling, preventing unexpected failures that could disrupt production schedules. The robust design characteristics of tapered roller thrust bearings contribute to predictable wear patterns, allowing maintenance teams to plan replacement schedules effectively. This predictability reduces inventory carrying costs while ensuring critical equipment remains operational during peak demand periods.

Comparing Tapered Roller Thrust Bearings with Other Bearing Types

Ball Thrust Bearing Comparison

Ball thrust bearings offer advantages in high-speed applications but fall short in heavy-load scenarios where tapered roller designs excel. While ball bearings provide lower friction at high rotational speeds, their point contact design limits load capacity significantly. Tapered roller thrust bearings achieve superior load distribution through line contact, making them ideal for applications involving substantial axial forces. The durability comparison strongly favors tapered roller designs in industrial environments. Ball thrust bearings typically require more frequent replacement under heavy loads, increasing lifecycle costs and maintenance complexity. Rolling mill applications demonstrate this difference clearly, where tapered designs routinely achieve 50-75% longer service life compared to ball alternatives.

Cylindrical Roller Thrust Bearing Analysis

Direct comparison with cylindrical roller thrust bearings reveals specific advantages of the tapered design. While cylindrical bearings handle pure axial loads effectively, they cannot provide the combined load management capabilities of tapered designs. The angled contact in tapered bearings enables simultaneous handling of axial and moderate radial forces, reducing system complexity in many applications. Load capacity measurements show tapered designs typically achieve 20-30% higher thrust load ratings compared to equivalent-sized cylindrical alternatives. Additionally, the reduced slippage characteristics of tapered designs contribute to lower operating temperatures and extended lubrication life, factors critical in continuous-operation industrial environments.

Needle Roller Bearing Considerations

Needle roller thrust bearings offer space-saving advantages but compromise load capacity and durability compared to tapered designs. The smaller roller diameter in needle bearings creates higher contact stresses, limiting their effectiveness in heavy-duty applications. Tapered roller thrust bearings provide superior load handling while maintaining reasonable space requirements for most industrial applications.

Procurement Considerations for Tapered Roller Thrust Bearings

Supplier Selection and Quality Assurance

Successful procurement requires careful evaluation of supplier capabilities and quality standards. Established manufacturers like SKF, Timken, and NSK maintain comprehensive quality systems that ensure consistent product performance. However, emerging suppliers with strong engineering capabilities and ISO certifications can provide competitive alternatives without compromising reliability. Quality certifications provide essential validation of manufacturing processes and product consistency. ISO 9001 certification indicates robust quality management systems, while ISO 14001 demonstrates environmental responsibility in manufacturing operations. These standards become particularly important when specifying bearings for critical applications where failure could result in significant production losses.

Technical Specification and Sizing Parameters

Proper bearing selection requires careful consideration of operational parameters, including load magnitude, rotational speed, temperature range, and environmental conditions. Standard tapered roller thrust bearings are available in inner diameter ranges from 200-380mm and outer diameters from 400-670mm, with weights ranging from 75-274kg for heavy-duty applications. Critical dimensional tolerances must align with equipment requirements to ensure proper fit and performance. Clearance specifications affect both load distribution and operational temperature, requiring precise matching to application demands. Custom solutions may be necessary for specialized applications involving extreme temperatures or corrosive environments.

Cost Analysis and Value Engineering

The cost of buying tapered roller thrust bearings is only one part of the total cost of owning them. High-quality bearings usually deserve to be more expensive because they last longer and need less upkeep. By agreeing to buy in bulk, you can save money and make sure you always have what you need for production. When technology needs to be upgraded or replaced quickly, lead time becomes very important. Building ties with suppliers and keeping enough inventory on hand can help keep production interruptions to a minimum and keep the costs of carrying bearing sizes that aren't used very often in check.

Real-World Applications and Case Studies

Industrial Application Sectors

Tapered roller thrust bearings are very important in many industries where dependability and load capacity are very important. The bearings can handle shock loads and steady duty cycles that are common in excavators, cranes, and other heavy earthmoving equipment. This makes them useful for construction machinery. These bearings are used in differential assemblies and gearbox systems in the auto business, where precise axial positioning is important. Power production equipment is another important area of use, especially in wind turbine gearboxes and traditional power plant machinery. Because the bearings can handle both axial and rotational loads, they are perfect for these tough situations where maintenance is hard to get to, and dependability is very important.

Steel Manufacturing Success Story

As of recently, a large steel factory replaced cylindrical designs that needed a lot of upkeep in their primary rolling mill with better tapered roller thrust bearings. The plant produces about 2 million tonnes of steel every year, so it's important that the bearings work well so that production goals can be met. The better bearing specifications included better steel alloys and better internal shapes made just for the mill's load profile. The results of the implementation showed that business performance got a lot better. When compared to the old cylindrical design, the bearings lasted 60% longer, and maintenance intervals were pushed from 6 months to 10 months under the same working conditions. Due to fewer repair stops for bearings, production uptime went up by 3.2%, which added an extra 64,000 tonnes of annual production capacity. The money spent on high-quality tapered roller thrust bearings paid for itself in 18 months, thanks to lower maintenance costs and more output capacity.

Innovation Trends and Future Developments

Bearing performance and longevity are still getting better, tapered roller thrust thanks to studies into advanced materials. Ceramic-steel combination designs show promise for use in places with very high temperatures, and special coatings make them more resistant to corrosion in tough conditions. These new ideas allow for a wider range of uses and longer work lives in conditions that are getting harder to handle. Real-time condition monitoring and predictive analytics made possible by digital tracking technologies are changing how bearings are maintained. Smart bearings with built-in sensors can send operating data, which helps with planning maintenance better and finding problems early. These new technologies are what the future of industrial bearings will look like.

Conclusion

The unique combination of high load capacity, high operational efficiency, and long service life makes tapered roller thrust bearings clearly better to other designs. With its angled roller configuration, the angled roller design evenly distributes the load while reducing slippage and noise. Because of these performance traits, they are essential for heavy industry uses that need to handle axial loads reliably and place things precisely. If you choose and use these bearings correctly, they can make equipment much more reliable while also lowering the total cost of ownership by extending service times and making operations more efficient.

FAQ

1. What load capacities can tapered roller thrust bearings handle?

Tapered roller thrust bearings with inner diameters ranging from 200-380mm can typically handle axial loads from 500kN to over 2000kN, depending on specific dimensions and design parameters. The tapered geometry distributes loads more effectively than cylindrical alternatives, often achieving 20-30% higher capacity ratings for equivalent sizes.

2. How do maintenance requirements compare to other bearing types?

These bearings typically require maintenance intervals 50-75% longer than ball thrust alternatives under equivalent load conditions. The superior load distribution and reduced slippage characteristics contribute to more predictable wear patterns and extended lubrication life, reducing overall maintenance costs.

3. What industries benefit most from tapered roller thrust bearing applications?

Heavy industries, including steel manufacturing, mining equipment, construction machinery, and power generation, utilize these bearings extensively. Applications involving continuous heavy loads, shock loading, or requirements for precise axial positioning particularly benefit from the superior characteristics of tapered designs.

Contact Huigong for Premium Tapered Roller Thrust Manufacturing Solutions

Huigong (CHG Bearing) stands as your trusted tapered roller thrust bearing manufacturer, delivering precision-engineered solutions for tapered roller thrust the most demanding industrial applications. Our three decades of specialized experience in heavy-duty bearing manufacturing ensure your equipment receives components designed for maximum reliability and extended service life. We maintain comprehensive quality certifications, including ISO 9001 and ISO 14001, guaranteeing consistent product excellence that meets international standards. Our engineering team provides customized bearing solutions tailored to your specific operational requirements, whether you need enhanced temperature resistance or specialized load configurations. Contact our technical specialists at sale@chg-bearing.com to discuss your bearing requirements and discover how our tapered roller thrust bearing supplier capabilities can optimize your equipment performance.

References

1. Harris, Tedric A. and Kotzalas, Michael N. "Advanced Concepts of Bearing Technology: Rolling Bearing Analysis." CRC Press, 2007.

2. Eschmann, Paul, Hasbargen, Ludwig, and Weigand, Karl. "Ball and Roller Bearings: Theory, Design and Application." John Wiley & Sons, 1985.

3. Palmgren, Arvid. "Ball and Roller Bearing Engineering." SKF Industries Inc., 1959.

4. Hamrock, Bernard J. and Dowson, Duncan. "Ball Bearing Lubrication: The Elastohydrodynamics of Elliptical Contacts." John Wiley & Sons, 1981.

5. Jones, A.B. "Analysis of Stresses and Deflections in Rolling Element Bearings." Institution of Mechanical Engineers, 1946.

6. Lundberg, Gustaf and Palmgren, Arvid. "Dynamic Capacity of Rolling Bearings." Acta Polytechnica Mechanical Engineering Series, 1947.
