What Materials are Single Row Angular Contact Ball Bearings Made From?

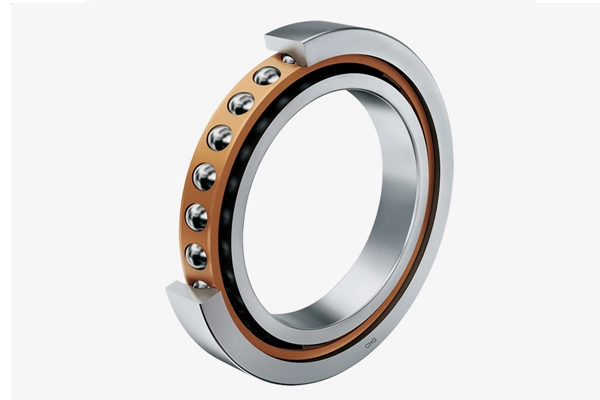

Single Row Angular Contact Ball Bearings represent a crucial component in modern machinery, characterized by their unique design and material composition. These bearings are engineered to handle both radial and axial loads simultaneously, making their material selection particularly critical for optimal performance. The materials used in their construction must exhibit exceptional durability, precision, and resistance to various operational stresses while maintaining dimensional stability under diverse working conditions.

What are the primary materials used in manufacturing Single Row Angular Contact Ball Bearings and why are they chosen?



High-Carbon Chromium Steel Selection

Single Row Angular Contact Ball Bearings predominantly utilize high-carbon chromium steel, specifically AISI 52100 (also known as GCr15 or SUJ2), as the primary material for rings and rolling elements. This material choice stems from its exceptional hardness, wear resistance, and dimensional stability. The steel contains approximately 1% carbon and 1.5% chromium, creating an optimal microstructure after heat treatment. The heat-treated bearing steel achieves a surface hardness of 58-65 HRC (Hardness Rockwell C), ensuring long-term reliability under heavy loads and high-speed operations. Manufacturers of Single Row Angular Contact Ball Bearings carefully control the steel's cleanliness and heat treatment processes to minimize internal defects and optimize performance characteristics.



Advanced Ceramic Materials Implementation

Modern Single Row Angular Contact Ball Bearings increasingly incorporate ceramic materials, particularly silicon nitride (Si3N4), for rolling elements. These hybrid bearings combine ceramic balls with steel rings to achieve superior performance characteristics. Ceramic materials offer significant advantages, including lower density (40% lighter than steel), higher hardness, better electrical insulation, and enhanced resistance to wear and corrosion. The implementation of ceramic components in Single Row Angular Contact Ball Bearings has revolutionized their application in high-speed machinery, aerospace equipment, and precision instruments where traditional all-steel bearings might face limitations.

Cage Material Innovations

The cage components of Single Row Angular Contact Ball Bearings utilize various materials depending on application requirements. Polymer materials, such as polyamide 66 (PA66) and polyetheretherketone (PEEK), offer excellent self-lubrication properties and reduce friction between rolling elements. For more demanding applications, brass or bronze cages provide superior strength and heat resistance. Some manufacturers have developed hybrid cage designs combining different materials to optimize performance under specific operating conditions. The selection of cage materials significantly influences the bearing's speed capabilities, noise levels, and overall efficiency.



How do environmental factors affect material selection for Single Row Angular Contact Ball Bearings?



Temperature Impact Assessment

The operational environment's temperature significantly influences the material selection for Single Row Angular Contact Ball Bearings. Standard bearing steels maintain their mechanical properties up to approximately 120°C, but specialized materials become necessary for higher temperatures. High-temperature applications often require special heat-stabilized steels or ceramic components. The material's thermal expansion characteristics must be carefully considered, as dimensional changes can affect bearing clearance and preload settings. Manufacturers of Single Row Angular Contact Ball Bearings develop specific material compositions and heat treatment processes to ensure reliable performance across wide temperature ranges, from cryogenic conditions to elevated temperatures exceeding 200°C.



Corrosion Resistance Requirements

Corrosive environments demand specialized materials for Single Row Angular Contact Ball Bearings. Stainless steel variants, particularly AISI 440C and similar grades, offer excellent corrosion resistance while maintaining necessary hardness levels. These materials contain higher chromium content (16-18%) and additional alloying elements to enhance their corrosion resistance. Some applications might require specialized coatings, such as thin dense chrome or various types of physical vapor deposition (PVD) coatings, to provide additional protection. The selection of corrosion-resistant materials must balance protection against aggressive environments with the bearing's mechanical performance requirements.



Load and Speed Considerations

The combination of load characteristics and operating speeds significantly influences material selection for Single Row Angular Contact Ball Bearings. High-speed applications often benefit from ceramic rolling elements due to their lower density and reduced centrifugal forces. The material's fatigue resistance becomes crucial under heavy loads, requiring careful consideration of steel cleanliness and heat treatment processes. Advanced bearing steels with modified chemical compositions offer improved fatigue life and better resistance to surface damage under severe operating conditions. Manufacturers continuously develop new material solutions to address the increasing demands for higher speeds and loads in modern machinery.

What role do surface treatments and coatings play in enhancing Single Row Angular Contact Ball Bearings performance?



Surface Finishing Technologies

Surface finishing plays a crucial role in optimizing the performance of Single Row Angular Contact Ball Bearings. Advanced manufacturing processes achieve surface roughness values as low as 0.02 micrometers on critical surfaces. The superfinishing process creates an optimal surface texture that promotes effective lubrication and reduces friction. Modern bearing manufacturers employ various techniques, including honing, lapping, and precision grinding, to achieve the required surface quality. These processes significantly influence the bearing's running accuracy, noise levels, and lifetime. The interaction between surface finish and lubricant film formation directly affects the bearing's tribological behavior and overall performance.



Protective Coating Applications

Specialized coatings enhance the performance characteristics of Single Row Angular Contact Ball Bearings in challenging environments. Diamond-like carbon (DLC) coatings provide excellent wear resistance and low friction properties. These coatings, typically applied through physical vapor deposition (PVD) or chemical vapor deposition (CVD) processes, can significantly extend bearing life in poorly lubricated conditions. Other coating options include black oxide treatments for improved running-in characteristics and various types of phosphate coatings for enhanced corrosion protection. The selection of appropriate coating technology depends on specific application requirements and operating conditions.



Heat Treatment Optimization

Heat treatment processes fundamentally influence the performance of Single Row Angular Contact Ball Bearings. Advanced heat treatment techniques, including vacuum heat treatment and controlled atmosphere processing, ensure optimal material properties throughout the bearing components. These processes achieve specific microstructural characteristics that enhance wear resistance, fatigue life, and dimensional stability. Manufacturers carefully control heating and cooling rates to minimize internal stresses and achieve uniform hardness distribution. The optimization of heat treatment parameters directly affects the bearing's load-carrying capacity and operational reliability.



Conclusion

The material selection and manufacturing processes for Single Row Angular Contact Ball Bearings represent a complex balance of mechanical properties, environmental resistance, and performance requirements. Advanced materials, from high-carbon chromium steels to ceramic components, combined with sophisticated surface treatments and coatings, enable these bearings to meet increasingly demanding applications. Understanding the relationship between material properties and bearing performance is crucial for optimal selection and application in modern machinery.
