What Materials Are Used To Manufacture Precision Deep Groove Ball Bearings?

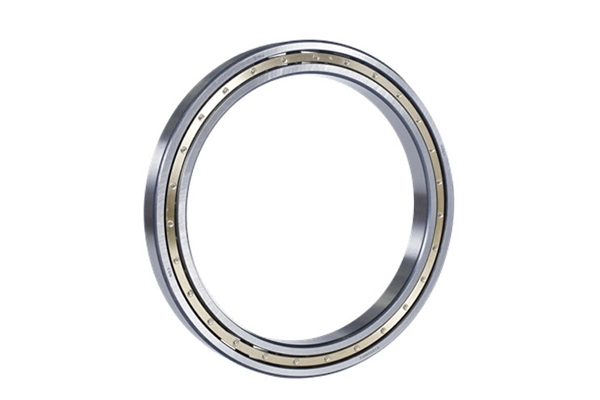

Precision deep groove ball bearings represent a critical component in modern machinery, where their manufacturing materials directly influence performance, durability, and reliability. These bearings are engineered using carefully selected materials that must withstand various operating conditions while maintaining precise dimensional stability. The choice of materials in their manufacture involves considering factors such as load capacity, speed capabilities, operating temperature ranges, and resistance to environmental factors.

How Do Different Steel Grades Affect Ball Bearing Performance?



The selection of steel grades plays a pivotal role in determining the performance characteristics of precision deep groove ball bearings. Bearing steel quality directly influences crucial factors such as wear resistance, fatigue life, and overall reliability. Chrome steel, particularly AISI 52100 (also known as 100Cr6 or SUJ2), has established itself as the industry standard for high-performance bearings due to its exceptional combination of properties.



This high-carbon chromium steel undergoes specific heat treatment processes to achieve optimal hardness levels between 58-65 HRC (Hardness Rockwell C). The material's chemical composition, typically containing about 1% carbon and 1.5% chromium, provides an excellent balance of hardness and toughness. Through-hardening capabilities ensure uniform mechanical properties throughout the bearing components, which is crucial for maintaining dimensional stability under varying loads and temperatures.



Advanced manufacturing techniques have led to the development of modified variants of 52100 steel, incorporating additional elements like vanadium, molybdenum, or silicon to enhance specific properties. These modifications can improve wear resistance, extend fatigue life, or provide better performance under contaminated conditions. Super-clean steel variants, produced through vacuum degassing and electromagnetic stirring processes, significantly reduce inclusion content and improve fatigue resistance.



For applications requiring superior corrosion resistance, martensitic stainless steels such as AISI 440C are employed. While these materials may not match the hardness levels achievable with 52100 steel, they offer substantial benefits in environments where moisture or corrosive elements are present. The trade-off between hardness and corrosion resistance often necessitates careful consideration of the specific application requirements.



What Role Do Cage Materials Play in Bearing Performance and Longevity?



The bearing cage, also known as the retainer or separator, serves the critical function of maintaining proper spacing between rolling elements while allowing for smooth rotation. The selection of cage materials significantly impacts precision deep groove ball bearing performance, particularly in terms of operating temperature limits, lubrication requirements, and speed capabilities.



Traditional steel cages, typically manufactured from low-carbon steel, offer robust performance in standard applications. These pressed steel cages provide excellent strength-to-weight ratios and can be readily formed into complex geometries to optimize lubricant flow and minimize friction. Surface treatments such as zinc plating or phosphating can enhance corrosion resistance and improve lubricant retention.



Brass cages have gained widespread acceptance in high-speed applications due to their superior machining characteristics and excellent friction properties. The material's inherent lubricity and ability to withstand high centrifugal forces make it particularly suitable for precision bearings operating at elevated speeds. Additionally, brass cages can be manufactured to tighter tolerances than pressed steel versions, enabling more precise guidance of the rolling elements.



Polymer cages, particularly those manufactured from reinforced polyamide materials, represent a significant advancement in cage technology. These materials offer advantages such as reduced weight, improved noise characteristics, and inherent damping properties. Glass fiber-reinforced polyamide (PA66) cages can operate effectively at temperatures up to 120°C while providing excellent chemical resistance and dimensional stability.



Advanced polymer compositions incorporating solid lubricants or specialized additives can further enhance performance characteristics. These materials can reduce friction and wear in marginally lubricated conditions, potentially extending bearing service life. The ability to mold complex geometries allows for optimized designs that improve lubricant distribution and heat dissipation.

How Does Surface Treatment Technology Enhance Bearing Material Properties?



Surface treatment technologies have revolutionized the performance capabilities of precision deep groove ball bearings by modifying the surface properties of bearing components without affecting their core characteristics. These treatments can significantly improve wear resistance, reduce friction, and enhance corrosion protection.



Black oxide coating, one of the most widely used surface treatments, creates a magnetite (Fe3O4) layer that enhances running-in characteristics and improves oil retention. This treatment produces a thin, adherent oxide layer that becomes an integral part of the bearing surface, providing improved protection against mild corrosive environments while maintaining dimensional accuracy.



Physical Vapor Deposition (PVD) coatings represent a significant advancement in bearing surface technology. These thin-film coatings, typically composed of titanium nitride (TiN), chromium nitride (CrN), or diamond-like carbon (DLC), can dramatically improve surface hardness and reduce friction coefficients. PVD coatings are particularly effective in applications where boundary lubrication conditions may occur, providing an additional layer of protection against wear and surface damage.



Nitriding and carbonitriding processes introduce nitrogen and carbon into the surface layer of precision deep groove ball bearing components, creating a hard, wear-resistant case while maintaining a tough core. These thermochemical treatments can significantly improve fatigue resistance and load-carrying capacity. The modified surface layer, typically extending 0.2-0.3mm deep, provides enhanced wear resistance without the dimensional changes associated with traditional hard chrome plating.



Advanced surface finishing techniques, such as superfinishing and isotropic finishing, complement these treatments by reducing surface roughness to nanometer levels. The resulting mirror-like surfaces minimize friction and improve lubricant film formation, leading to reduced operating temperatures and extended bearing life. These processes can reduce running noise and improve energy efficiency in high-speed applications.
