What Sizes Do Thin Section Deep Groove Ball Bearings Come In?

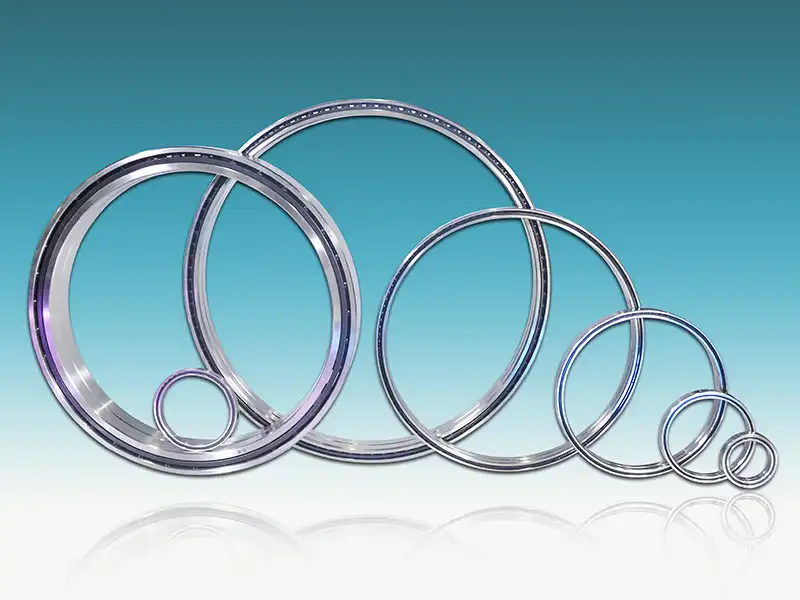

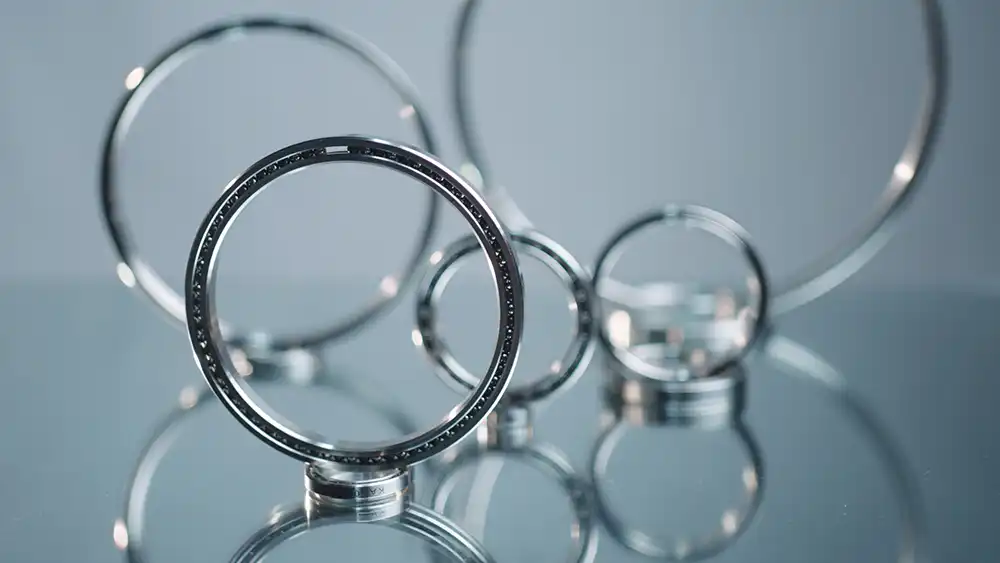

Thin section deep groove ball bearings represent a crucial innovation in the bearing industry, offering unique dimensional characteristics that set them apart from conventional bearings. These specialized bearings maintain a constant cross-section regardless of their diameter, typically featuring a remarkably thin wall section compared to standard bearings. Their sizes range from miniature bearings with bore diameters as small as 10mm to large-diameter bearings exceeding 1000mm, all while maintaining their characteristic thin cross-section. This distinctive design makes them ideal for applications where space is at a premium but precision and reliability are essential.
How do Thin Section Deep Groove Ball Bearings differ from standard bearings?
The fundamental distinction between thin section deep groove ball bearings and standard bearings lies in their unique construction and dimensional characteristics. These specialized bearings are engineered with a cross-sectional thickness that remains consistent regardless of the bearing's diameter, a feature that sets them apart from conventional bearings whose cross-sections typically increase with diameter. This innovative design approach results in weight savings of up to 40% compared to standard bearings while maintaining impressive load-carrying capabilities.
The manufacturing process of thin section bearings employs high-precision techniques and advanced materials to achieve their distinctive profile. The rings are typically made from high-grade bearing steel, carefully heat-treated to ensure optimal hardness and durability. The balls are manufactured to extremely tight tolerances, often utilizing ceramic materials in high-performance applications. This attention to detail in material selection and processing ensures that despite their reduced cross-section, these bearings maintain excellent structural integrity and performance characteristics.
One of the most significant advantages of thin section bearings is their ability to operate with minimal friction and generate less heat during operation. This is achieved through specialized cage designs and optimized internal geometries that promote efficient lubricant distribution. The reduced mass of these bearings also contributes to lower inertia, making them particularly suitable for applications requiring rapid acceleration or deceleration. Additionally, their thin profile allows for more compact machine designs, leading to significant space and weight savings in the final application.
What are the primary applications of Thin Section Deep Groove Ball Bearings?
Thin section deep groove ball bearings find extensive use across various industries due to their unique combination of compact design and reliable performance. In the robotics and automation sector, these bearings are essential components in robotic arms and precision positioning systems, where their low-profile design enables complex articulated movements while maintaining accuracy. The aerospace industry relies heavily on these bearings for applications such as satellite positioning systems, aircraft control surfaces, and navigation equipment, where weight reduction is crucial without compromising reliability.
Medical equipment manufacturers frequently incorporate thin section bearings into diagnostic and therapeutic devices. CT scanners, MRI machines, and surgical robots benefit from the bearings' precise rotation and compact design. The semiconductor manufacturing industry utilizes these bearings in wafer handling equipment and precision positioning stages, where their low friction characteristics and high accuracy are paramount. In the defense sector, thin section bearings are crucial components in radar systems, optical targeting equipment, and guidance systems.
The renewable energy sector has also embraced thin section bearings, particularly in wind turbine pitch and yaw systems. Their ability to handle both radial and axial loads while maintaining a compact profile makes them ideal for these applications. In the manufacturing industry, these bearings are essential components in packaging machinery, printing equipment, and textile manufacturing systems, where space constraints often pose significant design challenges. The bearings' ability to operate smoothly at various speeds while maintaining positioning accuracy makes them invaluable in these applications.
What factors should be considered when selecting Thin Section Deep Groove Ball Bearings?
Selecting the appropriate thin section deep groove ball bearing requires careful consideration of multiple factors to ensure optimal performance and longevity. Load capacity is a primary consideration, with engineers needing to evaluate both dynamic and static load requirements. The bearing's ability to handle combined radial and axial loads must be assessed based on the specific application requirements. Operating speed is another crucial factor, as thin section bearings may require special consideration for lubrication and cooling at high speeds.
Environmental conditions play a significant role in bearing selection. Factors such as temperature, humidity, and exposure to contaminants must be carefully evaluated. In clean room environments, such as semiconductor manufacturing, special consideration must be given to bearing materials and lubricants to prevent particulate generation. For applications in corrosive environments, stainless steel variants or special surface treatments may be necessary to ensure long-term reliability.
Installation and mounting requirements deserve particular attention when selecting thin section bearings. The reduced cross-section means that proper mounting and alignment are critical to prevent deformation and ensure optimal performance. Support structure rigidity, mounting tolerances, and installation procedures must be carefully considered. Additionally, maintenance requirements and accessibility should be evaluated during the selection process, as these factors can significantly impact the total cost of ownership.
The selection process should also consider the bearing's precision grade and running accuracy requirements. Applications in optical equipment or precision machinery may require bearings with higher precision grades to maintain positioning accuracy. The choice between standard steel, ceramic hybrid, or full ceramic ball options should be based on factors such as speed requirements, load conditions, and the need for electrical insulation.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
