What Types of Cage Assemblies Are Used in Axial Cylindrical Roller Bearings?

Axial cylindrical roller bearings are specialized components designed to handle high axial loads with remarkable efficiency. These bearings use cylindrical rollers arranged axially, providing exceptional load-bearing capacity and stability in various industrial applications. One critical element is the cage assembly, which maintains proper spacing between rollers and ensures smooth operation. This article explores the various types of cage assemblies used in axial cylindrical roller bearings, their designs, materials, and performance characteristics.

What Are the Main Materials Used for Cage Assemblies in Axial Cylindrical Roller Bearings?



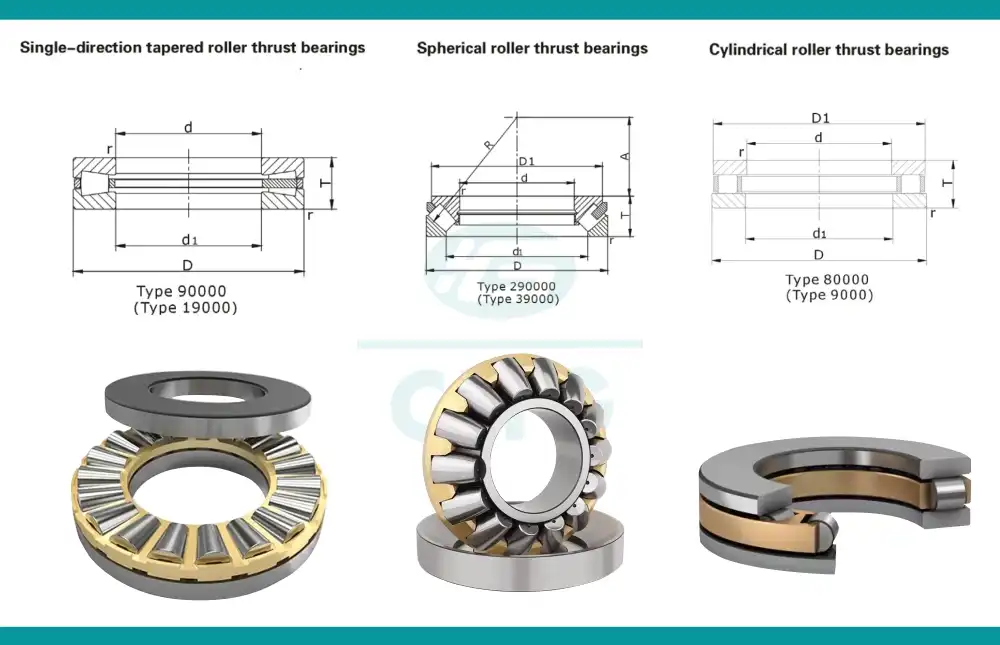

Brass and Bronze Cage Assemblies

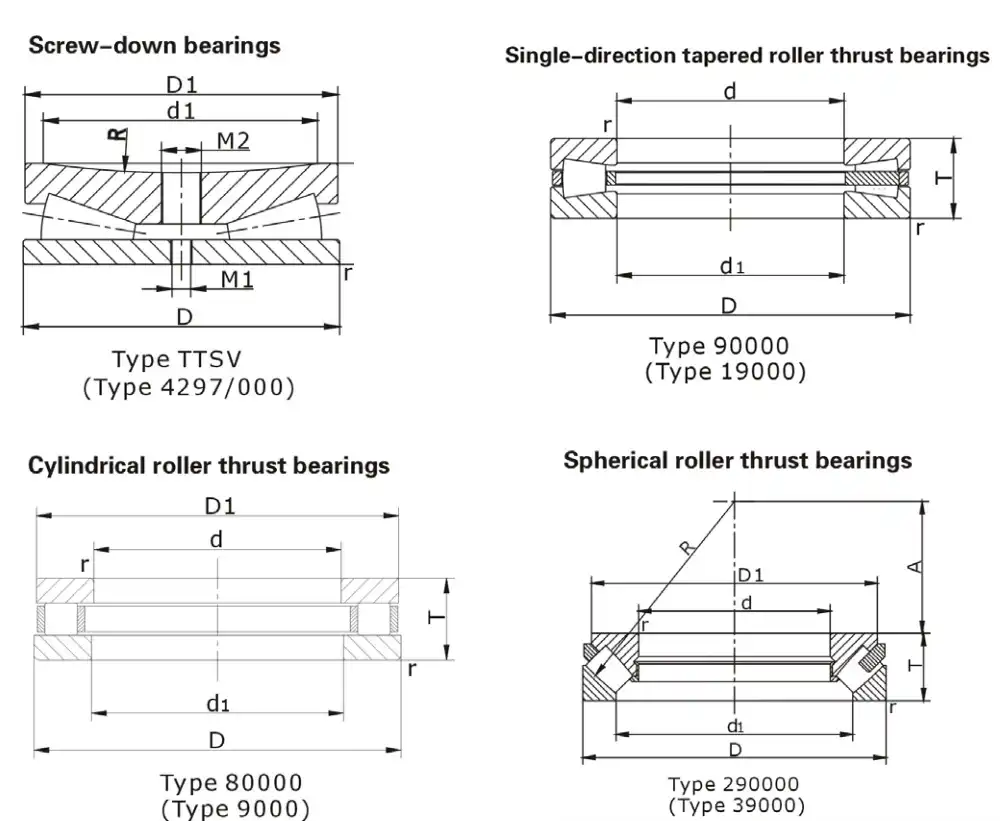

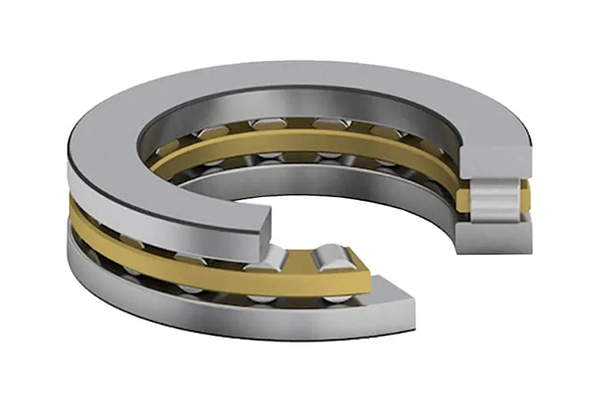

Brass and bronze cages represent traditional options for axial cylindrical roller bearings. Brass cages, made of copper-zinc alloys, provide excellent machinability and good thermal conductivity to dissipate heat during operation. Their natural lubricity reduces friction between the cage and rollers, enhancing bearing efficiency. Bronze cages, made from copper-tin alloys, offer superior strength and wear resistance, making them suitable for heavier loads and severe operating conditions. Both materials demonstrate good corrosion resistance, with bronze generally outperforming brass. In high-temperature environments, these metallic cages maintain dimensional stability, ensuring consistent performance of axial cylindrical roller bearings.

Polyamide and Polymer Cage Designs

Polymer-based cages, particularly polyamide (nylon), have gained popularity in modern axial cylindrical roller bearings. These lightweight alternatives offer several advantages over metallic counterparts. The flexibility of polyamide cages helps absorb vibrations and reduce noise, making them ideal for applications where acoustic performance matters. Their low density reduces inertial forces, enabling operation at higher speeds with lower energy consumption. Polyamide cages feature excellent self-lubricating properties, beneficial when lubrication is limited. Advanced polymer formulations incorporate additives like glass or carbon fibers to enhance strength and thermal stability. The ability to mold complex geometries allows for optimized designs that maximize roller guidance while minimizing friction.



Steel and Advanced Alloy Cage Constructions

For demanding applications, steel and advanced alloy cages provide unmatched strength and durability. Steel cages, typically manufactured from precision-stamped sheet steel, offer exceptional structural integrity and resistance to deformation under heavy loads. These cages are often surface-treated to enhance corrosion resistance and reduce friction. In extreme operating conditions, specialized alloys like heat-resistant stainless steel or nickel-based alloys maintain their mechanical properties under severe conditions. Precision manufacturing ensures accurate roller guidance and spacing in axial cylindrical roller bearings, contributing to optimal load distribution and extended bearing life. Advanced machining techniques create features that enhance lubricant flow and retention, improving performance in industrial applications.



How Does Cage Design Affect the Performance of Axial Cylindrical Roller Bearings?



Impact of Cage Geometry on Roller Guidance

Cage geometry significantly affects the performance of axial cylindrical roller bearings. Modern designs feature precisely engineered pocket shapes that optimize contact between cage and rollers. These contoured pockets minimize friction while maintaining accurate roller positioning for proper load distribution. The clearance between roller and cage pocket must be carefully controlled—too tight causes excessive friction; too loose results in unstable roller movement. Advanced bearings employ asymmetric pocket designs that account for dynamic forces during operation. Bridge thickness (material between pockets) must provide sufficient strength while minimizing mass to reduce inertial effects. Computer modeling has revolutionized cage design, allowing optimization for specific applications, balancing structural integrity with minimal resistance to roller movement.

Influence of Cage Construction on Lubrication Flow

Lubrication significantly impacts the performance and longevity of axial cylindrical roller bearings, with cage design playing a crucial role in lubricant distribution. Window-type cages with large openings promote excellent lubricant flow throughout the bearing assembly, particularly beneficial in oil-lubricated applications. For grease-lubricated bearings, cages with strategically positioned oil channels help maintain adequate lubrication during extended operation. Some advanced designs incorporate hydrodynamic features that actively pump lubricant during rotation. Material porosity in certain cage types, like sintered metals or oil-impregnated polymers, provides additional lubrication benefits through controlled release mechanisms. Engineers must consider the operational viscosity range when designing cage assemblies, as this affects the optimal size and configuration of lubrication pathways.



Correlation Between Cage Stability and Bearing Noise

Noise in axial cylindrical roller bearings often stems from cage instability, making stable cage design essential where acoustic performance matters. Cage instability causes vibration, generating noise and accelerating wear. Balanced mass distribution within the cage structure prevents vibration, particularly in high-speed applications. Some bearings use piloted cage designs, guided by either the inner or outer ring rather than the rollers themselves, providing enhanced stability across varying speeds. The natural frequency of the cage must avoid resonance with other system components, which could amplify vibration and noise. Material selection influences damping characteristics, with polymer cages generally offering superior vibration absorption compared to metal. Precise manufacturing ensures dimensional tolerances and surface finishes that minimize friction-induced noise in axial cylindrical roller bearings.



What Innovations Are Emerging in Cage Technology for Axial Cylindrical Roller Bearings?



Advancements in Hybrid and Composite Cage Materials

The bearing industry is developing new cage materials that combine advantages of different material classes. Hybrid cages with metal reinforcements embedded in polymer matrices offer the strength of metallic cages with the weight and damping benefits of polymers, providing exceptional dimensional stability across broader temperature ranges. Carbon fiber reinforced polymers deliver high strength-to-weight ratios, enabling operation at higher speeds with reduced inertial losses. Some experimental designs use metal-ceramic composites that withstand extreme temperatures while maintaining dimensional tolerances. Advanced manufacturing techniques facilitate complex geometries with embedded functional features impossible with conventional methods. These composite materials often incorporate solid lubricants like graphite directly into the matrix, providing emergency lubrication during lubricant starvation conditions.

Smart Cage Designs with Integrated Monitoring Capabilities

Integration of sensor technology into bearing cage assemblies represents a promising development for Industry 4.0 applications. Intelligent cages incorporate miniaturized sensors monitoring parameters like temperature, vibration, and load distribution in real-time, enabling predictive maintenance strategies that extend bearing life. Some designs feature passive RFID technology providing historical operating data during maintenance intervals without continuous power. More sophisticated applications may utilize cages with embedded strain gauges for direct measurement of operating loads. The integration of microelectromechanical systems (MEMS) opens possibilities for self-adjusting bearings that optimize their configuration based on real-time conditions. These smart components typically communicate wirelessly with external systems, eliminating complex wiring that would compromise bearing integrity.



Eco-Friendly and Sustainable Cage Solutions

Environmental considerations are driving innovation in cage designs, with manufacturers developing sustainable alternatives to traditional materials. Bio-based polymers derived from renewable resources offer comparable performance to petroleum-based polymers while reducing carbon footprint. These materials maintain essential mechanical properties required for axial cylindrical roller bearings while providing end-of-life biodegradability. Near-net-shape production techniques significantly reduce material waste compared to traditional machining. Some manufacturers have developed closed-loop recycling programs for bearing components. Water-based coating systems are replacing solvent-based alternatives for surface treatment of metallic cages, eliminating volatile organic compound emissions. These sustainable innovations often deliver performance benefits including reduced weight, improved efficiency, and enhanced compatibility with environmentally acceptable lubricants.



Conclusion



The selection of appropriate cage assemblies for axial cylindrical roller bearings significantly impacts their performance, reliability, and suitability for specific applications. From traditional brass cages to innovative smart designs with integrated monitoring capabilities, manufacturers continue to develop solutions that address the evolving needs of industrial machinery. Understanding the interplay between cage materials, designs, and operational requirements is essential for optimizing bearing performance across diverse operating conditions.
