Why Choose Tapered Roller Thrust Over Ball Thrust Bearings?
When it comes to heavy-duty industrial uses, the choice between tapered roller thrust bearings tapered roller thrust and ball thrust bearings has a big effect on how well the equipment works and how long it lasts. Tapered roller thrust bearings are better than their ball thrust counterparts at carrying loads, lasting longer, and working well in harsh circumstances. The design of the conical rollers spreads the load more evenly across bigger contact areas. This lets these bearings handle much higher axial loads while still being stable. Because of this main benefit, tapered roller thrust systems are the best choice for tough jobs that need to be reliable, like making steel, running rolling mills, and making precision machinery.

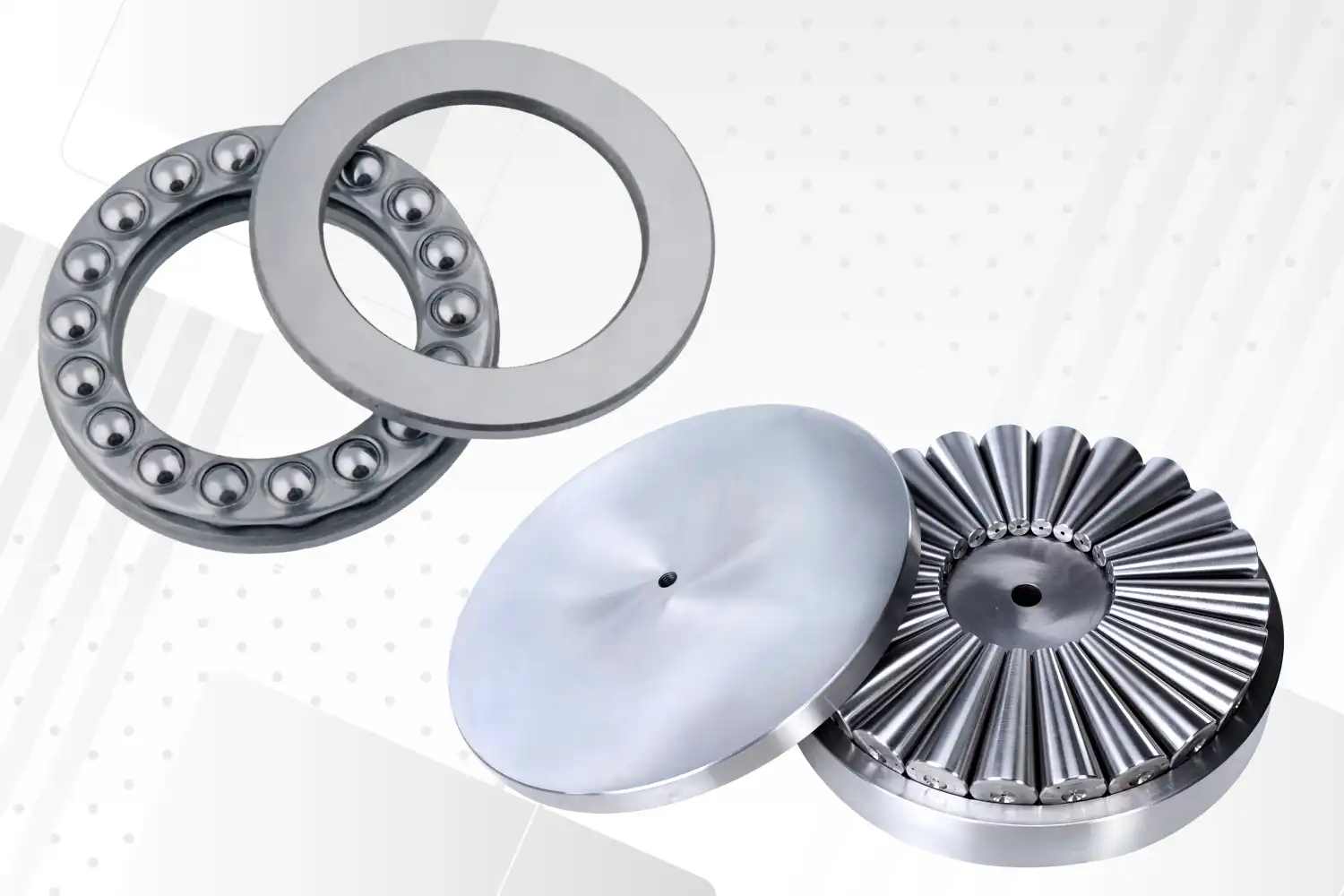

Understanding Tapered Roller Thrust Bearings and Ball Thrust Bearings
Design, Architecture, and Operating Principles
Tapered roller thrust bearings have a complex design with conical rollers placed at precise angles to make the load distribution work best. These rollers move between inner and outer raceways that have curved surfaces that match. This makes line contact, which spreads forces over large contact areas. The bearings can handle both axial and radial loads at the same time because of their design, even though they are mostly made to handle axial forces in one direction. High-performance tapered roller thrust bearings have inner diameters that range from 200 to 380 mm and outer diameters that range from 400 to 670 mm. Depending on the purpose, they can weigh anywhere from 75 kg to 274 kg. These big sizes show that they can hold huge industrial loads while still working precisely. Ball thrust bearings have round rolling parts that are put between two flat or grooved raceways. Even though this design has less friction and can go faster, the point contact between the balls and the raceways makes stress spots that make it hard to carry heavy loads. When looking at bearing options for heavy-duty industrial uses, this basic difference in form becomes very important.
Load Distribution Mechanisms
The superior load distribution of tapered roller thrust bearings stems from their line contact design, which spreads forces across significantly larger surface areas compared to the point contact of ball bearings. This enhanced contact pattern reduces stress concentrations and extends bearing life under heavy loading conditions. Steel or brass solid cages maintain proper roller spacing and prevent skewing during operation, ensuring consistent performance throughout the bearing's service life.
Performance Comparison: Why Tapered Roller Thrust Bearings Excel
Superior Load Capacity and Durability
In high-load situations where tapered roller thrust ball thrust bearings can't do their job anymore, thrust roller bearings show huge performance benefits. Because they are tapered, these bearings can handle radial loads that are much higher than what ball bearings can handle. Compared to cylindrical roller thrust bearings, tapered designs can handle more weight while keeping less relative slippage and speed limits. This makes them perfect for uses that need precise axial positioning. The higher load capacity directly leads to longer operating lifespans and less need for maintenance. Industrial facilities that use these bearings say that they need to be serviced much less often than facilities that use ball thrust options. This is better because the spread loading pattern stops early wear and fatigue failure that happens a lot in point-contact bearing systems.
Temperature and Environmental Resistance
Operating environments in heavy industry often subject bearings to extreme temperatures, contamination, and shock loading. Tapered roller thrust bearings maintain stable performance characteristics under these challenging conditions, outperforming ball thrust bearings in temperature stability and contamination resistance. The robust design accommodates thermal expansion and contraction while maintaining critical clearances necessary for proper operation.
Applications Where Tapered Roller Thrust Bearings Outperform Ball Thrust Bearings
Heavy Industrial Machinery
Construction machinery represents a primary application area where tapered roller thrust bearings excel. Excavators, bulldozers, and crane systems require bearings capable of handling enormous thrust loads while maintaining positional accuracy. The ability to function as axial locating bearings in one direction makes these components essential for equipment requiring precise movement control under load. Automotive applications, particularly in heavy-duty transmissions and differential assemblies, benefit from the enhanced load capacity and durability of tapered roller thrust designs. These bearings manage the complex loading patterns encountered in power transmission systems while providing the reliability necessary for commercial vehicle operations.
Power Generation Equipment
Generating equipment applications tapered roller thrust demand bearing solutions that maintain precision operation under continuous high-load conditions. Tapered roller thrust bearings provide the stability and load capacity necessary for turbine assemblies, generator systems, and auxiliary equipment where failure consequences are severe. The reduced maintenance requirements contribute significantly to overall system availability and operational efficiency. The metallurgy and mining industries present some of the most demanding bearing applications, where equipment must withstand extreme loads, contamination, and continuous operation cycles. Rolling mill applications specifically benefit from the exceptional load capacity and durability characteristics of tapered roller thrust bearings, enabling reliable operation in environments where ball thrust bearings would experience premature failure.
Procurement Insights: Choosing the Right Bearing for Your Business Needs
Technical Evaluation Criteria
Procurement professionals must evaluate several critical factors when selecting bearing solutions for heavy-duty applications. Load capacity requirements should be the primary consideration, with tapered roller thrust bearings offering significant advantages in applications exceeding ball bearing load limits. Operational conditions, including temperature ranges, contamination levels, and shock loading patterns, influence bearing selection and expected service life. Total lifecycle cost analysis reveals the economic advantages of investing in superior bearing technology. While initial costs for tapered roller thrust bearings may exceed ball bearing alternatives, the extended service life, reduced maintenance requirements, and improved reliability generate substantial long-term savings. Facilities implementing these bearings report reduced unplanned downtime and lower overall maintenance costs.
Quality Assurance and Supplier Evaluation
Leading manufacturers maintain strict quality standards backed by comprehensive certification programs. ISO 9001 quality management and ISO 14001 environmental management certifications provide assurance of manufacturing consistency and environmental responsibility. Supplier evaluation should include assessment of technical support capabilities, customization options, and delivery reliability. The bearing industry includes established manufacturers such as Timken, SKF, and NTN, each offering specialized products for different application requirements. Evaluation criteria should encompass technical specifications, quality certifications, and support services available throughout the product lifecycle. Established suppliers provide engineering assistance for proper bearing selection and application optimization.
Installation, Maintenance, and Longevity Tips for Tapered Roller Thrust Bearings
Proper Installation Procedures
To install a bearing correctly and get the best performance, you need to use precise mounting methods and the right tools. If you align the bearing correctly when you place it, it will last as long as it's supposed to and not wear out before its time. When installing tapered roller thrust bearings, you need to think about how they will expand and contract with temperature changes and meet specific spacing requirements. To make sure that bearings sit properly and loads are spread out evenly, mounting surfaces need to be carefully prepared. Surface finish requirements and dimensional limits have a direct effect on how well and how long a bearing lasts. Professional fitting methods include the right way to heat things up for interference fits and the right amount of torque for mounting hardware.
Maintenance Protocols and Lubrication Management
Regular maintenance plans for tapered roller thrust bearings that are based on practical needs extend the life of bearings and stop them from breaking down without warning. Protocols for inspections should include checking for vibrations, measuring temperatures, and checking the state of the lubrication. With these preventative steps, possible problems are found before they affect production. Managing lubrication is a key part of making sure that bearings work well and last a long time. If you choose the right lubricant, use it correctly, and refill it at the right time intervals, it will work perfectly even when the load and temperature change. Bearing dependability is maintained over long service periods by using effective sealing systems to keep out contaminants and regularly testing the lubricant.
Conclusion
In heavy-duty industrial settings, tapered roller thrust bearings are much better than ball thrust options. These bearings are the best choice for demanding operational environments because they can handle more weight, last longer, and work reliably in harsh circumstances. When procurement professionals look at bearing solutions, they should focus on the long-term benefits of investing in tried-and-true technology that provides consistent performance and lower maintenance needs. It is clear that choosing tapered roller thrust bearings for important industrial purposes is the better choice after a thorough examination of technical specifications, application requirements, and total lifecycle costs.
FAQ
1. Why are tapered roller thrust bearings preferred for heavy-load applications?
Tapered roller thrust bearings excel in heavy-load applications due to their line contact design, which distributes forces across larger surface areas compared to the point contact of ball bearings. This design enables them to handle substantially higher axial loads while maintaining operational stability and extending service life under demanding conditions.
2. Can tapered roller thrust bearings replace ball thrust bearings in existing applications?
Replacement feasibility depends on specific application requirements, including load capacity, speed limitations, and mounting constraints. While tapered roller thrust bearings offer superior load capacity, they have lower speed limits compared to ball bearings. Engineering evaluation is necessary to ensure compatibility with existing system requirements and mounting configurations.
3. What factors should be considered when selecting a tapered roller thrust bearing supplier?
Key supplier evaluation criteria include technical expertise, quality certifications, customization capabilities, and support services. Reputable suppliers maintain ISO certifications, provide engineering assistance for proper bearing selection, and offer comprehensive technical documentation. Delivery reliability and after-sales support are equally important for maintaining operational continuity.
Partner with Huigong for Superior Tapered Roller Thrust Bearing Solutions
Huigong (CHG Bearing) stands as your trusted tapered roller thrust bearing manufacturer, delivering exceptional solutions for demanding industrial applications. Our three decades of expertise in precision bearing manufacturing enable us to provide customized solutions that meet your specific operational requirements. With over 50 invention patents and comprehensive ISO certifications, we ensure superior quality and reliability in every bearing we produce. Our experienced engineering team specializes in heavy-duty applications, including rolling mills, precision machinery, and industrial equipment, where performance cannot be compromised. Contact our technical specialists at sale@chg-bearing.com to discuss your bearing requirements and discover how our advanced tapered roller thrust bearing solutions can enhance your operational efficiency and reduce maintenance costs.
References
1. Harris, Tedric A. and Michael N. Kotzalas. "Advanced Concepts of Bearing Technology: Rolling Bearing Analysis." CRC Press, 2006.
2. Eschmann, Paul, Ludwig Hasbargen, and Karl Weigand. "Ball and Roller Bearings: Theory, Design and Application." John Wiley & Sons, 1985.
3. Palmgren, Arvid. "Ball and Roller Bearing Engineering." SKF Industries Inc., 1959.
4. ISO 492:2014. "Rolling bearings - Radial bearings - Geometrical product specifications and tolerance values." International Organization for Standardization.
5. Tallian, Tibor E. "Failure Atlas for Hertz Contact Machine Elements." ASME Press, 1992.
6. Bhushan, Bharat. "Principles and Applications of Tribology." John Wiley & Sons, 2013.
