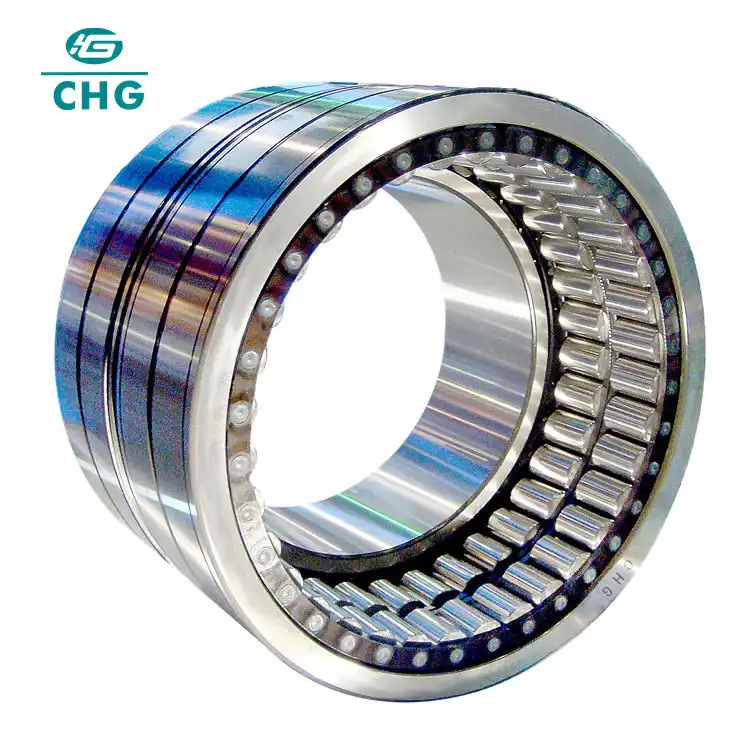

Large Cylindrical Roller Bearing

1. Features: The single-row cylindrical roller bearing is one separable type bearing.
Generally, a single-row cylindrical roller ring consists of four major components as follows:
inner ring, outer ring, rollers, and cage.
2. Series Type: NU, NJ, N, NF series cylindrical roller bearing.
3. Advantages:The single-row cylindrical roller bearing is one separable type bearing. Generally, a single-row cylindrical roller ring consists of four major components as follows: inner ring, outer ring, rollers, and cage. The rollers are typically guided by two ribs of bearing ring .
This kind of bearing is easy to assemble,disassemble and applicable for high-speed rotation cases. So, compared with a normal radial ball bearing with same size, the cylindrical roller bearing is more suitable to the condition which require to bear higher radial load and higher impact resistance.
Normally,it is not used to bear an axial load. It is required the angle between the axes of its inner and outer rings is slight, generally less than 4'. Profiling of the rollers and the raceway generatrix can reduce the inclination requirement somewhat.
We manufacture single row cylindrical roller bearings are available in several designs. The main difference is the configuration of the flanges. The most popular designs are N design bearing,NU design bearing ,NJ design bearing,NUP design bearing.
4. Size range: Inter diameter:120-1320mm
5. Material: GCr15/GCr15SiMn/G20Cr2Ni4A

Send Inquiry CATALOGUE DOWNLOAD

Welcome to the world of Large Cylindrical Roller Bearings! If you're involved in the metallurgical or mining industries, you already know that the right bearing is crucial for the smooth operation of heavy machinery. In this guide, we’ll explore what the products are, why they are essential, and how CHG Bearing can provide solutions tailored to your needs.

What is a Large Cylindrical Roller Bearing?

The products are designed to handle high radial loads and offer exceptional performance in demanding environments. Unlike other bearing types, these bearings feature cylindrical rollers that provide a larger contact area with the raceways, which results in greater load-bearing capacity and enhanced stability.

Key Features:

High Load Capacity: Capable of handling heavy loads and impact forces.
Precision Engineering: Ensures smooth operation and reduces vibration.
Durability: Designed for long-term use in harsh conditions.

CHG Bearing: Your Trusted Partner

CHG Bearing is a leading manufacturer and supplier of Large Cylindrical Roller Bearings. With over 30 years of experience, we specialize in providing high-quality, customized bearing solutions that meet the exacting standards of the metallurgical and mining industries.

Why Choose CHG Bearing?

Customization: We offer tailored solutions to suit various working conditions and equipment requirements.
Experience: Our 30 years of industry experience and collaboration with major companies underscore our reliability.
Innovation: With over 50 invention patents, we lead the industry in technological advancements.
Certifications: Our products are certified by ISO9001, ISO14001, and other quality management systems, ensuring top-notch performance.

For inquiries or custom orders, contact us at sale@chg-bearing.com.

Technical Specifications

Specification	Description
Inner Diameter	Customizable to your needs
Outer Diameter	Customizable to your needs
Width	Customizable to your needs
Load Capacity	High radial load capacity
Material	Chrome steel , stainless steel , and custom materials
Temperature Range	Wide range for harsh environments
Lubrication	Various options available

Benefits of Large Cylindrical Roller Bearings

1. Enhanced Load Capacity

These bearings are designed to support high radial loads, making them ideal for heavy machinery in the metallurgical and mining sectors.

2. Increased Durability

Engineered to withstand harsh environments, they offer superior resistance to wear and tear, reducing the frequency of replacements and maintenance.

3. Improved Precision

The cylindrical roller design minimizes friction and enhances operational precision, contributing to smoother and more efficient machinery performance.

4. Customizable Solutions

CHG Bearing provides bespoke bearing solutions to meet specific requirements, ensuring compatibility with your equipment and operational conditions.

Applications

Large Cylindrical Roller Bearings are commonly used in:

Blast Furnaces: To support the rotation of large components and withstand extreme conditions.

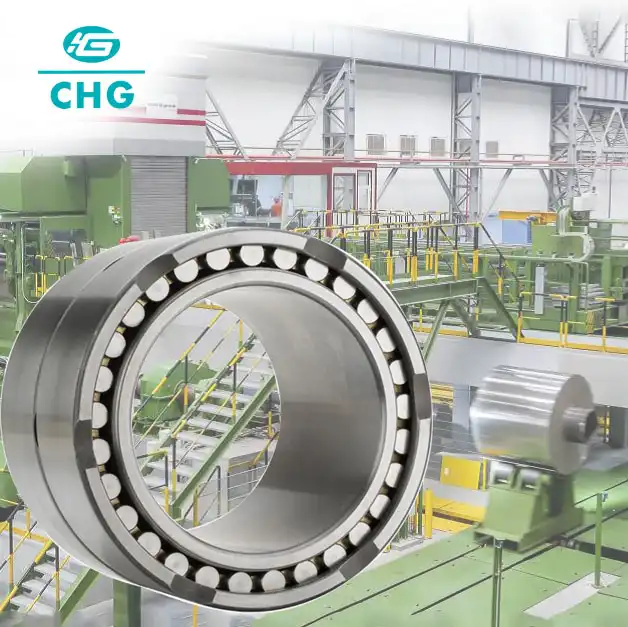

Rolling Mills: For handling heavy loads and ensuring smooth rolling operations.
Steelmaking Equipment: Providing reliable support and durability in high-temperature environments.
Mining Machinery: In crushers, screens, and feeders where heavy loads and high impact forces are prevalent.

Installation Guide

Preparation:

Inspect the Bearing: Ensure it is free from damage and defects.
Clean the Housing: Remove any dirt or debris from the mounting area.

Installation Steps:

Align the Bearing: Position it carefully in the housing.
Apply Lubrication: Follow the recommended lubrication procedures.
Secure the Bearing: Use appropriate tools and methods to ensure a secure fit.

Post-Installation:

Check for Proper Alignment: Ensure there is no misalignment.
Monitor Performance: Regularly check for any signs of abnormal operation.

Maintenance and Care

Regular Inspection:

Visual Checks: Look for signs of wear or damage.
Performance Monitoring: Ensure the bearing operates smoothly and efficiently.

Lubrication:

Schedule: Follow the manufacturer’s recommendations for lubrication intervals.
Type: Use the specified lubrication to prevent premature wear.

Cleaning:

Routine: Regularly clean the bearing and surrounding area to avoid contamination.

FAQ

1. What is the advantage of a cylindrical roller bearing over other types?

Cylindrical roller bearings have a larger contact area with the raceways, providing higher load capacity and improved stability.

2. Can CHG Bearing customize the bearings to specific requirements?

Yes, we offer customized solutions to meet your unique equipment needs and operational conditions.

3. How can I ensure the proper maintenance of my bearings?

Regular inspection, proper lubrication, and cleaning are key to maintaining the performance and longevity of your bearings.

4. What certifications does CHG Bearing have?

We are certified by ISO9001, ISO14001, and other quality management systems, ensuring high-quality standards.

Customer Reviews

John D., Production Manager

"CHG Bearing's Large Cylindrical Roller Bearings have significantly improved the performance of our rolling mills. Their customization options and fast delivery are unmatched."

Sarah L., Technical Engineer

"The precision and durability of CHG bearings have made a huge difference in our equipment reliability. The technical support provided is excellent."

Contact Us

Ready to experience the reliability and precision of CHG Bearing’s Large Cylindrical Roller Bearings? Reach out to us for more information or to place an order.

Email: sale@chg-bearing.com

Thank you for choosing CHG Bearing. We look forward to serving your bearing needs and contributing to the success of your projects!

Boundary dimensions						Basic load ratings		Designations		Installation dimersion					Mass
mm						kN		Designations		mm					Mass
d	D	B	Fw	rmin	r1min	Cr	Cor	Current	Original	damin	Damin	Damax	ramax	rbmax	kg
90	140	70	105	1.5	1.1	222	454	FC 182870	6727 18	98	126	132	1	1	4.4
	140	74	105	1.5	1.1	222	454	FC 182874	-	98	126	132	1	1	4.5
100	140	70	111	1.5	1.1	194	416	FC 202870	6728 20	108	129	135	1	1	3.5
	140	90	111	1.5	1.1	290	616	FC 202890	-	108	129	135	1	1	4.3
	140	104	111	1.5	1.1	335	730	FC 2028104	672720	108	129	135	1	1	5.1
	145	70	113	1.5	1.1	219	457	FC 202970	6727 20K	108	133	137	1	1	4.1
	150	106	113	1.5	1.1	347	736	FC 2030106	-						6.8
110	150	80	122	1.5	1.1	241	602	FC 223080	-						4.4
	170	90	127	2	2	358	754	FC 223490	-	121	155	159	2	2	7.9
	170	120	127	2	2	605	1060	FC 2234120	6727 22	121	155	159	2	2	10.6
	210	170	136.5	2	2	923	1610	FC 2242170	-						27.3
120	180	92	137	2	2	375	820	FC 243692	-	128	165	169	2	1	8.7
	180	105	136	2	2	459	894	FC 2436105	6727 24	128	165	169	2	1	9.8
	180	120	136	2	2	477	1061	FC 2436120	-	128	165	169	2	1	11.2
130	200	104	149	2	2	478	1006	FC 2640104	-	141	183	189	2	2	12.5
	200	125	149	2	2	738	1220	FC 2640125	6727 26	141	183	189	2	2	15
140	210	100	158	2	2	503	1096	FC 2842100	-	151	192	199	1.5	1.5	12.8
	210	106	158	2	2	503	1096	FC 2842106	-	151	192	199	1.5	1.5	13.6
	210	125	158	2	2	718	1365	FC 2842125	6727 28	151	192	199	1.5	1.5	15.8
	210	155	158	2	2	756	1774	FC 2842155	-	151	192	199	1.5	1.5	19.6
145	210	155	166	2	2	720	1560	FC 2942155	-	154	196	201	1	1	20
	225	156	169	2	2	815	1660	FC 2945156	6727 29	156	205	214	2	2	24.4
150	225	120	169	2	2	788	1586	FC 3045120	-	161	207	216	1.5	1.5	17.5
	225	150	169	2	2	865	1770	FC 3045150	-	161	207	216	1.5	1.5	21
	230	156	174	2	2	840	1760	FC 3046156	6727 30	161	210	219	2	2	24.6
160	230	130	180	2	2	781	1384	FC 3246130	-	171	214	219	1.5	1.5	22.7
	230	168	179	3	2	818	2218	FC 3246168	-	171	214	219	2	2	24.2
	240	124	183	2.1	2.1	690	1543	FC 3248124	6727 32K	172	219	228	2	2	20.6
	240	168	183	2.1	2.1	947	2310	FC 3248168	6727 32	172	219	228	2	2	28
	260	168	183	2.5	2.1	953	2326	FC 3252168	-						38.2
170	230	130	188.5	2	2	680	1720	FC 3446130	-	181	215	219	2	2	16.3
	230	152	186	2	2	765	1790	FC 3446152	-	181	215	219	2	2	17.4
	230	180	186	2	2	707	2041	FC 3446180	-	181	215	219	2	2	22.7
	240	130	190	2	2	830	1830	FC 3448130	-	181	222	229	2	2	19
	250	170	192	2.1	2.1	1000	2400	FC 3450170	6727 34H	182	232	238	2	2	29.9
	260	120	195	2.1	2.1	863	1730	FC 3452120	6727 34Y	182	237	248	2	2	24.2
	260	150	195	2.1	2.1	860	1948	FC 3452150	-	182	237	248	2	2	30.2
	260	170	196	2.1	2.1	1080	2460	FC 3452170	-	182	237	248	2	2	34.9
	260	225	196	2.1	2.1	1270	3350	FC 3452225	-	182	237	248	2	2	43.5
180	250	120	200	2.1	2.1	609	1583	FC 3650120	-	191	234	239	2	2	19
	250	156	200	2	2	710	1527	FC 3650156	6728 36	191	234	239	2	2	24.7
	260	120	202	2.5	2.1	693	860	FC 3652120	-	192	242	248	2	2	20.2
180	260	124	202	2.1	2.1	718	1668	FC 3652124	6727 36K	192	242	248	2	2	22.6
	260	154	202	2.5	2.1	983	2200	FC 3652154	-	192	242	248	2	2	28.2
	260	160	202	2.1	2.1	893	2206	FC 3652160	-	192	242	248	2	2	29.2
	260	168	202	2.1	2.1	1060	2440	FC 3652168	6727 36	192	242	248	2	2	30.7
	260	180	202	2.1	2.1	1150	2560	FC 3652180	-	192	242	248	2	2	32.9
	280	180	207	2.1	2.1	1220	2580	FC 3656180	-						43.4
190	260	168	212	2.1	2.1	1020	2600	FC 3852168	-	202	244	248	2	2	27.9
	265	124	213	2.1	2.1	816	1926	FC 3853124	6728 38K						22.1
	270	124	212	2.1	2.1	816	1925	FC 3854124	-	201	252	259	2	2	24.2
	270	168	212	2.1	2.1	1062	2798	FC 3854168	6727 38K	201	252	259	2	2	32
	270	200	212	2.1	2.1	1359	3350	FC 3854200	6727 38	201	252	259	2	2	38.2
	280	200	214	2.1	2.1	1540	3350	FC 3856200	-						41.5
200	270	120	222	2.1	2.1	615	1626	FC 4054120	-	212	254	258	2	2	20.8
	270	170	222	2.1	2.1	985	2670	FC 4054170	-	212	254	258	2	2	29.5
	280	170	222	2.1	2.1	1130	2730	FC 4056170	-	212	262	268	2	2	33
	280	200	222	2.1	2.1	1360	3460	FC 4056200	-	211	262	269	2	2	39.9
200	290	130	226	2.5	2.1	840	1975	FC 4058130	-	212	268	278	2	2	29.9
	290	192	226	2.1	2.1	1386	3250	FC 4058192	6727 40	212	268	278	2	2	44.9
210	290	192	236	2.1	2.1	1300	3400	FC 4258192	-	223	274	277	2	2	40.6
	300	170	234	2.1	2.1	1031	2814	FC 4260170	-	223	278	287	2	2	41.4
	300	210	234	2.1	2.1	1300	3040	FC 4260210	6727 42	223	278	287	2	2	50.3
220	300	192	242	2.1	2.1	1085	3310	FC 4460192	-						41.5
	310	157	246	2.1	2.1	1132	2627	FC 4462157	-	233	286	298	2	2	39.7
	310	190	246	2.1	2.1	1283	3503	FC 4462190	-	233	286	298	2	2	47.2
	310	192	246	2.1	2.1	1250	3070	FC 4462192	6727 44	233	286	298	2	2	48.6
	320	210	248	2.1	2.1	1321	3534	FC 4464210	-	233	296	307	2	2	59.8
	340	192	246	2.5	2.1	1599	3444	FC 4468192	-						65.6
230	330	170	260	2.1	2.1	1142	2974	FC 4666170	-	243	306	317	2	2	50.2
	330	206	260	2.1	2.1	1470	3760	FC 4666206	6727 46	243	306	317	2	2	60.8
	365	250	266	3	3	2400	4900	FC 4673250	-	244	334	351	2.5	2.5	100
240	330	220	264	2.1	2.1	1373	3789	FC 4866220	6727 48	253	308	317	2	2	58.4
	340	192	268	2.1	2.1	1219	3161	FC 4868192	-	254	318	326	2.5	2.5	58
	360	220	272	2.1	2.1	1600	4065	FC 4872220	-	254	330	346	2.5	2.5	83
250	340	170	274	3	3	1141	3281	FC 5068170	-						47.9
	350	220	278	3	3	1350	3804	FC 5070220	6727 50	264	326	336	2.5	2.5	70.2
	360	160	282	3	3	1077	2781	FC 5072160	-						57
	360	220	282	3	3	1486	4210	FC 5072220	-						78.5
260	360	192	287	3	3	1274	3468	FC 5272192	-	273	335	347	2	2	62.3
	360	200	288	3	3	1483	4217	FC 5272200	-	273	335	347	2	2	64.9
	360	204	287	2.1	2.1	1620	3990	FC 5272204	-	273	335	347	2	2	63.5
	370	200	292	3	3	1407	4057	FC 5274200	-	274	342	356	2.5	2.5	74.2
	370	220	292	3	3	1964	4650	FC 5274220	6727 52	274	342	356	2.5	2.5	77.3
	380	220	292	3	3	1516	4353	FC 5276220	-	274	354	366	2.5	2.5	91.2
	380	280	295	3	3	2250	5680	FC 5276280	-	274	354	366	2.5	2.5	110
	400	200	296	4	4	1795	4051	FC 5280200	-	274	370	391	2.5	2.5	95.6
	400	290	296	4	4	2710	7100	FC 5280290	-	274	370	391	2.5	2.5	135
270	380	230	298	3	3	1725	4598	FC 5476230	6727 54	283	354	367	2	2	85.3
	400	220	305	3	3	1833	4570	FC 5480220	-						100
280	375	200	307	3	3	1480	4311	FC 5675200	6729 56	293	356	367	2	2	65.1
	380	220	312	3	3	1360	3960	FCD 5676220	-						68.5
	380	290	308	3	3	1888	5835	FC 5676290	-						100
	390	220	312	3	3	1600	4730	FC 5678220	6727 56Q	294	362	376	2.5	2.5	86.2
	390	240	312	3	3	1763	5235	FC 5678240	-	294	362	376	2.5	2.5	93.4
	390	275	308	3	3	2250	6500	FCD 5678275	-	293	363	377	2	2	105.1
	400	285	316	3	3	3200	7500	FCD 5680285	-						121
	410	300	313	4	4	3590	7650	FCD 5682300	-	294	378	396	2.5	2.5	132
	420	280	318	4	4	2430	6350	FCD 5684280	-						143.4
	420	300	319	4	4	3540	7500	FCD 5684300	-						151
290	410	240	320	4	4	2070	5670	FC 5882240	6727 58	304	380	396	3	3	105
300	420	218	332	4	4	2060	5695	FC 6084218	-	314	390	406	2.5	2.5	97
	420	240	332	4	4	2225	5750	FCD 6084240	-	314	392	406	3	3	107
	420	300	332	3	3	2305	6565	FCD 6084300	-	314	392	406	2.5	2.5	134.7
320	440	240	351	3	3	2120	6101	FC 6488240	-	335	411	425	2.5	2.5	113.9
	440	300	352	3	3	2530	7660	FCD 6488300	-	335	409	425	2.5	2.5	142.3
	450	240	355	4	4	2145	5860	FCD 6490240	-	335	419	435	2.5	2.5	125.3
	460	240	355	4	4	2980	7340	FCD 6492240	-	335	428	445	2.5	2.5	140
	460	280	357	3	3	2450	6534	FC 6492280	-	335	428	445	2.5	2.5	159
	460	300	360	4	4	3640	9700	FCD 6492300	-	335	428	445	2.5	2.5	166.5
	460	340	360	3	3	2895	8105	FCD 6492340	-	335	428	445	2.5	2.5	193.1
	480	290	364	4	4	3580	7400	FCDP 6496290	-	346	462	466	3	3	200
	480	350	364	4	4	3790	10500	FCDP 6496350	-	346	462	466	3	3	227
330	460	340	365	4	4	3760	8265	FCD 6692340	-	344	428	446	2	2	175
340	450	250	368	3	3	2299	6312	FC 6890250	-	354	424	436	2	2	111.2
	450	250	368	3	3	2045	6134	FCD 6890250	-	354	424	436	2	2	112.6
	460	260	370	4	4	2132	5977	FC 6892260	-						128.2
	480	350	378	4	4	3790	10500	FCD 6896350	-	355	446	465	2.5	2.5	207
	500	370	385	4	4	5350	12000	FCDP 68100370	-						263
	560	380	396	40	4	6930	13100	FCDP 68112380	-						352
350	500	380	389	5	5	4290	11700	FCD 70100380	6727 70	363	464	487	2	2	242
	500	410	388	4	4	5950	13950	FCD 70100410	-	363	464	487	2	2	287
	520	300	401	5	5	3860	9000	FCD 70104300	-						220
360	500	250	394	3	3	2940	6740	FCD 72100250	-						143
	510	370	399	4	4	4010	10700	FCD 72102370	-	377	470	493	3	3	273
370	520	380	409	4	4	4900	10750	FCD 74104380	6729 74	389	481	500	3	3	263
	520	380	409	4	4	4160	12312	FCDP 74104380	-	389	481	500	3	3	261
	520	400	409	4	4	4140	11200	FCD 74104400	-	389	481	500	3	3	267
	540	400	415	4	4	3970	11240	FCD 74108400	6727 74	387	499	523	3	3	322.4
380	520	280	426	4	4	2910	7360	FCD 76104280	-						186
	540	260	428	4	4	3480	8820	FCDP 76108260	-						205
	540	300	421	4	4	5120	11220	FCDP 76108300	-						222
	540	380	422	4	4	3766	10930	FCD 76108380	-	397	502	523	3	3	290.9
	540	400	422	4	4	4800	12000	FCD 76108400	6727 76	397	502	523	3	3	305
	540	400	422	4	4	5140	14000	FCDP 76108400	-	397	502	523	3	3	305
	560	300	424	4	4	5050	9850	FCDP 76112300	-						261
	560	325	428	4	4	5330	10810	FCDP 76112325	-						265
390	540	320	431	10×20°	2	4750	12200	FCDP 78108320	-						230
460	650	355	509.5	5	5	6400	14900	FCDP 92130355
	650	424	510	12×20°	3	7000	18300	FCDP 92130424	-						450
	650	470	509	5	5	7900	22400	FCDP 92130470	-	484	609	626	4	4	510
	680	400	518	6	6	8250	17620	FCDP 92136400	-						642
480	620	420	514	6	6	6540	21000	FCDP 96124420	-						332
	650	450	525	6	6	7420	21200	FCDP 96130450	-	500	610	630	4	4	440
	680	420	528	5	5	7500	19300	FCDP 96136420	-						515
	680	500	532	5	5	7323	24000	FCDP 96136500	-	500	632	660	4	4	605
500	650	260	542	6	6	4100	10400	FCDP 100136260	-						225
	670	450	540	5	5	5343	17490	FCDP 100134450	6728/ 500Y	520	629	650	4	4	460
	680	405	550	6	6	5495	16570	FCD 100136405	-	520	634	660	4	4	453
	680	450	550	5	5	7420	22000	FCDP 100136450	-	520	634	660	4	4	500
	710	480	558	5	5	7920	21600	FCD 100142480	-						610
	720	400	558	6	3	7120	17600	FCD 100144400	-						530
	720	530	568	6	6	9720	19890	FCD 100144530	-						755
510	680	500	560	7.5×20°	5	8070	26000	FCDP 102136500	-						522
	730	520	569	6	6	8560	22000	FCD 102146520	-						750
	760	550	570	16×20°	3	10800	26500	FCDP 102152550	-						950
520	670	450	560	6	6	7420	24000	FCDP 104134450	-						402
530	760	520	587	6	6	10530	28500	FCDP 106152520	-						775
	780	500	591	6	6	8410	20400	FCD 106156500	-						805
	780	570	595	6	6	11520	32500	FCDP 106156570	-	555	719	755	5	5	960
550	740	510	600	6	6	7769	27000	FCDP 110148510	-						615
	800	520	612	6	6	10530	26500	FCDP 110160520	-						895
	800	560	610	6	6	10890	28000	FC 110160560	-						930
560	820	600	625	6	6	14400	34800	FCDP 112164600	-	577	757	803	4	4	1085
	820	630	625	6	6	15600	33900	FCDP 112164630	-	577	757	803	4	4	1160
570	750	530	622	5	5	6745	25200	FCD 114150530	6727/ 570						662.5
	815	594	628	6	6	13400	33550	FCDP 114163594	-	595	757	790	4	4	1003
	820	450	654	6	6	11000	30000	FCDP 120164450	-						721
	820	575	660	6	6	11700	35100	FCDP 120164575	-						939
600	870	540	672	22×20°	4	11800	31500	FCDP 120174540	-						1100
	870	640	682	6	6	13600	41700	FCDP 120174640	-						1370
610	820	430	665	19×20°	3	8400	23600	FCDP 122164430	-						650
630	900	670	698	6	6	15900	41400	FCDP 126180670	-						1430
650	900	650	704	7.5	7.5	15480	41500	FCDP 130180650	-						1260
	920	670	723	7.5	7.5	15480	46500	FCDP 130184670	-	680	856	890	6	6	1450
660	820	440	702	7.5	4	6730	22800	FCD 132164440	-						530
	880	450	727	6	6	5546	23600	FCD 132176450	-						785
670	950	700	750	7.5	7.5	16400	50300	FCDP 134190700	-						1630
680	940	600	743	4	4	16900	53400	FCDP 136188600	-						1380
	980	640	760	20×20°	4	13230	41800	FCDP 136196640	-						1590
690	980	715	767.5	7.5	7.5	17820	51300	FCDP 138196715	-	720	911.5	950	4	4	1780
	980	750	766	7.5	7.5	17000	53000	FCDP 138196750	-	720	910	954	6	6	1880
700	930	620	763	18×20°	7.5	11600	40850	FCDP 140186620	-						1180
	980	700	774	6	6	17800	48200	FCDP 140196700	-	726	914	954	5	5	1720
710	1000	715	787.5	7.5	7.5	15400	53200	FCDP 142200715	-						1860
720	980	700	772	7.5	7.5	14540	51300	FCDP 144196700	-						1545
730	940	500	780	3	3	10150	42500	FCDP 146188500	-						1000
	960	620	790	7.5	7.5	11800	48750	FCDP 146192620	-						1220
	1030	750	809	7.5	7.5	16000	55500	FCDP 146206750	-						2040
750	1000	500	816	6	6	9460	32000	FCD 150200500	-						1150
	1000	670	813	7.5	7.5	13500	47500	FCDP 150200670	-						1480
760	1080	790	846	7.5	7.5	18690	62430	FCDP 152216790	-	787	1005	1053	5	5	2445
780	1070	780	853	7.5	7.5	17200	57900	FCDP 156214780	-						2300
800	1080	700	878	7.5	7.5	15200	55500	FCDP 160216700	-	827	1010	1050	5	5	1950
	1150	850	905	7.5	7.5	21000	76600	FCDP 160230850	-						3150
820	1130	800	903	7.5	7.5	18600	64600	FCDP 164226800	-						2540
850	1150	840	928	7.5	7.5	19600	72009	FCDP 170230840	-	875	1088	1130	5	5	2570
	1180	850	940	7.5	7.5	20100	72700	FCDP 170236850	-	881	1104	1149	6	6	2850
	1220	900	940	5	5	23000	84000	FCDP 170244900	-						3720
900	1220	840	989	7.5	7.5	20300	76000	FCDP 180244840	-	931	1145	1190	5	5	3060
	1280	930	1000	7.5	7.5	25300	88350	FCDP 180256930	-						4080
950	1300	850	1044	5	5	22168	81318	FCDP 190260850	6727/ 950Y	980	1210	1270	5	5	3505
950	1360	975	1075	26×20°	7.5	26200	90000	FCDP 190272975	-						4900
	1360	1000	1075	22×20°	7.5	29200	99000	FCDP 1902721000	-						5020
980	1310	880	1061.7	20×20°	7.5	22000	82000	FCDP 196262880	-						3310
1000	1360	800	1101	23×20°	7.5	22000	80000	FCDP 200272800	-						3560
1040	1440	1000	1133	27×20°	7.5	34200	51300	FCDP 2082881000	-						5100
1200	1590	1050	1305	30×20°	6	37620	120600	FCDP 2403181050	-						5970
1300	1655	880	1391	7.5	7.5	33660	109800	FCDP 260331880	-						4800
1350	1765	1360	1457	42×20°	7.5	36180	109800	FCDP 2703531360	-						9100
1400	1780	1200	1493	40×20°	9.5	47070	146700	FCDP 2803561200	-						7400
	1900	1360	1521	40×20°	12	55440	164700	FCDP 2803801360	-						11300
