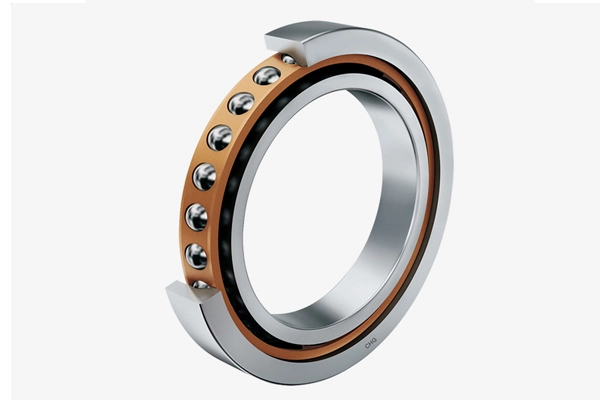

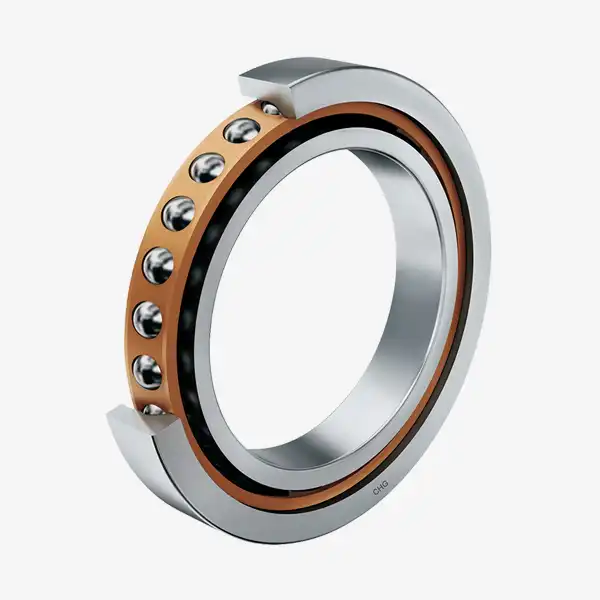

Angular Contact Ball Bearings

1. Sizes:Inner Diameter: 150-1250mm
Outer Diameter: 190-1750mm, Weight: 1.32-1600kg
2. Structures: Separable, Nonseparable
3. Type: 70000,6000
4. Feature:The single row angular contact bearings can support the axial load in one specific direction. Its axial loading capacity depends on the contact angle α. The bigger the contact angle is, the higher its axial bearing capacity is. The typical contact angle is 15°, 25°, and 40°.
5. Cage:Metal solid cages are mainly used in single row angular contact ball bearings. Phenolic cloth laminated tube solid cages are usually used for high speed applications, and the maximum temperature is 120°C.
6. Material: GCr15/GCr15SiMn/G20Cr2Ni4A
Send Inquiry Download

Angular Contact Ball Bearings: The Ultimate Solution for Precision and Reliability

Welcome to our product page for Angular Contact Ball Bearings, an essential component for your equipment's dependable operation. Having a solid understanding of the applications and benefits of the products can have a significant impact on the productivity and longevity of your machinery, regardless of whether you are a purchasing manager, technical engineer, production manager, or company boss.

What are Angular Contact Ball Bearings?

Angular Contact Ball Bearings are ideal for high-speed and precise applications due to their ability to withstand both radial and axial loads. In contrast to conventional ball bearings, the product's raceway is angled in relation to the bearing axis. Due to their unique design, which enables them to support combined loads while maintaining a higher level of rigidity, they are suitable for use in demanding environments.

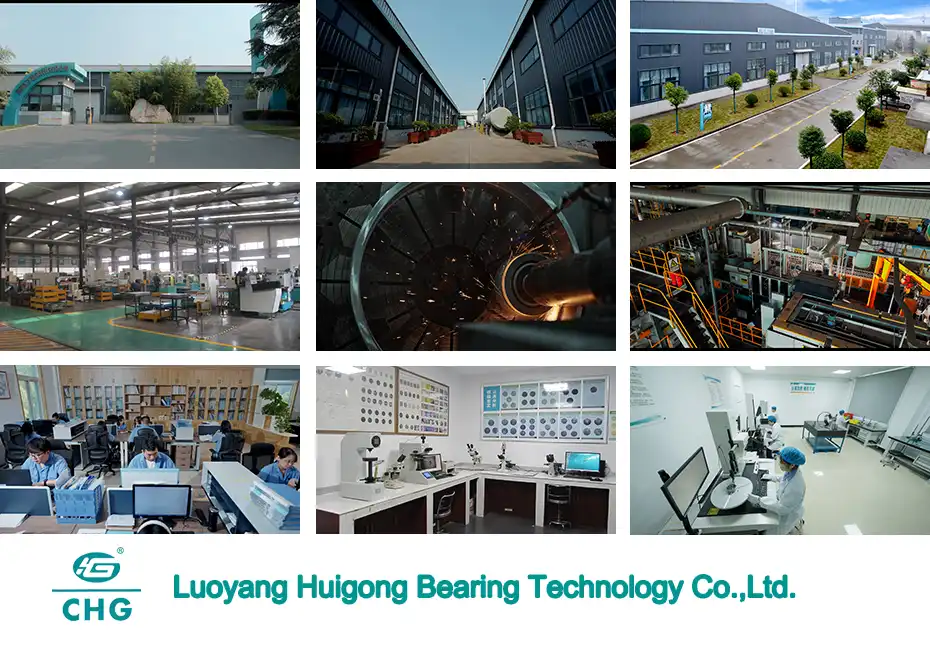

CHG Bearing: Your Expert in Angular Contact Ball Bearings

We are pleased to be a leading supplier of these products at CHG Bearing. We have established ourselves as a reliable partner for businesses that require high-quality, precision-engineered bearings thanks to our more than 30-year history in the industry. The reasons why you should choose us for your bearing requirements are as follows:

  • Customization and Solutions: We offer tailored solutions to meet the specific requirements of various working conditions, ensuring optimal performance and longevity for your equipment.
  • Experience and Expertise: With three decades of experience and collaboration with numerous large companies, we have the expertise to deliver top-notch bearings.
  • Innovation and Certification: Our portfolio includes over 50 invention patents, and we are certified with ISO9001 quality management, ISO14001 environmental management, and other prestigious certifications. This reflects our commitment to quality and innovation.

Please contact us at sale@chg-bearing.com for additional information or to discuss your specific requirements.

Technical Specifications

Specification Details
Type Angular Contact Ball Bearing
Material High-grade Steel or Ceramic
Load Capacity High radial and axial load capacity
Operating Temperature Wide range, typically -20°C to +120°C
Precision Class P0, P6, P5, P4
Lubrication Grease or oil lubrication options
Seals Open, shielded, or sealed types available

Angular Contact Ball Bearings and Their Benefits

Angular Contact Ball Bearings offer several advantages, including:

  • High Precision: Their design ensures minimal runout and high accuracy, crucial for precision machinery.
  • Load Handling: Capable of handling both radial and axial loads, making them versatile for various applications.
  • Enhanced Rigidity: The angled contact allows for greater rigidity, which improves overall system performance and stability.
  • Reduced Friction: Designed to operate smoothly even at high speeds, reducing friction and wear.

Applications

These bearings are commonly used in:

  • The metals industry: For extreme conditions, blast furnaces, rolling mills, and steelmaking equipment require dependable bearings.
  • Mining Equipment: The products' durability and load capacity benefit vibrating screens, jaw crushers, and impact crushers.
  • General Equipment: Gearboxes, high-speed spindles, and other precision equipment.

Installation Guide

Proper installation is key to maximizing the performance and lifespan of the products. Here’s a brief guide:

  • Preparation: Make certain that there is no debris on the shaft or housing.
  • Alignment: To avoid issues with misalignment, carefully align the bearing with the housing and shaft.
  • Mounting: Press the bearing into place with the appropriate tools. To prevent damage, do not hammer directly.
  • Lubrication: Make sure you use the right amount and kind of lubricant for your bearing.

Maintenance and Care

Follow the following maintenance guidelines to ensure long-lasting performance:

  • Regular checkups: On a regular basis, look for signs of wear or damage.
  • Lubrication: Follow the manufacturer's instructions to keep the bearings well lubricated.
  • Control of Contamination: Bearings should not be exposed to moisture, dust, or dirt..

FAQ

Q: What is the difference between angular contact ball bearings and radial ball bearings? A: it support both radial and axial loads, whereas radial ball bearings primarily support radial loads.

Q: Can angular contact ball bearings be used in high-speed applications? A: Yes, they are designed for high-speed applications due to their reduced friction and high precision.

Q: How do I choose the right angular contact ball bearing for my application? A: Consider factors such as load capacity, speed, operating temperature, and lubrication requirements. Consult with a bearing specialist for tailored advice.

Customer Reviews

1.John D., Production Manager："CHG Bearing's bearings have significantly improved the performance and reliability of our equipment. Their customization options are a game-changer."

2.Sarah L., Technical Engineer："The precision and durability of CHG bearings are unmatched. Their technical support and fast delivery are invaluable to our operations."

Contact Us

Please contact us if you have any questions or wish to place an order: sale@chg-bearing.com. We look forward to serving your bearing requirements!

Boundary dimensions Basic load ratings Part number Mass Installation dimersion Limiting
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease oil
150 190 20 1.1 0.6 53.5 74.5 71830AC - 1.32 157 180 1 0.6 2400 3400
  210 28 2 1 90 120 71930AC - 3 160 200 2 1 2400 3400
  225 35 2.1 1.1 153 130 7030 AC 46130 4.83 162 213 2 1 2000 3000
  270 45 3 1.1 241 218 7230 AC 46230 12.1 164 256 2.5 1 1800 2600
  320 65 4 1.5 360 375 7330 AC 46330 25.8 168 302 3 1.5 1700 2400
  320 65 4 1.5 310 310 7330 B 66330 25.8 168 302 3 1.5 1600 2200
160 240 38 2.1 1.1 161 139 7032 AC 46132 5.81 172 228 2 1 2000 3000
  279 40 2.1 1.1 204 182 - 46932 11.6         2000 2800
  290 48 3 1.1 262 247 7232 C 36232 14.5 174 283 2.5 1 1800 2600
  290 48 3 1.1 249 232 7232 AC 46232 14.5 174 276 2.5 1 1700 2400
170 215 22 1.1 0.6 80 110 71834C - 2         2000 2800
  230 28 2 1 110 140 71934C - 3.3 180 220 2 1 2000 3000
  260 42 2.1 1.1 193 171 7034 AC 46134 8.25 182 248 2 1 2000 2800
  310 52 4 1.5 282 275 7234 AC 46234 17.4 188 292 3 1.5 1600 2200
  310 52 4 1.5 320 325 7234 C 36234 17.2 188 292 3 1.5 1700 2400
180 280 46 2.1 1.1 194 230 7036 AC 46136 9.8 192 268 2 1 1600 2200
  320 52 4 1.5 335 345 7236 C 36236 18.1 198 302 3 1.5 1500 2000
  320 52 4 1.5 315 325 7236 AC 46236 18.1 198 302 3 1.5 1500 2000
  380 75 4 1.5 405 445 7336 B 66336 37 198 362 3 1 1300 1800
190 260 33 2 1 139 177 71938AC 1046938 4.45 200 250 2 1 1800 2200
  290 46 2.1 1.1 214 200 7038 AC 46138 10.7 202 278 2 1 1600 2200
  340 55 4 1.5 280 370 7238B - 23 208 322 3 1 1500 2000
200 250 24 1.5 1 90 130 71840C - 2.5 208.5 241.5 1.5 1 1800 2200



Boundary dimensions Basic load ratings Part number Mass Installation dimersion Limiting
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease oil
200 280 38 2.1 1.1 150 210 71940AC - 7.1 212 268 2 1 1600 2200
  310 51 2.1 1.1 253 248 7040 AC 46140 14 212 298 2 1 1500 2000
  360 58 4 1.5 375 410 7240 C 36240 25.2 218 342 3 1.5 1400 1900
  360 58 4 1.5 355 385 7240 AC 46240 25.2 218 342 3 1.5 1300 1800
  360 58 4 1.5 310 325 7240 B 66240 25.8 218 342 3 1.5 1200 1700
210 240 15 1.1 1.1 30 50 70842X3 - 1 222 287 2 1 1800 2200
220 300 38 2.1 1.1 200 250 71944AC - 7.2 232 288 2 1 1800 2200
  400 65 4 1.5 358 482 7244 AC 46244 38.5         1100 1600
240 320 38 2.1 1.1 203 285 71948 C 1036948 8.37 252 308 2 1 1200 1700
  320 38 2.1 1.1 181 260 71948AC 1046948 8.37 252 308 2 1 1100 1600
  320 38 2.1 1.1 161 233 71948 B 1066948 8.43 252 308 2 1 1000 1500
  320 48 2.1 1.1 184 190 72948AC 2046948 10 252 308 2 1 1100 1600
  440 72 4 1.5 420 490 7248 B 66248 50.9 258 422 3 1.5 1000 1500
260 320 28 2 1 127 190 71852AC 1046852 4.85 270 310 2 1 1400 1900
  360 46 2.1 1.1 242 345 71952AC 1046952 13.5 272 348 2 1 1300 1800
  400 65 4 1.5 291 431 7052 B 66152 28.5 278 382 3 1.5 1000 1500
  480 80 5 2 456 702 7252 B 66252 66         900 1300
280 350 33 2 1 140 216 71856AC 1046856 7.2 290 340 2 1 1200 1700
  380 46 2.1 1.1 226 337 71956AC 1046956 15 292 368 2 1 1100 1600
  420 65 4 1.5 287 450 7056B 66156 30 298 402 3 1.5 900 1400
320 400 38 2.1 1.1 190 290 71864 - 10 332 388 2 1 800 1000
  440 56 3 1.1 350 550 71964 - 25.5 334 426 2.5 1 800 1000
340 460 56 3 1.1 292 510 71968 B 1066968 27.5 354 446 2.5 1 800 1000
  520 82 5 2 410 700 7068B 66168 63 362 498 4 2 800 1000
360 480 56 3 1.1 350 600 71972 - 29 374 466 2.5 1 800 1000



Boundary dimensions Basic load ratings Part number Mass Installation dimersion Limiting
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease oil
360 540 82 5 2 530 960 7072C 36172 62.4 382 518 4 2 800 1000
  540 82 5 2 468 855 7072AC 46172 62.5 382 518 4 2 850 1200
  650 95 6 3 585 1125 7272B 66272 145         700 950
380 440 25 3 1.1 110 178 7676 B 66776 7.1         960 1200
  480 31 2 1 171 310.5 70876AC 7046876 13.5         850 1200
  480 46 2.1 1.1 261.9 450 71876AC 1046876 18 392 468 2 1 1700 2400
  520 65 4 1.5 369 661.5 71976AC 1046976 40.5         850 1200
  520 82 4 1.5 407 733 72976AC 2046976 48.9         700 900
  560 82 5 2 456 855 7076AC 46176 65.5 402 528 4 2 800 1100
  560 82 5 2 421 792 7076B 66176 65.5 402 528 4 2 750 1000
400 540 65 4 1.5 380.7 702 71980AC 1046980 42         800 1100
  600 90 5 2 544.5 1062 7080AC 46180 90.5         750 1000
  600 90 5 2 474 918 7080B 66180 90.5         700 950
  720 103 6 3 656.2 1350 7280B 66280 190         600 800
420 560 65 4 1.5 380.7 720 71984AC 1046984 44.5 434 546 2.5 1 750 1000
  560 65 4 1.5 327 603 71984B 1066984 44.5 434 546 2.5 1 700 950
  620 90 5 2 544.5 1062 7084AC 46184 95         750 1000
  620 90 5 2 486 954 7084B 66184 95         670 900
440 600 74 4 3 456.3 936 71988AC 1046988 61         750 1000
  650 94 6 3 585 1186 7088AC 46188 100         700 950
  650 94 6 3 514 1060 7088B 66188 100 468 622 5 2.5 630 850
460 540 35 2.1 1.5 280 520 S7692 6792 14 472 528 2.5 1 750 1000
  580 37 2.1 1 230 504 70892AC 7046892 24.5 474 566 2.5 1 750 1000
  580 56 3 3 334 689 71892AC 1046892 34.5 474 566 2.5 1 750 1000
  620 74 4 1.5 456 936 71992AC 1046992 58         850 1200



Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease Oil
480 600 56 3 1.1 415 820 71896 - 35.5 494 686 2.5 1 850 1200
  700 100 6 3 632 1377 7096 AC 46196 125 508 672 5 2.5 630 850
  700 100 6 3 561 1200 7096 B 66196 125 508 672 5 2.5 560 750
500 620 37 2.1 1.1 248 558 708/500 AC 70468/500 27 514 606 2.5 1 670 900
  620 56 3 1.1 351 765 718/500 AC 10468/500 38 514 606 2.5 1 670 900
  670 78 5 2 498 1098 719/500 AC 10469/500 78 520 650 4 2 630 850
  720 100 6 3 644 1440 70/500 AC 461/500 130 528 692 5 2.5 600 800
  720 100 6 3 573 1260 70/500 B 661/500 130 528 692 5 2.5 560 750
508 600 30 2.1 1.5 150 320 76/508 - 16.5         670 900
530 650 56 3 1.1 369 837 718/530 AC 10468/530 39.5 544 636 2.5 1 1100 1600
  650 56 3 1.1 351 810 718/530 B 10668/530 39.5 544 636 2.5 1 630 850
  710 82 5 2 556 1206 719/530 AC 10469/530 92 552 688 4 2.1 1000 1500
  760 100 6 6 680 1500 307368B - 150 558 732 5 2.5 560 750
  780 112 6 3 813 1944 70/530 AC 461/530 175 558 752 5 2.5 560 750
  780 112 6 3 666 1530 70/530 B 661/530 175 558 752 5 2.5 500 670
560 680 56 3 1.1 341 837 718/560 AC 10468/560 41.5 574 666 2.5 1 600 800
  750 85 5 2 533 1161 719/560 AC 10469/560 105 582 728 4 2 560 750
  820 115 6 3 814 1944 70/560 AC 461/560 195 588 792 5 2.5 530 700
600 730 42 3 1.1 304 662 708/600 AC 70468/600 38.5 614 716 2.5 1 560 750
  730 60 3 1.1 421 1044 718/600 AC 10468/600 47 614 716 2.5 1 560 750
  800 90 5 2 644 1557 719/600 AC 10469/600 125 622 778 4 2 900 1300
  870 118 6 3 796 1944 70/600 AC 461/600 230 628 842 5 2.5 480 630
670 820 69 4 1.5 498 1161 718/670 AC 10468/670 77 668 802 3 1.5 850 1200
  980 136 7.5 4 1053 2790 70/670 AC 461/670 340 706 944 6 3 430 560



Boundary dimensions Basic load ratings Part number Mass Installation dimension Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin r1min Cr Cor damin Damax ramax rbmax Grease Oil
710 870 74 4 1.5 546 1467 718/710 AC 10468/710 93.5 728 852 3 1.5 800 1100
  950 106 6 3 767 1980 719/710 AC 10469/710 195 738 922 5 2.5 800 1100
  1030 140 7.5 4 1071 2925 70/710 AC 461/710 370 746 944 6 3 400 530
750 920 78 5 2 585 1620 718/750 AC 10468/750 110 772 898 4 2 400 530
  1090 150 7.5 4 1170 3285 70/750 AC 461/750 445 782 1054 6 3 360 480
800 1150 155 7.5 4 1197 3420 70/800 AC 461/800 500 836 1114 6 3 340 450
850 1030 82 5 2 620 1674 718/850 AC 10468/850 140 872 1008 4 2 340 450
  1220 165 7.5 4 1377 4185 70/850 AC 461/850 595 886 1184 6 3 300 400
900 1180 122 6 3 940 2670 719/900 - 350         300 400
  1280 170 7.5 4 1404 4410 70/900 AC 461/900 665 936 1244 6 3 280 380
950 1360 180 7.5 4 1467 4680 70/950 AC 461/950 805 986 1324 6 3 240 340
980 1100 60 4 2 515 1450 719/980X1 - 65.6         240 340
1000 1220 100 6 3 831 2475 718/1000 AC 10468/1000 245 1028 1192 5 2.5 260 360
  1420 185 7.5 4 1467 4860 70/1000 AC 461/1000 890 1036 1384 6 3 220 320
1060 1500 195 9.5 5 1512 5130 70/1060 AC 461/1060 1050 1104 1456 8 4 200 300
1120 1360 106 6 3 954 3375 718/1120 AC 10468/1120 320 1148 1322 5 2.5 200 300
  1580 200 9.5 5 1548 5265 70/1120 AC 461/1120 1150 1164 1536 8 4 190 280
1140 1380 106 6 3 1180 3830 718/1140AC 10468/1140 318         190 280
1180 1660 212 9.5 5 1566 5580 70/1180 AC 461/1180 1350 1224 1616 8 4 170 240
1250 1500 80 6 3 725 2430 708/1250 AC 70468/1250 295 1278 1472 5 2.5 180 260
  1500 112 6 3 1026 3510 718/1250 AC 10468/1250 390 1278 1472 5 2.5 180 260
  1750 218 9.5 5 1602 5895 70/1250 AC 461/1250 1600 1294 1706 8 4 160 220



YOU MAY LIKE

Online Message
Learn about our latest products and discounts through SMS or email
