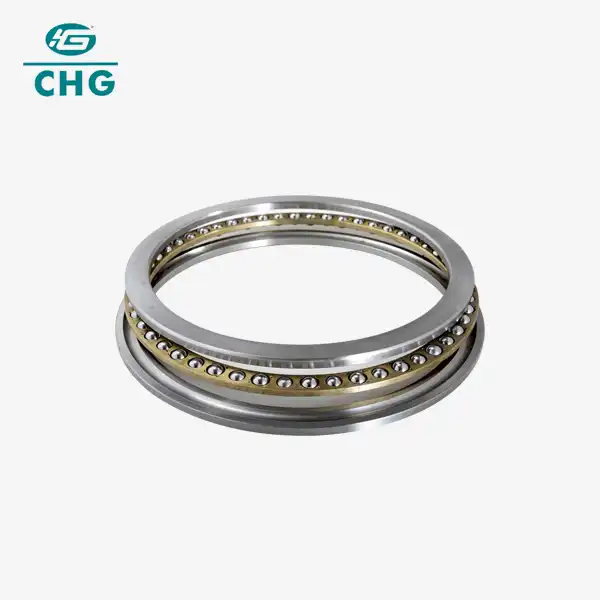

Radial Thrust Ball Bearing

1. Details: The thrust ball bearings are classified into two kinds: unidirectional thrust bearing and bidirectional thrust bearing. The former can bear the axial force in one direction and the latter can bear he axial forces in two directions. Both unidirectional and bidirectional thrust ball bearings cannot bear any radial force. Thrust ball bearing can limit axial displacement of shafts or housings in one or two direction, but not radial displacement. Therefore, the bearings are usally used with deep groove ball bearings.
Single direction thrust ball bearing consist of one row of balls ( with cage ), a shaft washer ( close fit with shaft ) and a housing ring ( loose fit with shaft and close fit with bore of bearing block ). They can not carry radial loads but axial loads in one direction, because the axial loads are well distributed on each bal, the loading capacity is higher, but the temperatue is high while working, and their limiting speed is lower.

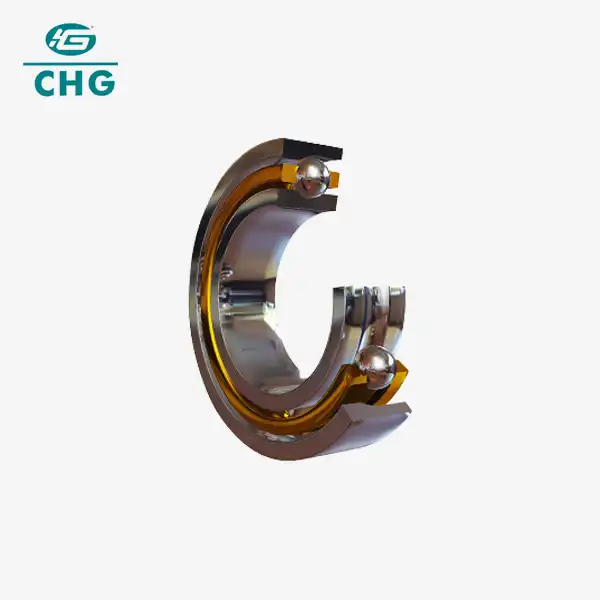

Double direction angular contact thrust ball bearings are high precision bearings which are specilly designed for spindles of machine toole. They are able to carry axial loads in two directions, and they have more balls with small diameter. The centrifugal influence can be reduced as their 60° contact angle, so more suitable for high speed application.
It can carry axial loads that dimension series 2344 and 2349 double direction angular contact thrust ball bearings fit with dimension series NN30 and NU49 double row cylindrical roller bearings.
Double direction angular contact thrust ball bearings with class SP whose running accuracy is P4 and dimension accuracy is P5 can produced by us.

Send Inquiry Download

What is a Radial Thrust Ball Bearing?

A Radial Thrust Ball Bearing is a specialized type of bearing designed to handle both radial and axial loads simultaneously. These bearings are essential components in a wide range of industrial applications, particularly in the metallurgical and mining industries, where equipment is often subjected to intense pressures and varying load directions. These Ball Bearings are known for their precision, durability, and ability to maintain operational stability under challenging conditions.

Why Choose CHG Bearing?

At CHG Bearing, we understand the critical role that Radial Thrust Ball Bearings play in ensuring the smooth and efficient operation of your equipment. With over 30 years of experience in the industry, we have established ourselves as a trusted manufacturer and supplier of high-quality bearings.

Customization and Solutions for Varied Working Conditions: We offer tailored solutions to meet the unique demands of different working environments, ensuring that our bearings perform optimally, regardless of the conditions.
Industry Expertise: Our extensive industry experience includes collaborations with leading companies, allowing us to refine our products continuously and meet the ever-evolving needs of our customers.
Innovation and Certification: CHG Bearing holds more than 50 invention patents and has achieved certifications such as ISO9001 for quality management and ISO14001 for environmental management. These accolades underscore our commitment to excellence and continuous improvement.

For inquiries and custom orders, feel free to contact us at sale@chg-bearing.com.

Technical Specifications

Specification	Details
Bearing Type	Radial Thrust Ball Bearing
Material	High-grade steel
Load Capacity	Up to [Specific Load]
Size Range	[Specific Size Range]
Temperature Range	-40°C to +200°C
Lubrication Type	Oil, Grease, or Custom Lubrication
Certification	ISO9001, ISO14001
Customization	Available upon request

Benefits of Radial Thrust Ball Bearings

High Precision and Rigidity: These bearings offer exceptional precision and rigidity, crucial for maintaining the stability of equipment in demanding environments.
Long Life and Wear Resistance: Designed to withstand harsh conditions, Radial Thrust Ball Bearings from CHG Bearing are built to last, reducing the need for frequent replacements and minimizing downtime.
Versatility: Suitable for a wide range of applications, these bearings can be customized to meet specific requirements, making them a versatile choice for various industries.
Cost-Effective Solutions: Our bearings deliver a balance of high performance and reasonable pricing, ensuring you get the best value for your investment.

Applications of Radial Thrust Ball Bearings

Metallurgical Industry: Supporting the rotation of heavy machinery such as blast furnaces, rolling mills, and steelmaking equipment.
Mining Machinery: Essential for jaw crushers, impact crushers, vibrating screens, and feeders, where they bear heavy loads and maintain operational stability.
Manufacturing Plants: Used in various production equipment to ensure smooth operation and long-term reliability.

Installation Guide

Preparation: Ensure the housing and shaft are clean and free from contaminants.
Alignment: Carefully align the bearing with the shaft to avoid misalignment, which can cause premature wear.
Mounting: Use the appropriate tools to mount the bearing, avoiding excessive force that could damage the components.
Lubrication: Apply the recommended lubricant to ensure smooth operation.
Testing: After installation, run a test to ensure the bearing is functioning correctly.

Maintenance and Care

Regular Inspection: Periodically check for signs of wear or damage.
Proper Lubrication: Keep the bearings adequately lubricated to reduce friction and wear.
Timely Replacement: Replace worn-out bearings promptly to avoid equipment failure.

FAQ

Q: What materials are used in CHG's Radial Thrust Ball Bearings?
A: We use high-grade steel and other materials to ensure durability and high performance.

Q: Can CHG Bearing customize these ball bearings?
A: Yes, we offer customization options to meet specific requirements, including size, material, and lubrication.

Q: What certifications do your bearings hold?
A: Our bearings are certified under ISO9001 and ISO14001 standards, ensuring quality and environmental management.

Q: How do I know if a Radial Thrust Ball Bearing is suitable for my application?
A: Our technical team is available to assist you in selecting the right bearing for your specific needs.

Q: What is the typical delivery time for custom orders?
A: Delivery times vary depending on the complexity of the customization, but we strive to meet urgent needs with quick turnaround times.
