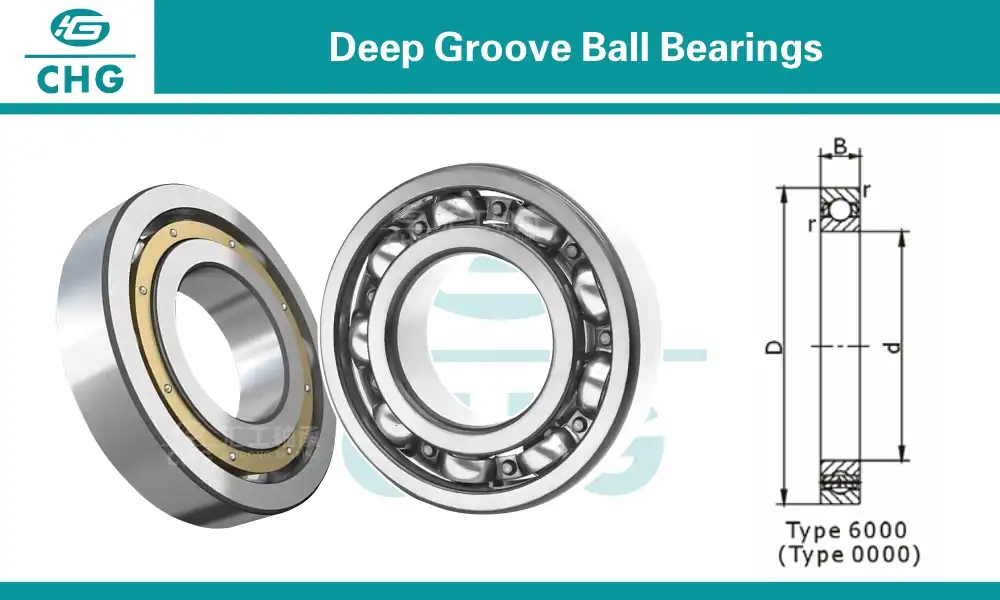

How Do Precision Deep Groove Ball Bearings Differ from Standard Deep Groove Ball Bearings?

Deep groove ball bearings are fundamental components in numerous mechanical applications, but the distinction between precision and standard variants represents a crucial engineering consideration. Precision deep groove ball bearings are manufactured to significantly tighter tolerances and superior specifications compared to their standard counterparts. This enhanced precision results in improved running accuracy, reduced friction, and extended service life, making them essential for applications where exact positioning and smooth operation are paramount.

What Makes Precision Deep Groove Ball Bearings Achieve Higher Running Accuracy?



The superior running accuracy of precision deep groove ball bearings stems from several sophisticated manufacturing and design elements. The raceway surfaces undergo extensive finishing processes, including super-finishing and honing, which create an exceptionally smooth surface with roughness values often less than 0.1 micrometers. This superior surface finish significantly reduces friction and promotes optimal lubricant film formation. The balls used in precision bearings are manufactured to grade 10 or better according to ISO standards, with diameter variations typically held within 0.5 micrometers within a single bearing. This exceptional sphericity and size consistency ensure uniform load distribution and minimal vibration during operation.



The geometric accuracy of precision bearings extends to their raceway roundness and groove radius consistency. Advanced manufacturing techniques ensure that raceway roundness deviation remains within 0.5 micrometers, while groove radius variations are controlled to within 2-3 micrometers. This level of precision enables the bearing to maintain consistent contact angles between the balls and raceways, resulting in more predictable behavior under various loading conditions. Additionally, precision bearings undergo rigorous quality control processes, including 100% inspection of critical dimensions and running characteristics, ensuring that each bearing meets the stringent performance requirements.

Material selection also plays a crucial role in achieving higher running accuracy. Precision bearings typically utilize higher-grade bearing steels with improved cleanliness levels and more uniform microstructures. These materials undergo specialized heat treatment processes that enhance their dimensional stability and wear resistance. The combination of superior materials and precise manufacturing controls results in bearings that maintain their geometric accuracy and smooth operation over extended periods, even under demanding conditions.



How Do the Manufacturing Tolerances Compare Between Precision and Standard Bearings?



Manufacturing tolerances represent one of the most significant differentiators between precision and standard deep groove ball bearings. Precision bearings are manufactured to ABEC-7 (ISO class P4) or better tolerances, while standard bearings typically conform to ABEC-1 or ABEC-3 (ISO class P0 or P6) specifications. This difference in tolerance classes manifests in several critical dimensions and characteristics that directly impact bearing performance.



The bore and outer diameter tolerances of precision bearings are typically held to within 5 micrometers, compared to 10-13 micrometers for standard bearings. This tighter control ensures better fit in housing and shaft assemblies, reducing the potential for misalignment and uneven loading. Width tolerances are similarly controlled, with precision bearings maintaining variations within 3-4 micrometers compared to 10-15 micrometers for standard variants. These tighter tolerances enable more precise shaft positioning and better control of axial play in assembled systems.



Internal clearance specifications also differ significantly between precision and standard bearings. Precision bearings offer more clearance groups with smaller increments, allowing engineers to select the optimal clearance for specific applications. The manufacturing process for precision bearings includes additional steps to control and verify internal geometry, ensuring that clearance values remain consistent across production batches. This consistency is crucial for applications requiring precise rotation and positioning accuracy.



The manufacturing environment for precision bearings is also more strictly controlled, with temperature and humidity maintained within narrow ranges to prevent dimensional variations during production. Advanced measurement and inspection techniques, including laser interferometry and precision roundness measurements, are employed throughout the manufacturing process to verify compliance with tight tolerance requirements. This comprehensive approach to quality control results in bearings that consistently meet or exceed specified performance parameters.

What Applications Require Precision Deep Groove Ball Bearings Over Standard Ones?



The selection of precision deep groove ball bearings over standard variants is driven by application requirements that demand superior performance characteristics. High-speed machine tool spindles represent one of the primary applications for precision bearings, where rotational speeds can exceed 20,000 RPM. In these applications, the reduced friction and superior running accuracy of precision bearings contribute to better surface finishes on machined parts and extended tool life.



Precision bearings are essential in medical and laboratory equipment, where precise positioning and smooth operation are critical. Applications include medical imaging equipment, such as CT scanners and MRI machines, where any vibration or positioning error can affect diagnostic accuracy. Laboratory centrifuges and analytical instruments also rely on precision bearings to maintain stable operation at high speeds while minimizing vibration that could affect test results.



The semiconductor manufacturing industry extensively uses precision bearings in wafer processing equipment, where positioning accuracy directly impacts product quality. These applications often require bearings to operate in clean room environments and maintain precise positioning capabilities over extended periods. The superior cleanliness and consistent performance of precision bearings make them ideal for these demanding applications.



Aerospace applications present another significant market for precision bearings, particularly in navigation systems and control surface actuators. These applications often involve intermittent operation under varying loads and environmental conditions, where maintaining precise positioning is crucial for system functionality. The enhanced reliability and predictable performance characteristics of precision bearings help ensure consistent operation throughout the service life of the equipment.



Robotics and automation systems increasingly rely on precision bearings to achieve the positioning accuracy required for complex assembly and manufacturing tasks. The reduced friction and superior running accuracy of precision bearings contribute to better motion control and more precise positioning capabilities. Additionally, the longer service life and more predictable wear characteristics of precision bearings help reduce maintenance requirements and improve system reliability.

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
