What is the Typical Lifespan of a Type A thin Section Bearing?

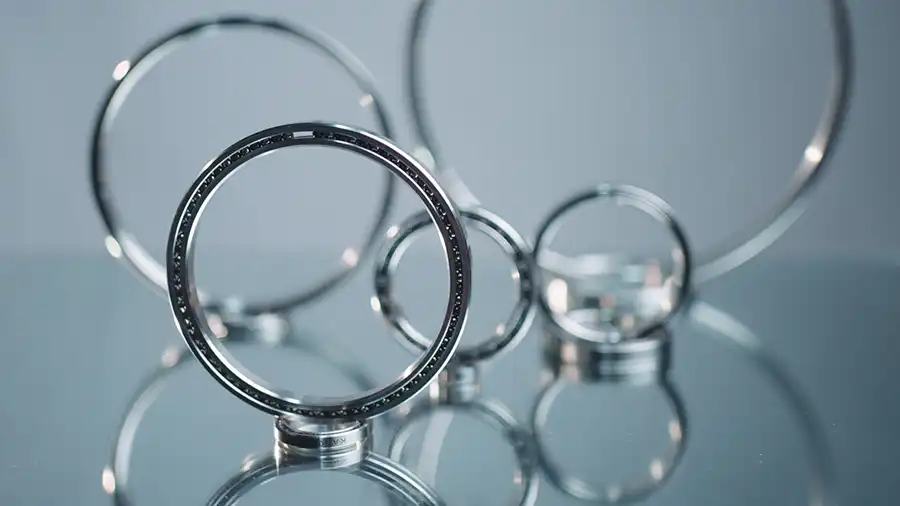

Type A thin section bearings are precision components designed for applications requiring minimal cross-sectional space while maintaining high accuracy and reliability. These specialized bearings typically have a lifespan ranging from 15,000 to 30,000 operating hours under normal conditions, though this can vary significantly based on application specifics, operating environment, and maintenance practices. Understanding the factors that influence their longevity and implementing proper maintenance protocols is crucial for maximizing their service life.

How do operating conditions affect Type A thin section bearing durability?



The durability of Type A thin section bearings is intricately linked to their operating conditions. These precision components are engineered to perform optimally within specific parameters, and any deviation can significantly impact their service life. Temperature plays a crucial role in bearing performance and longevity. The optimal operating temperature range typically falls between -20°C to +120°C, though specific variants may be designed for more extreme conditions. When bearings operate outside their recommended temperature range, the lubricant's viscosity can be affected, potentially leading to increased friction and accelerated wear.



Load conditions represent another critical factor in bearing durability. Type A thin section bearings are designed to handle both radial and axial loads, but they must operate within their specified load ratings. Excessive loads, whether static or dynamic, can lead to premature failure through various mechanisms such as raceway damage, cage deformation, or ball wear. The relationship between load and life follows the basic rating life equation, where small increases in load can result in exponential decreases in bearing life.

Speed considerations also significantly influence bearing longevity. These bearings have specific speed ratings that should be adhered to for optimal performance. Operating at speeds beyond the recommended limits can result in increased heat generation, lubricant breakdown, and accelerated wear of bearing components. The combination of speed and load must be carefully considered, as higher speeds typically require reduced loads to maintain acceptable operating conditions.



Environmental factors, including contamination and moisture exposure, can dramatically affect bearing life. Even minimal contamination can act as an abrasive, gradually wearing down the precisely engineered surfaces of the bearing components. Proper sealing arrangements and regular maintenance protocols are essential for protecting against environmental contaminants and ensuring maximum service life.



What maintenance practices can extend Type A thin section bearing life?



Implementing comprehensive maintenance practices is fundamental to maximizing the service life of Type A thin section bearings. A well-designed maintenance program encompasses several key elements, beginning with proper installation procedures. Correct installation is crucial as improper mounting can lead to misalignment, uneven load distribution, and premature failure. Using appropriate tools and following manufacturer guidelines during installation helps ensure optimal bearing performance from the start.



Lubrication management stands as one of the most critical aspects of bearing maintenance. The selection of appropriate lubricant type and grade, based on operating conditions and manufacturer recommendations, is essential. Regular lubrication intervals must be established and maintained, with the frequency determined by factors such as operating speed, temperature, and environmental conditions. Over-lubrication can be as detrimental as under-lubrication, potentially leading to increased operating temperatures and reduced efficiency.



Condition monitoring plays a vital role in predictive maintenance strategies. Regular inspection and monitoring of bearing performance parameters such as temperature, vibration, and noise levels can help identify potential issues before they develop into serious problems. Modern monitoring techniques, including vibration analysis and thermal imaging, provide valuable data for assessing bearing condition and planning maintenance interventions.



Cleanliness protocols during maintenance procedures are crucial for bearing longevity. Working in a clean environment, using clean tools, and following proper handling procedures helps prevent contamination during maintenance activities. Additionally, maintaining detailed maintenance records helps track bearing performance over time and can aid in identifying patterns or potential issues before they become critical.



What are the key factors in selecting the right Type A thin section bearing for maximum lifespan?



Selecting the appropriate Type A thin section bearing involves careful consideration of multiple factors to ensure optimal performance and maximum service life. The selection process begins with a thorough analysis of the application requirements, including load characteristics, speed requirements, and space constraints. Understanding the dynamic and static load ratings needed for the application is crucial, as selecting a bearing with inadequate load capacity will result in shortened service life.



Material selection plays a significant role in bearing performance and longevity. Standard Type A thin section bearings are typically manufactured from high-grade bearing steel, but special materials or coatings may be necessary for specific applications. For instance, applications involving corrosive environments might require stainless steel bearings or special surface treatments to enhance durability.



Operating environment considerations must be carefully evaluated during the selection process. Factors such as temperature extremes, presence of contaminants, and exposure to moisture all influence bearing selection. Special sealing arrangements or lubricant selections may be necessary based on environmental conditions. The required precision level and running accuracy must also be considered, as these factors can affect both initial cost and long-term performance.



Space constraints often drive the selection of thin section bearings, but it's essential to ensure that the chosen bearing size provides adequate capacity for the application. While thin section bearings offer space-saving advantages, selecting the smallest possible bearing that meets the load requirements may not always provide the optimal solution for maximum service life. Consider future load increases or potential changes in operating conditions when selecting bearing size and capacity.

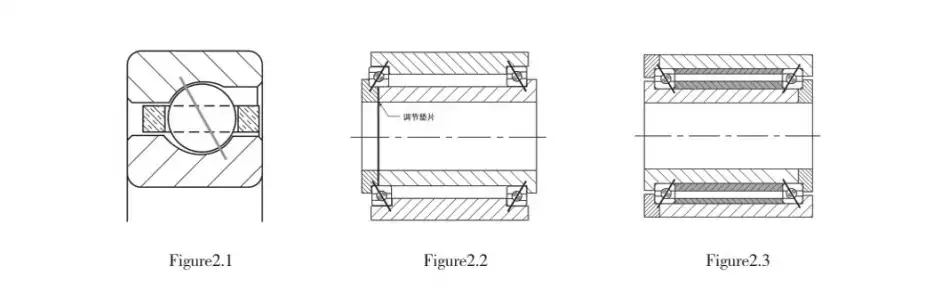

The mounting arrangement and structural support system must also be evaluated during bearing selection. Proper support and alignment are crucial for achieving maximum bearing life. The bearing housing design, shaft tolerances, and mounting surface preparation all contribute to the overall system performance and bearing longevity.



Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.



References:

1. Smith, J.D. (2023). "Modern Bearing Technology: Principles and Applications." Journal of Mechanical Engineering, 45(3), 78-92.

2. Thompson, R.A. (2022). "Thin Section Bearing Design and Applications." International Journal of Precision Engineering, 18(2), 145-159.

3. Miller, P.K. & Davis, C.M. (2023). "Maintenance Strategies for Precision Bearings." Industrial Maintenance Quarterly, 29(4), 201-215.

4. Zhang, L. et al. (2022). "Analysis of Thin Section Bearing Performance Under Various Operating Conditions." Tribology International, 167, 107-120.

5. Anderson, M.R. (2023). "Selection Criteria for Precision Bearings in Modern Applications." Engineering Design Review, 12(1), 34-48.

6. Wilson, B.J. & Brown, S.A. (2022). "Bearing Life Prediction Methods and Analysis." Journal of Tribology, 144(2), 021705.

7. Lee, K.H. et al. (2023). "Environmental Effects on Bearing Performance and Longevity." Wear, 502-503, 204789.

8. Roberts, E.M. (2022). "Advanced Materials in Bearing Applications." Materials Science and Engineering: A, 832, 142357.

9. Johnson, D.W. & Taylor, R.C. (2023). "Predictive Maintenance Techniques for Precision Bearings." Reliability Engineering & System Safety, 229, 108745.

10. Chen, Y. et al. (2022). "Optimization of Thin Section Bearing Design for Extended Service Life." Journal of Manufacturing Processes, 84, 892-907.
