How do Type X Thin Section Bearings Contribute to the Efficiency of Machinery in Various Sectors?
Type X thin section bearings represent a revolutionary advancement in bearing technology, offering exceptional performance characteristics while maintaining a remarkably compact profile. These specialized bearings have become instrumental in enhancing machinery efficiency across numerous industrial applications, from precision medical equipment to advanced robotics and aerospace systems. Their unique design combines minimal cross-sectional area with outstanding load-bearing capabilities, making them invaluable components in modern mechanical systems where space optimization and performance are paramount. The implementation of these bearings has led to significant improvements in equipment design, operational efficiency, and overall system performance across diverse industrial sectors.
The evolution of Type X thin section bearings reflects the industry's response to increasing demands for miniaturization and performance optimization in mechanical systems. These bearings have demonstrated remarkable versatility in addressing complex engineering challenges, particularly in applications where traditional bearing solutions prove inadequate. Their adoption has facilitated the development of more sophisticated machinery while contributing to reduced energy consumption and improved operational reliability.
What Makes Type X Thin Section Bearings Different from Traditional Bearing Designs?

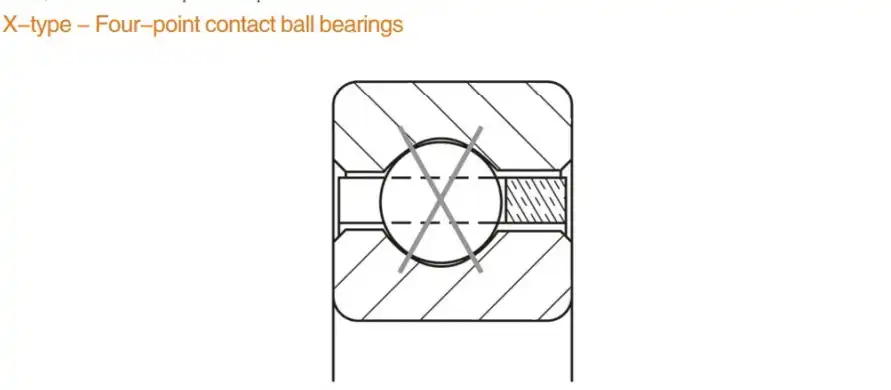

The fundamental distinction of Type X thin section bearings lies in their innovative structural design and manufacturing precision. Unlike conventional bearings, these components feature a characteristic thin-walled construction that maintains identical bore and outside diameter dimensions across different series. This standardization offers unprecedented versatility in engineering applications while delivering superior performance metrics.
The construction methodology employs high-grade materials and precision engineering techniques to achieve remarkable tolerances. The bearing rings are manufactured with optimized cross-sections that significantly reduce weight without compromising structural integrity. This achievement in engineering allows for a reduction in material usage while maintaining load-bearing capabilities comparable to traditional bearings of larger dimensions.
A key technological advancement in Type X thin section bearings is the implementation of specialized raceway geometries. These precisely calculated designs optimize the rolling element contact patterns, resulting in improved load distribution and reduced friction. The bearing's internal geometry is engineered to maintain optimal lubrication film thickness, even under varying load conditions, which substantially extends operational lifespan.
The integration of advanced surface finishing techniques further enhances the bearing's performance characteristics. Through processes such as superfinishing and specialized coating applications, these bearings achieve exceptional surface smoothness that minimizes friction and wear. This attention to surface quality contributes significantly to reduced energy consumption and enhanced operational efficiency in host machinery.
Material selection plays a crucial role in the superior performance of Type X thin section bearings. Advanced steel alloys, specifically developed for thin section applications, provide exceptional strength-to-weight ratios and improved resistance to fatigue and wear. These materials undergo rigorous heat treatment processes to achieve optimal hardness and microstructural properties, ensuring consistent performance under demanding operating conditions.
The manufacturing process incorporates state-of-the-art quality control measures, including advanced metrology systems and automated inspection procedures. Each bearing undergoes comprehensive testing to verify dimensional accuracy, surface finish quality, and running characteristics. This stringent quality assurance process ensures that every bearing meets the exacting standards required for critical applications.
How Can Type X Thin Section Bearings Improve Space Utilization in Complex Machinery?
The space-saving capabilities of Type X thin section bearings have revolutionized equipment design across multiple industries. Their slim profile allows engineers to create more compact machinery without sacrificing performance, leading to significant advantages in equipment design and functionality.

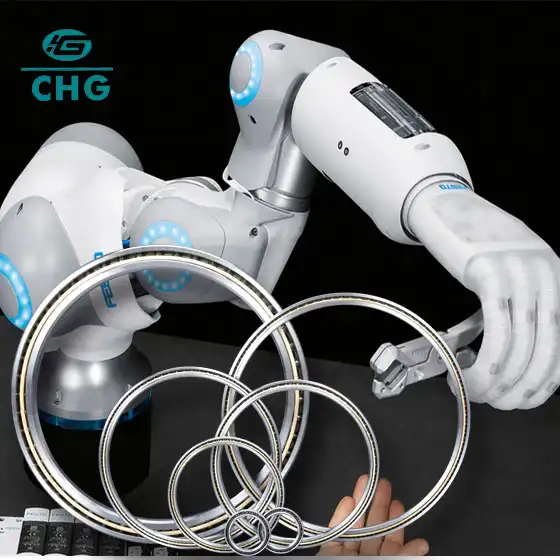

In robotics applications, these bearings enable the creation of more articulate and precise joint mechanisms. The reduced cross-sectional area allows for tighter integration of components, resulting in robots with enhanced dexterity and reduced overall size. This optimization is particularly valuable in collaborative robots where space constraints and precise movements are critical design considerations. The implementation of these bearings has enabled the development of more sophisticated robotic systems for applications ranging from semiconductor manufacturing to surgical assistance.
Medical imaging equipment has particularly benefited from the implementation of Type X thin section bearings. In CT scanners and MRI machines, these bearings facilitate the design of more compact gantry systems while maintaining the precise rotational accuracy required for high-resolution imaging. The reduced bearing profile allows for larger bore openings, improving patient comfort without increasing the overall equipment footprint. The enhanced precision offered by these bearings has contributed to improved image quality and reduced scan times.
The aerospace industry has embraced these bearings for applications in flight control systems and satellite deployment mechanisms. The weight reduction achieved through their thin-wall design contributes to fuel efficiency and payload capacity improvement. Additionally, the compact nature of these bearings allows for more sophisticated mechanical systems to be integrated into limited spaces within aircraft and spacecraft. Their reliability under extreme conditions has made them essential components in critical aerospace applications.
In semiconductor manufacturing equipment, Type X thin section bearings have enabled the development of more precise wafer handling systems and inspection tools. Their compact design allows for multiple axes of motion within confined spaces, while their precision characteristics support the stringent positioning requirements of semiconductor processing equipment. The implementation of these bearings has contributed to increased throughput and improved yield rates in semiconductor fabrication facilities.
What Role Do Type X Thin Section Bearings Play in Enhancing Equipment Reliability and Maintenance Intervals?
The contribution of Type X thin section bearings to equipment reliability and maintenance optimization is substantial and multifaceted. These bearings incorporate design features that significantly extend operational lifespans while reducing the frequency of required maintenance interventions.
Advanced sealing technologies integrated into Type X thin section bearings provide superior protection against contamination. The specialized seal designs maintain an effective barrier against environmental particles while minimizing friction, ensuring consistent performance in challenging operating conditions. This protection system significantly reduces the risk of premature bearing failure and extends the intervals between maintenance procedures. Modern seal designs incorporate multiple stages of protection, including labyrinth seals and advanced contact seal materials, providing comprehensive contamination control while maintaining low torque characteristics.
The bearings' optimized internal geometry facilitates more effective lubrication distribution, ensuring critical surfaces receive adequate protection even during high-speed operation. This enhanced lubrication efficiency results in reduced wear rates and more stable operating temperatures, contributing to extended component life and improved reliability of the host equipment. Advanced lubricant formulations, specifically developed for thin section applications, provide superior protection under boundary lubrication conditions and extreme operating temperatures.
Condition monitoring capabilities have been enhanced through the integration of smart sensing technologies with Type X thin section bearings. Modern variants can be equipped with embedded sensors that provide real-time data on operating parameters such as temperature, vibration, and rotation speed. This capability enables predictive maintenance strategies, allowing maintenance teams to optimize service intervals based on actual operating conditions rather than fixed schedules. The integration of these monitoring systems with industrial IoT platforms facilitates comprehensive equipment health monitoring and predictive maintenance planning.
The implementation of these bearings has demonstrated significant improvements in equipment uptime across various industrial applications. Manufacturing facilities have reported reduced maintenance costs and increased production efficiency through the adoption of machinery equipped with Type X thin section bearings. The combination of extended service life and improved reliability has made these components essential in applications where equipment downtime carries substantial economic implications.
Cost analysis studies have demonstrated significant return on investment through the implementation of Type X thin section bearings in critical equipment. The reduced maintenance requirements, combined with improved equipment reliability, result in lower total cost of ownership compared to conventional bearing solutions. Additionally, the energy efficiency improvements achieved through reduced friction and optimized design contribute to operational cost savings over the equipment lifecycle.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
