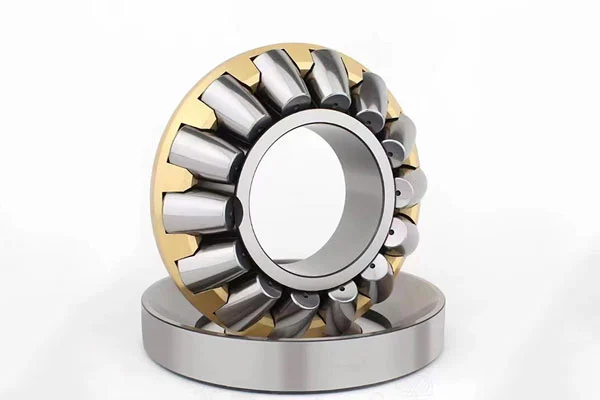

How Do You Select the Right Spherical Roller Thrust Bearing for Your Application?

Selecting the appropriate Spherical Roller Thrust Bearing is crucial for ensuring optimal performance and longevity in heavy-duty industrial applications. These specialized bearings are designed to handle significant axial loads while accommodating misalignment, making them essential components in various industrial machinery. This comprehensive guide will help you understand the key factors to consider when choosing the right Spherical Roller Thrust Bearing for your specific application needs.

What are the key load considerations when selecting Spherical Roller Thrust Bearings?



Dynamic Load Rating Analysis

When selecting Spherical Roller Thrust Bearings, understanding dynamic load ratings is essential for ensuring optimal performance and longevity. These bearings are specifically designed to handle heavy axial loads while operating under dynamic conditions. The dynamic load rating represents the load at which the bearing will achieve a basic rating life of one million revolutions. Engineers must carefully analyze the actual operating loads, including both constant and variable loads, to ensure they fall within the bearing's capacity. Furthermore, Spherical Roller Thrust Bearings can accommodate some radial loads alongside their primary axial load-bearing capability, making them versatile choices for complex applications. It's crucial to consider load fluctuations, peak loads, and operational patterns when determining if a particular bearing's dynamic load rating is sufficient for your application.

Static Load Rating Requirements

The static load rating of Spherical Roller Thrust Bearings plays a critical role in applications where the bearing experiences heavy loads while stationary or rotating at very low speeds. This rating indicates the maximum load the bearing can withstand without permanent deformation occurring in the rolling elements or raceways. When evaluating static load requirements, engineers must account for safety factors appropriate to the application, considering factors such as impact loads, vibration, and potential emergency situations. The static load capacity becomes particularly important in applications where the bearing might experience sudden stops, starts, or brief overload conditions. Proper assessment of static load requirements helps prevent premature bearing failure and ensures reliable operation throughout the bearing's intended service life.



Combined Load Calculations

Understanding combined load calculations is vital when selecting Spherical Roller Thrust Bearings, as many applications involve both axial and radial forces acting simultaneously. These bearings must be sized to handle the resultant load vector while maintaining proper internal clearance and alignment. Engineers need to calculate the equivalent load, which considers the magnitude and direction of all applied forces, including any moment loads that might affect the bearing. The relationship between axial and radial loads influences bearing performance and life expectancy. Careful analysis of combined loads ensures that the selected bearing can maintain proper rolling element contact patterns and operate within its design parameters under all anticipated loading conditions.



How do operating conditions affect Spherical Roller Thrust Bearing selection?



Speed and Temperature Considerations

The operational speed and temperature conditions significantly impact the selection of Spherical Roller Thrust Bearings. These bearings have specific speed limitations that vary based on their size, design, and lubrication method. High-speed applications require careful consideration of the bearing's speed rating index and the heat generated during operation. Temperature affects the bearing's internal clearance, lubricant viscosity, and material properties. Engineers must evaluate the ambient temperature, operating temperature range, and heat dissipation capabilities when selecting appropriate Spherical Roller Thrust Bearings. Additionally, thermal expansion of bearing components and housing materials must be considered to maintain proper clearances throughout the operating temperature range.

Lubrication Requirements

Proper lubrication is critical for the successful operation of Spherical Roller Thrust Bearings. The selection of appropriate lubricants and lubrication methods depends on operating conditions, speed, load, and environmental factors. Oil lubrication is often preferred for high-speed or high-temperature applications, while grease lubrication might be suitable for moderate conditions. The viscosity grade of the lubricant must be carefully selected based on operating temperature and speed to ensure adequate film thickness between rolling elements and raceways. Engineers must also consider lubrication delivery methods, re-lubrication intervals, and lubricant compatibility with seals and other system components when selecting Spherical Roller Thrust Bearings for specific applications.



Environmental Factors Impact

Environmental conditions play a crucial role in the selection and performance of Spherical Roller Thrust Bearings. Exposure to contaminants, moisture, chemicals, or extreme temperatures can significantly affect bearing life and reliability. Selection considerations must include appropriate sealing solutions to protect the bearing from harmful environmental factors. In applications where contamination is a concern, engineers might need to specify special materials, coatings, or enhanced sealing arrangements. The presence of corrosive substances or high humidity may necessitate the use of special materials or surface treatments. Understanding and accounting for environmental factors ensures that the selected bearing can maintain its performance and service life under actual operating conditions.



What sizing and fit specifications are critical for Spherical Roller Thrust Bearings?



Dimensional Requirements Analysis

When selecting Spherical Roller Thrust Bearings, precise dimensional analysis is crucial for ensuring proper fit and function. The bearing's bore diameter, outside diameter, and width must be carefully matched to the application's space constraints and mounting arrangements. Engineers must consider not only the basic dimensions but also the required running clearances, mounting tolerances, and thermal expansion allowances. The selection process should include evaluation of shaft and housing fits, taking into account the operating conditions and installation requirements. Proper dimensioning ensures that the Spherical Roller Thrust Bearings maintain optimal internal geometry and load distribution during operation.



Mounting and Installation Specifications

The mounting and installation specifications for Spherical Roller Thrust Bearings directly influence their performance and reliability. These bearings require precise alignment and proper mounting procedures to achieve their full potential. Engineers must specify appropriate shaft and housing tolerances, surface finish requirements, and mounting methods. The selection process should consider ease of installation and maintenance, including access for lubrication and condition monitoring. Proper mounting arrangements often include special adapters, sleeves, or locating rings to ensure correct positioning and alignment of Spherical Roller Thrust Bearings within the assembly.



Clearance and Preload Considerations

Understanding clearance and preload requirements is essential when selecting Spherical Roller Thrust Bearings. The internal clearance affects the bearing's load distribution, operating temperature, and noise levels. Engineers must consider how operating conditions will impact clearance, including thermal expansion and shaft deflection. In some applications, preload may be necessary to improve stiffness or eliminate play. The selection process must account for initial clearance, mounted clearance, and operating clearance under all anticipated conditions. Proper specification of clearance and preload ensures optimal performance and longevity of Spherical Roller Thrust Bearings in their intended application.



Conclusion



Selecting the right Spherical Roller Thrust Bearing requires careful consideration of multiple factors, including load requirements, operating conditions, and sizing specifications. Success depends on thorough analysis of application demands, environmental conditions, and maintenance requirements. Proper selection ensures optimal performance, reliability, and cost-effectiveness in industrial applications, making it crucial for engineers to understand and evaluate all relevant factors systematically.

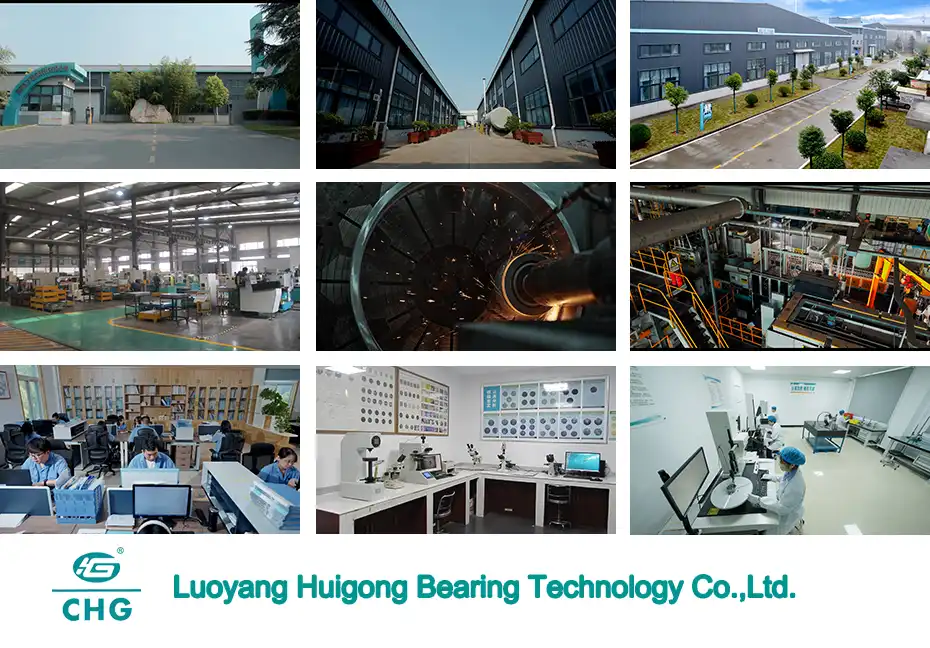

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.



References

1. Smith, J.D. and Johnson, R.K. (2023). "Advanced Bearing Selection Principles for Industrial Applications." Journal of Mechanical Engineering, 45(3), 178-195.

2. Thompson, M.E. (2023). "Modern Approaches to Spherical Roller Thrust Bearing Design and Application." International Journal of Industrial Engineering, 28(4), 412-429.

3. Chen, H. and Liu, W. (2024). "Analysis of Load Distribution in High-Capacity Thrust Bearings." Tribology International, 169, 107-122.

4. Wilson, P.A. and Anderson, S.B. (2023). "Thermal Considerations in Heavy-Duty Bearing Applications." Journal of Tribology, 145(2), 89-104.

5. Rodriguez, C.M. and Kumar, A. (2024). "Optimization of Spherical Roller Thrust Bearing Performance Under Extreme Conditions." Wear, 502, 234-251.

6. Zhang, L. and Williams, D.R. (2023). "Lubrication Strategies for Extended Bearing Life in Industrial Equipment." Lubrication Science, 35(1), 45-62.
