What are the Unique Features of HXU Cross Roller Bearings?

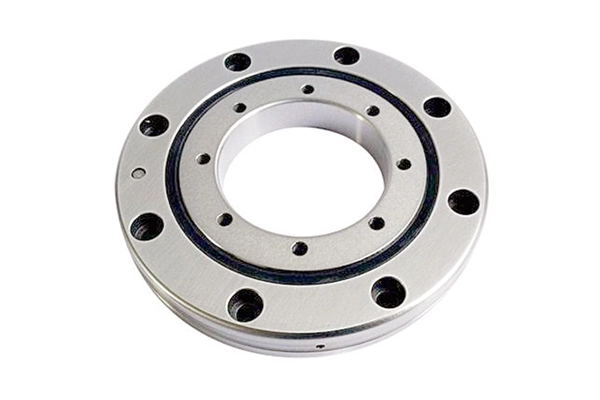

HXU Cross Roller Bearings represent a significant advancement in precision bearing technology, combining innovative design features with exceptional performance characteristics. These specialized bearings incorporate crossed roller elements arranged at 90-degree angles to each other, enabling them to handle complex loads from multiple directions simultaneously. Distinguished by their high accuracy, superior load capacity, and compact design, HXU Cross Roller Bearings have become indispensable components in various high-precision applications, from medical equipment to semiconductor manufacturing machinery.
How Do HXU Cross Roller Bearings Compare to Traditional Ball Bearings?
When examining the fundamental differences between HXU Cross Roller Bearings and conventional ball bearings, several distinct advantages become immediately apparent. The unique design of HXU Cross Roller Bearings provides significantly higher load-bearing capacity due to the larger contact area between the rollers and raceways. Unlike ball bearings, which have point contact with their races, cross roller bearings feature line contact, distributing loads more evenly across the bearing surface. This characteristic enables them to handle up to 3.5 times the load capacity of same-sized ball bearings while maintaining superior rotational accuracy.
The enhanced stability offered by HXU Cross Roller Bearings is particularly noteworthy in precision applications. The crossed arrangement of cylindrical rollers effectively manages both radial and axial loads, eliminating the need for separate thrust bearings in many applications. This design also results in reduced friction compared to traditional ball bearings, as the rolling elements maintain consistent line contact rather than point contact during operation. The lower friction translates to smoother motion, reduced heat generation, and extended bearing life.
Another significant advantage lies in their compact design profile. HXU Cross Roller Bearings achieve higher load ratings and better rigidity within a smaller envelope size compared to conventional ball bearings. This space-saving characteristic makes them ideal for applications where installation space is limited but precision and load-bearing capacity cannot be compromised. The integrated design also simplifies assembly processes and reduces the overall system complexity.
Furthermore, these bearings exhibit exceptional rotational accuracy and minimal runout characteristics. The precise manufacturing tolerances and optimized roller geometry contribute to maintaining consistent motion quality throughout their operational life. This level of accuracy is particularly crucial in applications such as precision rotary tables, medical imaging equipment, and high-end manufacturing machinery where even minimal deviations can significantly impact performance.
What Makes HXU Cross Roller Bearings Ideal for Precision Applications?
The suitability of HXU Cross Roller Bearings for precision applications stems from several key technical features and performance characteristics. At the core of their precision capabilities is the sophisticated manufacturing process that ensures extremely tight tolerances in both the rolling elements and raceways. The rollers are ground to precise dimensions and carefully matched to their raceways, resulting in exceptional running accuracy and minimal geometric deviation during operation.
The bearing's inherent design promotes exceptional rotational smoothness through the implementation of optimized roller spacing and cage designs. The cage, typically manufactured from high-grade engineering plastics or precision-machined brass, maintains proper roller spacing and orientation while minimizing friction and wear. This careful attention to roller management prevents skewing and ensures consistent rolling motion, which is essential for maintaining precise positioning accuracy in automated systems and measurement equipment.
Temperature stability is another crucial factor that sets HXU Cross Roller Bearings apart in precision applications. The materials used in their construction are selected for their dimensional stability across a wide temperature range, minimizing thermal expansion effects that could compromise accuracy. Additionally, the bearing design incorporates features that promote effective heat dissipation, helping to maintain consistent operating temperatures even under continuous use.
The crossed roller arrangement also provides superior moment load capacity, which is particularly important in applications requiring high rigidity and resistance to tilting moments. This characteristic makes them ideal for use in robotic arms, precision rotary tables, and other applications where maintaining precise positioning under varying load conditions is crucial. The ability to handle complex loads while maintaining accuracy has made these bearings indispensable in semiconductor manufacturing equipment, where nanometer-level precision is often required.
Moreover, these bearings feature sophisticated sealing solutions that protect the internal components from contamination while maintaining low-friction operation. The sealing systems are designed to prevent the ingress of particles and moisture without compromising the bearing's smooth rotation or precision characteristics. This protection ensures consistent performance and extended service life in various operating environments.
What are the Key Maintenance Requirements for HXU Cross Roller Bearings?
Maintaining HXU Cross Roller Bearings requires a comprehensive understanding of their operating conditions and specific care requirements to ensure optimal performance and longevity. The maintenance program should begin with proper installation, as incorrect mounting can significantly impact bearing performance and service life. Installation procedures must follow manufacturer guidelines precisely, including proper alignment, cleanliness protocols, and the use of appropriate tools and techniques.
Lubrication management plays a critical role in the maintenance of these precision bearings. The selection of appropriate lubricants must consider factors such as operating speed, load conditions, temperature range, and environmental factors. High-quality synthetic greases or oils specifically formulated for precision bearings are typically recommended. The lubrication schedule should be carefully planned and monitored, with particular attention paid to re-lubrication intervals and quantities to prevent both under- and over-lubrication conditions.
Regular monitoring of bearing performance parameters is essential for predictive maintenance strategies. This includes tracking operating temperatures, vibration levels, and rotational accuracy. Modern maintenance programs often incorporate condition monitoring systems that can detect early signs of potential issues before they develop into serious problems. These systems may include vibration analysis, temperature monitoring, and periodic accuracy measurements to ensure the bearings continue to meet precision requirements.
Cleanliness is paramount in maintaining these precision components. Environmental contamination can significantly impact bearing performance and life expectancy. Maintenance procedures should include regular inspection and cleaning of sealing systems, as well as verification of the integrity of environmental protection measures. In applications where bearings operate in challenging environments, additional protective measures may be necessary to prevent contamination.
Storage and handling procedures also form an important part of maintenance considerations. When HXU Cross Roller Bearings are not in use, they should be stored in appropriate conditions to prevent corrosion and contamination. This includes maintaining proper temperature and humidity levels, using protective packaging, and following proper handling procedures during installation and removal. Documentation of maintenance activities, including lubrication records, inspection results, and any observed anomalies, helps in tracking bearing performance and predicting maintenance needs.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
