How Does a Single Row Cylindrical Roller Bearing Work?
Single row cylindrical roller bearings are essential components in modern mechanical systems. These precision-engineered parts facilitate smooth rotational movement while supporting substantial radial loads in various industrial applications. Their distinctive design, featuring cylindrical rolling elements arranged in a single row, allows them to excel in situations demanding high load capacity, rigidity, and precision. This blog explores the working principles, applications, and benefits of these bearings.
What are the main components of a single row cylindrical roller bearing?
Inner and Outer Rings Structure
The single row cylindrical roller bearing consists of two primary rings: inner and outer. The inner ring mounts onto a shaft, while the outer ring fits into a housing. These rings are precision-manufactured with specific raceway profiles designed to accommodate the cylindrical rollers. The inner ring typically has a flange on one or both sides to guide the rollers axially. In standard configurations, one ring (usually the outer) has a straight raceway without flanges, allowing for axial displacement to compensate for thermal expansion or misalignment. The rings are made from high-quality bearing steel, heat-treated to achieve the required hardness and wear resistance properties essential for demanding industrial applications.
Cylindrical Rollers Design and Arrangement
Cylindrical rollers are the defining feature of these bearings. Unlike ball bearings that have point contact with raceways, cylindrical elements create line contact, significantly increasing the load-bearing surface area. This enables single row cylindrical roller bearings to support substantially higher radial loads. The rollers are manufactured with a specific length-to-diameter ratio optimized for the bearing's intended application. Their arrangement in a single row ensures even load distribution across the assembly. Modern designs often incorporate specially crowned roller ends to prevent edge stresses from minor misalignment or shaft deflection, improving durability and reliability under demanding conditions.
Cage Function and Materials

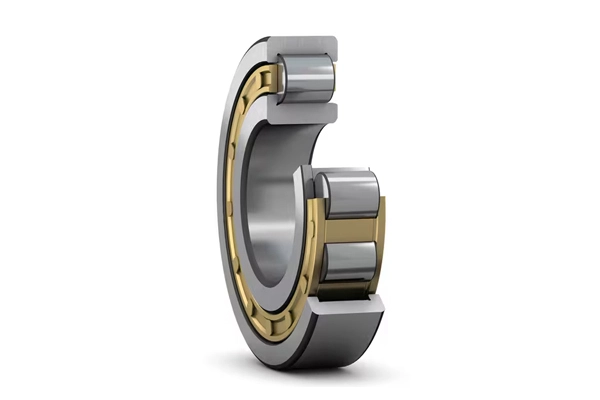

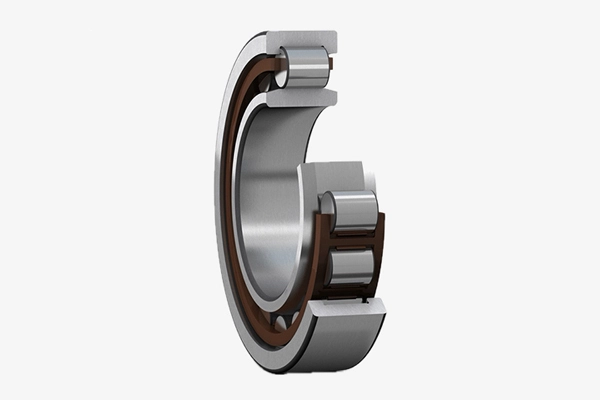

The cage maintains proper spacing between the cylindrical rollers, preventing roller-to-roller contact that would increase friction and accelerate wear. It also guides rollers through the unloaded zone, ensuring they maintain proper orientation. Cages can be manufactured from brass, steel, or high-performance polymers. Brass cages provide excellent strength and heat resistance, steel cages offer maximum durability, while polymer cages reduce weight, friction, and noise. The cage design balances strength with appropriate flexibility to withstand operating stresses. Bearings for high-speed applications typically feature specially designed cages that optimize oil flow and minimize frictional losses.
How does a single row cylindrical roller bearing handle different types of loads?
Radial Load Capacity Analysis
Single row cylindrical roller bearings excel in handling radial loads, making them ideal for applications where forces act perpendicular to the shaft axis. Their superior radial load capacity stems from the line contact between rollers and raceways, distributing pressure over a larger surface area compared to ball bearings. This allows them to support loads up to 30% higher than comparably sized ball bearings. The load distribution across multiple rollers enhances their capability, as each roller shares a portion of the total force. When properly installed, these bearings can withstand radial loads exceeding several hundred kilonewtons, depending on design and size. Under heavy loads, the bearing maintains a thin lubricant film between rollers and raceways while allowing minimal elastic deformation that improves load distribution.
Axial Load Limitations and Solutions

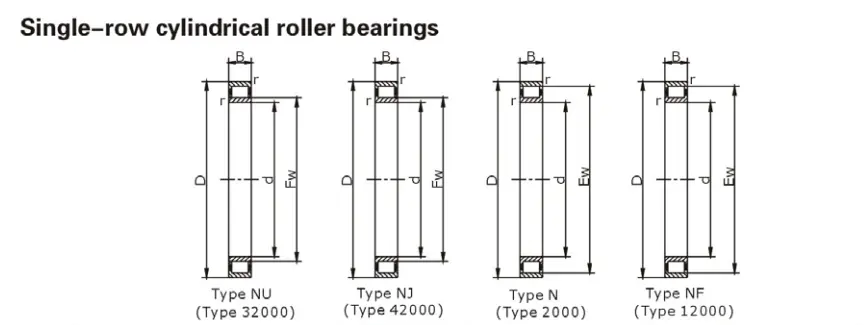

While these bearings perform exceptionally with radial loads, they have limitations with axial (thrust) loads. The standard design, with one ring typically lacking flanges (NU type), cannot restrain axial movement in both directions. This allows for thermal expansion accommodation but limits axial load capacity. For applications requiring some axial load handling, modified designs such as NJ, NUP, or N type bearings incorporate flanges to provide limited axial support. The NJ type can handle axial loads in one direction, while the NUP type provides bidirectional axial support. When substantial axial loads must be accommodated alongside radial forces, engineers often use these bearings in combination with thrust bearings or implement tapered roller bearing alternatives.
Dynamic and Static Load Considerations
Performance varies significantly between static and dynamic loading conditions. Under static conditions, load capacity is determined by the material's ability to resist permanent deformation. Single row cylindrical roller bearings offer excellent static load ratings due to their line contact geometry. During dynamic operation, additional factors include lubricant film formation, heat generation, and fatigue resistance. Modern bearings implement optimized internal geometry that reduces stress concentrations during both static and dynamic loading. Material advancements have significantly improved fatigue resistance under variable loads. For applications involving shock loads or sudden impact forces, special attention must be paid to internal clearances and fit tolerances.
What factors affect the lifespan of a single row cylindrical roller bearing?
Lubrication Requirements and Best Practices
Proper lubrication is critical for the operational lifespan of these bearings. Lubricants reduce friction, dissipate heat, prevent corrosion, and protect against contaminants. Oil lubrication provides superior cooling and cleansing, ideal for high-speed or high-temperature applications. Grease offers excellent sealing properties and extended service intervals for standard applications. The appropriate lubricant depends on operating temperature, speed, load conditions, and environment. Lubricants must form an adequate film between rollers and raceways to prevent metal-to-metal contact. Modern lubricants contain additives that enhance performance under extreme conditions. Maintaining proper lubrication intervals is crucial—excessive lubrication can cause churning and increased temperatures, while insufficient lubrication leads to premature wear.
Installation and Alignment Influences
Installation and alignment significantly impact performance and service life. Improper mounting can introduce immediate damage or cause premature failure through induced stresses or misalignment. Appropriate tools and procedures must be used to avoid applying force through the rolling elements, which could cause permanent indentations in the raceways. Proper alignment ensures even load distribution across the roller length, preventing edge loading. These bearings are particularly sensitive to misalignment compared to self-aligning types. The appropriate selection of fits between the bearing, shaft, and housing is crucial—too tight can increase friction, while too loose might allow fretting corrosion or uneven loading.
Operating Environment and Contamination Control
The operating environment profoundly influences bearing lifespan, with contamination representing a significant threat. Solid particles can cause abrasive wear, while moisture induces corrosion and degrades lubricant. Even microscopic contaminants can initiate surface distress that progressively develops into severe damage. Effective sealing solutions—from contact seals for severe contamination to non-contact designs for high-speed applications—form the first line of defense. Temperature extremes present another challenge, as excessive heat accelerates lubricant degradation while cold conditions increase lubricant viscosity. Bearings in corrosive environments benefit from special materials, including stainless steel variants or protective coatings. Regular maintenance, including scheduled lubricant changes and inspections, significantly extends bearing life.
Conclusion
Single row cylindrical roller bearings represent an essential component in modern mechanical systems, offering exceptional radial load capacity through their unique line-contact design. Their ability to handle high loads while maintaining precision makes them invaluable across numerous industries. Understanding the key factors affecting their performance—from proper lubrication and installation techniques to contamination control—enables engineers to maximize their operational lifespan and reliability in demanding applications.
