What Materials Are Used to Construct Rolling Mill Bearings?

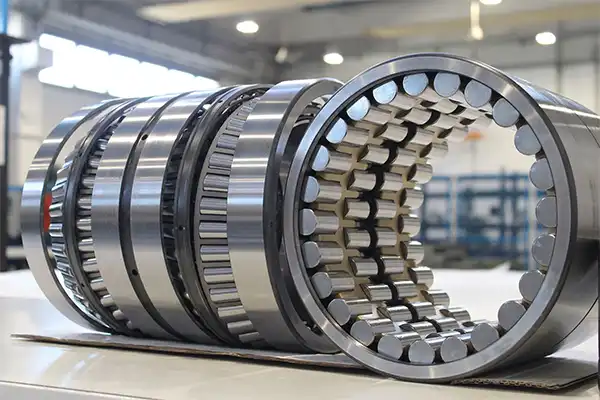

Rolling mill bearings are critical components in steel and metal processing industries, designed to withstand extreme operating conditions including heavy loads, high temperatures, and harsh environments. The materials used in their construction directly impact performance, durability, and reliability. This guide explores the various materials employed in manufacturing rolling mill bearings and how material selection influences bearing performance.
What Are the Most Durable Materials for Rolling Mill Bearings?
High-Carbon Chromium Steel
High-carbon chromium steel, particularly 52100 (or SUJ2 in Japanese standards), is widely used for Rolling Mill Bearing components. This material contains approximately 1% carbon and 1.5% chromium, providing excellent hardness and wear resistance after heat treatment. These Rolling Mill Bearings can achieve surface hardness values of 58-65 HRC, ensuring dimensional stability under high loads. The chromium improves hardenability and corrosion resistance, while the high carbon content contributes to hardness. These bearings offer good fatigue resistance, crucial for components that experience millions of stress cycles throughout their operational lifetime.
Carburized Steel Alloys
Carburized steel alloys like AISI 8620, 9310, and 4320 are employed in Rolling Mill Bearing applications requiring exceptional toughness combined with high surface hardness. These low-carbon steels undergo carburization where carbon is diffused into the surface layer at high temperatures, creating a hard case while maintaining a tough core. This dual-property structure makes carburized Rolling Mill Bearings particularly suitable for shock-loading conditions common in reversing mills. The surface hardness after heat treatment reaches 58-62 HRC, while the core remains at 30-40 HRC, providing excellent resistance to both surface fatigue and structural fracture.
Stainless Steel Varieties
Stainless steel varieties, particularly martensitic grades like 440C and precipitation-hardening types like 17-4 PH, offer a combination of corrosion resistance and mechanical properties for Rolling Mill Bearing applications in challenging environments. These materials contain significant amounts of chromium (typically 13-18%) and often include nickel and molybdenum. In steel mills where Rolling Mill Bearings are exposed to water, process chemicals, or high humidity, stainless steel bearings prevent oxidation. The 440C grade can achieve hardness values of 56-60 HRC after heat treatment, making it suitable for moderate load applications where corrosion resistance is paramount.
How Do Material Innovations Enhance Rolling Mill Bearing Performance?
Ceramic and Hybrid Bearing Materials
Silicon nitride (Si₃N₄) and other advanced ceramics have revolutionized Rolling Mill Bearing technology, particularly in high-speed and high-temperature applications. These ceramic materials offer exceptional hardness, lower density than steel (approximately 40% lighter), and superior thermal stability. In hybrid Rolling Mill Bearings, ceramic rolling elements combined with steel rings provide a perfect balance: ceramic balls or rollers reduce centrifugal forces and operating temperatures while increasing stiffness. Silicon nitride's excellent tribological properties result in reduced friction, translating to energy savings in rolling mill operations. These ceramic Rolling Mill Bearings demonstrate remarkable corrosion resistance and can operate with minimal lubrication.
Powder Metallurgy Technology
Powder metallurgy enables the creation of specialized Rolling Mill Bearing components with properties unattainable through conventional metallurgical processes. This technology involves the compression and sintering of fine metal powders, allowing precise control over material composition and microstructure. High-speed steel produced through powder metallurgy contains higher percentages of carbide-forming elements dispersed uniformly throughout the material. These Rolling Mill Bearings exhibit exceptional hot hardness, maintaining their mechanical properties at temperatures up to 500°C, which is valuable in hot rolling applications. The improved homogeneity of carbide distribution enhances fatigue resistance by eliminating large carbide clusters that often serve as crack initiation sites.
Surface Treatment Advancements
Surface treatment technologies have significantly enhanced Rolling Mill Bearings by modifying surface properties without altering core characteristics. Physical Vapor Deposition (PVD) coatings, particularly chromium nitride (CrN), titanium nitride (TiN), and diamond-like carbon (DLC), create ultra-thin but exceptionally hard surfaces. These coatings provide exceptional wear resistance and can reduce friction coefficients by up to 60% compared to uncoated surfaces. Nitriding and nitrocarburizing processes diffuse nitrogen into the bearing surface, creating a hard compound layer that significantly improves rolling contact fatigue resistance. Advanced surface texturing techniques enhance lubricant retention and reduce adhesive wear under boundary lubrication conditions often encountered during mill startups.
What Factors Determine Material Selection for Specific Rolling Mill Applications?
Application-Specific Temperature Requirements
Temperature considerations are critical in material selection for Rolling Mill Bearings, as they directly impact dimensional stability and hardness retention. In hot rolling mills, where work roll temperatures can exceed 500°C, bearings must maintain mechanical properties despite heat transfer through the roll neck. For these applications, through-hardened bearing steels like M50 and special heat-stabilized versions of 52100 are employed, as they maintain hardness and dimensional stability at elevated temperatures. In continuous casting or direct hot strip mills, case-hardened Rolling Mill Bearings with specialized heat treatments may be required, as they maintain a better strength-to-hardness ratio at high temperatures.
Load Capacity and Shock Resistance Requirements
The extreme loads and frequent shock loading characteristic of rolling mill operations necessitate careful consideration of load capacity and impact resistance. Case-hardened steels like 8620 and 4320 are often preferred for backup roll bearings due to their excellent combination of surface hardness and core toughness. For applications with severe shock loading, such as roughing stands or plate mills, bainitic through-hardened steels may be selected for Rolling Mill Bearings due to their superior impact resistance. Modern computational techniques allow engineers to precisely match material properties to the expected stress distributions in specific applications.
Contamination and Corrosion Exposure Conditions
The harsh operating environment of rolling mills significantly influences material selection for Rolling Mill Bearings. Martensitic stainless steels like X65Cr13 and X105CrMo17 offer a balance between corrosion resistance and hardness suitable for bearings in moderately corrosive environments. For more severely corrosive conditions, nitrogen-enhanced stainless steels or ceramic components may be specified to prevent chemical attack. Beyond material selection, surface engineering approaches such as black oxide treatments or specialized coatings can provide additional protection against mild corrosive media. Sealing technology plays a crucial role in protecting Rolling Mill Bearings from contamination, with advanced lip seals or labyrinth designs often complementing material selection.
Conclusion
The materials used in rolling mill bearings represent a critical engineering decision that directly impacts mill performance, productivity, and maintenance requirements. From traditional through-hardened chromium steels to advanced ceramic hybrids and surface-engineered components, material selection must carefully balance mechanical properties, thermal stability, and resistance to environmental challenges. As rolling mills continue to push operational boundaries, bearing materials will continue to evolve, incorporating new alloys, manufacturing techniques, and surface technologies to meet these escalating demands.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
References
1. Wang, L., & Zhang, J. (2023). Advanced Materials for Modern Rolling Mill Bearings: A Comprehensive Review. Journal of Tribology and Surface Engineering, 41(3), 217-235.
2. Takemura, H., Matsumoto, K., & Suzuki, S. (2022). Comparative Analysis of Ceramic and Steel Materials in High-Temperature Rolling Mill Applications. International Journal of Metallurgical Engineering, 15(2), 89-104.
3. Schmidt, R., & Müller, F. (2023). Surface Engineering Technologies for Enhanced Rolling Mill Bearing Performance. Wear, 488-489, 204217.
4. Chen, X., Liu, Y., & Li, W. (2024). Powder Metallurgy Advancements in Bearing Technology for Heavy Industrial Applications. Materials Science and Engineering: A, 853, 144308.
5. Kotzalas, M.N., & Harris, T.A. (2021). Essential Principles of Bearing Material Selection for Metal Processing Equipment. Tribology International, 163, 107186.
6. Pattnaik, S., Karunakar, D.B., & Jha, P.K. (2022). Corrosion-Resistant Materials and Treatments for Rolling Mill Bearings in Aggressive Environments. Corrosion Science, 198, 110121.
