How Precision Angular Contact Ball Bearings Work？

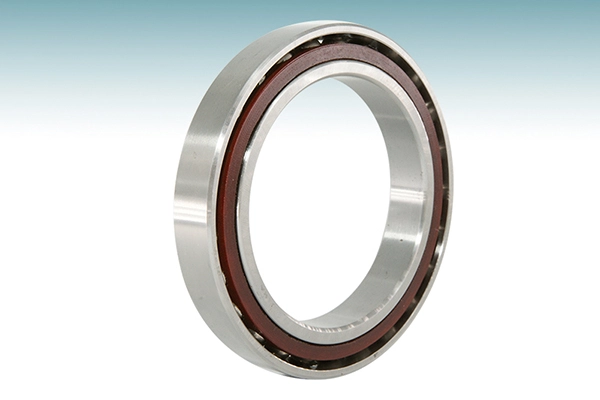

Precision angular contact ball bearings are essential components in modern machinery, designed to handle both radial and axial loads simultaneously. These specialized bearings feature raceways in the inner and outer rings that are displaced relative to each other along the bearing axis, creating a contact angle that enables them to support combined loads. The unique design of precision angular contact ball bearings allows them to operate at high speeds while maintaining exceptional accuracy and durability. Their ability to handle thrust loads in one direction makes them particularly valuable in applications requiring precise positioning and rotation, such as machine tool spindles, aerospace mechanisms, and high-speed industrial equipment.
What are the key design features of Precision Angular Contact Ball Bearings?
Contact Angle Configuration
The defining characteristic of Precision Angular Contact Ball Bearings is their contact angle, which typically ranges from 15° to 40°. This angle is formed between the line connecting the points of contact between the ball and the raceways, and a perpendicular to the bearing axis. Precision Angular Contact Ball Bearings with smaller contact angles (15° to 25°) are optimized for higher speeds but offer moderate axial load capacity. Bearings with larger contact angles (30° to 40°) provide enhanced axial load capacity at the expense of maximum rotational speed. The contact angle directly influences the bearing's performance characteristics, including its ability to handle thrust loads, its stiffness, and its speed capabilities. Manufacturers can precisely control this parameter to meet specific application requirements, ensuring optimal performance in various operating conditions.
Raceway Geometry and Precision
The raceway geometry in Precision Angular Contact Ball Bearings is engineered with exceptional precision to ensure optimal contact between the balls and raceways. Modern manufacturing techniques allow for raceway profiles with tolerances measured in micrometers, resulting in bearings with P4, P2, or even higher precision classes. Precision Angular Contact Ball Bearings feature carefully designed raceway curvatures that control the contact ellipse between the ball and raceway, distributing load effectively while minimizing friction and wear. The raceway surfaces undergo extensive finishing operations, including grinding and honing, to achieve mirror-like surface finishes with roughness values as low as 0.025 μm Ra. These precisely machined surfaces promote the formation of elasto-hydrodynamic lubrication films that separate the rolling elements from the raceways, substantially reducing friction and extending bearing life.
Ball and Cage Assembly
The ball and cage assembly in Precision Angular Contact Ball Bearings plays a crucial role in their performance and reliability. High-precision ceramic or steel balls, manufactured to ABEC-7 or higher standards with diameter variations limited to less than 0.5 μm within a single bearing, ensure uniform load distribution and minimal vibration. Precision Angular Contact Ball Bearings utilize specialized cage designs—including phenolic resin, polyamide, or machined brass cages—that maintain proper ball spacing while minimizing friction and allowing optimal lubrication flow. Advanced manufacturers employ computer-optimized ball complement designs that balance maximum load capacity with reduced friction and heat generation. The number, size, and material of the balls significantly impact the bearing's performance characteristics, with ceramic hybrid bearings offering benefits such as lower density, higher hardness, and superior electrical insulation properties compared to traditional steel ball designs.
How do Precision Angular Contact Ball Bearings handle different load conditions?
Combined Radial and Axial Load Handling

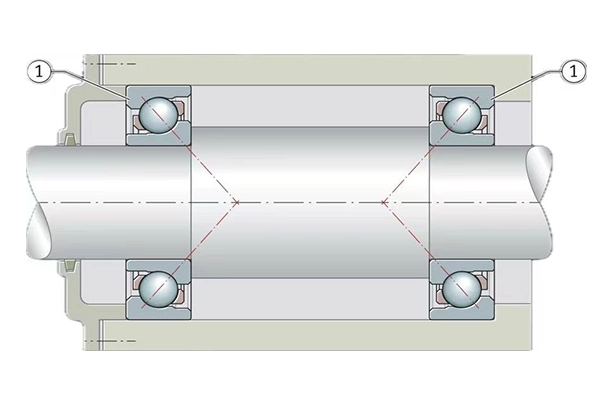

Precision Angular Contact Ball Bearings excel in applications requiring simultaneous management of radial and axial forces. When subjected to combined loading, these bearings distribute the forces through the contact points between balls and raceways, with the contact angle determining the load distribution ratio. Precision Angular Contact Ball Bearings can support axial loads in one direction with capacities typically ranging from 50% to 100% of their radial load rating, depending on the contact angle. Under operation, the effective contact angle may change slightly due to elastic deformations, with increases of 1-3° under heavy axial loading being common. This dynamic behavior provides a self-adjusting mechanism that helps maintain optimal performance across varying load profiles. For applications with bidirectional axial loads, manufacturers often arrange Precision Angular Contact Ball Bearings in back-to-back or face-to-face configurations, creating bearing pairs or sets that provide balanced support regardless of thrust direction.
Preload Application and Benefits

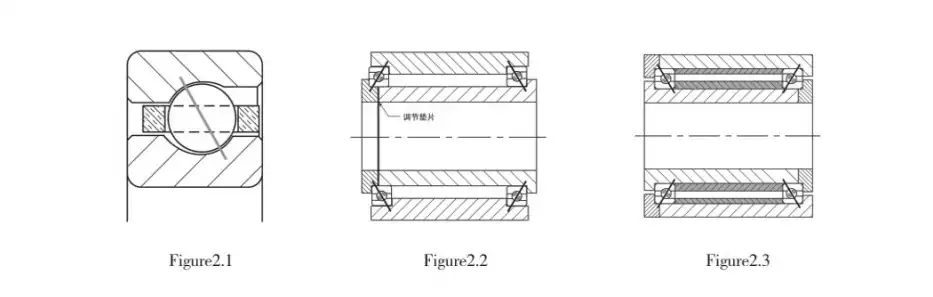

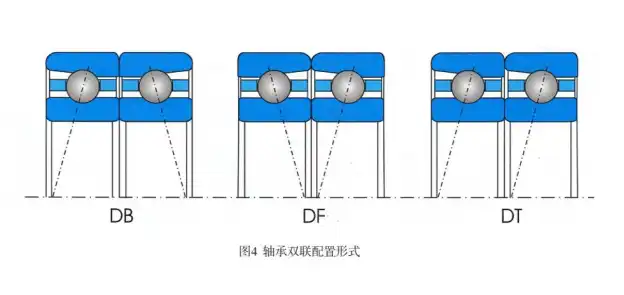

Preload is a controlled initial force applied to Precision Angular Contact Ball Bearings during installation to eliminate internal clearance and establish a specific contact pressure between the balls and raceways. Proper preload in Precision Angular Contact Ball Bearings enhances system rigidity, improving rotational accuracy and minimizing deflection under load—critical factors in precision machinery like CNC spindles. Manufacturers typically specify preload values ranging from light (20-50N) for high-speed applications to heavy (300-500N) for maximum rigidity, with the optimal preload being a balance between stiffness requirements and thermal considerations. Precision Angular Contact Ball Bearings utilize various preload mechanisms, including spring preloading, spacer ring arrangements, or matched bearing sets with controlled dimensions, each offering different advantages in terms of installation complexity, thermal compensation, and performance stability.
Speed and Temperature Management
Precision Angular Contact Ball Bearings demonstrate exceptional performance in high-speed applications, with DN values (bearing bore in mm multiplied by speed in rpm) often exceeding 1,000,000. At high speeds, centrifugal forces affect the ball-to-raceway contact dynamics, potentially reducing the effective contact angle and altering the bearing's load-carrying characteristics. Precision Angular Contact Ball Bearings employ specialized internal geometries and cage designs that minimize heat generation and facilitate efficient lubrication distribution even at extreme rotational speeds. Temperature management is critical, as thermal expansion can significantly affect bearing clearance and preload; high-performance Precision Angular Contact Ball Bearings may incorporate materials with matched thermal expansion coefficients or innovative designs that compensate for thermal effects. Advanced ceramic hybrid Precision Angular Contact Ball Bearings, utilizing silicon nitride balls, offer superior thermal performance due to lower friction and reduced thermal expansion, making them ideal for applications where temperature stability is paramount.
What materials and lubrication requirements are essential for Precision Angular Contact Ball Bearings?
Advanced Material Technologies
The performance of Precision Angular Contact Ball Bearings depends significantly on the materials used in their construction. High-grade bearing steels, such as AISI 52100 (chrome steel) or M50 tool steel, undergo specialized heat treatments to achieve hardness values between 58-65 HRC, providing exceptional wear resistance and fatigue life. Precision Angular Contact Ball Bearings designed for corrosive environments may utilize stainless steel variants like 440C or nitrogen-enriched stainless steels that combine corrosion resistance with the necessary hardness properties. For extreme applications, ceramic hybrid Precision Angular Contact Ball Bearings incorporate silicon nitride (Si3N4) balls in steel rings, offering advantages including 40% lower weight, 50% higher modulus of elasticity, and significantly better insulating properties compared to all-steel designs. Advanced surface treatments, such as black oxide coatings, thin-dense chrome plating, or diamond-like carbon (DLC) coatings, further enhance the performance of Precision Angular Contact Ball Bearings by improving wear resistance, reducing friction, or providing additional corrosion protection.
Lubrication Systems and Requirements
Proper lubrication is essential for the optimal performance and longevity of Precision Angular Contact Ball Bearings. Oil lubrication systems, including oil-air mist or oil-jet methods, provide excellent cooling and contamination removal capabilities, making them preferred for high-speed applications where Precision Angular Contact Ball Bearings operate above 70% of their limiting speed. Grease lubrication offers simplicity and reduced maintenance, with specialized formulations featuring base oils with viscosities between 15-100 cSt and thickeners (lithium complex, polyurea, etc.) selected based on speed, temperature, and load requirements of the Precision Angular Contact Ball Bearings. The lubrication regime in Precision Angular Contact Ball Bearings transitions from boundary to elasto-hydrodynamic as speed increases, with the lambda ratio (ratio of lubricant film thickness to surface roughness) ideally maintained above 3 to minimize asperity contact and maximize bearing life. Modern Precision Angular Contact Ball Bearings may feature integrated lubrication systems, including controlled-release solid lubricants or permanently-sealed designs that eliminate the need for maintenance in certain applications.
Sealing and Protection Mechanisms
Environmental protection is crucial for maintaining the precision and reliability of Precision Angular Contact Ball Bearings. Non-contact seals, including labyrinth designs and air purge systems, provide effective contamination exclusion for Precision Angular Contact Ball Bearings in high-speed applications where minimizing friction is paramount. Contact seals made from nitrile rubber, fluoroelastomer, or PTFE materials offer superior protection for Precision Angular Contact Ball Bearings operating in highly contaminated environments, though with some impact on maximum speed and heat generation. Precision Angular Contact Ball Bearings in critical applications often employ multi-stage protection systems, combining shields, seals, and labyrinth designs to create a comprehensive barrier against environmental contaminants. Advanced sealing technologies, such as magnetic fluid seals, provide hermetic protection for Precision Angular Contact Ball Bearings in vacuum applications or environments with hazardous materials, maintaining a perfect barrier while introducing minimal additional friction.
Conclusion
Precision Angular Contact Ball Bearings represent a sophisticated engineering solution for applications demanding high accuracy, speed, and load capacity. Their unique design, featuring angled raceways and precision components, enables exceptional performance across diverse operating conditions. By understanding their key design features, load handling capabilities, and material requirements, engineers can select and implement the optimal bearing configuration for specific applications. With advances in manufacturing technology and materials science, these bearings continue to evolve, offering ever-improving performance characteristics for the most demanding industrial applications.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
References
1. Harris, T.A. and Kotzalas, M.N. (2021). Essential Concepts of Bearing Technology. CRC Press, Boca Raton.
2. Hamrock, B.J., Schmid, S.R., and Jacobson, B.O. (2019). Fundamentals of Machine Elements. 3rd Edition, CRC Press.
3. SKF Group (2022). Rolling Bearings Handbook: A Technical Guide for the Selection and Application of Rolling Element Bearings. SKF Publications.
4. Tedric A. Harris (2020). Advanced Concepts of Bearing Technology. 5th Edition, Taylor & Francis Group.
5. NSK Ltd. (2023). Precision Rolling Bearings: Technical Report Series Vol. 3. NSK Technical Publications.
6. Eschmann, P., Hasbargen, L., and Weigand, K. (2021). Ball and Roller Bearings: Theory, Design and Application. 4th Edition, Wiley & Sons, Chichester.
