What are Precision Deep Groove Ball Bearings?

December 26, 2024

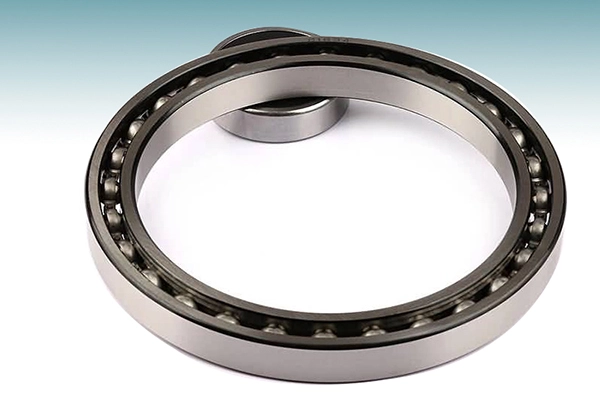

Precision deep groove ball bearings represent a cornerstone of modern mechanical engineering, serving as essential components in countless applications where accuracy and reliability are paramount. These specialized bearings feature a simple yet sophisticated design, consisting of an inner ring, an outer ring, and precisely manufactured balls held in place by a cage. What sets precision deep groove ball bearings apart is their exceptional manufacturing tolerances, superior surface finish, and ability to handle both radial and axial loads while maintaining smooth operation at high speeds.

blog-1-1

What Makes Precision Deep Groove Ball Bearings Different from Standard Bearings?

Precision deep groove ball bearings distinguish themselves through several key characteristics that set them apart from their standard counterparts. The manufacturing process employs advanced techniques and stringent quality control measures to achieve superior geometrical accuracy and surface finish. These bearings are produced using premium-grade materials, often including high-carbon chromium steel or ceramic components, which undergo specialized heat treatment processes to enhance their durability and performance characteristics. The raceway surfaces are ground and honed to exceptional smoothness, with surface roughness values typically ranging from 0.02 to 0.05 micrometers.

The dimensional accuracy of precision bearings is held to much tighter tolerances compared to standard bearings, often following ABEC-5 (ISO class 5) or higher specifications. This precision extends to every aspect of the bearing, including bore diameter, outer diameter, width, and raceway curvature. The balls themselves are manufactured to extremely tight sphericity tolerances, often within 0.13 micrometers, and are carefully matched to ensure uniform load distribution. These bearings also feature optimized internal geometry, including carefully calculated radial clearance and raceway curvature ratios, which contribute to their superior running accuracy and reduced friction characteristics.

blog-1-1

Furthermore, precision deep groove ball bearings incorporate enhanced cage designs, often made from high-performance materials such as polyamide, brass, or machined steel. These cages are designed to provide optimal ball guidance while minimizing friction and heat generation. The combination of these features results in bearings that offer significantly lower running noise, reduced vibration levels, and superior rotation accuracy compared to standard bearings, making them ideal for applications where precision is critical.

How Do You Select the Right Precision Deep Groove Ball Bearing for Your Application?

Selecting the appropriate precision deep groove ball bearing involves a comprehensive analysis of various application parameters and operating conditions. The selection process begins with a thorough evaluation of the load conditions, including both static and dynamic loads, as well as any shock or impact loads that may occur during operation. Engineers must consider both radial and axial load components, as well as their relationship to the bearing's basic static and dynamic load ratings. The operating speed range is another crucial factor, as it influences the bearing's thermal performance and lubrication requirements.

blog-1-1

Environmental conditions play a significant role in bearing selection, including operating temperature range, exposure to contamination, and presence of moisture or corrosive elements. These factors influence the choice of materials, sealing solutions, and lubrication methods. For high-speed applications, considerations such as cage design, internal clearance, and precision class become particularly important. The required service life must also be calculated based on the application's duty cycle and reliability requirements, using standardized bearing life calculation methods that account for factors such as lubrication conditions and contamination levels.

Mounting arrangements and shaft/housing fits must be carefully considered, as they directly impact the bearing's performance and longevity. The selection of appropriate fits depends on the operating conditions, load characteristics, and required running accuracy. Additionally, maintenance requirements and accessibility for inspection or replacement should be evaluated during the selection process. The bearing's precision class should be chosen based on the application's requirements for running accuracy, speed capability, and noise levels, while considering the cost-effectiveness of the solution.

What Are the Best Practices for Maintaining Precision Deep Groove Ball Bearings?

Maintaining precision deep groove ball bearings requires a systematic approach to ensure optimal performance and maximum service life. Proper lubrication is fundamental, beginning with the selection of an appropriate lubricant type and grade based on the operating conditions. The lubrication schedule must be carefully planned, considering factors such as operating temperature, speed, and environmental conditions. Regular monitoring of lubricant condition, including contamination levels and degradation, is essential for preventing premature bearing failure.

Handling and installation procedures are critical for precision bearings. Clean working conditions must be maintained during installation, and appropriate tools and techniques should be used to avoid damage to the bearing components. Proper alignment during mounting is essential, as even minor misalignment can significantly impact bearing performance and life. Regular monitoring of bearing condition through various predictive maintenance techniques, such as vibration analysis, temperature monitoring, and acoustic emission testing, helps detect potential issues before they lead to failure.

blog-1-1

Contamination control is particularly important for precision bearings. This includes maintaining effective sealing solutions, regular inspection and cleaning of the surrounding area, and proper storage conditions for spare bearings. Operating temperature should be monitored and maintained within specified limits, as excessive temperature can affect lubricant performance and bearing internal clearance. Regular inspection of mounting arrangements, including checking for proper preload or clearance maintenance, ensures continued optimal performance. Documentation of maintenance activities, including lubrication schedules, inspection results, and any observed anomalies, helps in tracking bearing performance and predicting maintenance needs.
