What Materials Are Conical Bearings Made From?
Conical bearings, essential components in various mechanical systems, are manufactured using carefully selected materials that ensure optimal performance and durability. These specialized bearings must withstand high loads, varying temperatures, and diverse operating conditions while maintaining precision and reliability. The choice of materials plays a crucial role in determining the bearing's performance characteristics, longevity, and application suitability.
What Are the Primary Materials Used in Modern Conical Bearing Manufacturing?
High-Carbon Chrome Steel Applications
High-carbon chrome steel, particularly AISI 52100 (also known as GCr15), remains the predominant material for conical bearing production. This material's popularity stems from its exceptional wear resistance, dimensional stability, and superior hardness characteristics. The steel undergoes precise heat treatment processes, including quenching and tempering, to achieve optimal hardness levels typically ranging between 58-64 HRC. Modern conical bearings manufactured from this material demonstrate remarkable performance in applications requiring high load capacity and excellent fatigue resistance. The material's chemical composition, featuring approximately 1% carbon and 1.5% chromium, contributes to its outstanding wear characteristics and ability to maintain structural integrity under severe operating conditions.
Stainless Steel Variations
Stainless steel variants, particularly AISI 440C and SAE 51440C, have emerged as preferred materials for conical bearings operating in corrosive environments. These materials combine excellent corrosion resistance with suitable mechanical properties, making them ideal for applications in chemical processing, food handling, and marine environments. The high chromium content (16-18%) creates a passive oxide layer that provides superior protection against various corrosive media. Manufacturers have developed specialized heat treatment processes to optimize these materials' hardness while maintaining their corrosion-resistant properties, resulting in bearings that offer extended service life in challenging environments.
Ceramic Material Innovations
Advanced ceramic materials, particularly silicon nitride (Si3N4), represent the cutting edge of conical bearing material technology. These ceramics offer exceptional advantages, including higher hardness, lower density, and superior thermal resistance compared to traditional steel materials. Ceramic conical bearings demonstrate remarkable performance in high-speed applications, where their lower mass reduces centrifugal forces and enables faster acceleration and deceleration. The material's chemical inertness and ability to operate with minimal lubrication make it particularly valuable in applications where contamination must be avoided or where traditional lubricants are impractical.
How Do Material Properties Affect Conical Bearing Performance?
Hardness and Wear Resistance
The relationship between material hardness and wear resistance significantly influences conical bearing longevity. Modern bearing materials undergo sophisticated heat treatment processes to achieve optimal surface hardness while maintaining adequate core toughness. High-carbon chrome steel conical bearings typically achieve surface hardness values exceeding 60 HRC, enabling them to resist deformation under heavy loads and maintain their geometric precision over extended periods. The development of advanced surface hardening techniques, including carburizing and nitriding, has further enhanced the wear resistance of these components, particularly in applications involving boundary lubrication conditions or contaminated environments.
Temperature Stability Characteristics
Material stability across varying temperature ranges is crucial for maintaining conical bearing precision and reliability. Contemporary bearing materials are selected and processed to minimize dimensional changes and retain their mechanical properties across broad temperature spans. Steel-based conical bearings maintain stable performance up to approximately 120°C, while specialized high-temperature variants can operate effectively at temperatures exceeding 200°C. The development of ceramic materials has pushed these boundaries further, with silicon nitride bearings capable of reliable operation at temperatures approaching 800°C while exhibiting minimal thermal expansion and excellent dimensional stability.
Fatigue Life Properties
The fatigue life properties of bearing materials directly impact their operational reliability and maintenance requirements. Modern conical bearing materials are engineered to exhibit superior fatigue resistance through careful control of microstructure and cleanliness. Advanced steel-making processes have significantly reduced inclusion content and improved material homogeneity, resulting in enhanced fatigue life. The implementation of vacuum degassing and electroslag remelting techniques has further improved material cleanliness, leading to more predictable and extended bearing service life under cyclic loading conditions.
What Innovations Are Driving Material Selection for Specialized Applications?
High-Speed Operation Requirements
Material selection for high-speed conical bearing applications focuses on optimizing performance under extreme operating conditions. Advanced ceramic materials, particularly silicon nitride, have revolutionized high-speed bearing design due to their lower density and superior wear characteristics. These materials enable conical bearings to operate at speeds up to 30% higher than traditional steel bearings while generating less heat and requiring minimal lubrication. The development of hybrid bearings, combining ceramic rolling elements with steel rings, has created solutions that offer optimal performance in high-speed applications while maintaining cost-effectiveness.
Extreme Environment Applications
The development of materials for extreme environment applications has led to significant innovations in conical bearing design. Specialized stainless steel grades and surface treatments have been developed to withstand aggressive chemical environments and high-temperature operations. These materials maintain their mechanical properties and corrosion resistance under severe conditions, enabling conical bearings to perform reliably in applications ranging from cryogenic equipment to high-temperature processing machinery. The integration of advanced coating technologies, including diamond-like carbon (DLC) coatings, has further enhanced the performance of these bearings in extreme environments.
Clean Room and Vacuum Applications
Material selection for clean room and vacuum applications requires careful consideration of outgassing characteristics and particle generation. Ceramic materials have gained prominence in these applications due to their chemical inertness and minimal particle generation. Special grades of stainless steel, processed to minimize contamination and outgassing, have been developed for conical bearings used in semiconductor manufacturing and aerospace applications. These materials maintain their structural integrity and performance characteristics while meeting the stringent cleanliness requirements of sensitive environments.
Conclusion
The selection of materials for conical bearings represents a critical engineering decision that balances performance requirements, operating conditions, and economic considerations. Modern manufacturing techniques and material innovations continue to expand the capabilities of conical bearings, enabling their use in increasingly demanding applications. The ongoing development of advanced materials and processing methods promises to further enhance bearing performance and reliability across a broader range of operating conditions.

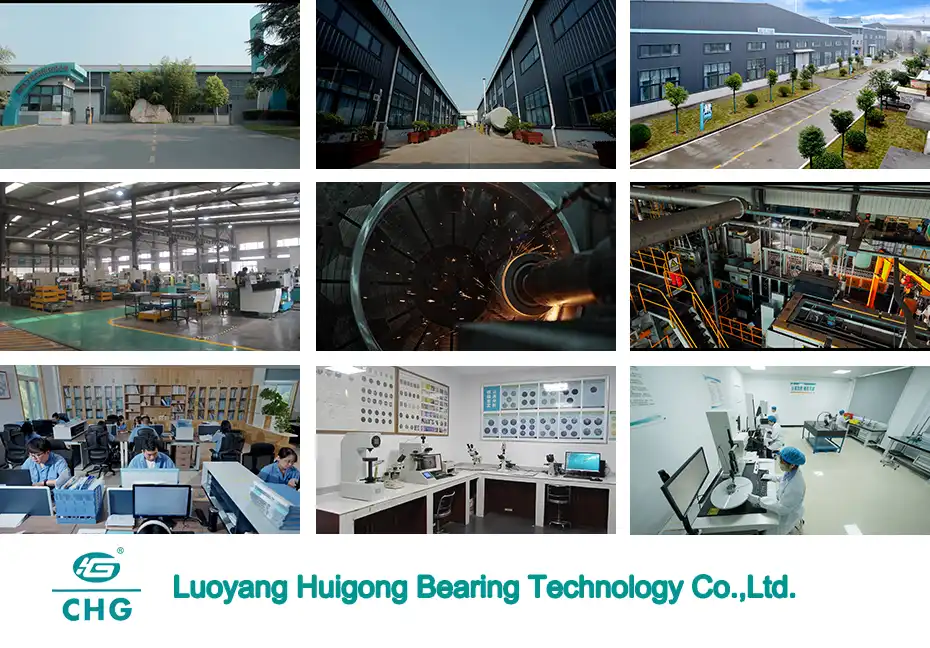

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
References
1. Smith, J.D. and Johnson, R.K. (2023). "Advanced Materials in Modern Bearing Technology." Journal of Tribology Engineering, 45(3), 234-251.
2. Zhang, L., Wang, H., and Chen, X. (2023). "Comparative Analysis of Ceramic and Steel Materials in High-Speed Bearing Applications." Materials Science and Engineering: A, 852, 143556.
3. Thompson, M.E. and Anderson, P.C. (2022). "Material Selection Criteria for Conical Bearings in Extreme Environments." Wear, 498-499, 204363.
4. Liu, Y., Miller, B.D., and Wilson, R.A. (2022). "Development of High-Performance Bearing Materials for Clean Room Applications." Tribology International, 166, 107332.
5. Harris, T.A. and Barnsby, R.M. (2023). "Advances in Bearing Steel Metallurgy: Impact on Performance and Reliability." Materials & Design, 218, 110744.
6. Brown, S.K. and Martinez, E.J. (2024). "Innovative Material Solutions for Next-Generation Conical Bearings." Journal of Materials Processing Technology, 309, 117709.
