What are the Advantages of Single Row Cylindrical Roller Bearings?

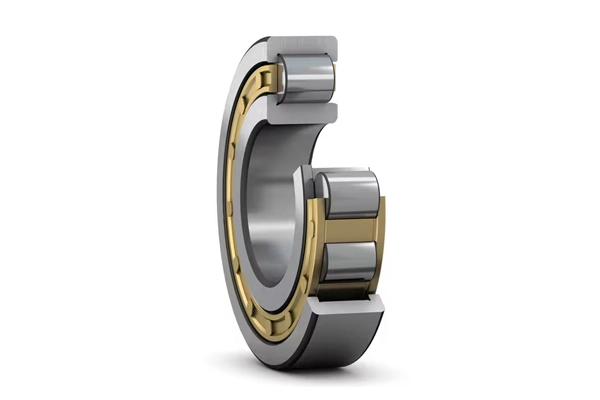

Single row cylindrical roller bearings represent a crucial component in modern mechanical systems, offering a unique combination of features that make them indispensable in numerous industrial applications. These specialized bearings are designed with cylindrical rollers arranged in a single row configuration, enabling them to handle substantial radial loads while providing exceptional performance characteristics. Their distinctive design allows for high precision, reliability, and durability even under challenging operating conditions. This article explores the various advantages that single row cylindrical roller bearings offer, examining their design features, operational benefits, and the specific applications where they excel compared to other bearing types.
What makes single row cylindrical roller bearings ideal for high-speed applications?
Superior Speed Performance Characteristics
Single row cylindrical roller bearings excel in high-speed applications due to their design characteristics. The cylindrical rollers provide line contact with raceways rather than point contact, distributing load more effectively across a larger surface area. This design feature of single row cylindrical roller bearings reduces friction during operation, allowing efficient function at higher rotational speeds without excessive heat generation. The reduced friction also means lower energy consumption, making these bearings economical for long-term operation in high-speed machinery. The roller geometry can be optimized with proper end profiles to minimize edge stresses, enhancing high-speed capabilities. Precise crowning of rollers ensures optimal contact patterns even when slight misalignment occurs during high-speed rotation, maintaining the performance of single row cylindrical roller bearings under demanding conditions.
Enhanced Heat Dissipation Mechanisms
The thermal management capabilities of single row cylindrical roller bearings contribute to their suitability for high-speed applications. These bearings feature optimized internal clearances and specialized cage designs that promote effective heat dissipation. The high-grade bearing steels used in single row cylindrical roller bearings maintain dimensional stability and hardness even under elevated temperatures generated at high speeds. Modern versions incorporate advanced lubrication channels that ensure consistent oil film formation between rollers and raceways at high rotational velocities, reducing friction-induced heating. Some specialized single row cylindrical roller bearings feature innovative cage designs made from materials like polyamide or brass that offer improved lubrication retention and lower mass, enhancing high-speed performance by reducing centrifugal forces acting on the cage structure.
Precision Balancing for Minimal Vibration
Precision manufacturing ensures single row cylindrical roller bearings perform exceptionally in high-speed applications. These bearings undergo stringent processes to achieve dimensional accuracy and surface finish quality that significantly reduce vibration tendencies. The uniform geometry of cylindrical rollers allows for better dynamic balancing compared to other bearing types, minimizing vibration-related issues. Advanced manufacturing techniques employed in producing single row cylindrical roller bearings include high-precision grinding operations that achieve roller diameter variations within microns, ensuring consistent loading across all rolling elements. The cage designs are specifically engineered to maintain proper roller spacing and guidance even under centrifugal forces experienced at elevated speeds, preventing skidding and ensuring purely rolling motion in high-speed machinery.
How do single row cylindrical roller bearings handle heavy load conditions?
Optimized Load Distribution Mechanisms
Single row cylindrical roller bearings excel in handling heavy radial loads due to their fundamental design. The cylindrical rollers create line contact with raceways, distributing applied load across a greater surface area compared to point contact bearings. This expanded contact zone in single row cylindrical roller bearings increases their load-carrying capacity while reducing contact stresses. Modern versions incorporate optimized roller profiles that enhance load distribution by minimizing edge stresses and preventing localized overloading. The precision-engineered internal geometry ensures each roller bears an appropriate portion of the overall load, preventing any single element from experiencing excessive stress. Additionally, the parallel arrangement of rollers allows single row cylindrical roller bearings to accommodate momentary shock loads by distributing impact forces across multiple rolling elements simultaneously.
Enhanced Structural Rigidity Features
The structural design of single row cylindrical roller bearings contributes significantly to their impressive load-handling capabilities. These bearings feature robust outer and inner rings manufactured from high-grade bearing steels with specialized heat treatment processes to achieve optimal hardness and dimensional stability. The substantial cross-sectional thickness provides exceptional resistance to deformation even under extreme radial forces. The cylindrical rollers in single row cylindrical roller bearings are precisely dimensioned and made from materials selected specifically for their compressive strength, enabling them to maintain functional geometry even under sustained heavy loading. Advanced manufacturing ensures the surface hardness and microstructure of all components are optimized for maximum wear resistance, extending operational life in heavy-duty applications.
Superior Material Science Applications
The exceptional load-bearing capacity of single row cylindrical roller bearings is largely attributable to advanced materials and heat treatment processes. These bearings utilize high-carbon chromium steels that exhibit superior hardness, wear resistance, and fatigue strength. The metallurgical properties enable single row cylindrical roller bearings to withstand cyclic loading without developing subsurface fatigue cracks. In demanding applications, they may be produced using specialty steels with enhanced cleanliness levels, improving resistance to rolling contact fatigue. Surface engineering techniques such as superfinishing are often applied to the raceways and rollers of high-performance single row cylindrical roller bearings, creating incredibly smooth surfaces that minimize friction and wear during operation under heavy loads.
What applications benefit most from the separability of single row cylindrical roller bearings?
Maintenance Efficiency Advantages

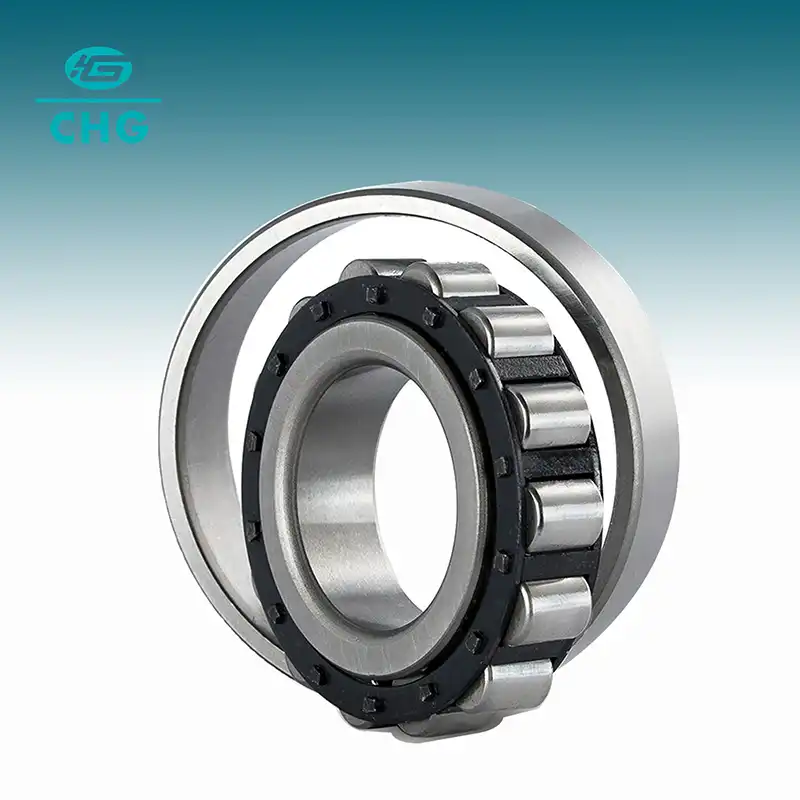

The separable design of single row cylindrical roller bearings presents significant advantages in maintenance scenarios. This unique characteristic allows for independent removal of the inner ring, outer ring, and roller-cage assembly, making inspection and maintenance procedures more efficient. When maintaining equipment fitted with single row cylindrical roller bearings, technicians can examine individual components without complete disassembly of adjacent machinery, reducing downtime and costs. The separability facilitates easier cleaning of all bearing surfaces, ensuring removal of contaminants that might lead to premature failure. In scheduled maintenance, this design attribute enables selective replacement of damaged components rather than complete bearing replacement, offering significant cost savings in industrial settings.
Installation Flexibility Benefits
The separable nature of single row cylindrical roller bearings provides remarkable flexibility during installation, particularly in complex mechanical systems. Engineers can install inner and outer rings separately, which proves invaluable in confined spaces or when dealing with interference fits on both rings. This capability allows for more precise control over fit tolerances of each component, optimizing overall bearing performance. During installation, the ability to handle components individually facilitates the use of specialized mounting techniques that might otherwise be impossible with non-separable designs. The installation of single row cylindrical roller bearings in equipment with complex shaft arrangements benefits tremendously from this separability, as it eliminates the need to disassemble other components merely to position the bearing correctly.
Enhanced Inspection Capabilities
The separable design of single row cylindrical roller bearings significantly enhances inspection possibilities throughout the lifecycle of industrial machinery. This feature allows for thorough visual examination of all bearing surfaces without complete disassembly of equipment, enabling early detection of potential issues such as wear patterns or contamination. Condition monitoring professionals can more effectively inspect the critical surfaces of single row cylindrical roller bearings, including raceways, roller surfaces, and cage condition, providing more accurate assessments of bearing health. In predictive maintenance programs, the separability facilitates the application of non-destructive testing methods to individual components, improving the reliability of condition assessments. The separation capability also enables more accurate measurement of internal clearances, a critical parameter that directly influences bearing performance and service life.
Conclusion
Single row cylindrical roller bearings offer exceptional advantages including high-speed capability, superior load capacity, and valuable separability features that make them indispensable in numerous industrial applications. Their optimized design enables efficient operation in demanding environments while providing maintenance flexibility and extended service life. These bearings continue to evolve with advancements in materials science and manufacturing precision, ensuring they remain critical components in modern machinery across diverse industries.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
References
1. Harris, T.A. & Kotzalas, M.N. (2023). Essential Concepts of Bearing Technology. CRC Press, 6th Edition.
2. Palmgren, A. (2022). Ball and Roller Bearing Engineering. SKF Industries, Inc., 5th Edition.
3. Johnson, K.L. (2021). Contact Mechanics in Roller Bearing Applications. Cambridge University Press.
4. Zaretsky, E.V. (2022). Bearing Design in Machinery: Engineering Tribology and Lubrication. Marcel Dekker, Inc.
5. Eschmann, P., Hasbargen, L., & Weigand, K. (2023). Ball and Roller Bearings: Theory, Design and Application. John Wiley & Sons, 4th Edition.
6. Pekula, R.M. & Smith, J.D. (2021). Rolling Bearing Analysis: Advanced Concepts of Load Distribution and Bearing Life. CRC Press.
