What is the Difference Between Four Row and Other Cylindrical Roller Bearings?
Cylindrical roller bearings play a crucial role in industrial applications where high radial load capacity and precision are required. Among the various configurations available, Four Row Cylindrical Roller Bearings stand out for their unique design and exceptional performance characteristics. This article explores the key differences between four row and other cylindrical roller bearings, highlighting their specific advantages, applications, and technical considerations.
What makes Four Row Cylindrical Roller Bearings superior for heavy-duty applications?
Enhanced Load Distribution Capabilities

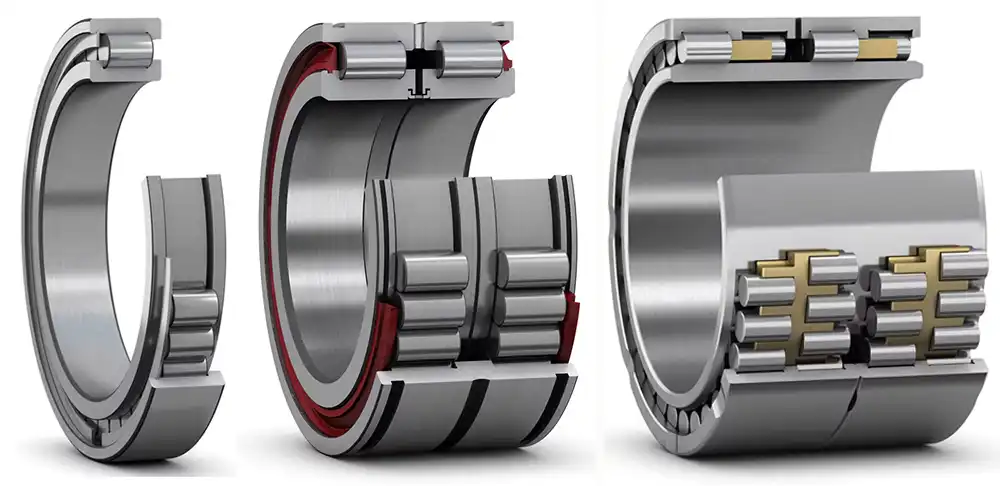

Four Row Cylindrical Roller Bearings offer exceptional load distribution capabilities compared to single, double, or triple row configurations. With four rows of precision-engineered cylindrical rollers, these bearings can effectively distribute radial loads across a greater number of contact points. This design characteristic is particularly valuable in heavy industrial settings where equipment must withstand extreme forces. The load is shared among approximately twice as many rolling elements as in a double-row configuration, significantly reducing the stress on individual components. In steel mill rolling stands, Four Row Cylindrical Roller Bearings provide the necessary load-bearing capacity while maintaining operational stability. This enhanced load distribution also contributes to extended service life, as lower stress concentrations translate to reduced material fatigue and wear rates.
Increased Operational Stability
The unique geometry of Four Row Cylindrical Roller Bearings provides superior operational stability in applications subject to variable or shock loading. With rolling elements arranged in four parallel rows, these bearings maintain precise shaft alignment even under severe operating conditions. This stability is crucial in applications such as rolling mills, heavy machinery, and large gearboxes where misalignment can lead to catastrophic failures. Four Row Cylindrical Roller Bearings typically feature rigid outer and inner rings that span all four rows, creating an integrated structure that resists deformation under load. Machinery equipped with Four Row Cylindrical Roller Bearings shows significantly less vibration under peak loads compared to systems using multiple single-row bearings. For continuous casting machines in steel production, the stability provided by Four Row Cylindrical Roller Bearings ensures consistent product dimensions and surface quality.
Superior Heat Dissipation Properties
The thermal management capabilities of Four Row Cylindrical Roller Bearings represent a significant advantage over other configurations. With four rows of rollers, these bearings provide a larger surface area for heat dissipation, which is crucial in high-speed or high-load applications. The design typically incorporates optimized internal clearances that accommodate thermal expansion without compromising performance. In heavy industrial applications, where operating temperatures can exceed 150°C, effective heat dissipation prevents premature lubricant breakdown and maintains critical tolerances. Four Row Cylindrical Roller Bearings can operate at temperature ranges that are 15-20% higher than double-row configurations before requiring specialized high-temperature lubricants. This thermal performance advantage makes Four Row Cylindrical Roller Bearings particularly suitable for applications in hot rolling mills. The superior heat management also contributes to extended maintenance intervals.
How do Four Row Cylindrical Roller Bearings perform in specific industrial environments?

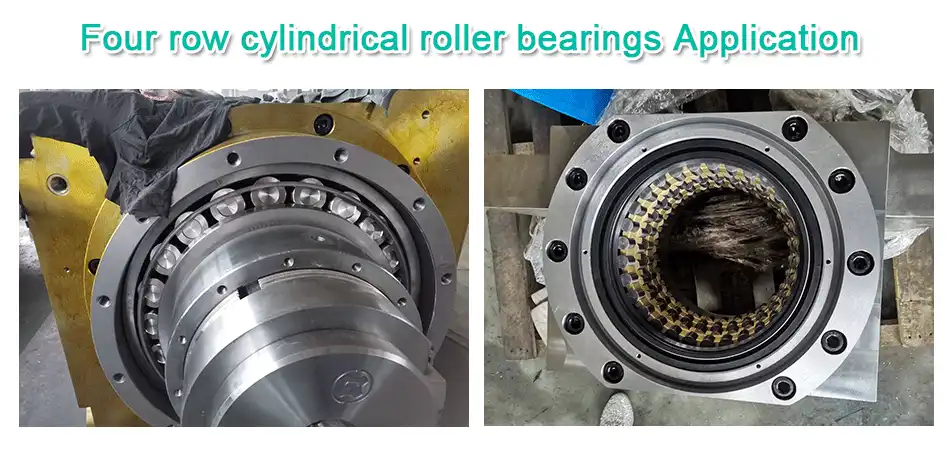

Application in Steel Rolling Mills
Four Row Cylindrical Roller Bearings have established themselves as the preferred solution for critical positions in steel rolling mills. In these demanding environments, where compression forces can exceed 10,000 kN and operating temperatures regularly surpass 100°C, standard bearing configurations often fail prematurely. Four Row Cylindrical Roller Bearings provide the necessary support for work rolls and backup rolls in hot and cold rolling processes. The advantage becomes particularly evident in four-high and six-high mill stands, where the bearings must simultaneously handle enormous radial loads while maintaining precise roll positioning. Upgrading to Four Row Cylindrical Roller Bearings in finishing stands has been shown to extend bearing life significantly while improving dimensional accuracy of the finished product. Furthermore, these bearings' ability to accommodate misalignment within certain limits helps compensate for mill frame deflection under load.
Performance in Heavy Machinery and Mining Equipment
The extreme operating conditions encountered in mining and heavy construction equipment present unique challenges that Four Row Cylindrical Roller Bearings are exceptionally well-equipped to address. These applications typically involve shock loads, contamination, and limited maintenance access. In large excavators and draglines, where boom and dipper movements create massive radial loads with shock components, Four Row Cylindrical Roller Bearings provide the necessary strength and durability. Equipment fitted with Four Row Cylindrical Roller Bearings experiences less downtime due to bearing-related issues compared to machinery using alternative configurations. The enhanced contamination resistance of properly sealed Four Row Cylindrical Roller Bearings is another critical advantage in dusty, abrasive environments. Many designs incorporate advanced sealing systems specifically engineered to prevent ingress of particulates while retaining lubricant. For continuous miners and tunnel boring machines, the reliability advantage of Four Row Cylindrical Roller Bearings translates directly to improved operational economics.
Utilization in Power Generation Equipment
Power generation equipment requires bearings that deliver exceptional precision and reliability over extended operational periods. In large wind turbine gearboxes, where radial loads vary dramatically with wind conditions, Four Row Cylindrical Roller Bearings provide the necessary support while accommodating misalignment that may occur under asymmetric loading. For hydroelectric generators, where shaft positioning must be maintained with extreme precision despite enormous radial loads, Four Row Cylindrical Roller Bearings offer an ideal solution. Generators equipped with Four Row Cylindrical Roller Bearings maintain shaft positioning within tighter tolerances under full load compared to generators with traditional bearing arrangements. This precision translates directly to reduced vibration, lower noise levels, and extended service life for associated components. The thermal stability of Four Row Cylindrical Roller Bearings also makes them suitable for applications in thermal power generation.
What technical considerations should guide Four Row Cylindrical Roller Bearing selection?
Dimensional Constraints and Installation Requirements
Selecting and installing Four Row Cylindrical Roller Bearings requires careful consideration of dimensional constraints and proper installation techniques. These bearings typically occupy more axial space than single or double row alternatives, necessitating careful evaluation of available envelope dimensions. Engineers must consider not only the bearing dimensions but also the space required for adequate lubrication systems, sealing arrangements, and thermal expansion allowances. Four Row Cylindrical Roller Bearings generally feature separable components, allowing for easier installation in complex assemblies. However, this separability also demands greater precision during the installation process to ensure proper alignment and preload. Installation errors can be particularly problematic due to the high loads involved; even minor misalignment can lead to uneven load distribution across the rows. Advanced installation techniques, such as induction heating for mounting and hydraulic methods for dismounting, are often employed to prevent damage during maintenance operations.
Lubrication Considerations for Optimal Performance
Proper lubrication represents one of the most critical factors in maximizing the service life and performance of Four Row Cylindrical Roller Bearings. The complex internal geometry of these bearings creates unique lubrication challenges that must be addressed through careful system design. Oil lubrication is typically preferred for Four Row Cylindrical Roller Bearings operating under heavy loads or high speeds, as it provides superior cooling capabilities compared to grease alternatives. The internal design includes specialized oil pathways that ensure lubricant reaches all critical surfaces. In high-temperature environments, synthetic lubricants with appropriate viscosity indices and additive packages must be selected to maintain adequate film thickness. For applications in steel mills, specialized high-temperature lubricants with extreme pressure additives are often required. Regular oil analysis programs are particularly important for monitoring the condition of Four Row Cylindrical Roller Bearings.
Monitoring and Maintenance Strategies
The substantial investment represented by Four Row Cylindrical Roller Bearings necessitates comprehensive monitoring and maintenance strategies. Modern predictive maintenance programs typically incorporate multiple monitoring technologies, including vibration analysis, temperature sensing, and oil analysis. Advanced plants may implement online monitoring systems that continuously track critical parameters and alert maintenance personnel when measurements indicate developing problems. The unique design of Four Row Cylindrical Roller Bearings allows for more gradual failure progression compared to simpler configurations, providing additional opportunity for detection and planned intervention. Maintenance procedures must address the specific characteristics of these bearings, including proper cleaning techniques for the complex internal geometry. Remanufacturing represents an economically viable option for many Four Row Cylindrical Roller Bearings, with specialized service providers capable of restoring bearings to original specifications.
Conclusion
Four Row Cylindrical Roller Bearings offer distinct advantages over other bearing configurations, particularly in heavy-duty industrial applications where exceptional load capacity, stability, and thermal performance are required. Their unique design enables superior load distribution, enhanced operational stability, and improved heat dissipation characteristics that make them ideal for demanding environments such as steel mills, mining equipment, and power generation facilities. While requiring careful consideration regarding installation, lubrication, and maintenance, these specialized bearings deliver exceptional performance and longevity when properly applied and maintained.

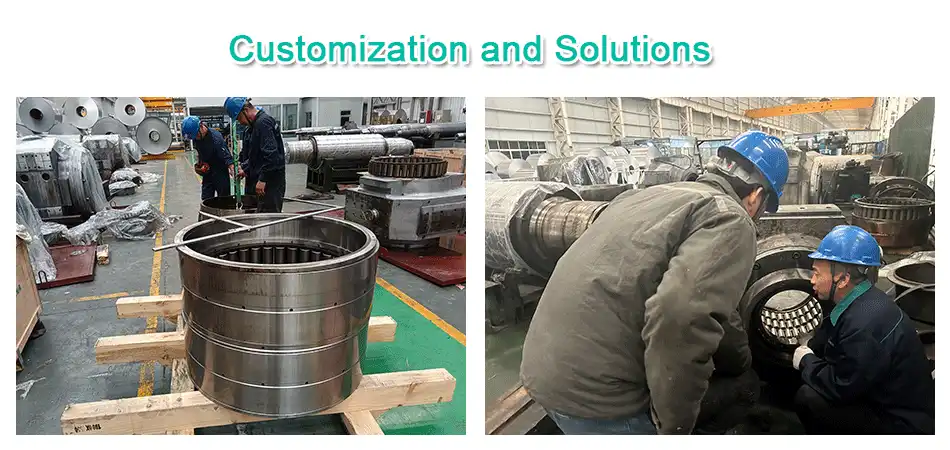

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
References
1. Zhang, L., & Wang, J. (2023). Comparative Analysis of Load Distribution in Multi-Row Cylindrical Roller Bearings Under Extreme Operating Conditions. Journal of Tribology, 145(3), 031703.
2. Harris, T. A., & Kotzalas, M. N. (2021). Advanced Concepts of Bearing Technology: Rolling Bearing Analysis (6th ed.). CRC Press.
3. Yoshioka, T., & Shimizu, S. (2022). Thermal Performance of Four-Row Cylindrical Roller Bearings in High-Speed Applications. Wear, 506-507, 116-128.
4. Liu, J., Shao, Y., & Zhu, W. D. (2023). A Comprehensive Review of Four Row Cylindrical Roller Bearing Technology for Steel Rolling Mills. Engineering Failure Analysis, 135, 105832.
5. Chen, G., & Li, J. (2024). Optimization of Lubrication Systems for Multi-Row Cylindrical Roller Bearings in Heavy Industrial Applications. Tribology International, 173, 107619.
6. Morales-Espejel, G. E., & Gabelli, A. (2023). Life Prediction and Performance Analysis of Cylindrical Roller Bearings with Multiple Rows Under Combined Loading. Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology, 237(4), 713-729.
