What are the Applications of Precision Angular Contact Ball Bearings?
Precision angular contact ball bearings represent a crucial advancement in modern engineering and manufacturing technology. These specialized bearings are designed to handle both radial and axial loads simultaneously, making them indispensable in applications requiring high precision and reliability. With their unique design featuring raceways that are displaced relative to each other in the direction of the bearing axis, these bearings create an ideal contact angle that optimizes their load-bearing capabilities. Their significance in various industrial applications continues to grow as manufacturers demand increasingly precise and efficient mechanical solutions.
How Do Angular Contact Ball Bearings Differ from Other Bearing Types?

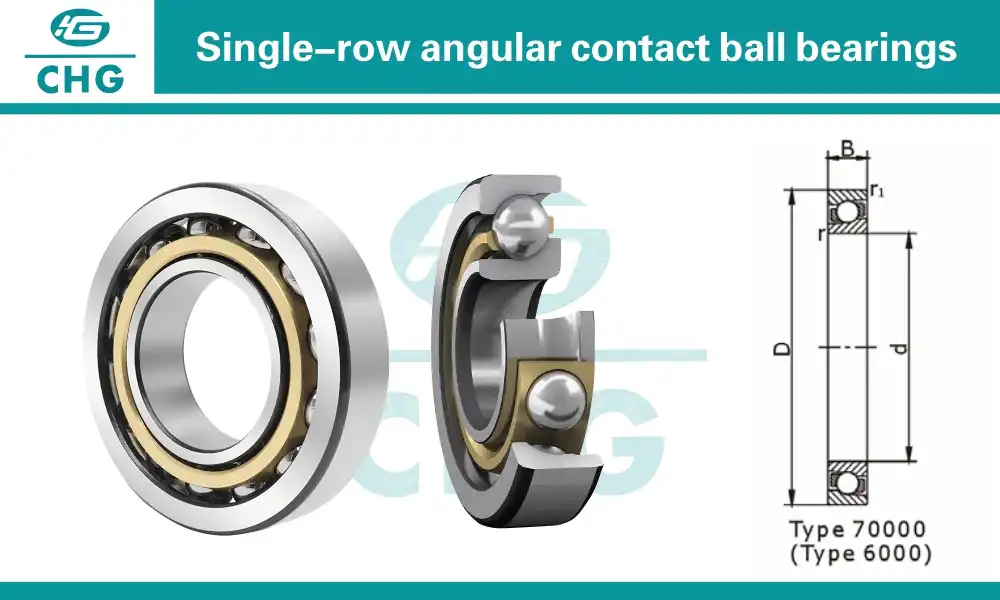

Angular contact ball bearings stand apart from other bearing types through their distinctive design and operational characteristics. The fundamental difference lies in their internal geometry, where the inner and outer ring raceways are displaced relative to each other in the bearing axis direction. This displacement creates a contact angle that enables the bearing to handle combined loads - both radial and axial - more effectively than conventional bearings.

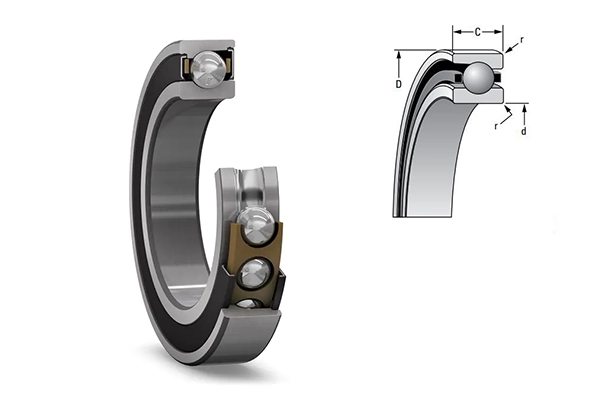

The design incorporates precision-ground balls that run between the inner and outer rings, with the contact angle determining the bearing's load-carrying capability. Unlike radial ball bearings, which primarily handle radial loads, or thrust bearings that manage axial loads, angular contact bearings excel at managing both simultaneously. This versatility makes them particularly valuable in applications requiring precise shaft guidance and high rotational accuracy.
The manufacturing precision of these bearings is notably higher than standard bearings, with stricter tolerances for roundness, surface finish, and dimensional accuracy. This precision is crucial for maintaining consistent performance under varying load conditions and high speeds. Additionally, these bearings often feature special cage designs that ensure optimal ball guidance and lubrication distribution, contributing to their superior performance in high-precision applications.
The material selection for angular contact ball bearings also sets them apart. They typically utilize high-grade bearing steel with superior hardness and wear resistance properties. Some variants even incorporate ceramic balls or specialized coatings for enhanced performance in extreme operating conditions. This attention to material quality and precision manufacturing results in bearings that offer longer service life and more reliable operation compared to conventional bearing types.
What Industries Rely Most Heavily on Precision Angular Contact Bearings?
The implementation of precision angular contact ball bearings spans numerous industries, each leveraging their unique capabilities for specific applications. In the machine tool industry, these bearings are crucial components in spindle assemblies, where they provide the precision and stability necessary for high-speed machining operations. The aerospace sector relies heavily on these bearings for aircraft engines, where they must maintain exceptional performance under extreme conditions of temperature and speed.
The semiconductor manufacturing industry represents another significant user of precision angular contact bearings. In wafer processing equipment, these bearings provide the ultra-precise positioning required for chip fabrication. The automotive industry, particularly in electric vehicle production, utilizes these bearings in electric motor assemblies where high efficiency and precise rotation are paramount.
Medical equipment manufacturers incorporate these bearings in various diagnostic and treatment devices, such as CT scanners and MRI machines, where precise positioning and smooth operation are essential. The robotics industry depends on these bearings for robot arm joints and end-effector mechanisms, where accuracy and repeatability are crucial for successful automation.
In the renewable energy sector, particularly wind turbine manufacturing, these bearings play a vital role in gearbox assemblies and generator systems. The textile machinery industry utilizes them in high-speed spinning frames and weaving machines where consistent performance at high speeds is essential. Even the food and beverage industry relies on these bearings in processing equipment where precision and cleanliness are paramount.
What Factors Should Be Considered When Selecting Angular Contact Ball Bearings?
The selection of appropriate angular contact ball bearings requires careful consideration of multiple factors to ensure optimal performance and longevity. Load characteristics represent the primary consideration, including both the magnitude and direction of applied loads. Engineers must analyze not only the static and dynamic load ratings but also the nature of the load - whether it's predominantly radial, axial, or a combination of both.
Operating speed is another crucial factor, as it influences the bearing's thermal behavior and lubrication requirements. High-speed applications may require special cage designs or lubrication methods to maintain proper function. The operating environment, including temperature range, presence of contaminants, and exposure to moisture or chemicals, significantly impacts bearing selection and maintenance requirements.

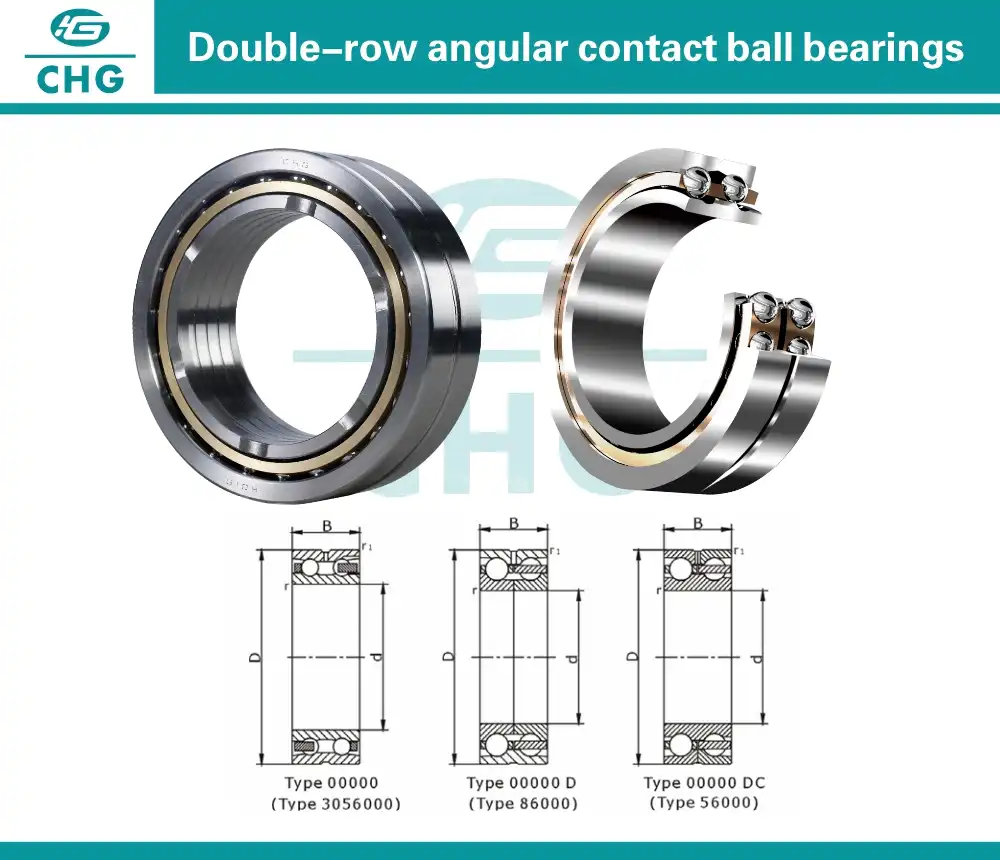

Precision requirements of the application must be carefully evaluated, including considerations of runout tolerance, rotational accuracy, and shaft guidance precision. The mounting arrangement - whether single, back-to-back, face-to-face, or tandem - affects the bearing's performance characteristics and must be chosen based on the application's specific requirements.
Installation and maintenance considerations also play a vital role in the selection process. Factors such as mounting space constraints, accessibility for maintenance, and lubrication system compatibility must be evaluated. The bearing's life expectancy under the specified operating conditions should be calculated to ensure it meets the application's reliability requirements.
Cost considerations extend beyond the initial purchase price to include installation costs, maintenance requirements, and potential downtime impacts. The total cost of ownership should be evaluated against the bearing's expected performance benefits and reliability requirements. Additionally, the availability of replacement parts and technical support from the manufacturer should factor into the selection decision.

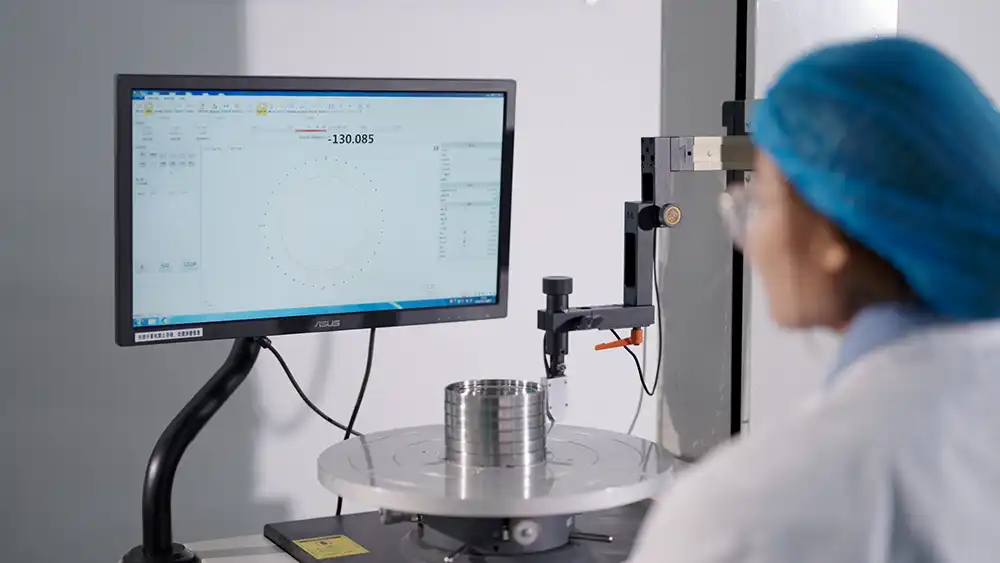

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
