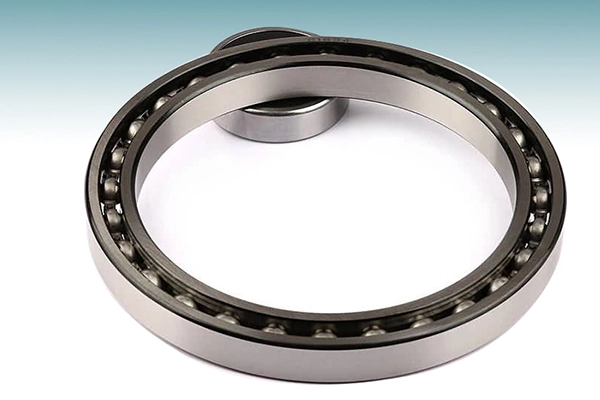

What is a Precision Angular Contact Ball Bearing?
Precision angular contact ball bearings represent a sophisticated advancement in bearing technology, specifically engineered to handle combined radial and axial loads with exceptional accuracy. These specialized bearings feature raceways that are displaced relative to each other in the direction of the bearing axis, creating an optimal contact angle between the balls and raceways. This unique design enables them to support both radial and axial forces simultaneously while maintaining high precision in rotational movements. Their construction allows for preloading, which eliminates play and increases rigidity, making them invaluable in applications requiring utmost precision and reliability.
How Do Angular Contact Bearings Differ from Regular Ball Bearings?

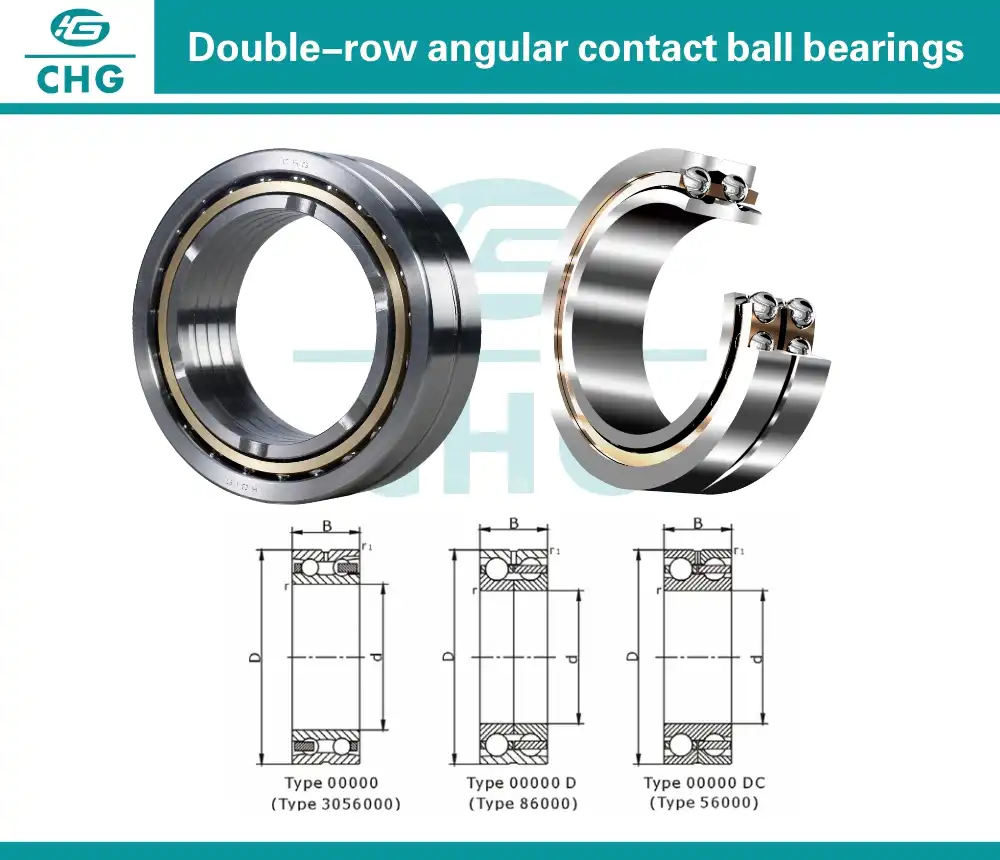

Angular contact ball bearings distinguish themselves from conventional ball bearings through several key characteristics and design elements that significantly impact their performance and applications. The primary distinction lies in their internal geometry and load-bearing capabilities. Unlike regular ball bearings, which primarily handle radial loads, angular contact bearings are designed with offset raceways that create a specific contact angle. This angle typically ranges from 15 to 40 degrees, depending on the application requirements.
The contact angle is crucial as it determines the bearing's ability to handle different load combinations. In regular ball bearings, the load path is primarily perpendicular to the shaft axis, while angular contact bearings can effectively manage both radial and axial loads simultaneously. This is achieved through the precise positioning of the balls against the inner and outer ring raceways, creating an optimal force distribution pattern.
Another significant difference is the level of precision and manufacturing tolerances. Precision angular contact bearings are manufactured to much tighter tolerances than standard ball bearings. This includes superior surface finishing of the raceways, higher precision ball sphericity, and more accurate cage designs. The enhanced precision directly contributes to reduced friction, lower operating temperatures, and improved running accuracy.
The preload capability of angular contact bearings also sets them apart. While regular ball bearings typically operate with some internal clearance, angular contact bearings can be preloaded to eliminate play and increase system rigidity. This preload can be adjusted through various mounting arrangements, allowing for optimization based on specific application requirements. The ability to preload these bearings makes them ideal for applications where precise shaft positioning and minimal deflection are critical.

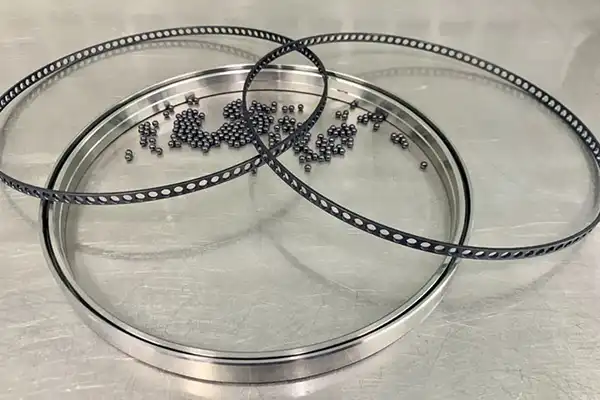

Furthermore, the cage designs in angular contact bearings are typically more sophisticated than those found in regular ball bearings. These cages are engineered to maintain optimal ball spacing and guidance while minimizing friction and heat generation. The materials used in precision angular contact bearings are often of higher grade, with special attention paid to heat treatment and surface finishing to ensure long-term reliability and performance.
What Are the Main Applications of Precision Angular Contact Ball Bearings?
Precision angular contact ball bearings find extensive applications across various industrial sectors, each leveraging their unique capabilities to meet specific operational requirements. In the machine tool industry, these bearings are fundamental components in spindle assemblies, where they provide the necessary precision and stability for high-speed cutting operations. The ability to maintain accuracy under varying loads and speeds makes them indispensable in modern CNC machines and precision manufacturing equipment.
The aerospace industry relies heavily on these bearings for critical applications such as aircraft engine components, where reliability and precision are paramount. The bearings' capability to handle both radial and thrust loads while maintaining tight tolerances makes them ideal for turbine engines, auxiliary power units, and various control surface mechanisms. Their high-speed capabilities and thermal stability are particularly valuable in these demanding environments.
In the medical equipment sector, precision angular contact bearings are essential components in diagnostic and treatment devices. They are commonly found in medical imaging equipment like CT scanners and MRI machines, where precise rotational movement is crucial for accurate imaging. The bearings' low noise characteristics and smooth operation contribute to better diagnostic results and patient comfort.
The robotics and automation industry extensively uses these bearings in robot arm joints and precision positioning systems. Their ability to maintain accuracy under varying load conditions and directions is crucial for robotic applications where precise movement and positioning are essential. The bearings' preload capability helps maintain system rigidity, which is vital for repeatability in automated processes.
High-precision measuring and testing equipment also heavily relies on these bearings. Coordinate measuring machines (CMMs), optical measuring systems, and various quality control equipment use precision angular contact bearings to achieve the necessary accuracy and repeatability in their measurements. The bearings' minimal friction and consistent performance characteristics are essential for maintaining measurement accuracy.
What Factors Should Be Considered When Selecting Precision Angular Contact Ball Bearings?
Selecting the appropriate precision angular contact ball bearing requires careful consideration of multiple factors to ensure optimal performance and longevity. The operating conditions play a crucial role in the selection process, including speed requirements, load characteristics, and environmental factors. Understanding the speed requirements is particularly important as it affects the choice of cage material, lubrication method, and cooling requirements. High-speed applications might require special cage designs and oil-air lubrication systems to maintain proper operating temperatures.
Load analysis is another critical factor, involving both the magnitude and direction of applied loads. The contact angle selection should be based on the ratio of axial to radial loads, with larger contact angles being more suitable for higher axial loads. Dynamic and static load ratings must be carefully evaluated to ensure the bearing can handle both continuous operation and peak loads without premature failure.
Environmental conditions significantly impact bearing selection and performance. Temperature variations, presence of contaminants, and exposure to moisture or chemicals must be considered. These factors influence the choice of materials, sealing solutions, and lubrication systems. Special consideration should be given to applications requiring operation in extreme temperatures or corrosive environments.
The mounting arrangement and installation requirements also play a vital role in bearing selection. The available space, shaft and housing fits, and mounting precision all affect the choice of bearing size and arrangement. Proper consideration must be given to mounting procedures and tools required for installation and maintenance. The ability to achieve and maintain proper preload is particularly important, as it directly affects bearing performance and life.
Maintenance requirements and accessibility should be evaluated during the selection process. Some applications may require bearings with longer service intervals or special lubrication systems. The cost of maintenance and potential downtime should be balanced against the initial bearing cost when making the final selection. Additionally, the availability of replacement bearings and parts should be considered to minimize potential downtime.
Precision requirements of the application must be carefully matched with the bearing's accuracy specifications. This includes considerations of runout tolerances, rotational accuracy, and stiffness requirements. The Angular Contact Ball Bearing's precision class should be selected based on the application's accuracy needs while considering the cost implications of higher precision grades.
