What Materials Are Used for Thin Section Deep Groove Ball Bearings?

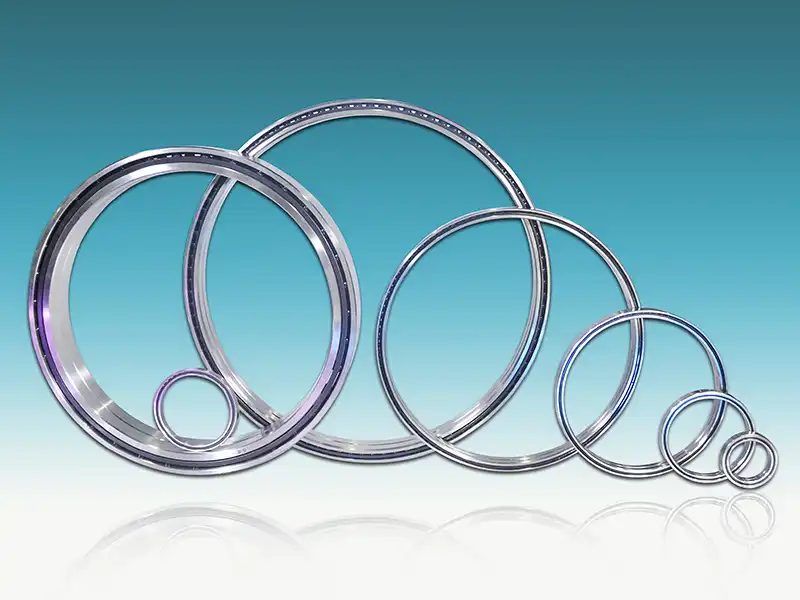

Thin section deep groove ball bearings represent a crucial component in modern precision machinery, characterized by their distinctive design featuring a small cross-section relative to their bore diameter. These specialized bearings are manufactured using carefully selected materials that must meet exacting standards for durability, precision, and performance. The materials chosen for these bearings play a vital role in determining their operational characteristics, including load-bearing capacity, rotational smoothness, and service life. Understanding the materials used in their construction is essential for engineers and technical professionals working with these components.
How Do Different Steel Grades Impact the Performance of Thin Section Bearings?
The selection of steel grades fundamentally influences the performance and reliability of thin section deep groove ball bearings. High-carbon chromium bearing steel (AISI 52100/100Cr6) remains the primary material choice for most bearing components due to its exceptional mechanical properties. This material contains approximately 1% carbon and 1.5% chromium, creating an optimal balance of hardness and durability after heat treatment. The steel undergoes precise heat treatment processes, including hardening and tempering, to achieve a surface hardness typically ranging from 58 to 65 HRC.
Modern bearing manufacturers have also introduced advanced steel grades like M50 and M50NiL, particularly for aerospace applications. These materials offer enhanced hot hardness retention and superior resistance to rolling contact fatigue. M50 steel, containing elements such as molybdenum, chromium, and vanadium, maintains its mechanical properties at elevated temperatures up to 315°C (600°F). The incorporation of nickel in M50NiL provides improved fracture toughness while maintaining excellent wear resistance.
For applications requiring corrosion resistance, martensitic stainless steels such as AISI 440C are employed. These materials contain higher chromium content (16-18%) and moderate carbon levels (0.95-1.20%), offering good corrosion resistance while maintaining adequate hardness after heat treatment. Some manufacturers have developed proprietary steel grades that optimize specific properties, such as increased cleanliness levels or improved fatigue resistance, through careful control of alloying elements and processing parameters.
What Role Do Surface Treatments and Coatings Play in Thin Section Bearing Protection?
Surface treatments and coatings have revolutionized the performance capabilities of thin section deep groove ball bearings by providing enhanced protection against various environmental challenges. Black oxide treatment, one of the most common surface modifications, creates a magnetite (Fe3O4) layer that provides improved running-in characteristics and basic corrosion protection. This treatment, typically 1-2 micrometers thick, also helps retain lubricant on the bearing surfaces.
Physical Vapor Deposition (PVD) coatings represent a significant advancement in bearing surface technology. Titanium Nitride (TiN) coatings, applied in layers as thin as 1-4 micrometers, offer exceptional wear resistance and reduced friction coefficients. Diamond-Like Carbon (DLC) coatings have gained prominence for their ability to operate in poorly lubricated or dry-running conditions. These coatings provide extremely low friction coefficients and excellent wear resistance, making them ideal for demanding applications.
Advanced ceramic coatings, such as chromium nitride (CrN) and aluminum titanium nitride (AlTiN), offer specialized solutions for extreme operating conditions. These coatings provide superior hardness, excellent chemical stability, and enhanced thermal resistance. Some manufacturers have developed multilayer coating systems that combine different materials to achieve optimal performance characteristics, such as a combination of chromium and DLC layers for both corrosion and wear protection.
The application of these surface treatments requires precise control of processing parameters to ensure uniform coverage and strong adhesion to the substrate material. Modern coating technologies also focus on minimizing coating thickness to maintain the precise dimensional tolerances critical for thin section bearings while providing the desired surface protection properties.
What Are the Latest Innovations in Cage Materials for Thin Section Bearings?
The evolution of cage materials for thin section deep groove ball bearings has significantly impacted their performance capabilities and application range. Traditional metallic cages, typically manufactured from brass or steel, continue to serve in many standard applications. However, advanced polymer materials have introduced new possibilities for cage design and performance optimization. High-performance polymers like polyamide 66 (PA66) and polyetheretherketone (PEEK) offer excellent wear resistance, low friction, and good thermal stability.
Fiber-reinforced polymer composites represent a significant advancement in cage material technology. Glass fiber-reinforced polyamide provides enhanced strength and dimensional stability compared to unreinforced polymers, while maintaining good wear characteristics and chemical resistance. Carbon fiber-reinforced PEEK cages offer exceptional strength-to-weight ratios and can operate at higher temperatures than standard polymer cages.
Modern cage designs often incorporate self-lubricating materials or specialized additives to improve performance in marginally lubricated conditions. Some manufacturers have developed hybrid cage materials that combine the strength of metal reinforcement with the tribological benefits of polymers. These innovations have led to cages that can operate at higher speeds, carry greater loads, and provide longer service life in challenging applications.
