XSU Cross Roller Bearings for Medical and Aerospace Gear
When precision and efficiency are needed in high-stakes situations, XSU Cross Roller Bearings become the most important technology for medical and aerospace gear systems. These special bearings have cylindrical rollers that are placed perpendicular to each other. This makes it possible to handle radial and axial loads with great accuracy at the same time. Because they are built to last and are precisely engineered, they are essential parts of CT scanners, MRI machines, aeroplane landing systems, and satellite positioning equipment that can't fail.
Understanding XSU Cross Roller Bearings and Their Design Features

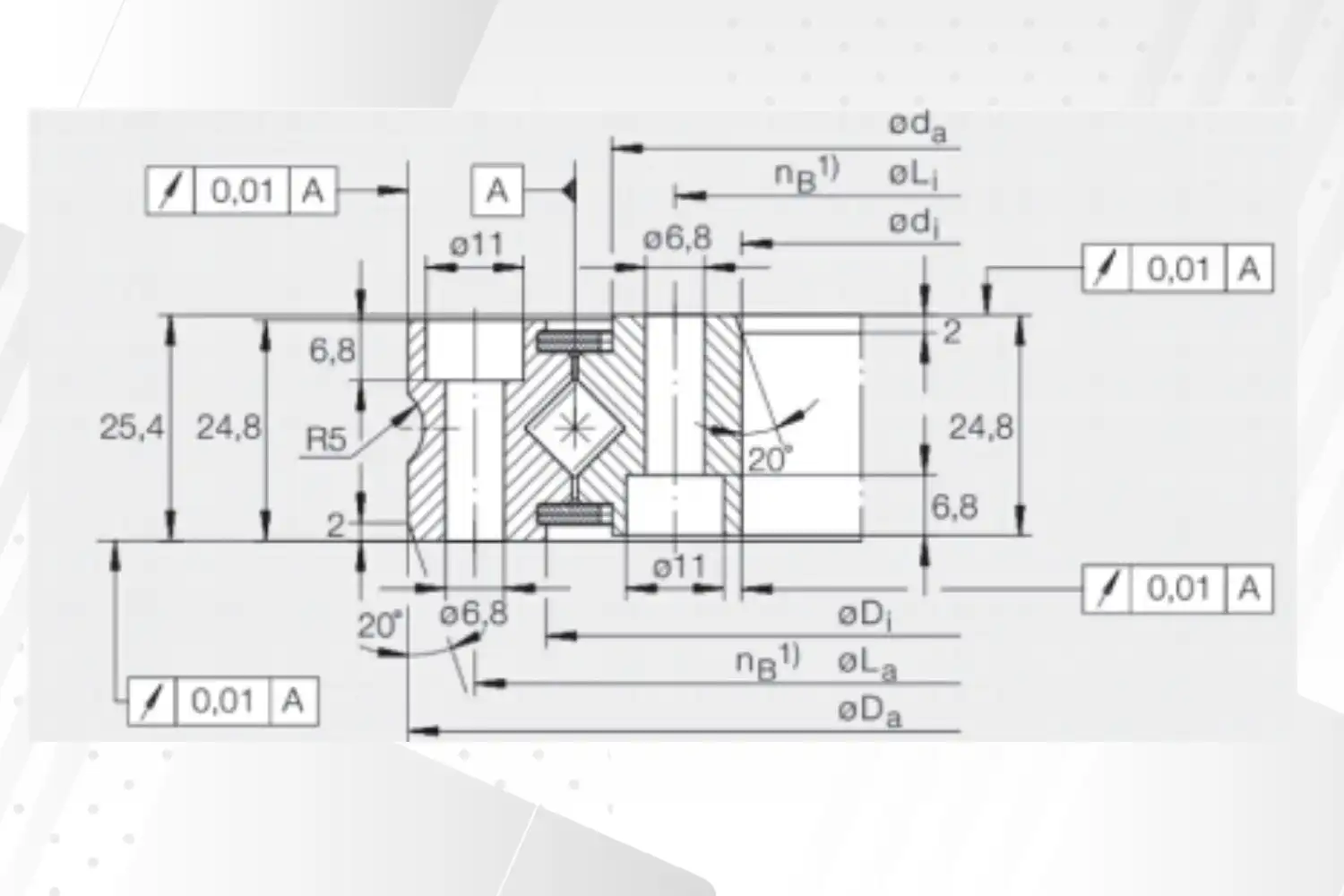

Unique Crossed Cylindrical Roller Architecture
XSU cross roller bearings are unique because they have a unique design with cylindrical rollers that are placed at right angles to each other inside the bearing system. When compared to standard ball bearings or cylindrical roller bearings, this arrangement provides better load distribution. Because they are crossed, these bearings can handle radial, axial, and moment loads all at the same time. This makes them very useful in medical imaging tools and spacecraft guidance systems. The inner and outer rings are joined together in a way that makes them very hard and stable in terms of their size. This uniform construction gets rid of any weak spots that might affect performance in harsh operating conditions. This design is liked by engineers because it keeps accurate tolerances even when exposed to temperature changes that happen a lot in space or when medical facilities need to be cleaned.
Material Composition and Manufacturing Excellence
We use high-quality materials in our manufacturing process, like GCr15 and GCr15SiMn steel alloys, because they are very hard and don't wear down easily. To get the best metallurgical properties, these materials go through special heat treatment methods. Depending on the needs of the product and the environment in which it will be used, the bearing cages are made of either brass or nylon. With inner diameters from 130mm to 874mm, outer diameters from 205mm to 1014mm, and widths from 25.4-56mm, the range of sizes can meet a wide range of application needs. With this wide range of sizes, engineers can choose the exact bearing sizes their equipment needs without sacrificing performance or needing to make custom changes.
Precision Accuracy Classifications
Standards for quality control cover a range of accuracy levels, such as P6, P0, P5, P4, and P2 grades. With each classification, the tolerances and geometric accuracy standards get stricter. P2 class bearings, which have the highest level of precision, are usually chosen for the most difficult medical and aerospace uses, where even tiny changes could affect how well the system works.
Advantages of XSU Cross Roller Bearings in Medical and Aerospace Gear
Enhanced Load Capacity and Structural Integrity
With its crossed roller configuration, it can hold more weight XSU Cross Roller Bearings than other bearing types. This higher capacity comes from the best distribution of contact stress across multiple roller elements, which effectively spreads operational loads over a bigger surface area. This quality is especially important to companies that make medical equipment because it lets them make lighter equipment without losing its structural integrity. Real-world performance data from surgical robotic systems shows that these bearings can keep their positioning accuracy to within a few micrometres even after being used thousands of times. This consistency is very important for processes that need to place instruments precisely and where patient safety depends on how well the machinery works.
Minimal Backlash and Superior Rigidity
Backlash reduction represents a critical advantage in precision applications. The preloaded design of these bearings virtually eliminates play between components, ensuring immediate response to control inputs. Aerospace engineers rely on this characteristic for flight control systems, where a delayed response could compromise aircraft stability. The enhanced rigidity provided by the crossed roller arrangement reduces system vibrations and improves overall mechanical stability. This benefit translates to improved image quality in medical scanning equipment and enhanced accuracy in aerospace navigation systems. Equipment manufacturers report significant improvements in operational smoothness and reduced maintenance requirements when upgrading from conventional bearing systems.
Extended Service Life and Reduced Maintenance
Performance testing indicates that properly maintained XSU cross roller bearings can achieve service lives exceeding 20,000 operating hours in demanding environments. This longevity stems from the uniform load distribution and high-quality materials that resist wear and fatigue. The sealed design with integrated lubrication further extends operational intervals between maintenance cycles. Case studies from aerospace applications show maintenance cost reductions of up to 30% compared to traditional bearing systems. This improvement results from both extended replacement intervals and reduced downtime for maintenance procedures, directly impacting operational efficiency and lifecycle costs.
Comparison and Decision-Making: Choosing XSU Cross Roller Bearings
Performance Analysis Against Alternative Bearing Types
When evaluating bearing options for critical applications, several factors distinguish XSU cross roller bearings from alternatives such as angular contact ball bearings, tapered roller bearings, or slewing ring bearings. The crossed roller design provides higher moment load capacity than ball bearings while maintaining superior precision compared to slewing rings. Load capacity comparisons reveal that XSU bearings can handle moment loads up to three times greater than equivalent-sized ball bearing arrangements. This advantage enables more compact system designs and reduces the need for additional support structures. The space savings are particularly valuable in medical equipment, where patient access and equipment mobility are important considerations.
Selection Criteria for Medical and Aerospace Applications
Procurement managers must evaluate multiple technical parameters when selecting bearings for critical applications. Load requirements, speed capabilities, temperature range, and environmental conditions all influence the selection process. XSU cross roller bearings excel in applications requiring high precision under moderate rotational speeds, making them ideal for positioning systems and indexing mechanisms. Environmental considerations include resistance to sterilization processes in medical applications and temperature extremes in aerospace systems. The sealed construction and material selection of these bearings provide excellent performance across wide temperature ranges while maintaining dimensional stability. Quality certifications, including ISO standards and aerospace specifications, ensure compliance with industry requirements.
Cost-Benefit Analysis and Long-Term Value
While initial costs may exceed those of conventional bearings, XSU Cross Roller Bearings, the total cost of ownership typically favors XSU cross roller bearings due to their extended service life and reduced maintenance requirements. Procurement teams often find that the premium investment pays dividends through improved system reliability and reduced operational costs. Financial analysis should include factors such as maintenance labor costs, equipment downtime expenses, and potential costs associated with system failures. The high reliability of these bearings significantly reduces the risk of unexpected failures that could result in costly equipment downtime or compromised patient care in medical applications.
Procurement Guide: How to Buy XSU Cross Roller Bearings for Medical and Aerospace Gear
Identifying Qualified Suppliers and Distribution Networks
Successful procurement begins with identifying suppliers who maintain proper certifications and quality management systems. Look for manufacturers with ISO9001 quality certification and ISO14001 environmental management compliance. These certifications indicate systematic approaches to quality control and environmental responsibility that are essential for medical and aerospace applications. Supplier evaluation should include assessment of technical support capabilities, inventory availability, and after-sales service. The complexity of these bearings often requires ongoing technical consultation during installation and operation. Choose suppliers who provide comprehensive engineering support and maintain adequate inventory levels to minimize lead times for both standard and emergency orders.
Customization Options and Technical Specifications
Many applications require bearing modifications to meet specific performance requirements or installation constraints. Reputable suppliers offer customization services, including modified sealing arrangements, special lubrication specifications, and dimensional modifications. These services are particularly valuable for OEM manufacturers developing new equipment designs. Technical documentation should include detailed dimensional drawings, load capacity charts, and installation instructions. Ensure that suppliers provide comprehensive technical data packages that enable proper bearing selection and installation. Quality suppliers also offer application engineering services to help optimize bearing selection for specific requirements.
Quality Assurance and Warranty Considerations
Quality assurance protocols should include incoming inspection procedures and supplier quality audits. Request certification documents that verify material properties, dimensional accuracy, and performance testing results. These documents provide traceability and ensure that bearings meet specified requirements. Warranty policies vary among suppliers, but quality manufacturers typically offer warranties covering material defects and manufacturing flaws. Understanding warranty terms and service procedures helps protect against potential quality issues and provides recourse in case of premature failures. Establish clear communication channels with suppliers to facilitate warranty claims and technical support requests.
Maintenance and Optimization Tips for XSU Cross Roller Bearings
Routine Inspection and Monitoring Protocols
Setting up regular inspection plans that check bearing performance indicators is the first step in making maintenance programs work. Visual checks should be done to look for signs of contamination, make sure the seals are intact, and make sure there is enough lubricant. Monitoring vibrations can find small signs of wear or misalignment before they become bigger problems. Monitoring temperature can tell you a lot about the state and load on a bearing. High temperatures could mean that there isn't enough grease, there are too many loads, or there are contamination problems. Setting a baseline temperature during the original installation makes it possible to make useful comparisons during later inspections.
Lubrication Management and Environmental Protection
For these precise bearings to last as long as they are supposed to, they need to be properly oiled. Follow the manufacturer's advice on the type of lubricant to use, how much to use, and how often to change it. In aerospace uses where temperatures can get very high, high-quality synthetic lubricants often work better. To stop contamination, you have to keep the seals in good shape and keep the working area under control. Contamination that could damage bearing surfaces can be avoided by checking seals regularly and replacing them when needed. In hospital settings, clean rooms help lower the risk of contamination. In aerospace settings, on the other hand, moisture and debris exclusion may need extra care.
Performance Optimization and Upgrade Strategies
More advanced tracking methods, like vibration analysis, XSU Cross Roller Bearings, and oil analysis, can help find problems early on. These predictive maintenance methods let you take action ahead of time to stop costly breakdowns and increase the life of bearings. Using condition monitoring systems produces data that helps make better decisions about when to do maintenance and how to manage inventory. Upgrading a system might mean replacing the bearings with ones that are better made or have better designs. With each new generation of technology, better bearing designs with better performance features are introduced. Keeping up with new developments through relationships with suppliers lets you make timely upgrades that make tools work better and be more reliable.
Conclusion
XSU Cross Roller Bearings are important parts for medical and aircraft uses that need to be precise, reliable, and last a long time. Because of their unique design benefits, such as high load capacity, low backlash, and high rigidity, they are the best choice for important systems. It's possible to make decisions that improve machine performance and lower operational costs by knowing the technical specifications, buying factors, and maintenance needs. Investing in good bearings pays off by making the system more reliable and lowering the costs over its entire life.
FAQ
1. What is the typical service life of XSU cross roller bearings in aerospace applications?
XSU cross roller bearings typically achieve service lives exceeding 20,000 operating hours in aerospace applications when properly maintained. The actual service life depends on factors such as load conditions, operating speed, temperature environment, and maintenance quality. Regular monitoring and proper lubrication can extend service life significantly beyond baseline expectations.
2. How do load capacities compare between XSU bearings and standard ball bearings?
XSU cross roller bearings provide substantially higher moment load capacity compared to ball bearings of similar size. The crossed roller design can handle moment loads up to three times greater than equivalent ball bearing arrangements. This advantage enables more compact system designs and reduced support structure requirements in precision applications.
3. Where can I source authorized distributors in North America and Europe?
Authorized distributors maintain proper inventory levels and provide technical support for XSU cross roller bearings. Contact established bearing manufacturers directly for current distributor networks in your region. Qualified distributors should provide certifications, technical documentation, and after-sales support to ensure authentic products and reliable service.
Partner with Huigong for Your XSU Cross Roller Bearing Requirements
Huigong stands ready to support your precision bearing requirements with XSU Cross Roller Bearings, with decision bearing over two decades of manufacturing excellence and engineering expertise. As a leading XSU Cross Roller Bearings supplier, we provide comprehensive solutions including custom modifications, technical consultation, and reliable delivery schedules. Our ISO9001-certified quality management system ensures consistent product quality that meets demanding medical and aerospace standards.
Connect with our engineering team at sale@chg-bearing.com to discuss your specific application requirements and receive detailed quotations. We offer sample procurement options, bulk order pricing, and expedited delivery services to support your project timelines. Our technical support team provides ongoing consultation throughout the product lifecycle, ensuring optimal performance and maximum value from your bearing investment.
