How to Select the Right Type A Thin Section Bearing for Your Application?
Selecting the appropriate Type A thin section bearing is crucial for ensuring optimal performance and longevity in your engineering applications. These specialized bearings offer unique advantages in terms of space-saving design and high precision, making them ideal for various industries including robotics, medical equipment, and aerospace. In this comprehensive guide, we'll explore the key factors to consider when choosing a Type A thin section bearing and address some common questions to help you make an informed decision.
What are the key differences between Type A, B, and C thin section bearings?
Type A, B, and C thin section bearings are all designed to provide high precision and space-saving solutions, but they differ in their construction and load-bearing capabilities. Understanding these differences is essential for selecting the right bearing for your specific application.

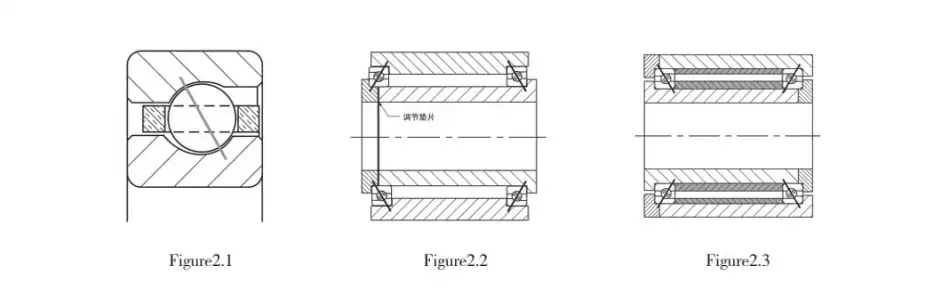

Type A thin section bearings are characterized by their radial cross-section, which remains constant regardless of the bearing's diameter. This design feature allows for a wide range of sizes while maintaining consistent performance characteristics. Type A bearings are particularly well-suited for applications that require high radial stiffness and precise rotation.
Key features of Type A thin section bearings include:
- Constant cross-section regardless of diameter
- Excellent radial stiffness
- High precision rotation
- Suitable for a wide range of sizes
In contrast, Type B thin section bearings have a radial cross-section that increases proportionally with the bearing's diameter. This design allows for higher load capacities in larger sizes but may sacrifice some of the space-saving benefits found in Type A bearings.
Type C thin section bearings are similar to Type B but with an even larger cross-section, offering the highest load capacity among the three types. However, they are also the thickest and may not be suitable for applications with extreme space constraints.
When selecting between these types, consider the following factors:
1. Available space: If minimizing space is a top priority, Type A bearings are often the best choice.
2. Load requirements: For applications with higher loads, Type B or C bearings may be more appropriate.
3. Precision needs: All three types offer high precision, but Type A bearings excel in applications requiring the utmost accuracy.
4. Size range: Type A bearings offer the widest range of sizes while maintaining consistent performance.
By understanding these differences, you can narrow down your options and focus on the type that best suits your application's specific requirements.

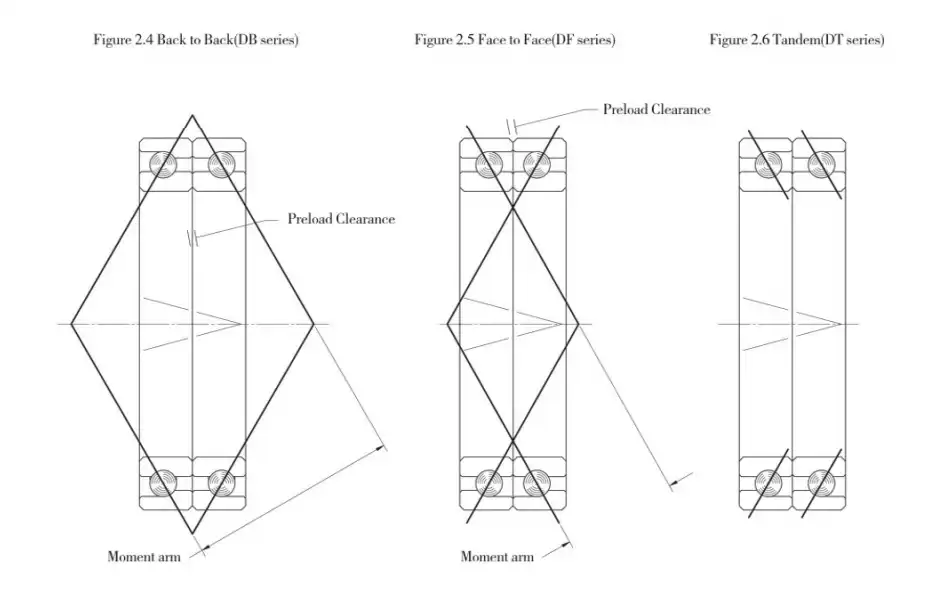

How do you determine the load capacity and life expectancy of a Type A thin section bearing?
Determining the load capacity and life expectancy of a Type A thin section bearing is crucial for ensuring reliable operation and preventing premature failure. This process involves careful consideration of several factors and typically requires some calculations or the use of specialized software.
Load capacity:
The load capacity of a Type A thin section bearing is determined by its size, material, and internal geometry. Manufacturers typically provide static and dynamic load ratings for their bearings. The static load rating represents the maximum load the bearing can withstand without permanent deformation, while the dynamic load rating indicates the load at which the bearing will achieve a basic rating life of one million revolutions.
To determine if a bearing's load capacity is sufficient for your application:
1. Calculate the equivalent load: This takes into account both radial and axial forces acting on the bearing.
2. Compare the equivalent load to the bearing's dynamic load rating: The equivalent load should be well below the dynamic load rating for satisfactory performance.
3. Consider safety factors: Depending on the application, you may want to include a safety factor of 1.2 to 2.0 to account for unexpected loads or operating conditions.
Life expectancy:
The life expectancy of a Type A thin section bearing is typically expressed in terms of L10 life, which is the number of revolutions (or hours at a given speed) that 90% of a group of identical bearings will complete or exceed before showing signs of fatigue.
To estimate life expectancy:
1. Use the basic rating life equation: L10 = (C/P)^3 * 10^6 revolutions
Where:
L10 = Basic rating life in revolutions
C = Dynamic load rating of the bearing
P = Equivalent dynamic bearing load
2. Convert revolutions to hours: If you know the operating speed, you can convert the L10 life from revolutions to hours.
3. Apply life adjustment factors: These factors account for reliability requirements, operating conditions, and lubrication quality.
Factors affecting load capacity and life expectancy:
1. Operating speed: Higher speeds generally reduce bearing life.
2. Temperature: Extreme temperatures can affect bearing materials and lubricants.
3. Contamination: Proper sealing and lubrication are crucial for preventing contamination and extending bearing life.
4. Misalignment: Excessive misalignment can significantly reduce bearing life.
5. Lubrication: Proper lubrication is essential for achieving the expected bearing life.
To accurately determine load capacity and life expectancy, it's often beneficial to consult with bearing manufacturers or use their specialized calculation tools. These resources can provide more precise estimates based on your specific application parameters.
Remember that while calculations can provide a good estimate, real-world performance may vary due to factors such as installation quality, maintenance practices, and unexpected operating conditions. Regular monitoring and maintenance are essential for maximizing the life of your Type A thin section bearings.
What are the common applications and industries for Type A thin section bearings?
Type A thin section bearings have found their way into a wide range of applications and industries due to their unique combination of compact design, high precision, and versatility. Understanding these common applications can help you determine if a Type A thin section bearing is suitable for your specific needs.
1. Robotics and Automation:
In the rapidly growing field of robotics and automation, Type A thin section bearings play a crucial role. They are often used in:
- Robot arm joints: Providing smooth, precise movement with minimal added weight
- End effectors: Enabling precise gripping and manipulation in tight spaces
- Automated assembly equipment: Supporting high-speed, repetitive motions in compact designs
The low-profile design of Type A bearings allows for sleeker robot designs, while their high precision supports the accurate movements required in modern automation systems.
2. Medical and Laboratory Equipment:
The healthcare and scientific research sectors benefit greatly from the precision and compact nature of Type A thin section bearings. Common applications include:
- CT scanners and MRI machines: Supporting the rotation of imaging equipment
- Dental tools: Enabling high-speed, precise rotations in handheld devices
- Laboratory centrifuges: Providing stable, high-speed rotation for sample separation
- Surgical robots: Facilitating precise movements in minimally invasive procedures
In these applications, the bearings' ability to maintain accuracy under various loads and speeds is paramount.
3. Aerospace and Defense:
The aerospace industry values the lightweight yet robust nature of Type A thin section bearings. They are often found in:
- Satellite systems: Supporting antenna positioning and solar panel tracking
- Aircraft control surfaces: Enabling precise movements of flaps, ailerons, and rudders
- Guidance systems: Providing low-friction rotation for inertial navigation components
- Unmanned aerial vehicles (UAVs): Supporting compact, lightweight designs for various moving parts
The ability of Type A bearings to perform reliably in extreme conditions makes them ideal for aerospace applications.
4. Semiconductor Manufacturing:
The semiconductor industry relies heavily on precision equipment, making Type A thin section bearings an excellent choice for:
- Wafer handling robots: Enabling precise movements in clean room environments
- Lithography equipment: Supporting high-precision positioning of optics and wafer stages
- Inspection systems: Facilitating smooth, accurate movements for quality control processes
The low particle generation and high cleanliness standards of these bearings are particularly valuable in this industry.
5. Optical and Imaging Systems:
Precision optics benefit from the accuracy and smooth operation of Type A thin section bearings in applications such as:
- Camera gimbals: Providing stable, smooth rotation for video and photography equipment
- Telescope mounts: Enabling precise tracking of celestial objects
- Laser scanning systems: Supporting high-speed, accurate beam positioning
The low starting torque and consistent performance of these bearings contribute to the high-quality results required in optical applications.
6. Packaging and Printing:
High-speed packaging and printing operations often incorporate Type A thin section bearings in:
- Conveyor systems: Supporting rollers and guide wheels in compact designs
- Printing presses: Enabling precise control of paper feed and printing mechanisms
- Labeling machines: Facilitating accurate label application at high speeds
The ability to maintain precision under continuous operation makes these bearings valuable in high-volume production environments.
7. Renewable Energy:
The renewable energy sector, particularly wind power, utilizes Type A thin section bearings in:
- Wind turbine pitch control systems: Enabling precise blade angle adjustments
- Solar tracking systems: Supporting smooth rotation of solar panels to follow the sun
The durability and low maintenance requirements of these bearings are particularly beneficial in remote or hard-to-access installations.
8. Test and Measurement Equipment:
Precision instruments for various industries often incorporate Type A thin section bearings in:
- Coordinate measuring machines (CMMs): Supporting precise probe movements
- Balancing machines: Enabling accurate rotation for dynamic balancing processes
- Torque measurement devices: Providing low-friction rotation for accurate readings
The consistency and accuracy of these bearings contribute to reliable measurement results.
In conclusion, the versatility of Type A thin section bearings makes them suitable for a wide range of industries and applications where space is limited, precision is crucial, and reliable performance is essential. When selecting a bearing for your specific application, consider not only the industry standards but also the unique requirements of your project, such as load capacity, speed, environmental conditions, and expected lifespan.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
