What are the Benefits of Deep Groove Ball Bearings?

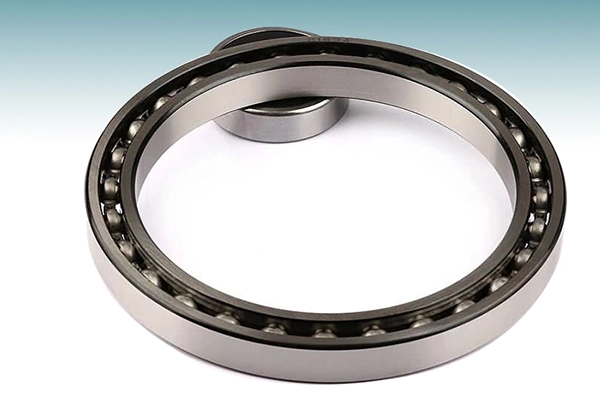

Deep groove ball bearings are a fundamental component in many mechanical systems, playing a crucial role in reducing friction and supporting radial and axial loads. These bearings are characterized by their simple design, consisting of an inner and outer ring with a series of balls running in between. Their popularity stems from their versatility, efficiency, and ability to operate at high speeds while maintaining low friction. In this blog post, we'll explore the numerous benefits of deep groove ball bearings and address some common questions about their applications and performance.

What are the main advantages of using deep groove ball bearings?



Deep groove ball bearings offer a wide array of advantages that make them a preferred choice in various industries and applications. Here are some of the key benefits:



1. Low friction and high efficiency: The rolling motion of the balls between the inner and outer races results in significantly less friction compared to sliding bearings. This reduced friction translates to lower energy consumption, improved efficiency, and reduced wear on the bearing components. The low friction characteristics of deep groove ball bearings make them ideal for applications where energy efficiency is a priority, such as in electric motors, pumps, and conveyor systems.



2. High-speed capability: Deep groove ball bearings are designed to operate at high rotational speeds. The precision-engineered geometry of the bearing allows for smooth and stable operation even at elevated RPMs. This makes them suitable for applications in high-speed machinery, such as turbines, centrifuges, and automotive engines. The ability to maintain stability at high speeds also contributes to reduced vibration and noise levels in the overall system.



3. Bi-directional load support: One of the unique features of deep groove ball bearings is their ability to support both radial and axial loads in either direction. While they excel in handling radial loads (perpendicular to the shaft axis), they can also accommodate moderate axial loads (parallel to the shaft axis). This versatility makes them suitable for a wide range of applications where the direction of the load may vary or where combination loads are present.



4. Ease of installation and maintenance: The simple and compact design of deep groove ball bearings makes them easy to install and replace. They typically require minimal maintenance, often coming pre-lubricated and sealed to prevent contamination. This simplicity reduces downtime during installation and maintenance procedures, making them cost-effective over the long term.



5. Wide temperature range: Deep groove ball bearings can operate effectively across a broad temperature spectrum. Depending on the materials used in their construction and the lubricants employed, these bearings can function reliably in both extremely cold and hot environments. This temperature versatility makes them suitable for applications ranging from refrigeration units to industrial ovens.



How do deep groove ball bearings compare to other bearing types?

When considering the selection of bearings for a specific application, it's important to understand how deep groove ball bearings stack up against other bearing types. Let's compare them to some common alternatives:



1. Deep groove ball bearings vs. roller bearings:

- Load capacity: Roller bearings generally have a higher load capacity than deep groove ball bearings of similar size. This is due to the larger contact area between the rollers and the races. However, deep groove ball bearings excel in applications requiring high-speed operation and lower friction.

- Speed capability: Deep groove ball bearings typically have a higher speed capability compared to roller bearings. The point contact between the balls and races generates less friction, allowing for smoother operation at higher speeds.

- Friction: Deep groove ball bearings generally produce less friction than roller bearings, making them more energy-efficient in many applications.

- Misalignment tolerance: Roller bearings, especially spherical roller bearings, can better tolerate misalignment compared to deep groove ball bearings. However, for applications where proper alignment can be maintained, deep groove ball bearings offer excellent performance.



2. Deep groove ball bearings vs. angular contact ball bearings:

- Axial load capacity: Angular contact ball bearings are designed to handle higher axial loads compared to deep groove ball bearings. They are often used in applications where significant thrust loads are present.

- Bi-directional capability: Deep groove ball bearings can handle axial loads in both directions, while angular contact bearings are typically designed for axial loads in one direction (though duplex arrangements can accommodate bi-directional axial loads).

- Simplicity: Deep groove ball bearings have a simpler design and are generally easier to install and maintain compared to angular contact bearings.



3. Deep groove ball bearings vs. plain bearings (bushings):

- Friction: Deep groove ball bearings offer significantly lower friction compared to plain bearings, especially at startup and during operation.

- Speed capability: Deep groove ball bearings can operate at much higher speeds than plain bearings without the risk of overheating or excessive wear.

- Load distribution: Deep groove ball bearings distribute the load over multiple points of contact (the balls), whereas plain bearings rely on a continuous surface contact. This can result in better load distribution and reduced wear in ball bearings.

- Maintenance: Plain bearings often require more frequent lubrication and maintenance compared to sealed deep groove ball bearings.



4. Deep groove ball bearings vs. tapered roller bearings:

- Combined load handling: While deep groove ball bearings can handle combined radial and axial loads, tapered roller bearings are specifically designed for applications with high combined loads.

- Separability: Tapered roller bearings have separable inner and outer races, which can be advantageous for certain mounting arrangements. Deep groove ball bearings are typically non-separable.

- Precision: Deep groove ball bearings generally offer higher precision and smoother operation, especially at higher speeds.



In conclusion, while each bearing type has its strengths, deep groove ball bearings offer a unique combination of versatility, efficiency, and ease of use that makes them suitable for a wide range of applications. Their ability to handle both radial and moderate axial loads, coupled with their high-speed capability and low friction characteristics, positions them as an excellent choice for many general-purpose and specialized applications.



What factors should be considered when selecting deep groove ball bearings?



Selecting the appropriate deep groove ball bearing for a specific application is crucial to ensure optimal performance, longevity, and reliability of the mechanical system. Here are the key factors to consider when choosing deep groove ball bearings:



1. Load requirements:

- Radial load: Determine the maximum radial load the bearing will need to support. This is typically the primary load direction for deep groove ball bearings.

- Axial load: While deep groove ball bearings can handle moderate axial loads, it's important to calculate the expected axial forces to ensure they fall within the bearing's capabilities.

- Dynamic vs. static load: Consider both the dynamic load rating (for rotating applications) and the static load rating (for stationary or slow-moving applications) when selecting a bearing.



2. Speed requirements:

- Operating speed: Determine the maximum rotational speed at which the bearing will need to operate. Deep groove ball bearings are well-suited for high-speed applications, but it's essential to choose a bearing with an appropriate speed rating.

- Speed factor: Consider the DN value (bore diameter in mm multiplied by the speed in rpm) to ensure the bearing can handle the combination of size and speed for your application.



3. Environmental conditions:

- Temperature: Assess the operating temperature range of the application. Standard deep groove ball bearings typically operate well between -20°C to 120°C, but special materials and lubricants may be required for extreme temperatures.

- Humidity and moisture: If the bearing will be exposed to moisture or high humidity, consider sealed or shielded bearings to prevent contamination and lubricant loss.

- Contamination: In dusty or dirty environments, select bearings with appropriate seals or shields to protect against particle ingress.

- Corrosive elements: For applications involving corrosive chemicals or saltwater, consider bearings made from corrosion-resistant materials or with special coatings.



4. Dimensional constraints:

- Available space: Determine the space limitations in your application, considering both the radial and axial dimensions available for the bearing.

- Shaft and housing fit: Choose bearings with appropriate inner and outer diameters to match your shaft and housing specifications.

- Series selection: Deep groove ball bearings come in various series (e.g., 60, 62, 63) with different width-to-diameter ratios. Select the series that best fits your space and load requirements.



5. Precision and tolerance requirements:

- Runout tolerance: For applications requiring high precision, such as machine tool spindles, select bearings with appropriate runout tolerances.

- ABEC rating: Consider the ABEC (Annular Bearing Engineering Committee) rating, which indicates the manufacturing precision of the bearing. Higher ABEC ratings (e.g., ABEC-5, ABEC-7) are used for applications requiring greater precision.



6. Lubrication considerations:

- Lubrication method: Decide whether you need open bearings (requiring external lubrication), shielded bearings (for grease retention), or sealed bearings (for maintenance-free operation).

- Lubricant type: Choose between grease and oil lubrication based on your application's requirements for speed, temperature, and maintenance intervals.

- Re-lubrication needs: For applications requiring periodic re-lubrication, ensure the bearing design allows for easy access to lubrication points.



7. Noise and vibration requirements:

- Quiet operation: If low noise is critical (e.g., in office equipment or household appliances), select bearings with tighter tolerances and high-quality balls.

- Vibration sensitivity: For applications sensitive to vibration, consider bearings with higher precision grades and potentially hybrid ceramic balls for reduced vibration.



By carefully considering these factors, engineers and designers can select the most appropriate deep groove ball bearing for their specific application, ensuring optimal performance, reliability, and cost-effectiveness. It's often beneficial to consult with bearing manufacturers or suppliers when making the final selection, as they can provide valuable insights and recommendations based on their extensive experience and product knowledge.



In conclusion, deep groove ball bearings offer a multitude of benefits that make them an indispensable component in many mechanical systems. Their versatility, efficiency, and reliability have secured their place as one of the most widely used bearing types across various industries. By understanding their advantages and carefully considering the selection factors, engineers and designers can leverage the full potential of deep groove ball bearings to enhance the performance and longevity of their mechanical designs.



Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
