What Are Cylindrical Rollers Used For?
Cylindrical rollers are essential components in various mechanical systems, playing a crucial role in reducing friction and supporting heavy loads. These cylindrical-shaped rolling elements are widely used in bearings and other applications where smooth, efficient motion is required. In this blog post, we'll explore the diverse uses of cylindrical rollers and answer some common questions about their applications and benefits.
How do cylindrical roller bearings work?
Cylindrical roller bearings are precision-engineered components designed to facilitate smooth rotational motion while supporting heavy radial loads. These bearings consist of cylindrical rolling elements enclosed between an inner and outer ring. The unique design of cylindrical rollers allows them to distribute load over a larger contact area compared to ball bearings, making them ideal for high-load applications.
The working principle of cylindrical roller bearings is based on the concept of rolling friction. As the bearing rotates, the cylindrical rollers roll between the inner and outer races, significantly reducing friction compared to sliding contact. This rolling action allows for efficient transfer of forces and minimizes wear on the bearing components.
One of the key advantages of cylindrical roller bearings is their ability to accommodate misalignment and shaft deflection. The rollers can move axially within the bearing, allowing for some degree of flexibility in the system. This feature makes cylindrical roller bearings particularly suitable for applications where thermal expansion or slight misalignments may occur.
Cylindrical roller bearings come in various configurations to suit different applications. Some common types include:
1. Single-row cylindrical roller bearings: These are the most common type, offering high radial load capacity and moderate speed capabilities.
2. Double-row cylindrical roller bearings: Designed for even higher radial load capacity and improved stability.
3. Full complement cylindrical roller bearings: These bearings have a maximum number of rollers, providing the highest load capacity but with lower speed capabilities.
The performance of cylindrical roller bearings depends on several factors, including the material of the rollers and races, the lubricant used, and the operating conditions. High-quality materials such as chrome steel or ceramic are often used to manufacture the rollers and races, ensuring durability and resistance to wear.
Proper lubrication is crucial for the optimal functioning of cylindrical roller bearings. The lubricant forms a thin film between the rollers and races, further reducing friction and preventing metal-to-metal contact. Depending on the application, various types of lubricants can be used, including oils, greases, and even solid lubricants for extreme conditions.
What are the advantages of using cylindrical roller bearings?
Cylindrical roller bearings offer numerous advantages that make them indispensable in many industrial and mechanical applications. Their unique design and capabilities provide significant benefits over other types of bearings in certain situations. Let's explore some of the key advantages of using cylindrical roller bearings:
1. High Radial Load Capacity: One of the most significant advantages of cylindrical roller bearings is their ability to support heavy radial loads. The line contact between the rollers and races distributes the load over a larger area compared to point contact in ball bearings. This feature makes cylindrical roller bearings ideal for applications involving heavy machinery, such as industrial gearboxes, rolling mills, and large electric motors.
2. Low Friction and High Efficiency: The rolling motion of cylindrical rollers generates less friction compared to sliding contact, resulting in smoother operation and reduced energy consumption. This low friction characteristic contributes to higher overall system efficiency and can lead to significant energy savings in large-scale industrial applications.
3. High Speed Capability: Cylindrical roller bearings can operate at high rotational speeds while maintaining their load-bearing capacity. This makes them suitable for high-speed applications such as machine tool spindles, turbines, and high-speed conveyor systems.
4. Separable Design: Many cylindrical roller bearings feature a separable design, where the inner ring, roller set, and outer ring can be dismantled separately. This design allows for easier installation, maintenance, and replacement of individual components, reducing downtime and maintenance costs.
5. Tolerance to Misalignment: The ability of cylindrical rollers to move axially within the bearing provides some tolerance to shaft misalignment and deflection. This feature is particularly valuable in applications where perfect alignment is difficult to achieve or maintain, such as in long shafts or complex machinery.
6. Low Heat Generation: Due to their low friction characteristics, cylindrical roller bearings generate less heat during operation compared to other bearing types. This results in cooler running temperatures, extended lubricant life, and improved overall system reliability.
7. Compact Design: Cylindrical roller bearings can support high loads while maintaining a relatively compact design. This space-saving feature is beneficial in applications where size and weight constraints are important, such as in automotive transmissions or aerospace equipment.
8. Durability and Long Service Life: When properly maintained and lubricated, cylindrical roller bearings can offer exceptionally long service life. Their robust design and ability to distribute loads effectively contribute to reduced wear and extended operational lifespan.
9. Versatility: Cylindrical roller bearings are available in various configurations and sizes, making them suitable for a wide range of applications across different industries. From small precision instruments to massive industrial machinery, there's likely a cylindrical roller bearing solution to meet specific requirements.
10. Cost-Effectiveness: While the initial cost of cylindrical roller bearings may be higher than some other bearing types, their long service life, high load capacity, and low maintenance requirements often result in a lower total cost of ownership over the long term.
11. Precision and Accuracy: Cylindrical roller bearings can be manufactured to high precision standards, ensuring accurate shaft positioning and minimal runout. This precision is crucial in applications such as machine tools, where tight tolerances and precise motion control are required.
12. Resistance to Shock Loads: The robust design of cylindrical roller bearings allows them to withstand occasional shock loads or impact forces better than some other bearing types. This resilience makes them suitable for applications where unexpected load spikes may occur.
Where are cylindrical roller bearings commonly used?
Cylindrical roller bearings find applications across a wide range of industries due to their unique characteristics and capabilities. Their versatility, high load capacity, and efficiency make them indispensable components in numerous mechanical systems. Let's explore some of the most common applications where cylindrical roller bearings are used:
1. Industrial Machinery:
- Machine Tools: Cylindrical roller bearings are extensively used in the spindles of lathes, milling machines, and grinding machines. Their high precision and ability to handle both radial loads and high speeds make them ideal for these applications.
- Gearboxes: In industrial gearboxes, cylindrical roller bearings support the high radial loads generated by gear meshes while allowing for smooth rotation of shafts.
- Conveyor Systems: Large conveyor systems in mining, material handling, and manufacturing often use cylindrical roller bearings to support heavy loads and ensure efficient operation.
- Pumps and Compressors: These bearings are used in various types of pumps and compressors to support shaft loads and maintain alignment.
2. Automotive Industry:
- Transmissions: Cylindrical roller bearings are commonly used in automotive transmissions to support gear shafts and ensure smooth power transfer.
- Wheel Hubs: Some vehicle designs incorporate cylindrical roller bearings in wheel hubs to handle the radial loads from the vehicle's weight and cornering forces.
- Engine Components: Certain engine designs use cylindrical roller bearings for camshaft support and other rotating components.
3. Aerospace:
- Aircraft Engines: Cylindrical roller bearings are used in various parts of aircraft engines, including turbine shafts and gearboxes, where they must withstand high speeds and extreme temperatures.
- Landing Gear: The shock-absorbing struts in aircraft landing gear often incorporate cylindrical roller bearings to handle the heavy loads during takeoff and landing.
4. Energy Sector:
- Wind Turbines: The main shafts and gearboxes of wind turbines often use large cylindrical roller bearings to support the massive loads generated by the rotor blades.
- Steam and Gas Turbines: In power generation plants, cylindrical roller bearings are used in turbine shaft support systems, handling high speeds and temperatures.
- Oil and Gas Equipment: Drilling equipment, pumps, and compressors in the oil and gas industry frequently employ cylindrical roller bearings due to their high load capacity and durability.
5. Railway Industry:
- Wheel Axles: Train wheel axles often use cylindrical roller bearings to support the immense weight of railway cars and locomotives.
- Traction Motors: The electric motors used for propulsion in modern trains incorporate cylindrical roller bearings to ensure efficient power transmission.
6. Paper and Printing Industry:
- Paper Mills: Large rollers in paper manufacturing machines are supported by cylindrical roller bearings, allowing for smooth operation under heavy loads.
- Printing Presses: High-speed printing presses use these bearings in various rotating components to maintain precision and handle the forces involved in the printing process.
7. Steel and Metal Processing:
- Rolling Mills: The massive rolls used in steel and aluminum production are supported by large cylindrical roller bearings, capable of handling extreme loads and harsh environments.
- Continuous Casting Machines: These bearings are used in the roller systems of continuous casting machines in steel production.
8. Marine Applications:
- Propeller Shafts: Large ships often use cylindrical roller bearings to support propeller shafts, handling the thrust and radial loads involved in propulsion.
- Deck Machinery: Winches, cranes, and other deck equipment on ships frequently incorporate these bearings due to their load-handling capabilities and resistance to corrosive environments.
9. Agricultural Equipment:
- Tractors and Harvesters: Cylindrical roller bearings are used in the transmissions and wheel hubs of heavy agricultural machinery, providing durability in harsh working conditions.
10. Construction Equipment:

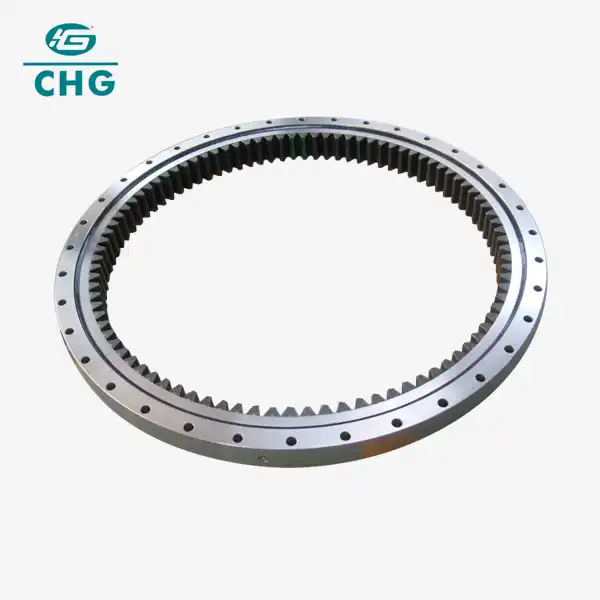

- Excavators and Cranes: The slewing rings and other rotating components in construction equipment often use cylindrical roller bearings to handle heavy loads and provide smooth operation.
11. Robotics and Automation:
- Industrial Robots: Cylindrical roller bearings are used in the joints and actuators of robotic arms, providing precision and load-bearing capacity for repetitive movements.
12. Textile Machinery:
- Spinning and Weaving Machines: High-speed textile machinery often incorporates cylindrical roller bearings in various rotating components to ensure smooth operation and precision.
The widespread use of cylindrical roller bearings across these diverse industries demonstrates their versatility and importance in modern mechanical systems. Their ability to handle high loads, operate at high speeds, and provide long service life makes them a preferred choice in many critical applications. As technology continues to advance, we can expect to see cylindrical roller bearings evolving to meet the ever-increasing demands of new and emerging industries.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
