What Factors Affect Load Distribution in Four-Point Contact Slewing Bearings?

Four-point contact slewing bearings are crucial components in many large-scale industrial applications, from wind turbines to construction equipment. These bearings are designed to handle complex combinations of axial, radial, and moment loads while allowing for rotational movement. Understanding the factors that influence load distribution in these bearings is essential for optimizing their performance, longevity, and efficiency. This blog post delves into the key elements that affect load distribution in four-point contact slewing bearings, exploring the intricate interplay between design, operating conditions, and bearing performance.

How does raceway geometry impact the performance of four-point contact ball slewing bearings?

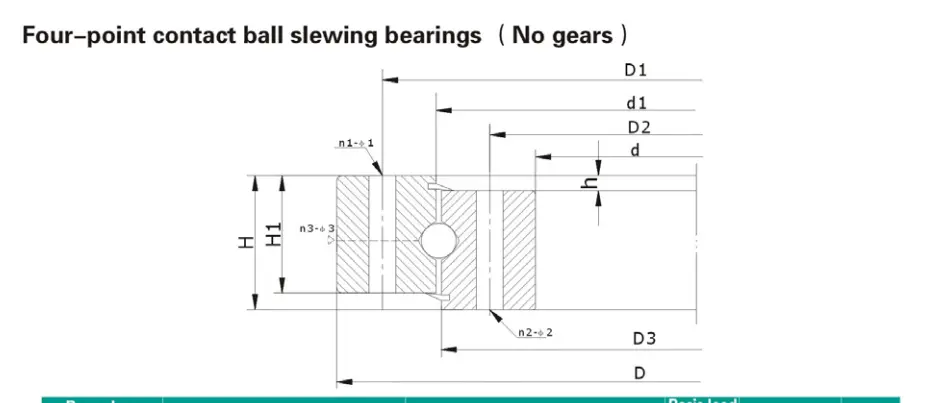

The raceway geometry of four-point contact ball slewing bearings plays a pivotal role in determining their performance characteristics. The unique design of these bearings features raceways with a gothic arch profile, which allows for four distinct contact points between each ball and the inner and outer rings. This configuration is fundamental to the bearing's ability to handle complex load combinations effectively.



The geometry of the raceway directly influences several critical aspects of bearing performance:



1. Contact angle: The gothic arch profile creates two contact angles for each ball-to-raceway interface. These angles determine the bearing's capacity to handle axial and radial loads. A steeper contact angle typically results in better axial load capacity but may reduce radial load capacity. Engineers must carefully optimize these angles based on the expected load conditions in the application.



2. Load distribution: The four-point contact design allows for a more even distribution of loads across the bearing elements. This distribution helps to minimize stress concentrations and reduces the risk of premature failure. The precise curvature of the raceway profile affects how loads are transmitted through the balls to the bearing rings.



3. Stiffness: The raceway geometry contributes significantly to the overall stiffness of the bearing assembly. A properly designed raceway profile ensures that the bearing maintains its stiffness under various load conditions, which is crucial for applications requiring high precision and stability, such as in machine tools or radar antennas.



4. Friction characteristics: The shape of the raceway influences the rolling friction within the bearing. Optimized geometry can help reduce friction, leading to lower operating temperatures and improved energy efficiency. This is particularly important in large-diameter slewing bearings where even small reductions in friction can result in significant energy savings over time.



5. Lubrication effectiveness: The raceway geometry affects how lubricant is distributed and retained within the bearing. Proper design ensures that a sufficient lubricant film is maintained between the balls and raceways, which is essential for reducing wear and extending the bearing's service life.



Engineers and designers must consider all these factors when specifying the raceway geometry for four-point contact ball slewing bearings. Advanced simulation tools and extensive testing are typically employed to fine-tune the geometry for specific applications, ensuring optimal performance under the expected operating conditions.



What role do preload and clearance play in four-point contact slewing bearing efficiency?



Preload and clearance are critical factors that significantly influence the efficiency and performance of four-point contact slewing bearings. These parameters are closely related and must be carefully balanced to achieve optimal bearing operation. Understanding their roles is essential for engineers and maintenance professionals working with large-scale rotating equipment.



Preload:

Preload refers to the internal load applied to the bearing components during assembly or operation. In four-point contact slewing bearings, preload is typically achieved through careful design and manufacturing tolerances. The purpose of preload is to eliminate internal clearances and ensure that all rolling elements are in constant contact with the raceways under all operating conditions.



The effects of preload on bearing efficiency include:



1. Increased stiffness: Proper preload enhances the overall stiffness of the bearing assembly. This is crucial for applications requiring high precision and rigidity, such as in machine tools or large telescopes. Increased stiffness helps maintain accuracy and reduces deflection under load.



2. Reduced vibration: By eliminating internal clearances, preload helps minimize bearing vibration. This is particularly important in large-diameter slewing bearings where even small vibrations can be amplified across the structure.



3. Improved load distribution: Preload ensures that all rolling elements share the applied load more evenly. This uniform load distribution helps prevent localized stress concentrations and can extend the bearing's service life.



4. Enhanced positioning accuracy: In applications requiring precise rotational positioning, such as radar antennas or solar trackers, preload helps reduce play and backlash in the bearing system.



5. Temperature sensitivity: It's important to note that preload can be affected by temperature changes. As the bearing components expand or contract due to temperature fluctuations, the preload may change. This must be considered in the design phase, especially for applications with wide temperature ranges.



The role of clearance in bearing efficiency includes:



1. Thermal expansion accommodation: A small amount of clearance can be beneficial to accommodate thermal expansion of bearing components during operation. This is particularly important in applications with significant temperature variations.



2. Lubrication effectiveness: Proper clearance ensures that there is adequate space for the formation of a lubricant film between the rolling elements and raceways. This is crucial for reducing friction and wear.



3. Load capacity optimization: The clearance affects how load is distributed across the bearing elements. Too much clearance can lead to uneven load distribution and reduced load capacity, while too little clearance (high preload) can increase friction and heat generation.



4. Noise and vibration control: Excessive clearance can lead to increased noise and vibration, particularly under light load conditions or during directional changes.



5. Installation and maintenance considerations: The amount of clearance affects the ease of bearing installation and maintenance. Bearings with very tight clearances may require special installation techniques or heating/cooling procedures.



Balancing preload and clearance:

Finding the optimal balance between preload and clearance is a complex task that depends on various factors:



1. Application requirements: The specific demands of the application, such as load capacity, precision, and operating speed, will influence the choice of preload and clearance.



2. Environmental conditions: Temperature fluctuations, contamination risks, and other environmental factors must be considered when determining the appropriate preload and clearance.



3. Lubrication method: The type and method of lubrication used can affect the optimal clearance, as different lubricants have varying film-forming properties.



4. Material properties: The thermal expansion coefficients and stiffness of the bearing materials play a role in determining the appropriate preload and clearance values.



5. Manufacturing capabilities: The achievable manufacturing tolerances will influence the practical limits of preload and clearance control.



In practice, many four-point contact slewing bearings are designed with a slight preload to eliminate internal clearance under normal operating conditions. This preload is carefully calculated to provide the benefits of increased stiffness and improved load distribution without excessive friction or heat generation.



Advanced measurement and analysis techniques, such as strain gauge testing and finite element analysis, are often employed to optimize preload and clearance in these complex bearing systems. Regular monitoring and maintenance are also crucial to ensure that the bearing maintains its optimal performance characteristics throughout its service life.



How do operating conditions influence the load capacity of four-point contact ball slewing bearings?



The load capacity of four-point contact ball slewing bearings is significantly influenced by the operating conditions under which they function. These large-scale bearings are often subjected to complex and varying loads in demanding industrial applications, and understanding how different operating conditions affect their performance is crucial for ensuring reliability, efficiency, and longevity.



1. Load Types and Magnitudes:

Four-point contact ball slewing bearings are designed to handle a combination of axial, radial, and moment loads. The specific mix and magnitude of these loads directly impact the bearing's capacity:



- Axial loads: These forces act parallel to the bearing's axis of rotation. Four-point contact bearings generally excel at handling high axial loads due to their unique contact geometry.

- Radial loads: Forces acting perpendicular to the bearing's axis can affect the contact angles and load distribution within the bearing.

- Moment loads: Also known as tilting moments, these can cause uneven load distribution across the bearing raceway.



The ratio between these different load types is crucial. A bearing optimized for high axial loads may perform differently when subjected to predominantly radial forces. Engineers must carefully analyze the expected load spectrum to select the appropriate bearing size and design.



2. Speed and Acceleration:

While slewing bearings typically operate at relatively low speeds compared to other bearing types, rotational speed still plays a significant role in load capacity:



- Centrifugal forces: As speed increases, centrifugal forces on the rolling elements become more pronounced, potentially affecting the contact angles and load distribution.

- Acceleration and deceleration: Rapid changes in rotational speed can induce additional dynamic loads on the bearing, which must be accounted for in capacity calculations.

- Lubricant behavior: The effectiveness of lubrication can change with speed, impacting the bearing's ability to handle loads efficiently.



3. Temperature:

Operating temperature has a multifaceted effect on bearing load capacity:



- Material properties: The strength and hardness of bearing materials can change with temperature, affecting load-bearing capacity.

- Thermal expansion: Differential expansion between bearing components can alter internal clearances and preload, potentially changing load distribution patterns.

- Lubricant viscosity: Temperature significantly affects lubricant properties, which in turn influences the bearing's ability to handle loads without metal-to-metal contact.

- Sealing effectiveness: Extreme temperatures can affect seal performance, potentially allowing contaminants to enter the bearing and reduce its load capacity over time.



4. Environmental Factors:

The environment in which the bearing operates can have a substantial impact on its load capacity:



- Contamination: Presence of abrasive particles or moisture can accelerate wear and reduce the bearing's ability to handle loads effectively.

- Corrosive atmospheres: Exposure to corrosive elements can degrade bearing surfaces, potentially reducing load capacity over time.

- Shock and vibration: External vibrations or shock loads can temporarily exceed the bearing's rated capacity, leading to premature failure if not properly accounted for.



5. Lubrication Conditions:

Proper lubrication is critical for maintaining the load capacity of four-point contact ball slewing bearings:



- Lubricant type and quantity: The choice of lubricant and its application method must be appropriate for the bearing size, load, and operating conditions.

- Lubrication intervals: Insufficient or excessive lubrication can both negatively impact load capacity.

- Lubricant contamination: Degraded or contaminated lubricant can reduce the bearing's ability to handle loads efficiently.



In conclusion, the load capacity of four-point contact ball slewing bearings is a dynamic property influenced by a complex interplay of operating conditions. Engineers and maintenance professionals must consider all these factors when selecting, installing, and maintaining these bearings to ensure they perform reliably under the expected load conditions. Regular monitoring, analysis, and adjustment of operating parameters are essential for optimizing the performance and longevity of these critical components in large-scale industrial applications.



Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.



References



1. Harris, T. A., & Kotzalas, M. N. (2006). Essential Concepts of Bearing Technology. CRC Press.

2. Eschmann, P., Hasbargen, L., & Weigand, K. (1985). Ball and Roller Bearings: Theory, Design and Application. John Wiley & Sons.

3. SKF Group. (2018). SKF General Catalogue. SKF Group.

4. Schaeffler Technologies AG & Co. KG. (2019). Technical Pocket Guide. Schaeffler Technologies AG & Co. KG.

5. Zaretsky, E. V. (1992). STLE Life Factors for Rolling Bearings. Society of Tribologists and Lubrication Engineers.

6. Hertz, H. (1882). Über die Berührung fester elastischer Körper. Journal für die reine und angewandte Mathematik, 92, 156-171.

7. Palmgren, A. (1959). Ball and Roller Bearing Engineering. SKF Industries, Inc.

8. Hamrock, B. J., & Dowson, D. (1981). Ball Bearing Lubrication: The Elastohydrodynamics of Elliptical Contacts. John Wiley & Sons.

9. American Bearing Manufacturers Association. (2017). ABMA 9:2015 - Load Ratings and Fatigue Life for Ball Bearings. ABMA
