CHG Bearings: What is gimbal bearing? What does gimbal bearing do?
Gimbal Bearings
Gimbal bearings are high-precision, low-friction bearings specifically designed to support the rotational and tilting motion of gimbal systems. They are typically installed at various joints of the gimbal, ensuring smooth and stable angle adjustments, which enables precise positioning and stable shooting of camera equipment.
Functions of Gimbal Bearings
1. Stability
- Vibration and Shock Reduction: Gimbal bearings effectively reduce vibrations and shocks generated during drone flight, ensuring stable and clear footage.
- Smooth Movement: The low-friction characteristics of the bearings allow the gimbal to rotate and tilt smoothly, avoiding image shaking.
2. Precise Control
- Angle Adjustment: Gimbal bearings support precise adjustments of the gimbal in various directions (e.g., pitch, roll, yaw), ensuring the camera captures the target scene.
- Fast Response: High-precision bearings quickly respond to control signals, enabling real-time adjustments of the gimbal.
3. Load Capacity
- Weight Support: Gimbal bearings bear the weight of the camera and other components, ensuring flexible movement of the gimbal.
- Durability: Bearings must maintain high performance over extended periods, preventing wear that could degrade gimbal stability.
4. Environmental Adaptability
- Corrosion Resistance: Drones may operate in various environments, so gimbal bearings need to be corrosion-resistant to adapt to different weather conditions.
- Wide Temperature Range: Bearings must maintain stable performance in high or low-temperature environments, ensuring the gimbal works properly in all climates.
Technical Requirements of Gimbal Bearings
1. High Precision
- Gimbal bearings must be manufactured with extremely high precision to ensure smooth and stable gimbal movement.
- The bearing clearance (internal gap) must be strictly controlled to prevent excessive wobbling of the gimbal.
2. Low Friction
- Low friction helps reduce energy loss, extending drone flight time.
- It also ensures quick response and precise control of the gimbal.
3. Lightweight
- The weight of the drone directly affects flight time and performance, so gimbal bearings must be designed to be lightweight to reduce overall weight.
- Common lightweight materials include titanium alloys, aluminum alloys, and ceramics.
4. High Reliability
- Gimbal bearings need to be long-lasting and reliable to handle frequent use and harsh environmental conditions.
- Sealing performance is crucial to prevent dust, moisture, and other contaminants from entering and affecting performance.
Applications of Gimbal Bearings

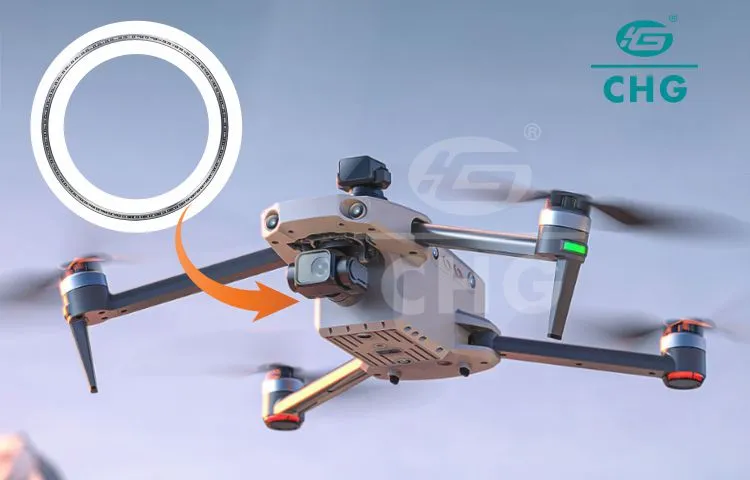

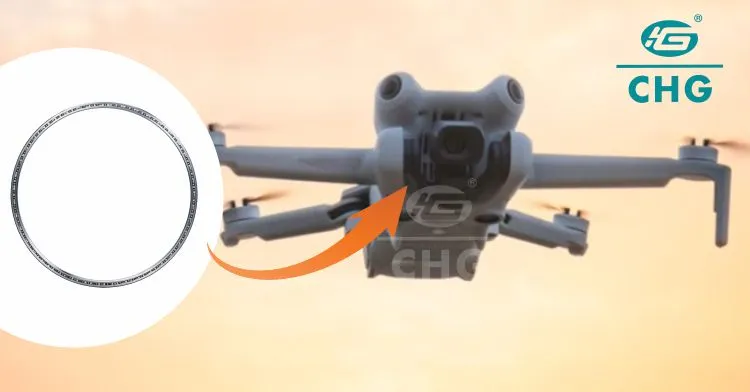

1. Aerial Photography Drones
- In aerial photography drones, gimbal bearings support camera equipment, ensuring stable and clear footage.
- For example, DJI drones rely on high-precision bearings for smooth lens movement.
2. Industrial Inspection Drones
- In industrial applications like power line inspections and oil pipeline monitoring, gimbal bearings ensure stable operation of camera equipment in complex environments.
- For example, inspection drones must work in strong winds or high temperatures, so corrosion resistance and wide temperature range features of gimbal bearings are crucial.
3. Agricultural Drones
- In agricultural drones, gimbal bearings support sensors or spraying equipment, ensuring accurate operations.
- For example, agricultural drones require precise spraying over fields, and the stability and precision control of gimbal bearings are essential.
4. Security and Rescue Drones
- In security monitoring and rescue operations, gimbal bearings ensure the stable operation of camera equipment in emergencies.
- For example, rescue drones must navigate difficult terrains, where vibration resistance and fast response of gimbal bearings are particularly important.
CHG Bearings: Leading the Way in Gimbal Bearing Solutions
CHG Bearings is a renowned manufacturer specializing in high-precision bearings for gimbal systems. With years of experience and cutting-edge technology, Huigong Bearings has become a trusted name in the industry. Their products are widely used in various applications, including drone cameras, robotic arms, and aerospace stabilization systems.
Key Products for Gimbal Applications
Angular Contact Ball Bearings: Known for their high-speed capabilities and low friction, these bearings are perfect for applications where smooth and rapid rotation is essential.
Four Point Contact Ball Bearings: These bearings can support axial loads in both directions, making them suitable for compact gimbal designs.
Thin-Section Bearings: With their slim design and high load capacity, these bearings are ideal for space-constrained applications, such as drone gimbals.
Customized Solutions: CHG Bearings also offers customized bearing solutions tailored to specific gimbal requirements, ensuring optimal performance for unique applications.
Why Choose CHG Bearings?
Advanced Manufacturing Techniques: CHG Bearings utilizes state-of-the-art technology to produce bearings with exceptional precision and durability.
Extensive Industry Experience: With a proven track record in the gimbal industry, CHG Bearings understands the unique challenges and requirements of these applications.
Global Reach: CHG Bearings serves clients worldwide, providing reliable solutions for a wide range of industries.
Commitment to Quality: Every bearing undergoes rigorous testing to ensure it meets the highest standards of performance and reliability.
Conclusion
Gimbal systems play a crucial role in ensuring precision and stability across various industries. The performance of these systems depends heavily on the quality of the bearings used. CHG Bearings stands out as a leading manufacturer, offering a wide range of high-precision bearings specifically designed for gimbal applications. Whether you are developing a drone camera, a robotic arm, or an aerospace stabilization system, CHG Bearings has the expertise and products to meet your needs. Choose CHG Bearings for unmatched quality, performance, and reliability in gimbal bearing solutions.
