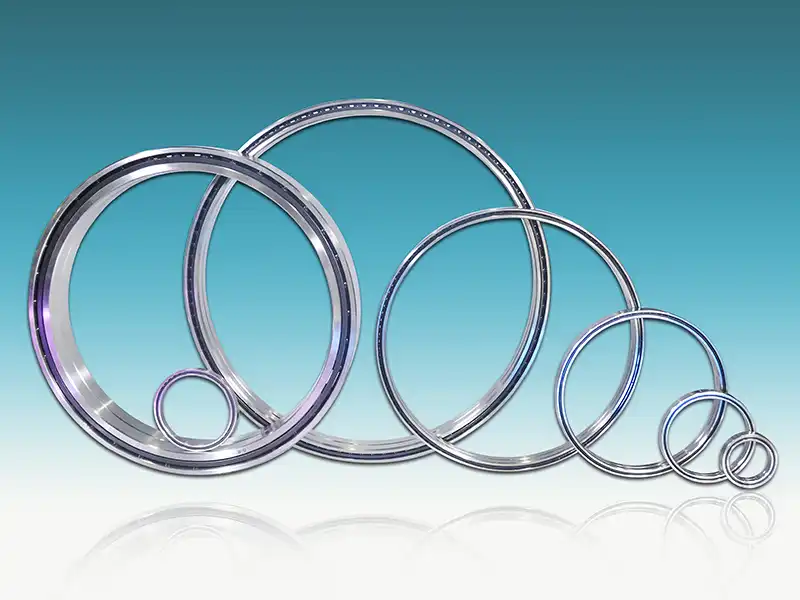

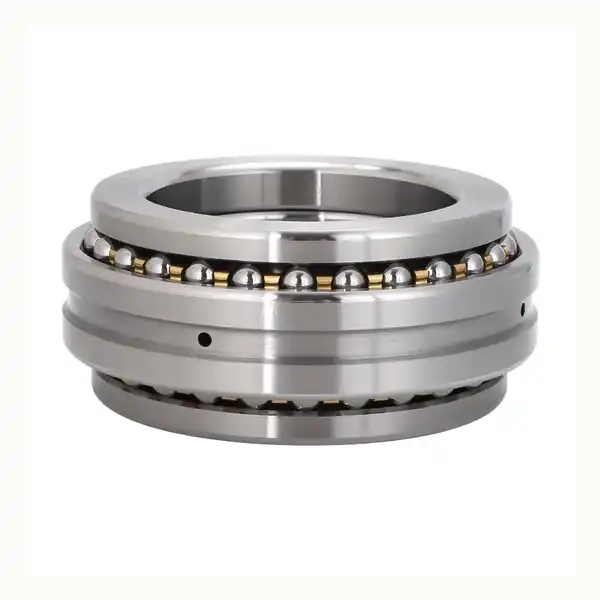

What is a Thin Section Bearing?

Thin section bearings are precision components designed for applications requiring high accuracy and compact design. These specialized bearings feature a cross-section that is much thinner than standard bearings, typically with a thickness-to-diameter ratio of 1:10 or less. This unique characteristic allows them to be integrated into space-constrained mechanisms while maintaining excellent rotational performance and load-bearing capabilities.

How do metric thin section bearings differ from standard bearings?



Metric thin section bearings represent a significant advancement in bearing technology, offering distinct advantages over standard bearings in various applications. The primary difference lies in their dimensional characteristics, with thin section bearings featuring a much smaller cross-sectional profile compared to their overall diameter.



Standard bearings typically have a thickness that is proportional to their diameter, often resulting in bulky components that may not be suitable for space-constrained designs. In contrast, metric thin section bearings maintain a slim profile across a wide range of diameters, allowing for more compact and lightweight assemblies.



The reduced cross-section of thin section bearings brings several benefits:



1. Space savings: The slim profile allows for more efficient use of space within a mechanism, enabling designers to create more compact devices or add additional components within the same footprint.



2. Weight reduction: With less material used in their construction, thin section bearings contribute to overall weight savings in the final product, which is crucial in applications where every gram counts, such as aerospace or precision instruments.



3. Increased stiffness: Despite their reduced thickness, thin section bearings often exhibit higher stiffness compared to standard bearings of similar size. This is due to the larger diameter-to-cross-section ratio, which enhances the bearing's resistance to deflection under load.



4. Improved accuracy: The reduced cross-section minimizes the effects of internal stresses and thermal expansion, leading to more precise and consistent rotational performance.



5. Lower friction: Thin section bearings typically have lower friction than standard bearings, resulting in smoother operation and reduced power consumption.



Despite these considerations, the benefits of metric thin section bearings make them invaluable in numerous applications, including robotics, medical devices, semiconductor manufacturing equipment, and aerospace systems, where space, weight, and precision are critical factors.



What are the key applications for metric thin section bearings?



Metric thin section bearings have found their way into a wide array of applications across various industries, thanks to their unique combination of compact design and high performance. Their ability to provide precise rotational support in space-constrained environments has made them indispensable in many cutting-edge technologies and precision machinery.



1. Aerospace and Defense:

In the aerospace industry, where weight and space are at a premium, thin section bearings play a crucial role. They are used in various aircraft components, including:

- Flight control systems (e.g., flaps, ailerons, and rudders)

- Satellite deployment mechanisms

- Optical systems for reconnaissance and targeting

- Gimbal systems for antennas and sensors



The low weight and high precision of these bearings contribute to fuel efficiency and improved performance of aerospace systems.



2. Medical and Dental Equipment:

The healthcare industry relies heavily on thin section bearings for various precision instruments:

- CT scanners and MRI machines (for rotating gantries)

- Dental drills and handheld surgical tools

- Robotic-assisted surgery systems

- Medical pumps and centrifuges



In these applications, the compact size of thin section bearings allows for the design of smaller, more ergonomic devices, while their precision ensures accurate and smooth operation critical for patient safety and comfort.



3. Robotics and Automation:

The field of robotics has seen significant advancements thanks to thin section bearings:

- Robot arm joints and end effectors

- Automated assembly line equipment

- Collaborative robots (cobots)

- Precision positioning stages



These bearings enable the creation of more compact and agile robotic systems, enhancing their ability to work in confined spaces and perform delicate tasks with high accuracy.



4. Semiconductor Manufacturing:

The semiconductor industry demands extreme precision in its manufacturing processes:

- Wafer handling robots

- Lithography equipment

- Inspection and testing systems

- Chemical vapor deposition chambers



Thin section bearings provide the necessary accuracy and stability for these highly sensitive processes, contributing to the production of increasingly smaller and more powerful microchips.



5. Optical and Imaging Systems:

Various optical devices benefit from the compact design of thin section bearings:

- Camera gimbals for stabilization

- Telescope mounts

- Laser scanning systems

- Microscope stages



These bearings allow for smooth, precise movements essential for capturing high-quality images and maintaining optical alignment.



6. Renewable Energy:

In the growing field of renewable energy, thin section bearings find applications in:

- Wind turbine pitch and yaw systems

- Solar panel tracking mechanisms

- Tidal and wave energy converters



Their durability and precision help improve the efficiency and reliability of these energy-generating systems.



7. Scientific Instruments:

Advanced scientific research often relies on equipment utilizing thin section bearings:

- Particle accelerators

- Spectrometers

- Vacuum chambers

- High-precision measurement devices



The bearings' ability to maintain accuracy under various conditions is crucial for conducting cutting-edge scientific experiments and measurements.



8. Consumer Electronics:

Even in everyday devices, thin section bearings play a role:

- Hard disk drives

- 3D printers

- High-end audio equipment

- Precision gaming controllers



These bearings contribute to the miniaturization and improved performance of consumer electronic devices.



The versatility of metric thin section bearings across these diverse applications demonstrates their importance in modern engineering and technology. As industries continue to push the boundaries of precision, compactness, and efficiency, the demand for these specialized bearings is likely to grow, driving further innovations in their design and manufacturing.



How are metric thin section bearings manufactured to ensure precision?



The manufacturing process for metric thin section bearings is a testament to the precision engineering capabilities of modern industry. These bearings require exceptionally tight tolerances and superior surface finishes to achieve their high performance in compact designs. The production process involves several critical stages, each contributing to the final product's accuracy and reliability.



1. Material Selection:

The first step in manufacturing thin section bearings is choosing the right materials. High-quality bearing steels, such as AISI 52100 (100Cr6) or 440C stainless steel, are commonly used due to their excellent hardness, wear resistance, and dimensional stability. For applications requiring corrosion resistance or non-magnetic properties, special alloys or ceramic materials may be employed.



2. Precision Machining:

The bearing rings are initially machined from steel bar stock or tubing using computer numerical control (CNC) lathes. This process requires extreme precision, as the thin cross-section leaves little room for error. Advanced machining techniques, such as wire electrical discharge machining (EDM), may be used for creating complex geometries or working with harder materials.



3. Heat Treatment:

After initial machining, the bearing components undergo heat treatment to enhance their mechanical properties. This process typically involves:

- Austenitizing: Heating the steel to transform its crystalline structure

- Quenching: Rapidly cooling the steel to achieve the desired hardness

- Tempering: Carefully reheating the steel to relieve internal stresses and achieve the optimal balance of hardness and toughness



The heat treatment process is carefully controlled to minimize distortion, which is particularly critical for thin section bearings due to their slender profile.



4. Grinding and Honing:

Following heat treatment, the bearing rings undergo precision grinding to achieve the final dimensions and surface finish. This process often involves:

- Rough grinding to remove any distortions from heat treatment

- Finish grinding to achieve the required dimensional accuracy

- Superfinishing or honing to create an ultra-smooth surface



For thin section bearings, achieving and maintaining flatness during grinding is crucial, as any warping can significantly affect the bearing's performance.



5. Raceway Formation:

The raceways, which are the grooved tracks along which the rolling elements move, are formed with extreme precision. This may involve:

- Precision grinding of the raceway profile

- Honing or lapping to achieve an exceptionally smooth surface finish

- In some cases, hard turning techniques for improved efficiency



The geometry and surface finish of the raceways are critical factors in determining the bearing's running accuracy and friction characteristics.



6. Rolling Element Production:

The balls or rollers used in thin section bearings are manufactured to extremely tight tolerances. This process involves:

- Precision grinding or lapping to achieve near-perfect sphericity (for balls)

- Careful sorting and matching to ensure uniformity within each bearing



The size, roundness, and surface finish of these rolling elements directly impact the bearing's performance and lifespan.



7. Assembly and Cage Manufacturing:

The cage, which separates and guides the rolling elements, is typically made from high-performance polymers or metals. It is carefully designed to minimize friction while ensuring proper spacing of the rolling elements. The assembly process involves:

- Precise placement of rolling elements within the cage

- Careful insertion of the cage and rolling element assembly between the inner and outer rings

- In some cases, snap-ring installation for retaining components



8. Quality Control and Testing:

Throughout the manufacturing process, stringent quality control measures are implemented:

- Dimensional checks using high-precision measuring equipment

- Non-destructive testing methods, such as eddy current testing, to detect any material defects

- Running accuracy tests to measure vibration levels and rotational precision

- In some cases, 100% inspection of critical dimensions and surface characteristics



9. Special Processes:

Depending on the application, additional processes may be employed:

- Coating or plating for enhanced corrosion resistance or reduced friction

- Magnetization or demagnetization for specific applications

- Custom lubrication with specialized greases or oils



10. Packaging and Environmental Control:

The final steps involve careful packaging to protect the bearings during transportation and storage. This often includes:

- Individual wrapping in protective materials

- Sealing in airtight containers with desiccants to prevent corrosion

- Clear labeling with specification and traceability information



Throughout the entire manufacturing process, environmental factors such as temperature, humidity, and cleanliness are strictly controlled to maintain the highest levels of precision.



The manufacture of metric thin section bearings exemplifies the pinnacle of precision engineering. Each step in the process is optimized to produce bearings that meet the exacting standards required for their diverse applications. As technology continues to advance, manufacturing techniques for thin section bearings are likely to evolve, potentially incorporating new materials, advanced surface treatments, and even more precise machining methods to further enhance their performance and reliability.
