Is the Tapered Roller Bearing Superior to the Ball Bearing?

In the world of mechanical engineering and industrial applications, the choice of bearings plays a crucial role in determining the performance, efficiency, and longevity of machinery. Two popular types of bearings that often come into comparison are tapered roller bearings and ball bearings. Each has its unique characteristics, advantages, and ideal applications. This blog post will delve into the question: Are tapered roller bearings better than ball bearings? We'll explore their differences, strengths, and optimal use cases to help you make an informed decision for your specific needs.



What are the advantages of four row tapered roller bearings?



Four row tapered roller bearings are a specialized type of bearing that offers several significant advantages in certain applications. These bearings consist of four rows of tapered rollers arranged in a specific configuration, typically in an opposed arrangement. This design allows them to handle heavy radial and axial loads simultaneously, making them ideal for demanding industrial applications.



One of the primary advantages of four row tapered roller bearings is their exceptional load-carrying capacity. The tapered design of the rollers allows for a larger contact area between the rollers and the raceways, distributing the load more evenly. This increased contact area enables these bearings to handle higher radial and axial loads compared to many other bearing types, including single or double row configurations.



Another significant advantage is their ability to maintain precise shaft alignment under heavy loads. The tapered design and the four-row configuration work together to provide excellent rigidity and stability, minimizing shaft deflection even under extreme conditions. This characteristic is particularly valuable in applications where maintaining precise alignment is critical, such as in machine tool spindles or heavy industrial equipment.



Four row tapered roller bearings also excel in their ability to handle combined loads. In many industrial applications, machinery is subjected to both radial and axial forces simultaneously. The unique design of these bearings allows them to efficiently manage these combined loads, reducing the need for additional bearing components and simplifying machine design.



How do tapered roller bearings compare to spherical roller bearings?



When comparing tapered roller bearings to spherical roller bearings, it's essential to understand that each type has its unique characteristics and optimal applications. Both bearing types are designed to handle heavy loads, but they differ in their specific strengths and ideal use cases.

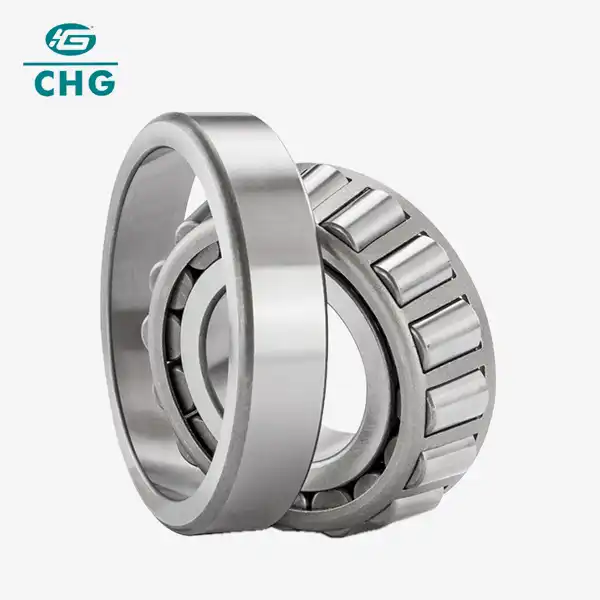

Tapered roller bearings are characterized by their conical rollers that run on tapered raceways. This design allows them to handle both radial and axial loads effectively. The tapered geometry creates a larger contact area between the rollers and races, which distributes the load more evenly and increases the bearing's overall load-carrying capacity. This makes tapered roller bearings particularly well-suited for applications where high radial and axial loads are present simultaneously.



One of the key advantages of tapered roller bearings is their ability to maintain precise shaft alignment under heavy loads. The tapered design allows for easy adjustment of bearing clearance, which is crucial in many applications to ensure optimal performance and longevity. This adjustability also makes tapered roller bearings an excellent choice for applications where thermal expansion or contraction may occur, as the clearance can be fine-tuned to accommodate these changes.



Tapered roller bearings also excel in their ability to handle thrust loads. The angled design of the rollers naturally creates an axial force component, allowing these bearings to efficiently manage thrust loads in addition to radial loads. This characteristic makes them ideal for use in automotive wheel hubs, gearboxes, and other applications where significant thrust forces are present.



On the other hand, spherical roller bearings consist of two rows of rollers with a spherical outer race. This design allows the bearing to accommodate misalignment and shaft deflection without compromising performance. Spherical roller bearings are self-aligning, which means they can adapt to angular misalignment between the shaft and housing without affecting their load-carrying capacity or increasing friction.



One of the primary advantages of spherical roller bearings is their ability to handle very heavy loads, particularly in applications where misalignment is a concern. Their self-aligning property makes them ideal for use in equipment subject to flexing or vibration, such as in heavy machinery, conveyor systems, or large industrial fans.



Spherical roller bearings also offer excellent radial load capacity and can handle moderate axial loads in both directions. However, they generally don't match the combined load-carrying capacity of tapered roller bearings, especially when it comes to heavy thrust loads.



In terms of speed capabilities, spherical roller bearings typically have an edge over tapered roller bearings. Their design allows for higher operating speeds, making them suitable for applications where both high loads and high speeds are required.



When it comes to installation and maintenance, tapered roller bearings often require more precise setup and adjustment to ensure proper preload and clearance. Spherical roller bearings, due to their self-aligning nature, are generally easier to install and more forgiving of minor misalignments.



In terms of space efficiency, tapered roller bearings can often handle higher loads in a more compact design compared to spherical roller bearings. This can be advantageous in applications where space is at a premium.



What factors should be considered when choosing between tapered and cylindrical roller bearings?



When deciding between tapered and cylindrical roller bearings, several key factors need to be carefully considered to ensure the optimal choice for a specific application. Both bearing types have their strengths and ideal use cases, and understanding these factors will help in making an informed decision.



Load characteristics are perhaps the most crucial factor to consider. Tapered roller bearings excel in handling combined radial and axial loads. Their angled roller design allows them to efficiently manage thrust loads in addition to radial forces. This makes them ideal for applications where significant axial forces are present, such as in automotive wheel hubs, gearboxes, and machine tool spindles. On the other hand, cylindrical roller bearings are primarily designed to handle heavy radial loads. While some designs can accommodate limited axial loads, they are generally not as well-suited for applications with substantial thrust forces. Cylindrical roller bearings are often preferred in applications where pure radial loads dominate, such as in electric motors, pumps, and conveyor systems.



Speed capabilities are another important consideration. Cylindrical roller bearings typically have an advantage when it comes to high-speed operation. Their design allows for lower friction and heat generation at high rotational speeds, making them suitable for applications like high-speed electric motors or turbines. Tapered roller bearings, while capable of moderate to high speeds, may have limitations in extremely high-speed applications due to their angled design, which can generate more heat at very high speeds.



Misalignment tolerance is a factor that can significantly impact bearing performance and longevity. Cylindrical roller bearings are generally more sensitive to misalignment compared to tapered roller bearings. Even small misalignments can lead to uneven load distribution and premature wear in cylindrical roller bearings. Tapered roller bearings, with their adjustable clearance and ability to accommodate some misalignment, can be more forgiving in applications where perfect alignment is challenging to maintain.



Space constraints and design compactness often play a role in bearing selection. Tapered roller bearings can typically handle higher loads in a more compact design compared to cylindrical roller bearings. This can be advantageous in applications where space is limited, such as in automotive transmissions or compact industrial machinery. However, cylindrical roller bearings may offer advantages in terms of simplicity and ease of installation in certain designs.



Stiffness and rigidity requirements are crucial in many precision applications. Tapered roller bearings generally provide higher stiffness due to their ability to be preloaded and their larger contact area. This makes them suitable for applications requiring high precision and minimal deflection under load, such as in machine tool spindles. Cylindrical roller bearings, while offering good radial stiffness, may not provide the same level of overall rigidity in applications with combined loads.



Maintenance and serviceability should also be considered. Tapered roller bearings often require more precise setup and adjustment to ensure proper preload and clearance. This can make installation and maintenance more complex, but it also allows for fine-tuning of bearing performance. Cylindrical roller bearings are generally simpler to install and maintain, which can be advantageous in applications where frequent service or replacement is necessary.



Cost considerations may also influence the decision between tapered and cylindrical roller bearings. Generally, cylindrical roller bearings tend to be more cost-effective for applications where their capabilities meet the requirements. Tapered roller bearings, with their more complex design and manufacturing process, may come at a higher initial cost but can offer long-term value in applications that benefit from their unique capabilities.



Environmental factors such as temperature, contamination, and lubrication requirements should be evaluated. Both bearing types can be designed to withstand harsh environments, but their specific capabilities may differ. Tapered roller bearings may have an advantage in contaminated environments due to their ability to maintain a lubricant film more effectively under heavy loads.



Lastly, the specific industry standards and regulations applicable to the application should be considered. Certain industries may have preferences or requirements that favor one bearing type over the other based on historical performance, safety considerations, or standardization efforts.



In conclusion, while tapered roller bearings offer distinct advantages in many applications, particularly those involving combined loads and the need for high precision, they are not universally superior to ball bearings or other bearing types. The choice between tapered roller bearings and alternatives like ball bearings, spherical roller bearings, or cylindrical roller bearings depends on the specific requirements of the application, including load characteristics, speed, misalignment tolerance, space constraints, and environmental factors. By carefully considering these factors and understanding the strengths and limitations of each bearing type, engineers and designers can make informed decisions to optimize performance, efficiency, and reliability in their mechanical systems.
