What is the Difference Between Angular Contact and Deep Groove Ball Bearings?
Ball bearings are crucial components in various mechanical systems, designed to reduce friction between moving parts and support radial and axial loads. Two common types of ball bearings are angular contact and deep groove ball bearings. While both serve the purpose of facilitating smooth rotation and reducing friction, they have distinct characteristics and applications. This blog post will explore the key differences between angular contact and deep groove ball bearings, helping you understand which type is best suited for specific applications.

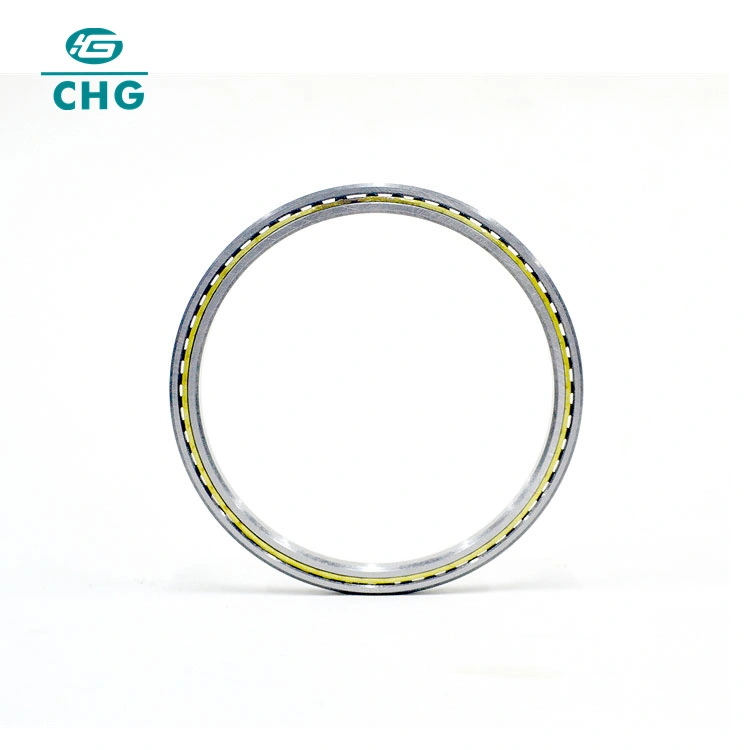

What are the advantages of precision angular contact ball bearings?
Precision angular contact ball bearings are highly specialized components designed to excel in applications requiring high accuracy, rigidity, and the ability to handle combined loads. These bearings offer several distinct advantages that make them invaluable in various industries, from machine tools to aerospace engineering.
One of the primary advantages of precision angular contact ball bearings is their ability to handle both radial and axial loads simultaneously. This is due to their unique design, which features raceways that are offset from each other, creating an angle of contact between the balls and the raceways. This angular configuration allows the bearing to efficiently distribute forces in multiple directions, making it ideal for applications where complex loading conditions are present.
Another significant advantage is the high level of precision and accuracy these bearings provide. Manufactured to tight tolerances, precision angular contact ball bearings offer exceptional rotational accuracy and minimal runout. This high precision is crucial in applications such as machine tool spindles, where even the slightest deviation can result in poor machining quality or reduced tool life. The ability to maintain accurate positioning and smooth rotation under varying loads makes these bearings indispensable in high-precision machinery.
Precision angular contact ball bearings also excel in terms of stiffness and rigidity. The angular contact design allows for preloading, which involves applying a controlled axial force to the bearing assembly. Preloading eliminates internal clearances and increases the overall stiffness of the bearing system. This enhanced rigidity is particularly beneficial in applications where minimizing deflection under load is critical, such as in robotic arms or coordinate measuring machines.
How do precision angular contact ball bearings differ from deep groove ball bearings?
Precision angular contact ball bearings and deep groove ball bearings are both widely used in various mechanical applications, but they have distinct characteristics that set them apart. Understanding these differences is crucial for engineers and designers when selecting the most appropriate bearing type for a specific application.
The most fundamental difference lies in their internal geometry. Deep groove ball bearings have a simple design with deep, uninterrupted raceway grooves in both the inner and outer rings. The balls sit in these grooves, allowing for smooth rotation primarily in the radial direction. In contrast, precision angular contact ball bearings feature raceways that are designed with an offset between the inner and outer rings, creating an angle of contact between the balls and the raceways.
This geometric difference leads to significant variations in load-bearing capabilities. Deep groove ball bearings excel at handling radial loads and can accommodate moderate axial loads in both directions. However, their ability to handle combined loads (simultaneous radial and axial forces) is limited. On the other hand, precision angular contact ball bearings are specifically designed to handle combined loads efficiently. The angular contact allows these bearings to support high axial loads in one direction and moderate radial loads, making them ideal for applications where complex loading conditions are present.
Another key distinction is in their precision and accuracy characteristics. While deep groove ball bearings can be manufactured to high precision standards, precision angular contact ball bearings generally offer superior rotational accuracy and reduced runout. This higher level of precision is achieved through tighter manufacturing tolerances and the inherent design that allows for better control of the ball positions under load. As a result, precision angular contact ball bearings are often preferred in applications requiring exceptional accuracy, such as machine tool spindles or high-precision measuring equipment.
The stiffness and rigidity of the bearing system also differ between these two types. Deep groove ball bearings provide good overall stiffness, particularly in the radial direction. However, precision angular contact ball bearings offer superior stiffness, especially when used in preloaded configurations. The ability to preload angular contact bearings by applying a controlled axial force eliminates internal clearances and significantly increases the overall rigidity of the bearing assembly. This enhanced stiffness is crucial in applications where minimizing deflection under load is critical, such as in robotics or aerospace equipment.
Speed capabilities represent another area of differentiation. While both bearing types can operate at high speeds, precision angular contact ball bearings generally have an edge in very high-speed applications. Their design allows for better management of centrifugal forces and heat generation at extreme rotational velocities. This makes them particularly suitable for high-speed spindles and turbomachinery where maintaining precision at high RPMs is essential.
Versatility in mounting arrangements is also a factor to consider. Deep groove ball bearings are typically used in simpler configurations, often as single bearings or in basic paired arrangements. Precision angular contact ball bearings, however, offer greater flexibility in mounting configurations. They can be arranged in various combinations such as back-to-back, face-to-face, or tandem setups, each providing specific benefits in terms of load capacity, stiffness, and axial displacement capabilities.
Lubrication requirements and sealing options also differ between the two bearing types. Deep groove ball bearings often have simpler lubrication needs and can operate effectively with various lubricants and sealing arrangements. Precision angular contact ball bearings, due to their more complex internal geometry and typically higher operating speeds, may require more sophisticated lubrication systems and sealing solutions to maintain optimal performance and longevity.
What factors should be considered when choosing between angular contact and deep groove ball bearings?
Selecting the appropriate type of ball bearing for a specific application is a critical decision that can significantly impact the performance, efficiency, and longevity of mechanical systems. When choosing between angular contact and deep groove ball bearings, several key factors must be carefully considered to ensure the optimal choice is made.
Load characteristics are perhaps the most crucial factor in the selection process. Deep groove ball bearings are excellent choices for applications primarily involving radial loads with moderate axial loads in either direction. They are ideal for situations where the load is predominantly perpendicular to the shaft axis. On the other hand, angular contact ball bearings are superior when dealing with combined loads, particularly when there are significant axial forces in one direction along with radial loads. If the application involves complex loading conditions or requires high axial load capacity, angular contact bearings are likely the better choice.
Operating speed is another critical consideration. Both bearing types can handle high speeds, but angular contact ball bearings generally have an advantage in extremely high-speed applications. Their design allows for better management of centrifugal forces and heat generation at very high RPMs. For applications such as high-speed machine tool spindles or turbomachinery, angular contact bearings are often preferred. However, for moderate to high-speed applications where radial loads dominate, deep groove ball bearings can still be an excellent and often more cost-effective choice.
Precision requirements play a significant role in the selection process. While both types can be manufactured to high precision standards, angular contact ball bearings typically offer superior rotational accuracy and reduced runout. In applications where extremely tight tolerances and high precision are critical, such as in metrology equipment or high-precision machining centers, angular contact bearings are usually the go-to option. For applications where moderate precision is sufficient, deep groove ball bearings can provide satisfactory performance at a potentially lower cost.
The stiffness and rigidity needs of the application should also be evaluated. Angular contact ball bearings, especially when used in preloaded configurations, offer superior stiffness and rigidity compared to deep groove ball bearings. This makes them ideal for applications where minimizing deflection under load is crucial, such as in robotic arms or aerospace mechanisms. If the application can tolerate some degree of flexibility or if the loads are primarily radial, deep groove ball bearings may be sufficient.
Space constraints and mounting arrangements are practical considerations that can influence the choice. Deep groove ball bearings generally have a simpler design and can be more compact in the axial direction. This makes them suitable for applications where space is limited. Angular contact bearings, while potentially requiring more axial space, offer more flexibility in mounting arrangements. They can be configured in various combinations (back-to-back, face-to-face, or tandem) to optimize performance for specific requirements.
Environmental factors and operating conditions should not be overlooked. Both bearing types can be designed with various sealing and lubrication options, but the specific requirements may favor one type over the other. For instance, in applications exposed to contaminants or requiring long maintenance intervals, the choice may depend on which bearing type can be more effectively sealed or lubricated for the given conditions.
Cost considerations, including both initial and lifecycle costs, are often a decisive factor. Deep groove ball bearings are generally more economical and widely available, making them a cost-effective choice for many applications. Angular contact bearings, while potentially more expensive upfront, may offer lower lifecycle costs in high-performance applications due to their superior capabilities and potential for longer service life under demanding conditions.
The dynamic characteristics of the system should also be considered. Angular contact bearings can be designed to control axial play and provide precise positioning, which can be crucial in applications with reversing axial loads or where precise axial positioning is required. Deep groove bearings, while capable of handling some axial loads, may not provide the same level of axial control.
In conclusion, the choice between angular contact and deep groove ball bearings is a multifaceted decision that requires careful consideration of various factors. By thoroughly evaluating the specific requirements of the application - including load characteristics, speed, precision needs, stiffness requirements, space constraints, environmental conditions, cost considerations, and technical expertise available - engineers can make informed decisions that optimize performance, reliability, and cost-effectiveness of their mechanical systems. In many cases, the ideal solution may involve a combination of both bearing types, leveraging the strengths of each to create a balanced and efficient system design.
