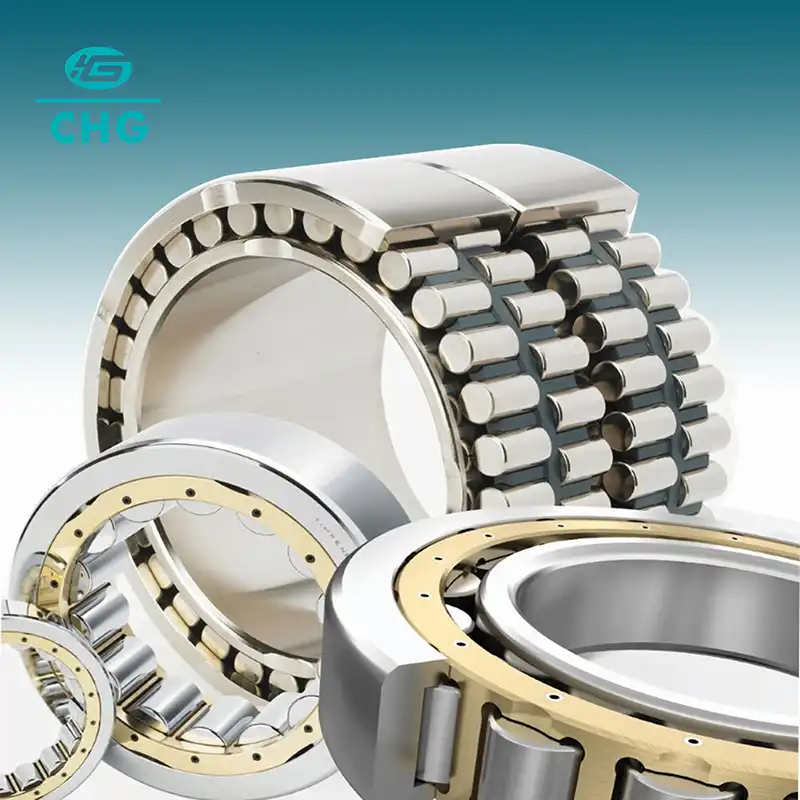

The Difference Between a Cylindrical Roller bearings and a Ball Bearings

Bearings are crucial components in various mechanical systems, enabling smooth rotation and reduced friction between moving parts. Two common types of bearings are cylindrical roller bearings and ball bearings. While both serve the purpose of facilitating motion, they have distinct characteristics and applications. This blog post will explore the key differences between cylindrical roller bearings and ball bearings, their unique features, and situations where each type excels.



What are the advantages of cylindrical roller bearings over ball bearings?

Cylindrical roller bearings offer several advantages over ball bearings in certain applications, making them the preferred choice for specific industrial and mechanical needs. Let's delve into the key benefits that set cylindrical roller bearings apart:



1. Higher load capacity: One of the most significant advantages of cylindrical roller bearings is their ability to handle much higher radial loads compared to ball bearings of similar size. This is due to the larger contact area between the rollers and the races, which distributes the load more evenly. In heavy industrial machinery, construction equipment, and large gearboxes, this higher load capacity is crucial for maintaining operational efficiency and prolonging component life.



2. Reduced stress concentration: The line contact between the rollers and races in cylindrical roller bearings results in lower stress concentrations compared to the point contact in ball bearings. This characteristic makes cylindrical roller bearings more resistant to fatigue and wear, especially under heavy loads or in applications with frequent start-stop cycles.



3. Greater stiffness: Cylindrical roller bearings provide superior stiffness, which is essential in applications requiring high precision and minimal deflection under load. This property makes them ideal for use in machine tool spindles, where maintaining tight tolerances and minimizing vibration is critical for achieving high-quality machined parts.



4. Separable design: Many cylindrical roller bearings feature a separable design, where the inner ring, roller and cage assembly, and outer ring can be mounted separately. This design flexibility simplifies installation and maintenance, particularly in split housing arrangements or when dealing with tight shaft fits.



5. Suitability for high-speed applications: While ball bearings are generally known for their high-speed capabilities, cylindrical roller bearings can also excel in high-speed operations, especially when properly lubricated and aligned. Their design allows for effective oil film formation between the rollers and races, enabling smooth operation at elevated speeds.



While these advantages highlight the strengths of cylindrical roller bearings, it's important to note that the choice between cylindrical roller and ball bearings depends on the specific requirements of each application. Factors such as load type, speed, precision needs, and operating environment all play crucial roles in determining the most suitable bearing type.



How do cylindrical roller bearings compare to ball bearings in terms of speed and friction?



When comparing cylindrical roller bearings to ball bearings in terms of speed and friction, it's essential to consider various factors that influence their performance. Both bearing types have their strengths and limitations, and understanding these can help in selecting the most appropriate bearing for a given application.



Speed Capabilities:



1. Ball bearings: Generally, ball bearings are known for their excellent high-speed performance. The point contact between the balls and races results in lower friction, allowing for higher rotational speeds. This characteristic makes ball bearings the preferred choice in applications requiring very high speeds, such as electric motors, turbines, and high-speed machine tool spindles.



2. Cylindrical roller bearings: While traditionally considered less suitable for extremely high speeds compared to ball bearings, modern cylindrical roller bearings have made significant advancements in this area. With proper design, lubrication, and cage materials, cylindrical roller bearings can operate at impressively high speeds. However, they may still have limitations in ultra-high-speed applications where ball bearings excel.



Factors influencing speed performance:



- Heat generation: At high speeds, the heat generated due to friction becomes a critical factor. Ball bearings generally produce less heat at very high speeds, giving them an advantage in certain applications.

- Lubrication: Both bearing types require proper lubrication for high-speed operation. However, the line contact in cylindrical roller bearings may require more careful consideration of lubrication methods to maintain an adequate oil film at high speeds.

- Cage design: The design and material of the cage (separator) play a crucial role in high-speed performance for both bearing types. Advanced cage designs can significantly improve the speed capabilities of cylindrical roller bearings.



Friction Characteristics:



1. Ball bearings: Due to their point contact, ball bearings typically exhibit lower friction at light to moderate loads and high speeds. This lower friction translates to reduced heat generation and energy consumption in many applications.



2. Cylindrical roller bearings: While they may have slightly higher friction at light loads, cylindrical roller bearings often demonstrate superior friction characteristics under heavy radial loads. The line contact between rollers and races distributes the load more effectively, reducing overall friction in high-load scenarios.



Factors influencing friction:



- Load magnitude: As the load increases, the friction difference between ball and cylindrical roller bearings changes. Cylindrical roller bearings often maintain lower friction under heavier loads.

- Lubrication regime: The type and effectiveness of lubrication significantly impact friction in both bearing types. Proper lubrication can minimize friction differences between the two.

- Surface finish: The quality of the surface finish on the rolling elements and races affects friction. Both bearing types benefit from high-quality surface finishes, but the impact may be more pronounced in cylindrical roller bearings due to the larger contact area.

- Operating temperature: Temperature affects lubricant viscosity and, consequently, friction. Both bearing types are influenced by temperature changes, but the effects may differ based on design and application.



Application-specific considerations:



1. Precision applications: In high-precision machinery, such as machine tool spindles, the stiffness provided by cylindrical roller bearings can be advantageous in maintaining accuracy, even if it comes at the cost of slightly higher friction.



2. Energy-efficient designs: For applications prioritizing energy efficiency, the lower friction of ball bearings at light to moderate loads can be beneficial, especially in equipment that operates frequently at partial load.



3. Heavy industrial machinery: In applications involving heavy radial loads, the lower friction characteristics of cylindrical roller bearings under these conditions can lead to improved energy efficiency and reduced heat generation.



4. Start-stop operations: Applications with frequent starts and stops may benefit from the lower starting friction of ball bearings, particularly under light loads.



5. High-speed, light-load applications: Industries such as aerospace or high-speed machining often prefer ball bearings for their superior performance in high-speed, relatively light-load scenarios.



In conclusion, while ball bearings generally offer advantages in terms of maximum attainable speeds and lower friction under light to moderate loads, cylindrical roller bearings have made significant strides in high-speed capabilities and offer unique benefits in heavy-load applications. The choice between the two depends on a careful analysis of the specific application requirements, including speed, load, precision needs, and operating conditions. In many cases, the optimal solution may involve using both types of bearings in different parts of a machine or system, leveraging the strengths of each to achieve the best overall performance.



What are the key factors to consider when choosing between cylindrical roller bearings and ball bearings?



When faced with the decision of choosing between cylindrical roller bearings and ball bearings, engineers and designers must carefully evaluate several key factors to ensure optimal performance, longevity, and efficiency in their applications. This comprehensive analysis will guide you through the critical considerations that should inform your bearing selection process.



1. Load Characteristics:

- Radial Load Capacity: Cylindrical roller bearings excel in applications with high radial loads due to their larger contact area. If your application primarily involves heavy radial loads, cylindrical roller bearings might be the preferred choice.

- Axial Load Capacity: Standard cylindrical roller bearings have limited axial load capacity. If your application involves significant axial loads, ball bearings or specialized cylindrical roller bearings (e.g., tapered roller bearings) might be more suitable.

- Combined Loads: For applications with combined radial and axial loads, consider the ratio between these loads. Ball bearings can handle combined loads more effectively in many cases, but specialized cylindrical roller bearings might be necessary for high radial loads with moderate axial components.



2. Speed Requirements:

- High-Speed Applications: Ball bearings are traditionally favored for very high-speed operations due to their lower friction and heat generation. However, modern cylindrical roller bearings can also perform well at high speeds with proper design and lubrication.

- Speed Limits: Consider the maximum speed ratings of both bearing types in relation to your application's requirements. Factors like bearing size, lubrication method, and cage design can influence these limits.



3. Precision and Stiffness:

- Runout and Accuracy: If your application demands high precision, such as in machine tool spindles, the inherent stiffness of cylindrical roller bearings can provide better control over runout and deflection under load.

- Stiffness Requirements: Cylindrical roller bearings offer greater stiffness, which is crucial in applications where maintaining tight tolerances is essential.



4. Space Constraints:

- Radial Space: Cylindrical roller bearings can carry higher loads for a given envelope size, making them advantageous in applications with radial space limitations but high load requirements.

- Axial Space: Ball bearings, especially deep groove types, can be more compact in the axial direction, which might be crucial in certain design constraints.



5. Misalignment Tolerance:

- Sensitivity to Misalignment: Ball bearings, especially self-aligning types, can tolerate greater misalignment between the shaft and housing. Standard cylindrical roller bearings are more sensitive to misalignment, although designs with crowned rollers can offer some tolerance.

- Installation and Maintenance: Consider the potential for misalignment in your application, both during initial installation and over the life of the equipment.



6. Operating Temperature:

- Heat Generation: Ball bearings generally generate less heat at very high speeds, which can be crucial in applications where temperature control is critical.

- Temperature Range: Both bearing types can be designed for high-temperature applications, but the specific temperature limits may vary. Consider the expected operating temperature range in your application.



In conclusion, the choice between cylindrical roller bearings and ball bearings is rarely straightforward and requires a holistic evaluation of your application's specific needs. While cylindrical roller bearings offer advantages in high-load, high-stiffness scenarios, ball bearings excel in high-speed, low-friction applications. Often, the optimal solution involves a combination of both bearing types within a single machine or system, leveraging the strengths of each to achieve the best overall performance.



By carefully considering these factors and potentially consulting with bearing manufacturers or specialists, you can make an informed decision that ensures optimal performance, longevity, and cost-effectiveness in your mechanical system. Remember that bearing selection is a critical aspect of mechanical design that can significantly impact the overall success and efficiency of your project.
