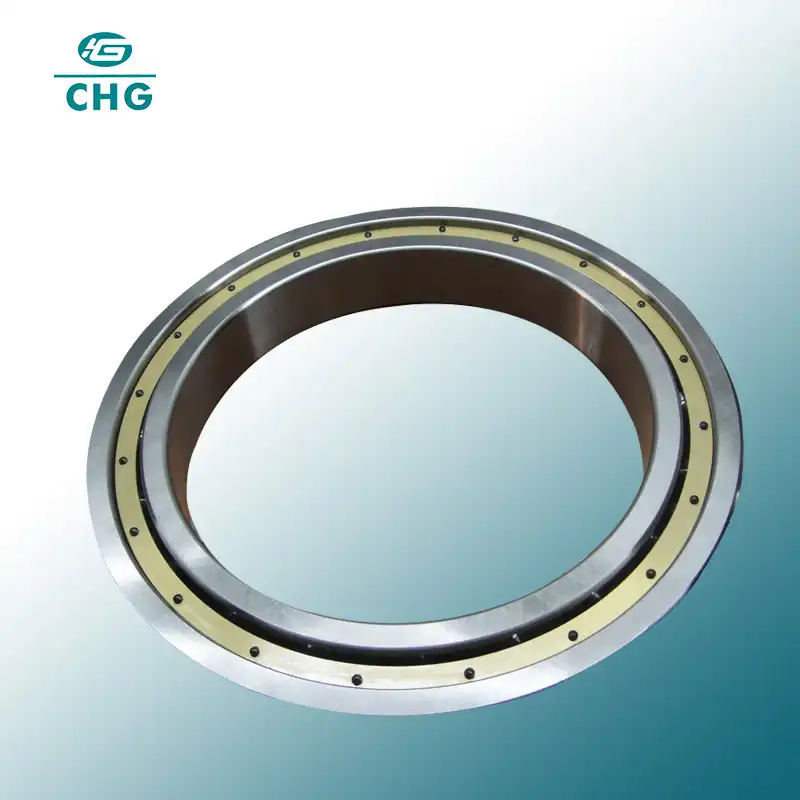

Can Deep Groove Ball Bearings Take Radial Load?

Deep groove ball bearings are a fundamental component in many mechanical systems, widely used across various industries due to their versatility and efficiency. One of the most common questions about these bearings is whether they can handle radial loads. The simple answer is yes, deep groove ball bearings are indeed capable of taking radial loads, and in fact, they excel at it.

Radial loads are forces that act perpendicular to the shaft axis, and deep groove ball bearings are specifically designed to handle these loads effectively. Their structure allows them to support substantial radial forces while maintaining smooth rotation and minimizing friction. This capability makes them an ideal choice for applications where radial loads are a primary concern.



Let's delve deeper into the world of deep groove ball bearings and explore their capabilities, advantages, and factors that influence their performance under radial loads.



What are the advantages of deep groove ball bearings?



Deep groove ball bearings offer numerous advantages that make them a popular choice in various applications. Their unique design and construction contribute to their exceptional performance and versatility.



1. High Radial Load Capacity:

One of the primary advantages of deep groove ball bearings is their ability to handle significant radial loads. The deep, uninterrupted raceway grooves in both the inner and outer rings provide an excellent contact surface for the balls. This design allows for efficient distribution of radial forces across multiple balls, enabling the bearing to support heavy loads while maintaining smooth operation.



2. Low Friction and High-Speed Capability:

Deep groove ball bearings are renowned for their low friction characteristics. The rolling motion of the balls between the races generates minimal friction compared to sliding contact bearings. This low friction translates to reduced heat generation and power loss, making deep groove ball bearings ideal for high-speed applications. They can operate at higher RPMs while maintaining their efficiency and longevity.



3. Bidirectional Load Support:

Unlike some specialized bearings, deep groove ball bearings can support loads in both axial directions in addition to radial loads. This bidirectional capability makes them versatile and suitable for applications where the direction of the load may vary or where both radial and axial loads are present.



4. Compact Design and Space Efficiency:

Deep groove ball bearings have a simple and compact design. They require minimal radial space, making them an excellent choice for applications where space is at a premium. Despite their compact size, they offer impressive load-bearing capabilities, making them a space-efficient solution for many engineering challenges.



5. Low Maintenance and Long Service Life:

When properly installed and lubricated, deep groove ball bearings require minimal maintenance. Their design allows for effective sealing against contaminants, which helps preserve the lubricant and protect the rolling elements. This feature, combined with their low friction characteristics, contributes to an extended service life, reducing the need for frequent replacements and minimizing downtime in industrial applications.



These advantages make deep groove ball bearings a go-to solution for many engineering challenges, particularly in applications where radial loads are a primary concern. Their ability to handle radial loads efficiently while offering additional benefits like low friction and compact design makes them an invaluable component in countless mechanical systems across various industries.

How do deep groove ball bearings compare to other bearing types?



When selecting the appropriate bearing for a specific application, it's crucial to understand how deep groove ball bearings stack up against other bearing types. This comparison will help highlight the strengths and potential limitations of deep groove ball bearings in different scenarios.



1. Deep Groove Ball Bearings vs. Roller Bearings:

Deep groove ball bearings and roller bearings (such as cylindrical or tapered roller bearings) are both designed to handle radial loads, but they have distinct characteristics:



- Load Capacity: Roller bearings generally have a higher radial load capacity compared to deep groove ball bearings of similar size. The line contact between the rollers and raceways allows for better load distribution. However, deep groove ball bearings are often sufficient for many applications and offer other advantages.



- Speed Capability: Deep groove ball bearings typically have a higher speed capability than roller bearings. The point contact between the balls and raceways generates less friction, allowing for higher rotational speeds.



- Axial Load Handling: While deep groove ball bearings can handle some axial loads in both directions, roller bearings are often better suited for heavy axial loads, especially tapered roller bearings.



- Friction: Deep groove ball bearings generally have lower friction than roller bearings, which can lead to lower operating temperatures and improved efficiency in high-speed applications.



2. Deep Groove Ball Bearings vs. Angular Contact Ball Bearings:

Both are ball bearing types, but they have different design features and capabilities:



- Load Direction: Deep groove ball bearings are primarily designed for radial loads but can handle moderate axial loads in both directions. Angular contact ball bearings are specifically designed to handle combined radial and axial loads in one direction.



- Contact Angle: Deep groove ball bearings have a nominal contact angle of 0°, while angular contact bearings have a designed contact angle (typically 15° to 40°). This angle allows angular contact bearings to better handle axial loads.



- Precision: Angular contact bearings are often used in high-precision applications due to their ability to be preloaded, which can eliminate play in the bearing. Deep groove ball bearings are suitable for general-purpose applications where extreme precision is not required.



3. Deep Groove Ball Bearings vs. Self-Aligning Ball Bearings:

Both use balls as rolling elements, but they have different structural designs:



- Misalignment Tolerance: Self-aligning ball bearings have a spherical outer race that allows them to tolerate significant misalignment between the shaft and housing. Deep groove ball bearings have limited misalignment capability.



- Load Capacity: Deep groove ball bearings generally have a higher load capacity than self-aligning ball bearings of similar size due to their more rigid structure.



- Speed Capability: Deep groove ball bearings typically have a higher speed capability than self-aligning ball bearings.



4. Deep Groove Ball Bearings vs. Thrust Ball Bearings:

These bearings are designed for different primary load directions:



- Load Direction: Deep groove ball bearings are primarily designed for radial loads but can handle moderate axial loads. Thrust ball bearings are specifically designed to handle axial loads in one direction.



- Radial Load Capacity: Deep groove ball bearings have a significant radial load capacity, while thrust ball bearings have very limited or no radial load capacity.



- Application: Deep groove ball bearings are versatile and used in a wide range of applications. Thrust ball bearings are typically used in applications where the primary load is axial, such as in vertical shaft arrangements.



In conclusion, while deep groove ball bearings excel in many areas, particularly in handling radial loads with low friction at high speeds, the choice of bearing type ultimately depends on the specific requirements of the application. Factors such as load direction and magnitude, speed, precision requirements, misalignment tolerance, and environmental conditions all play a role in determining the most suitable bearing type for a given situation.



What factors affect the radial load capacity of deep groove ball bearings?



The radial load capacity of deep groove ball bearings is a critical factor in their performance and longevity. Several factors influence this capacity, and understanding these can help in selecting the right bearing for a specific application and ensuring optimal performance. Let's explore the key factors that affect the radial load capacity of deep groove ball bearings:

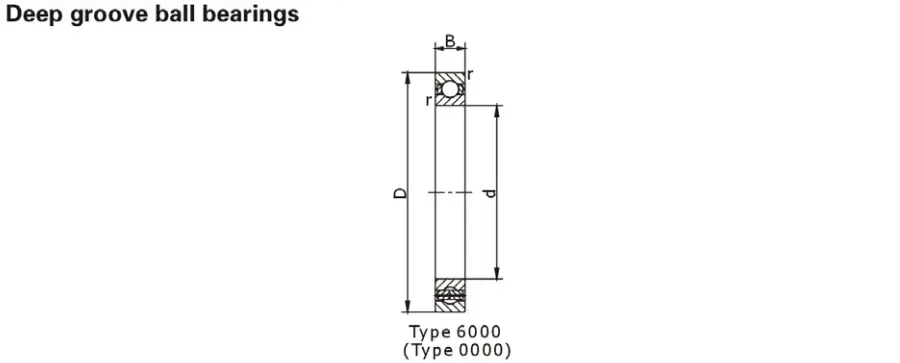

1. Bearing Size and Geometry:

The size and internal geometry of the bearing play a crucial role in determining its radial load capacity. Larger bearings generally have higher load capacities due to:



- Increased ball size: Larger balls can distribute the load over a greater surface area, reducing stress on individual components.

- More balls: A higher number of balls allows for better load distribution.

- Wider raceways: Broader raceways provide more contact surface, improving load distribution.



The curvature of the raceways also affects load capacity. A closer conformity between the balls and raceways can increase load capacity but may reduce speed capability.



2. Material Properties:

The materials used in the construction of the bearing significantly impact its load capacity:



- Hardness: Harder materials can withstand higher loads without deformation.

- Toughness: Materials with higher toughness can better resist fatigue and impact loads.

- Purity and homogeneity: Higher quality materials with fewer impurities and more consistent properties tend to have better load-bearing capabilities.



Common materials for deep groove ball bearings include various grades of steel, such as chrome steel, stainless steel, and tool steel. Ceramic materials are also used in high-performance applications.



3. Manufacturing Precision:

The precision with which a bearing is manufactured directly affects its load capacity:



- Surface finish: A smoother surface finish on the balls and raceways reduces stress concentrations and improves load distribution.

- Dimensional accuracy: Tighter tolerances ensure better load distribution among the balls and more consistent performance.

- Raceway alignment: Proper alignment of the raceways ensures even load distribution and reduces localized stress.



4. Operating Speed:

While not directly affecting the static load capacity, the operating speed of the bearing influences its dynamic load capacity:



- At higher speeds, centrifugal forces on the balls increase, which can reduce the effective radial load capacity.

- The speed factor is often accounted for in load ratings, with separate static and dynamic load capacities specified.



Understanding these factors is crucial for engineers and designers when selecting and implementing deep groove ball bearings in various applications. By considering these aspects, one can ensure that the chosen bearing will have sufficient radial load capacity for the intended application, leading to optimal performance and longevity of the mechanical system.



In conclusion, deep groove ball bearings are indeed capable of handling significant radial loads, making them a versatile and popular choice in many applications. Their ability to combine high radial load capacity with low friction, high-speed capability, and compact design sets them apart from many other bearing types. However, to fully leverage their capabilities, it's crucial to consider all the factors that influence their performance, from proper selection and installation to ongoing maintenance and monitoring. By doing so, engineers and designers can ensure that deep groove ball bearings continue to play a vital role in advancing mechanical technology across various industries.



Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.



References:



1. SKF Group. (2018). Rolling bearings. SKF Group.

2. Hamrock, B. J., & Anderson, W. J. (1983). Rolling-element bearings. NASA Reference Publication 1105.

3. Harris, T. A., & Kotzalas, M. N. (2006). Essential concepts of bearing technology. CRC press.

4. NSK Ltd. (2015). Rolling Bearings. NSK Motion & Control.

5. Schaeffler Technologies AG & Co. KG. (2019). Rolling Bearing Catalogs. Schaeffler Group.

6. Timken Company. (2017). Timken Engineering Manual. The Timken Company.

7. Harnoy, A. (2002). Bearing design in machinery: engineering tribology and lubrication. CRC press.

8. American Bearing Manufacturers Association. (2017). ABMA 9:1990 (R2015) Load Ratings and Fatigue Life for Ball Bearings. ABMA.

9. International Organization for Standardization. (2007). ISO 281:2007 Rolling bearings — Dynamic load ratings and rating life. ISO.

10. Zaretsky, E. V. (2012). Rolling bearing life prediction, theory, and application. NASA/TP—2013-215305.
