How Are Type A Thin Section Bearings Installed?

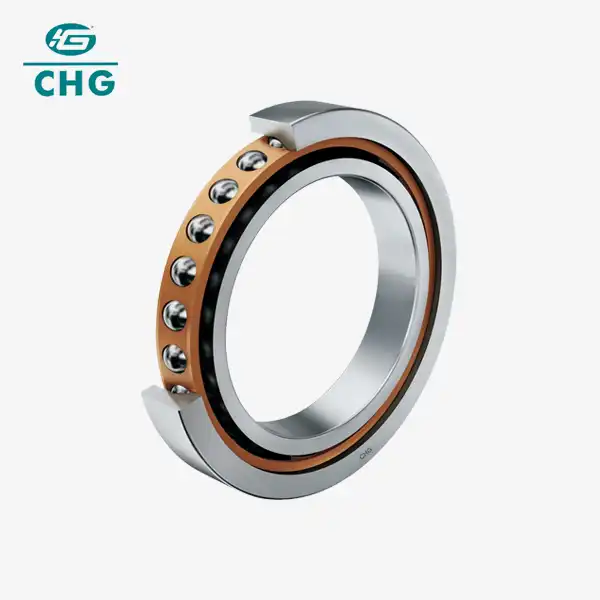

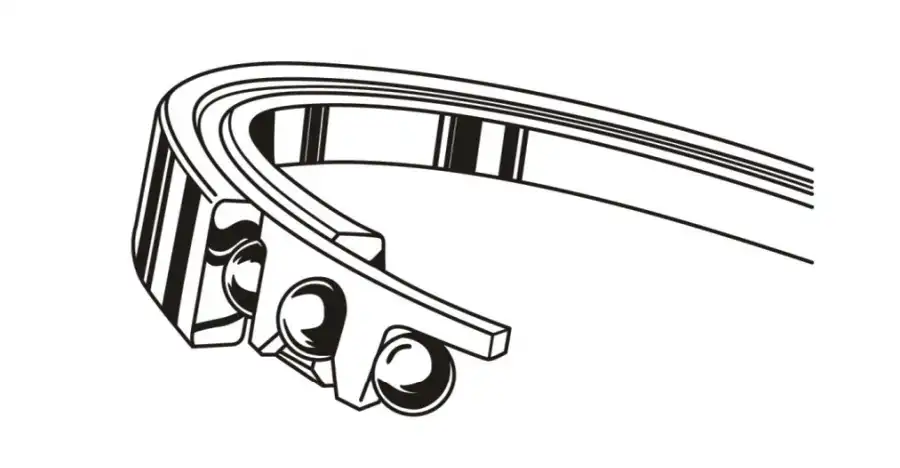

Type A thin section bearings are specialized components designed for applications requiring compact, lightweight, and high-precision rotational support. These bearings are characterized by their thin cross-section and large bore diameter, making them ideal for space-constrained environments. The installation process for Type A thin section bearings is crucial to ensure optimal performance and longevity. This blog post will explore the intricacies of installing these bearings, addressing common questions and providing valuable insights for engineers and technicians.
What are the key considerations before installing Type A thin section bearings?
Before embarking on the installation process, several critical factors must be taken into account to ensure the success of the operation. First and foremost, cleanliness is paramount. The work area, tools, and components must be meticulously cleaned to prevent contamination. Even microscopic particles can significantly impact the bearing's performance and lifespan.
Another crucial consideration is the selection of appropriate tools and equipment. Precision instruments such as micrometers, dial indicators, and torque wrenches are essential for accurate measurements and controlled assembly. It's also important to have the manufacturer's specifications and installation guidelines on hand, as these will provide critical information on tolerances, fits, and recommended procedures.
Temperature management is another key aspect to consider. Both the bearing and the housing should be at room temperature before installation to prevent thermal expansion or contraction issues. In some cases, controlled heating or cooling may be necessary to achieve the correct fit.
Proper handling of the bearing is essential to avoid damage. Type A thin section bearings are particularly susceptible to deformation due to their thin cross-section. Always handle the bearings by their outer ring, and avoid applying pressure to the inner ring or separator.
Lubrication is another critical factor. The choice of lubricant and the method of application must be carefully considered based on the bearing's operating conditions and environment. Some applications may require special lubricants or even dry-running bearings.

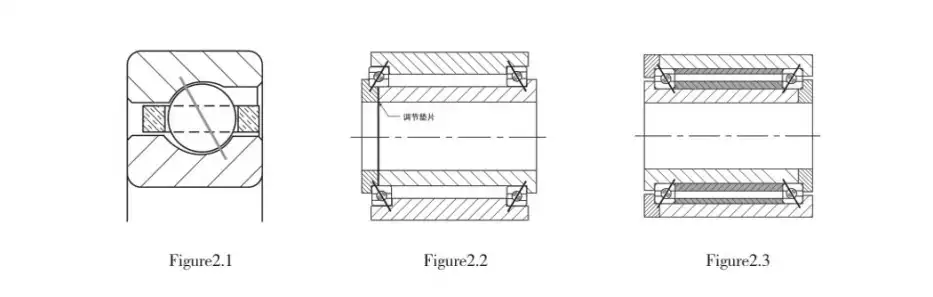

Lastly, it's crucial to assess the mounting arrangement and load conditions. Type A thin section bearings can be mounted in various configurations, including back-to-back, face-to-face, or tandem arrangements. The chosen configuration should align with the application's requirements in terms of load direction, stiffness, and misalignment tolerance.
By thoroughly addressing these considerations, engineers can lay the groundwork for a successful installation process, ensuring the longevity and optimal performance of Type A thin section bearings in their intended applications.
What are the step-by-step procedures for installing Type A thin section bearings?
The installation of Type A thin section bearings requires a methodical approach to ensure proper alignment, fit, and function. Here's a detailed step-by-step guide to the installation process:
1. Preparation:
Begin by thoroughly cleaning the bearing, shaft, and housing. Use lint-free cloths and appropriate solvents to remove any dirt, debris, or protective coatings. Inspect all components for damage or defects.
2. Measurement and Verification:
Use precision measuring tools to verify the dimensions of the shaft, housing bore, and bearing. Ensure that all measurements fall within the specified tolerances provided by the manufacturer.
3. Lubrication:
Apply the specified lubricant to the bearing races and rolling elements. If using grease, be careful not to over-pack, as this can lead to increased operating temperatures and reduced efficiency.
4. Mounting the Inner Ring:
For interference fits, the inner ring may need to be heated to expand slightly for easier installation. Use an induction heater or oil bath to achieve uniform heating. Never exceed the maximum recommended temperature, typically around 120°C (248°F).
5. Shaft Installation:
Carefully slide the bearing onto the shaft. For press fits, use an arbor press or hydraulic press with appropriate tooling to ensure even force distribution. Never strike the bearing directly with a hammer.
6. Securing the Inner Ring:
Depending on the design, secure the inner ring axially using a locknut, retaining ring, or end cap. Ensure proper tightening to the specified torque values.
7. Housing Installation:
If the outer ring has an interference fit with the housing, the housing may need to be heated for easier installation. Alternatively, the bearing can be cooled using dry ice or liquid nitrogen, though this requires careful handling and safety precautions.
8. Aligning Multiple Bearings:
In applications requiring multiple bearings, ensure proper alignment using dial indicators or laser alignment tools. Misalignment can significantly reduce bearing life and performance.
9. Preload Adjustment:
If preload is required, follow the manufacturer's guidelines for achieving the correct preload using shims, springs, or adjusting nuts.
10. Sealing:
Install appropriate seals or shields to protect the bearing from contaminants and retain lubricant. Ensure seals are properly seated and oriented.
11. Final Checks:
Rotate the assembly by hand to check for smooth operation. Listen for any unusual noises and feel for any roughness or binding.
12. Run-in and Monitoring:
After installation, conduct a run-in procedure as recommended by the manufacturer. Monitor temperature, vibration, and noise levels during initial operation to ensure proper function.
Throughout the installation process, it's crucial to maintain cleanliness and handle components with care. Any contamination or damage during installation can significantly impact the bearing's performance and lifespan.
For particularly challenging installations or critical applications, consider seeking assistance from the bearing manufacturer or a specialized installation service. Their expertise can be invaluable in ensuring proper installation and optimal performance of Type A thin section bearings.
What are common mistakes to avoid when installing Type A thin section bearings?
Despite the best intentions, errors can occur during the installation of Type A thin section bearings. Being aware of common mistakes can help engineers and technicians avoid pitfalls that could compromise bearing performance or lead to premature failure. Here are some of the most frequent errors and how to avoid them:
1. Contamination:
One of the most critical errors is allowing contaminants to enter the bearing during installation. Even microscopic particles can cause significant damage. Always work in a clean environment, use clean tools, and handle bearings with clean, lint-free gloves. If a bearing is dropped or exposed to contaminants, it's best to discard it rather than risk installation.
2. Improper Handling:
Type A thin section bearings are particularly susceptible to damage due to their thin cross-section. Never apply force to the inner ring when the outer ring is supported, or vice versa, as this can cause brinelling or other damage. Always handle bearings by their thickest race and avoid direct contact with rolling elements.
3. Misalignment:
Proper alignment is crucial for optimal bearing performance. Misalignment can lead to increased friction, heat generation, and premature wear. Use precision alignment tools and techniques to ensure proper shaft and housing alignment. In multi-bearing arrangements, pay special attention to the relative alignment between bearings.
4. Incorrect Fit:
Using the wrong fit for the application can lead to various issues. Too tight a fit can cause excessive stress and reduce internal clearance, while too loose a fit can allow fretting and movement. Always follow the manufacturer's recommendations for shaft and housing fits based on the specific application requirements.
5. Inadequate Lubrication:
Both under-lubrication and over-lubrication can be problematic. Insufficient lubrication can lead to increased friction and wear, while excess lubrication can cause churning, heat generation, and potential seal damage. Follow the manufacturer's guidelines for lubricant type, quantity, and application method.
6. Improper Preload:
Applying incorrect preload can significantly impact bearing performance. Too much preload can lead to excessive heat generation and reduced life, while insufficient preload may result in inadequate stiffness or axial play. Use proper tools and techniques to achieve the specified preload for the application.
7. Neglecting Thermal Considerations:
Failing to account for thermal expansion or contraction can lead to fit issues or internal clearance problems. Ensure components are at the correct temperature before installation, and consider the operating temperature range when selecting fits and clearances.
8. Using Improper Tools:
Attempting to install bearings without the proper tools can lead to damage or improper seating. Invest in quality installation tools, including presses, pullers, and heating equipment designed for bearing installation.
9. Ignoring Manufacturer Guidelines:
Each bearing type and application may have specific installation requirements. Failing to follow the manufacturer's guidelines can lead to suboptimal performance or premature failure. Always consult and adhere to the provided installation instructions.
10. Neglecting Post-Installation Checks:
Skipping final checks after installation can allow problems to go unnoticed. Always verify smooth rotation, proper seating, and correct clearances before putting the bearing into service.
11. Rough Handling During Mounting:
Using excessive force or impact during mounting can cause damage to the bearing or associated components. Never use hammers or other impact tools directly on the bearing. Instead, use proper pressing tools and techniques for controlled, even force application.
12. Overlooking Environmental Factors:
Failing to consider the operating environment can lead to premature failure. Ensure that the chosen seals, lubricants, and materials are suitable for the expected temperature, humidity, and potential contaminants in the application.
By being aware of these common mistakes and taking proactive steps to avoid them, engineers and technicians can significantly improve the success rate of Type A thin section bearing installations. This attention to detail not only ensures optimal performance but also extends the operational life of the bearings and the equipment they support.
Remember, when in doubt, it's always best to consult with the bearing manufacturer or a specialized technician. Their expertise can provide valuable insights and help avoid costly errors in the installation process.
