What Makes Single Row Cylindrical Roller Bearings Suitable for High Radial Load Applications?

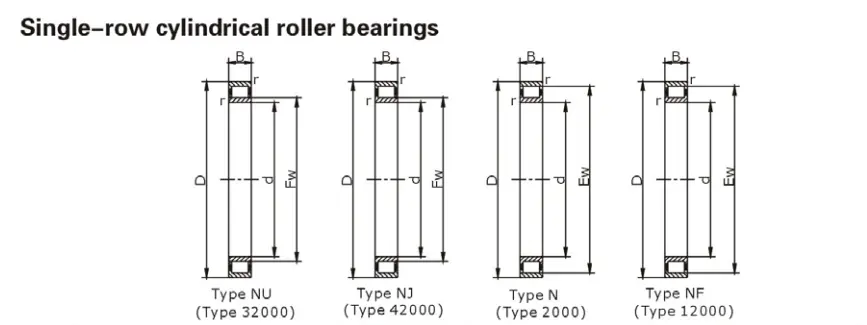

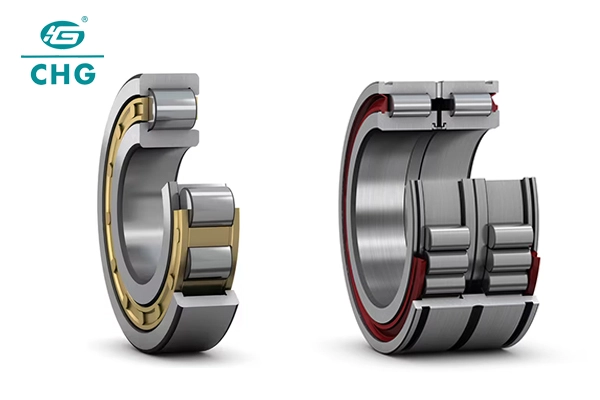

Single row cylindrical roller bearings have established themselves as indispensable components in modern machinery, particularly in applications demanding exceptional radial load capacity. These bearings feature cylindrical rollers arranged in a single row between the inner and outer rings, creating a robust design that excels in managing heavy radial loads while maintaining precision and reliability. Their unique construction and operational characteristics make them the preferred choice for engineers and designers working on high-performance industrial applications.

How Do the Design Features of Cylindrical Roller Bearings Contribute to Their Load-Bearing Capacity?



The exceptional load-bearing capacity of single row cylindrical roller bearings stems from their innovative design features that work in harmony to distribute forces effectively. The cylindrical rollers provide line contact with the raceways, creating a significantly larger load-bearing surface compared to point contact bearings. This line contact pattern enables the bearing to handle substantial radial loads by distributing the force across the entire roller length, reducing stress concentrations and enhancing overall durability.



The precision-engineered roller geometry plays a crucial role in load distribution. Modern manufacturing techniques ensure optimal roller profiles with slight crowning at the ends, preventing edge stress concentrations that could lead to premature wear. The rollers' length-to-diameter ratio is carefully calculated to maximize load capacity while maintaining stability during operation. Additionally, the cage design keeps the rollers properly spaced and aligned, ensuring uniform load distribution and preventing roller skewing under heavy loads.



Furthermore, the internal clearance of these bearings is meticulously controlled during manufacturing. This precise clearance control allows for thermal expansion during operation while maintaining optimal contact between rollers and raceways. The clearance also influences the number of rollers effectively carrying the load at any given time, with proper clearance ensuring maximum roller participation in load-bearing.



The material selection and heat treatment processes contribute significantly to the bearing's load-bearing capabilities. High-grade bearing steels, typically through-hardened or case-hardened, provide the necessary hardness and durability to withstand high stresses. Surface finishing techniques, including superfinishing of raceways and rollers, reduce friction and enhance the bearing's ability to maintain a lubricant film under heavy loads.



What Role Does Lubrication Play in Maximizing the Performance of Cylindrical Roller Bearings?



Lubrication serves as a cornerstone in optimizing the performance and longevity of single row cylindrical roller bearings under high radial loads. The lubricant creates a vital film between the rolling elements and raceways, performing multiple critical functions that collectively enhance bearing operation and reliability. Understanding the complexities of lubrication helps engineers select the most appropriate lubricant type and maintenance protocols for specific applications.



The primary function of lubrication is to minimize metal-to-metal contact between the rollers and raceways. Under high radial loads, the elastohydrodynamic lubrication (EHL) film becomes crucial in supporting the load and preventing direct surface contact. The lubricant film thickness must be maintained above a critical minimum value to prevent surface distress and premature wear. Modern lubricants are formulated with specific additives that maintain film strength under extreme pressures and temperatures commonly encountered in high-load applications.



Temperature management through lubrication is another vital aspect. The lubricant acts as a heat transfer medium, carrying away heat generated by friction and maintaining optimal operating temperatures. This thermal management capability becomes particularly important in high-speed applications where heat generation can be substantial. The lubricant's viscosity characteristics must be carefully selected to maintain adequate film thickness across the expected operating temperature range.



Different lubrication methods, including oil bath, oil circulation, and grease lubrication, offer varying advantages depending on the application requirements. Oil circulation systems, for instance, provide superior cooling and contamination removal capabilities, making them ideal for high-speed, high-load applications. Grease lubrication, while simpler to implement, requires careful consideration of re-lubrication intervals and grease composition to maintain optimal performance.

How Do Operating Conditions Affect the Service Life of Cylindrical Roller Bearings?



Operating conditions significantly influence the service life and reliability of single row cylindrical roller bearings, making it essential to understand their impact on bearing performance. These conditions encompass various factors including speed, load variations, temperature, environmental conditions, and maintenance practices. Proper management of these operating parameters ensures optimal bearing performance and maximizes service life.



Speed considerations play a vital role in bearing operation. While cylindrical roller bearings can handle high speeds effectively, the speed rating depends on several factors including lubrication method, cage design, and cooling capabilities. At higher speeds, centrifugal forces affect roller dynamics and lubrication requirements increase. The bearing's speed capability must be balanced with its load capacity to ensure reliable operation within the design parameters.



Temperature management becomes critical in high-load applications. Excessive operating temperatures can affect lubricant performance, bearing clearances, and material properties. Monitoring bearing temperature provides valuable insights into operating conditions and can help prevent premature failures. Proper cooling strategies, including adequate lubrication and housing design, help maintain acceptable operating temperatures.



Environmental conditions, including contamination and moisture exposure, significantly impact Single Row Cylindrical Roller Bearings life. Effective sealing solutions protect the bearing from contaminants while retaining lubricant. Modern seal designs balance protection with minimal friction increase. Regular monitoring of lubricant condition and timely replacement help maintain optimal bearing performance.



Proper mounting and alignment are crucial for achieving expected service life. Misalignment can lead to uneven load distribution and accelerated wear. Advanced mounting techniques and tools ensure precise installation, while periodic monitoring helps detect and correct alignment issues before they cause damage.

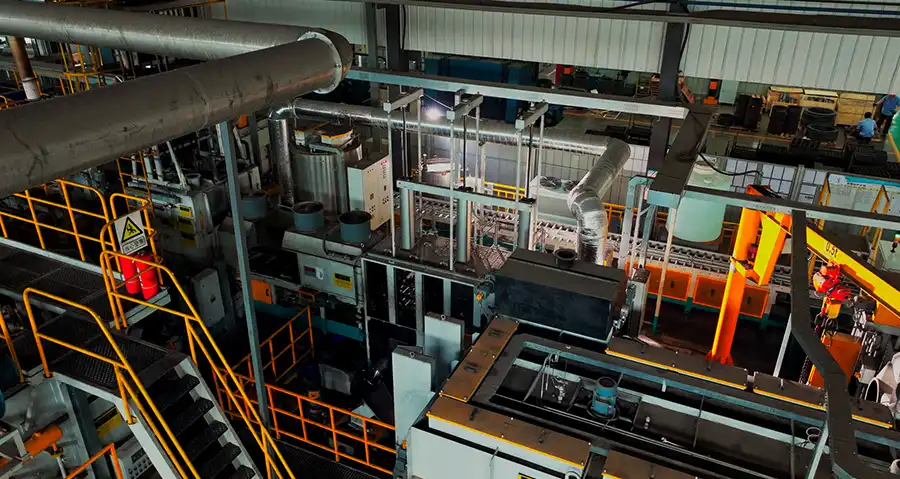

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.



References

1. SKF Group. (2023). "Cylindrical Roller Bearings: Technical Principles and Design." SKF Technical Handbook.

2. Timken Company. (2024). "Engineering Manual: Cylindrical Roller Bearing Design and Application."

3. NSK Ltd. (2023). "Rolling Bearings: Technical Report on High Load Applications."

4. Schaeffler Group. (2023). "INA/FAG Rolling Bearings: Fundamentals and Applications."

5. NTN Corporation. (2024). "Technical Guide: Cylindrical Roller Bearings in Industrial Applications."

6. JTEKT Corporation. (2023). "Bearing Technology: Advanced Solutions for Heavy Load Applications."

7. Zhang, J., & Liu, Y. (2023). "Analysis of Roller Bearing Performance Under Extreme Loading Conditions." Tribology International.

8. Smith, R. H., & Johnson, K. L. (2023). "Lubrication Principles in Rolling Element Bearings." Journal of Tribology.

9. Brown, M. W. (2024). "Bearing Life Prediction Methods for Industrial Applications." Mechanical Systems and Signal Processing.

10. Wilson, A. R. (2023). "Modern Approaches to Industrial Bearing Maintenance." Reliability Engineering & System Safety.
